Delton Ergonomic Vertical Rechargeable Wireless Mouse S12 User Manual

1. Introduction

Thank you for choosing the Delton Ergonomic Vertical Rechargeable Wireless Mouse S12. This manual provides detailed instructions for setting up, operating, and maintaining your new mouse. Designed for comfort and efficiency, this vertical mouse promotes a more natural hand and wrist posture, reducing strain during extended computer use.

Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.

2. Package Contents

Verify that all items are present in your package:

• Delton Ergonomic Vertical Wireless Mouse
• USB Dongle (2.4GHz receiver)
• USB Charging Cable
• User Manual (this document)

3. Product Overview

The Delton S12 mouse features an ergonomic vertical design, six programmable buttons, and adjustable DPI settings for precise control. It connects wirelessly via a 2.4GHz USB dongle and is powered by a rechargeable battery.

Image: The Delton S12 Ergonomic Vertical Wireless Mouse, shown with its accompanying USB dongle.

3.1 Ergonomic Design

The vertical orientation of the mouse is designed to align your hand and wrist in a natural handshake position, which can help reduce muscle strain and discomfort often associated with traditional mice.

Image: A hand comfortably gripping the Delton vertical mouse, demonstrating the natural, ergonomic wrist position it promotes.

3.2 Wireless Connectivity

The mouse connects wirelessly to your device via a 2.4GHz USB dongle, offering a stable connection up to 30 feet (10 meters). This provides flexibility and reduces cable clutter.

Image: The Delton vertical mouse wirelessly connected to a laptop, with the USB dongle inserted into the laptop's port.

3.3 Rechargeable Battery

Equipped with a built-in rechargeable Lithium-Ion battery, the mouse offers up to 30 days of daily use and 12 months of standby time on a single charge. It can also be used while charging.

Image: The Delton vertical mouse being charged via a USB cable, illustrating its rechargeable feature.

3.4 Six Buttons Functionality

The mouse features six responsive buttons for enhanced productivity:

• Left Click
• Right Click
• Scroll Wheel (with click function)
• DPI Switch Button
• Forward Button
• Backward Button

Image: A detailed diagram highlighting the location and function of the six buttons on the Delton vertical mouse.

3.5 Customizable DPI Levels

Adjust the mouse sensitivity with three DPI settings: 800, 1200, and 2400. An indicator light changes color to show the current DPI level.

• Blue: 800 DPI
• Red: 1200 DPI
• Green: 2400 DPI

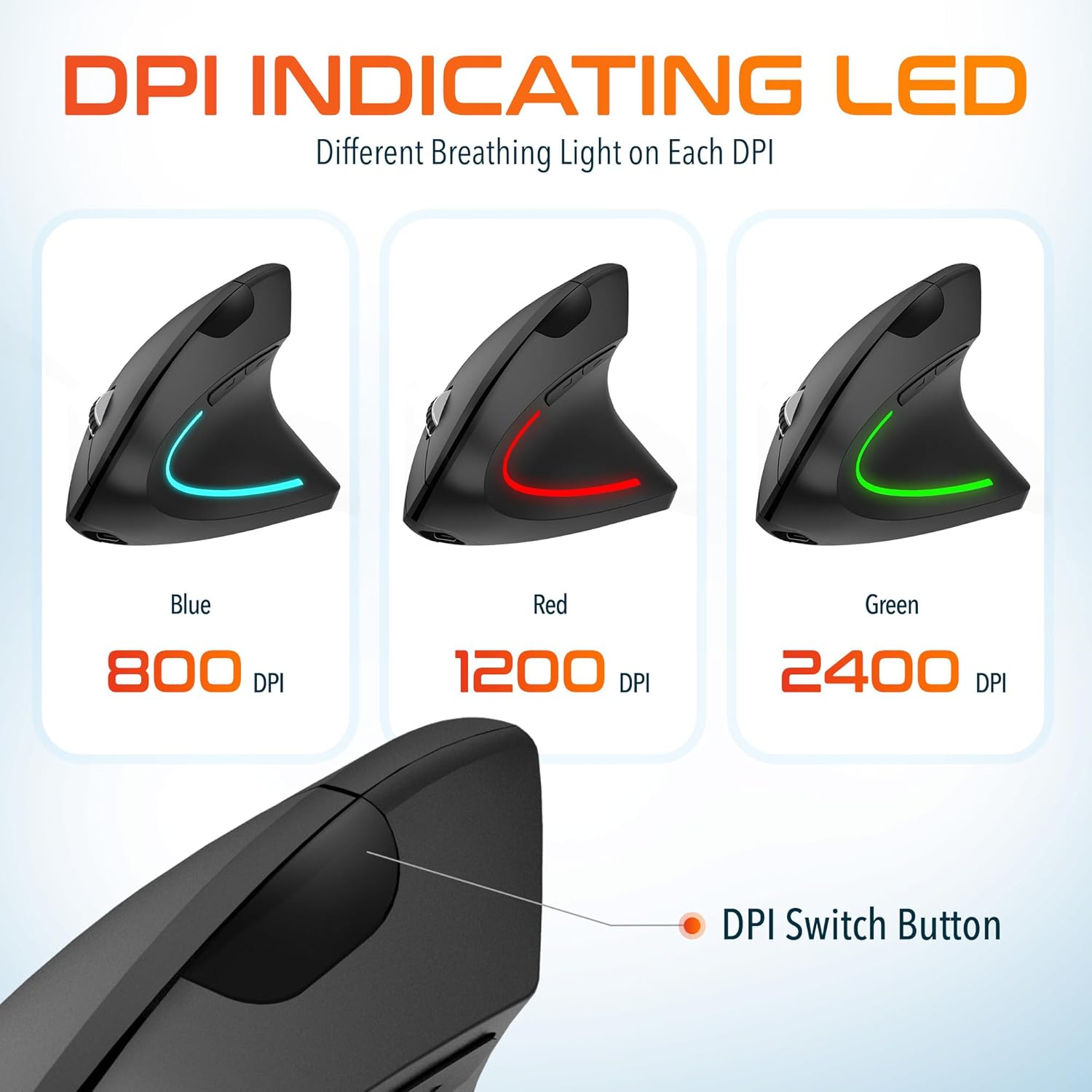

Image: The Delton vertical mouse displaying its LED indicator in blue (800 DPI), red (1200 DPI), and green (2400 DPI) to show current sensitivity settings.

4. Setup Instructions

4.1 Charging the Mouse

1. Connect the provided USB charging cable to the charging port on the front of the mouse.
2. Plug the other end of the USB cable into a USB power source (e.g., computer USB port, wall adapter, power bank).
3. The LED indicator will illuminate during charging and turn off when fully charged. A full charge typically takes approximately 1 hour.

4.2 Connecting the USB Dongle

1. Locate the USB dongle, usually stored in a compartment on the underside of the mouse.
2. Insert the USB dongle into an available USB port on your computer (PC, Laptop, Mac, Chromebook).
3. The system will automatically detect and install the necessary drivers. This process may take a few moments.

4.3 Powering On/Off

Locate the power switch on the underside of the mouse. Slide the switch to the 'ON' position to power on the mouse. Slide it to 'OFF' when not in use to conserve battery life.

5. Operating Instructions

5.1 DPI Adjustment

To change the mouse sensitivity (DPI), press the DPI switch button located on the top of the mouse, behind the scroll wheel. Each press cycles through the available DPI settings (800, 1200, 2400), indicated by the changing color of the LED light.

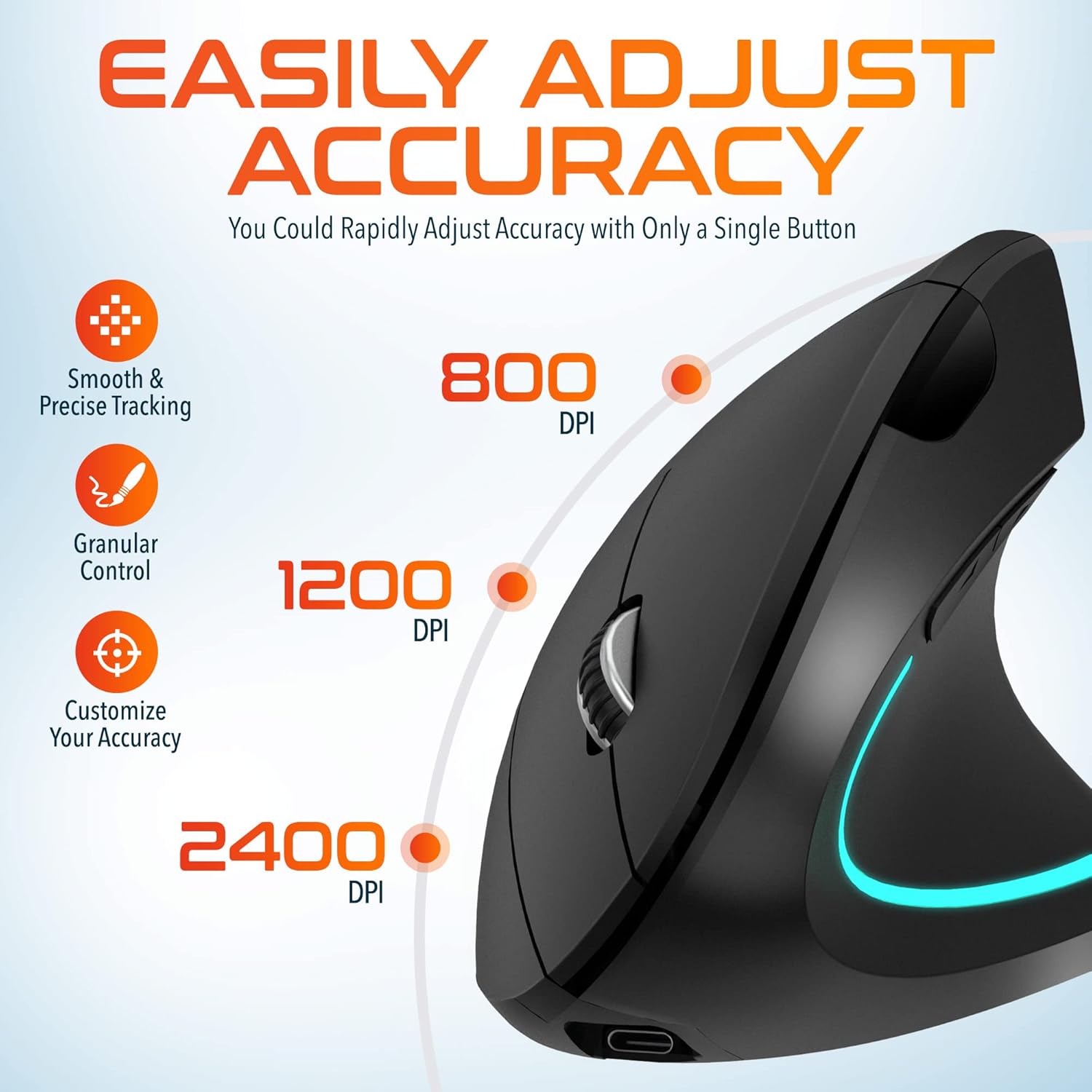

Image: A visual representation of the three adjustable DPI settings (800, 1200, 2400) and their corresponding cursor precision levels.

5.2 Button Functions

• Left Click: Standard primary click function.
• Right Click: Standard secondary click function.
• Scroll Wheel: Scroll up or down through documents and web pages. Pressing the scroll wheel acts as a middle click.
• Forward Button: Navigates forward in web browsers or file explorers.
• Backward Button: Navigates backward in web browsers or file explorers.

Image: A close-up view of the mouse's scroll wheel and the conveniently placed forward and backward shortcut keys.

6. Maintenance

• Cleaning: Use a soft, dry cloth to clean the mouse. For stubborn dirt, slightly dampen the cloth with water. Avoid using harsh chemicals or abrasive materials.
• Storage: When not in use for extended periods, store the mouse in a cool, dry place. Ensure the power switch is in the 'OFF' position to preserve battery life.
• Battery Care: Avoid fully discharging the battery frequently. Charge the mouse regularly to maintain battery health.

7. Troubleshooting

8. Specifications

9. Warranty and Support

Delton products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Delton website. Keep your purchase receipt as proof of purchase for warranty claims.
