Hexgears GK715 Mechanical Gaming Keyboard User Manual

1. Introduction

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Hexgears GK715 Mechanical Gaming Keyboard. Designed for both office and gaming use, this 104-key full-size wired keyboard features hot-swappable Kailh Box mechanical switches, durable ABS double-shot keycaps, and white backlighting.

Please read this manual thoroughly to ensure proper use and to maximize your keyboard's performance and lifespan.

2. Product Overview

The Hexgears GK715 is a robust mechanical keyboard built for precision and durability. Key features include:

• 104-Key Full-Size Layout: Provides a complete set of keys, including a numeric keypad, suitable for various tasks.
• Kailh Box Mechanical Switches: Offers accurate tactile and audio feedback for an enhanced typing experience.
• Hot-Swappable PCB: Allows for easy replacement of 3-pin switches without soldering, enabling customization of typing feel and sound.
• Durable ABS Double-Shot Keycaps: Engineered for longevity and resistance to wear.
• White Backlighting: Features various static backlight modes for improved visibility and aesthetics.
• Ergonomic Design: Includes adjustable feet for comfortable typing angles.
• Wired Connectivity: Ensures stable and responsive performance.

Figure 2.1: Hexgears GK715 Mechanical Gaming Keyboard with pink and white keycaps.

3. Setup

Follow these steps to set up your Hexgears GK715 keyboard:

1. Unpack the Keyboard: Carefully remove the keyboard and any accessories from the packaging.
2. Connect to Your Device: The Hexgears GK715 is a wired keyboard. Connect the USB cable from the keyboard to an available USB port on your computer (PC, laptop, or compatible device).
3. Driver Installation: Your operating system (Windows, macOS, Android) should automatically detect and install the necessary drivers. No manual driver installation is typically required.
4. Adjust Keyboard Feet: For ergonomic comfort, you can adjust the two-stage feet on the underside of the keyboard to your preferred typing angle.

Figure 3.1: Side view of the keyboard demonstrating the adjustable feet for ergonomic positioning.

4. Operating Instructions

4.1 Basic Functions

The keyboard operates as a standard 104-key layout. Simply plug it in, and it's ready for use.

4.2 Backlight Control

The Hexgears GK715 features white backlighting with multiple modes. Use the function (Fn) key combinations to control the backlight:

• Changing Backlight Modes: Press Fn + Insert to cycle through various static backlight patterns.
• Adjusting Brightness: Use Fn + Up Arrow to increase brightness and Fn + Down Arrow to decrease brightness.
• Turning Backlight On/Off: Specific key combinations may vary, but typically Fn + Light Key (often located near the arrow keys or F-row) can toggle the backlight.

Figure 4.1: The white backlighting illuminates the keycaps, enhancing visibility.

4.3 N-Key Rollover (NKRO)

The keyboard supports N-Key Rollover, which means every key press is registered independently, preventing ghosting even when multiple keys are pressed simultaneously. This feature is crucial for fast-paced gaming and typing.

• Toggle NKRO/6-Key Rollover: To switch between N-Key Rollover and 6-Key Rollover (for compatibility reasons), press Fn + Backtick (`). The default setting is usually NKRO.

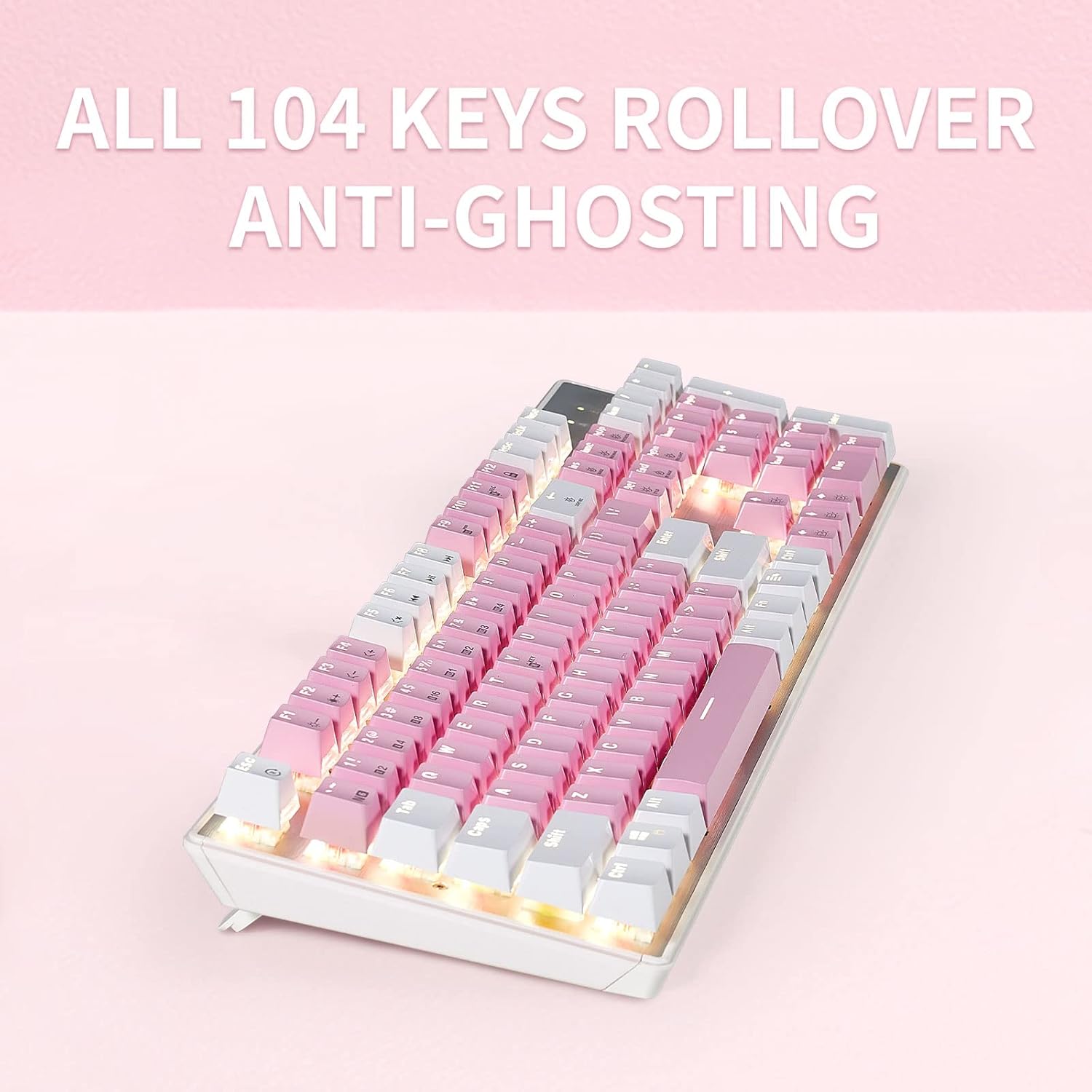

Figure 4.2: Illustration of the keyboard's full N-Key Rollover capability.

5. Maintenance

5.1 Cleaning the Keyboard

• General Cleaning: Use a soft, dry cloth to wipe down the keycaps and keyboard surface. For deeper cleaning, a slightly damp cloth with mild soap can be used, ensuring no liquid enters the keyboard.
• Dust Removal: Use compressed air to remove dust and debris from between the keycaps.

5.2 Keycap and Switch Replacement

The Hexgears GK715 features hot-swappable switches and durable double-shot ABS keycaps, allowing for easy customization and maintenance.

• Removing Keycaps: Use the included keycap puller tool to gently remove keycaps. Hook the tool onto the keycap and pull upwards evenly.
• Removing Switches: After removing the keycap, use the included switch puller tool. Squeeze the tabs on the top and bottom of the switch and pull upwards.
• Installing Switches/Keycaps: Align the new switch with the holes on the PCB and press down firmly until it clicks into place. Then, align the keycap and press down.

Figure 5.1: Double-shot ABS keycaps are designed for durability and clear backlighting.

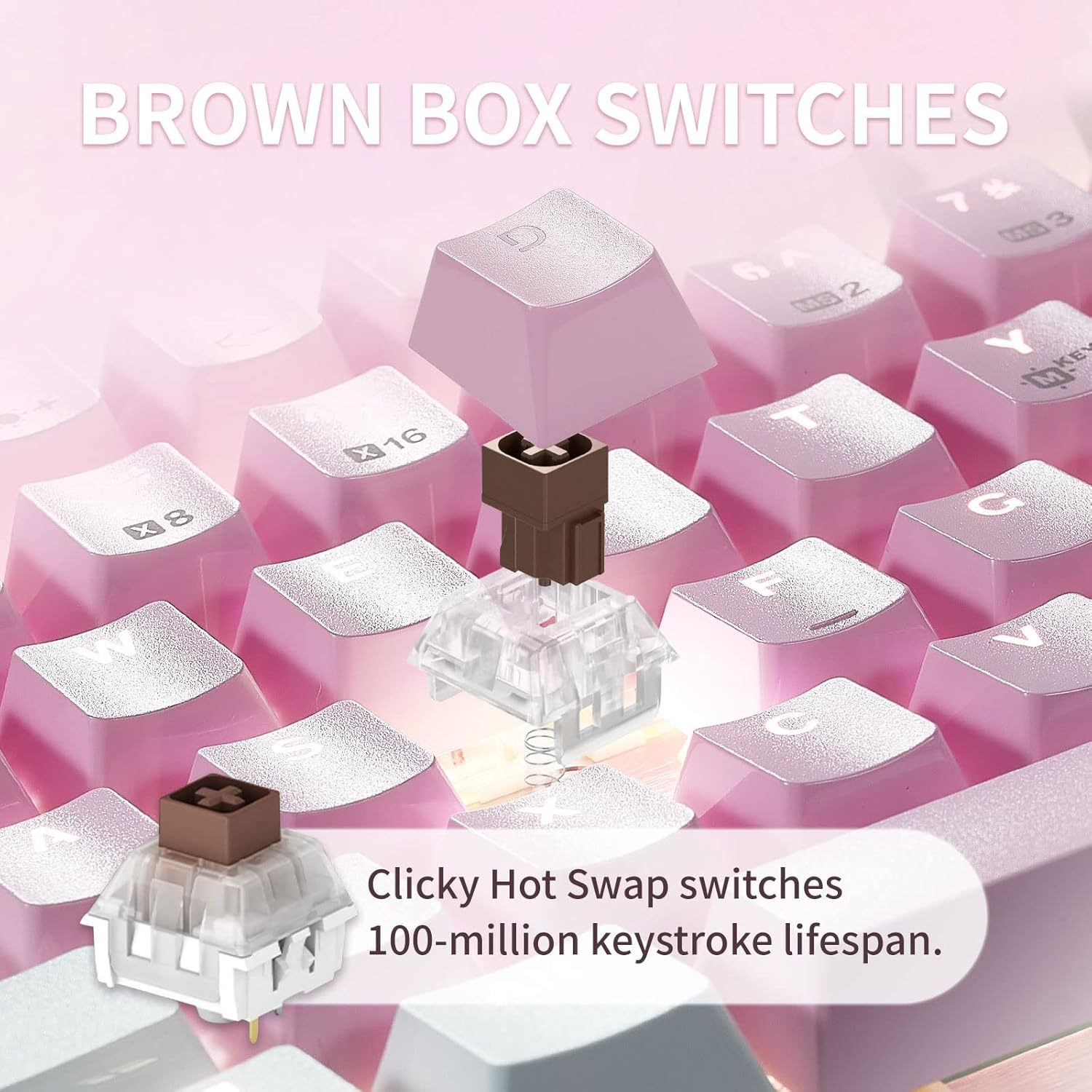

Figure 5.2: Kailh Box mechanical switches provide a consistent and reliable typing experience.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information and technical support, please refer to the official Hexgears website or contact their customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

You can visit the Hexgears Store for more information: Hexgears Store on Amazon
