Braun MultiPractic 3 CH3011BK Chopper Instruction Manual

Introduction

Thank you for choosing the Braun MultiPractic 3 CH3011BK Chopper. This manual provides essential information for the safe and efficient operation, maintenance, and care of your appliance. Please read these instructions thoroughly before first use and keep them for future reference.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions.
• Do not immerse the motor unit in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts. Blades are sharp. Handle with care.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• This product is equipped with a Safety Lock system to prevent operation if not assembled correctly.

Parts Overview

Familiarize yourself with the components of your Braun MultiPractic 3 CH3011BK Chopper:

Image: Exploded view showing the motor unit, lid, blade assembly, and chopping bowl.

1. Motor Unit (Power unit with control button)
2. Lid
3. Blade Assembly (with 4 stainless steel blades)
4. Chopping Bowl (0.9 Liters capacity)
5. Anti-slip base

Note: The product includes 4 stainless steel blades, suitable for various chopping tasks and ice crushing.

Setup and Assembly

Before first use, clean all parts that will come into contact with food as described in the "Cleaning and Maintenance" section.

1. Place the anti-slip base securely on a clean, flat surface.
2. Place the chopping bowl onto the anti-slip base.
3. Carefully place the blade assembly onto the central pin inside the chopping bowl. Ensure it sits firmly. Caution: Blades are very sharp. Handle with extreme care.
4. Add your ingredients into the chopping bowl. Do not overfill.
5. Place the lid onto the chopping bowl, aligning the tabs on the lid with the grooves on the bowl. Twist gently to secure if applicable (refer to visual cues on the appliance).
6. Position the motor unit onto the lid. Ensure it is correctly seated and locked into place. The safety interlock system prevents operation if not assembled correctly.
7. Plug the appliance into a suitable power outlet (240 Volts).

Image: Fully assembled Braun MultiPractic 3 CH3011BK Chopper, ready for use.

Operating Instructions

The Braun MultiPractic 3 CH3011BK features a simple one-push function for operation, offering 2 speeds.

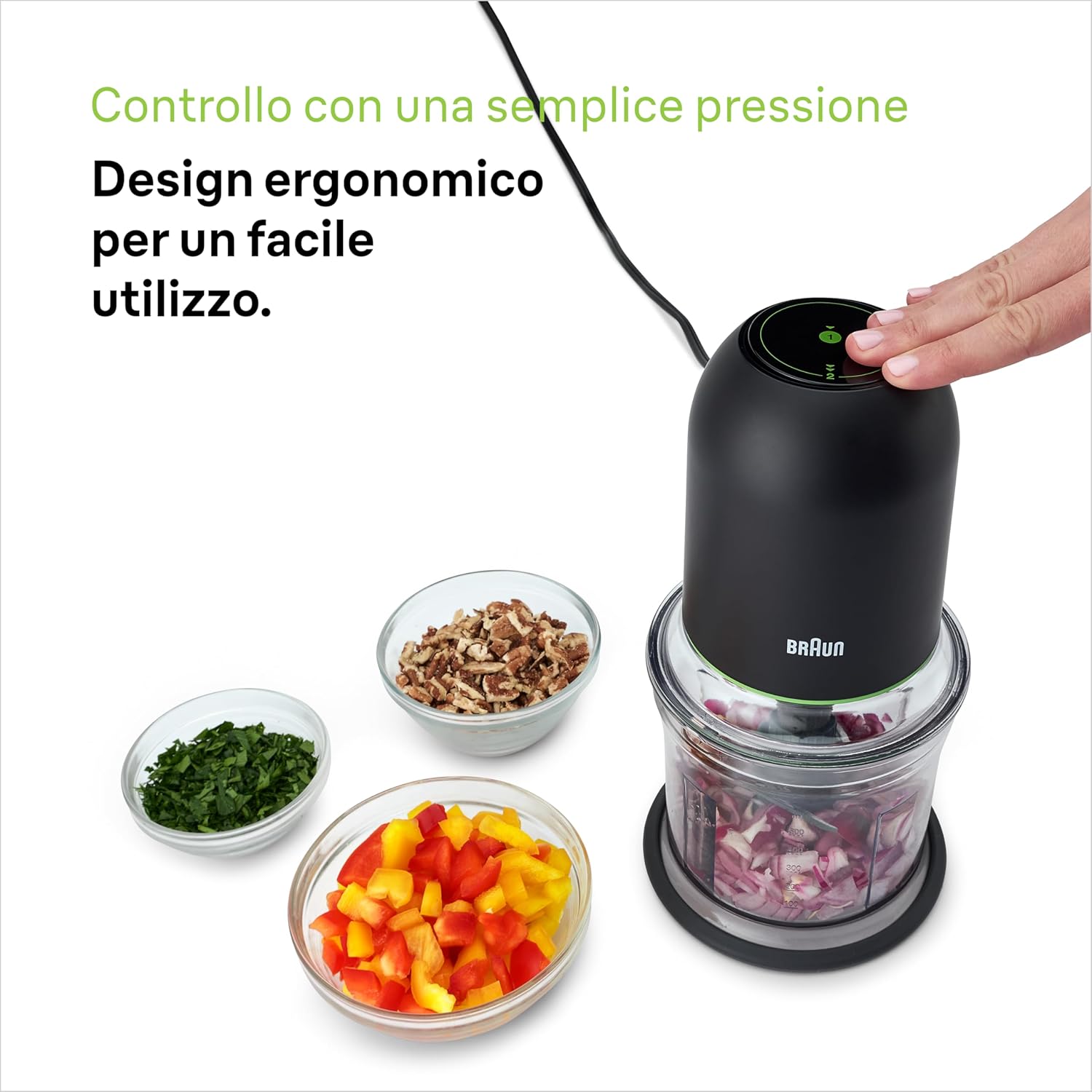

Image: A hand pressing the top control button of the chopper, demonstrating the one-push operation.

General Chopping

1. Ensure the chopper is assembled correctly and plugged in.
2. Add desired ingredients to the chopping bowl. For best results, cut larger ingredients into smaller, uniform pieces (approx. 2-3 cm).
3. Press and hold the control button on top of the motor unit to start chopping. The appliance offers two speeds; the pressure applied may influence the speed or a separate button/area on the motor unit might control it. Refer to the motor unit for specific speed controls.
4. Use short pulses for coarse chopping or hold longer for finer results. Monitor the consistency through the transparent bowl.
5. Release the button to stop the appliance.
6. Once chopping is complete, unplug the appliance, remove the motor unit, then the lid, and carefully lift out the blade assembly before emptying the bowl.

Image: The chopper in action, processing ingredients in the bowl, highlighting its speed and precision.

Ice Crushing

The 4 stainless steel blades are designed to crush ice effectively.

1. Place a maximum of 6-8 standard ice cubes into the chopping bowl. Do not overfill.
2. Assemble the chopper as described in the "Setup" section.
3. Press and hold the control button in short, powerful pulses until the desired ice consistency is achieved.
4. Do not operate continuously for more than 30 seconds when crushing ice to prevent motor overheating. Allow a short break between cycles.

Image: Visual representation of the chopper's features, including its ability to crush ice and its safety interlock system.

Quadblade™ Technology

This chopper utilizes Quadblade™ Technology with four overlapping blades, allowing it to process ingredients efficiently.

Image: A diagram showcasing the Quadblade™ Technology, emphasizing the four overlapping blades for enhanced processing.

Cleaning and Maintenance

Proper cleaning ensures the longevity and hygiene of your chopper.

1. Always unplug the appliance before cleaning.
2. Motor Unit: Wipe the motor unit with a damp cloth. Do not immerse it in water or any other liquid.
3. Chopping Bowl, Lid, and Blade Assembly: These parts are dishwasher safe. Alternatively, they can be washed by hand in warm soapy water. Rinse thoroughly and dry immediately.
4. Caution: The blades are extremely sharp. Handle the blade assembly with great care during cleaning to avoid injury.
5. Ensure all parts are completely dry before reassembling or storing the appliance.

The product care instructions specify that it is dishwasher safe, simplifying cleanup.

Troubleshooting

If you encounter issues with your Braun MultiPractic 3 CH3011BK Chopper, refer to the following common problems and solutions:

Specifications

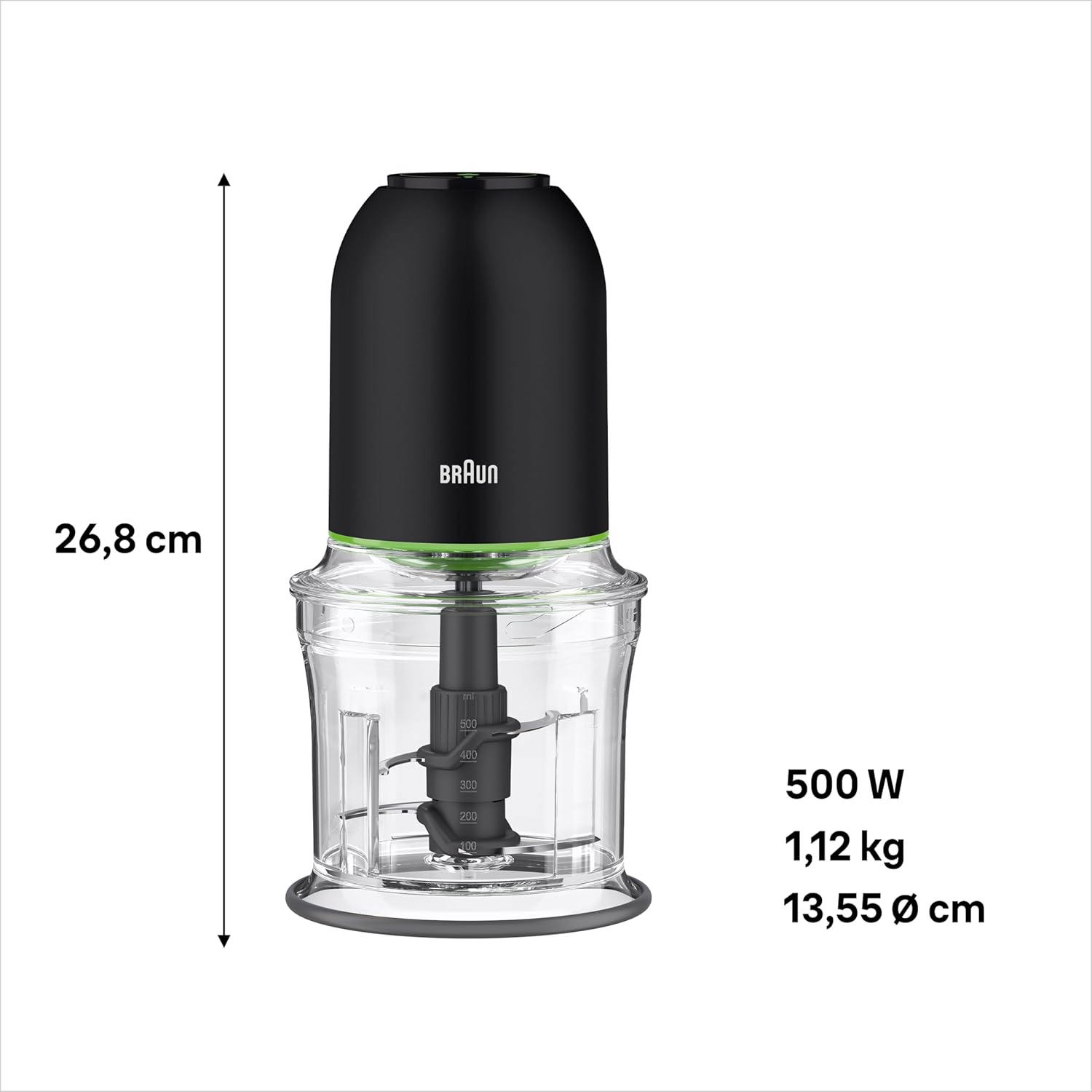

Image: The chopper with key dimensions (height, diameter) and power specifications (500W, 1.12kg weight) indicated.

Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Braun website. Keep your purchase receipt as proof of purchase.

For technical support, spare parts, or service, please contact Braun customer service in your region. Contact details can typically be found on the Braun official website or in the packaging materials.
