Introduction
The Alecto BC110GN Simon is an educational sleep trainer and alarm clock designed for children. This device assists children in developing an understanding of time, promoting better sleep habits for both children and parents. It functions as a regular alarm clock and features a night light with color indicators for sleep and wake-up times.
What's in the Box

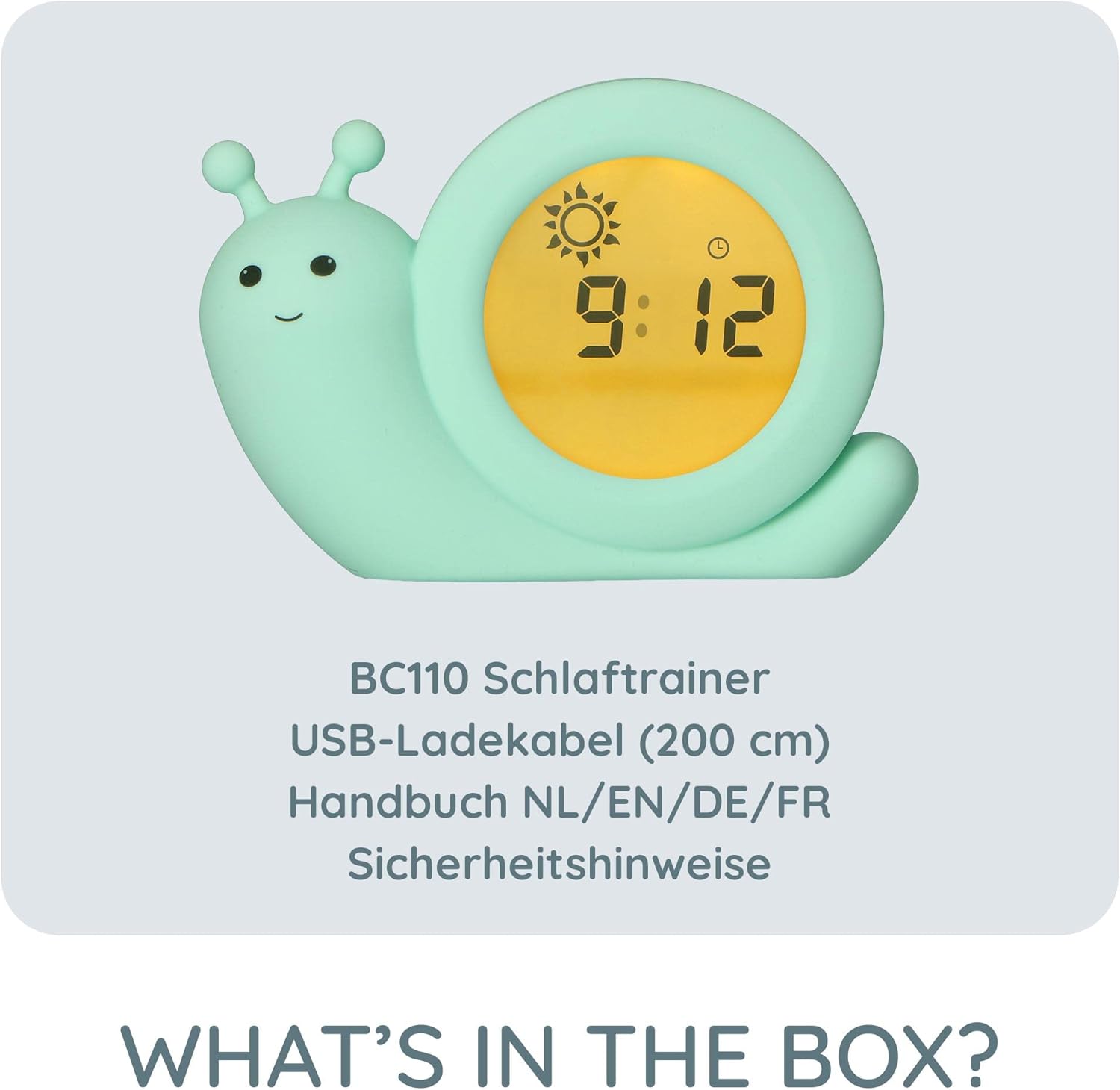

Image: The Alecto BC110GN Simon sleep trainer, USB charging cable, and multilingual manual.
- Alecto BC110GN Simon Sleep Trainer
- USB Charging Cable (200 cm)
- Multilingual User Manual (NL/EN/DE/FR)
- Safety Instructions
Product Overview
Image: Rear view of the Alecto BC110GN Simon, highlighting the control buttons and charging port.
Control Buttons and Ports:
- MODE Button: Used to switch between different settings modes.
- SET Button: Used to confirm selections and enter setting adjustments.
- + / - Buttons: Used to adjust values (e.g., time, alarm settings).
- ON/OFF Button: Controls the device's power.
- Main Power On/Off Switch: Located on the back for complete power control.
- DC 5V/500mA Charging Port: For connecting the USB charging cable.
Setup
1. Charging the Device
Before initial use, fully charge the Alecto BC110GN Simon. Connect the supplied USB charging cable to the DC 5V/500mA port on the back of the device and plug the other end into a compatible USB power adapter (not included) or a computer USB port.
Image: The sleep trainer displaying night mode, illustrating its wireless capability after charging.
The device is rechargeable and can be used wirelessly once charged.
2. Initial Power On
Locate the main power On/Off switch on the back of the device and slide it to the 'On' position. The display will illuminate.
Operating Instructions
Setting the Current Time
- Press the MODE button until the time display flashes.
- Use the + and - buttons to adjust the hour.
- Press SET to confirm the hour and move to minutes.
- Use the + and - buttons to adjust the minutes.
- Press SET to save the current time.
Setting the Alarm Time
- Press the MODE button repeatedly until the alarm icon (bell) appears and the alarm time flashes.
- Use the + and - buttons to set the desired alarm hour.
- Press SET to confirm the hour and move to minutes.
- Use the + and - buttons to set the desired alarm minutes.
- Press SET to save the alarm time.
- To activate/deactivate the alarm, press the ON/OFF button when the alarm time is displayed. An alarm icon will indicate if it's active.
Image: The sleep trainer showing 8:44 with a sun icon, representing the set wake-up time.
Sleep Training Function (Color Indicators)
The Alecto BC110GN Simon uses color changes to visually indicate sleep and wake-up times for children.
- Blue Background + Moon: This indicates it is time to go to sleep or to stay in bed.
Image: The sleep trainer showing 1:26 with a blue background and moon, signifying sleep time.
- Yellow Background + Sun: This indicates it is time to wake up and get out of bed.
Image: The sleep trainer showing 8:27 with a yellow background and sun, signifying wake-up time.
The transition between blue and yellow can be set according to your child's sleep schedule.
Image: The sleep trainer displaying 8:34 with a split screen, showing both sun and moon, indicating a transition period between sleep and wake-up.
Adjusting Display Brightness
The display brightness can be adjusted in 7 different light modes to suit your preference and the room's ambient light.

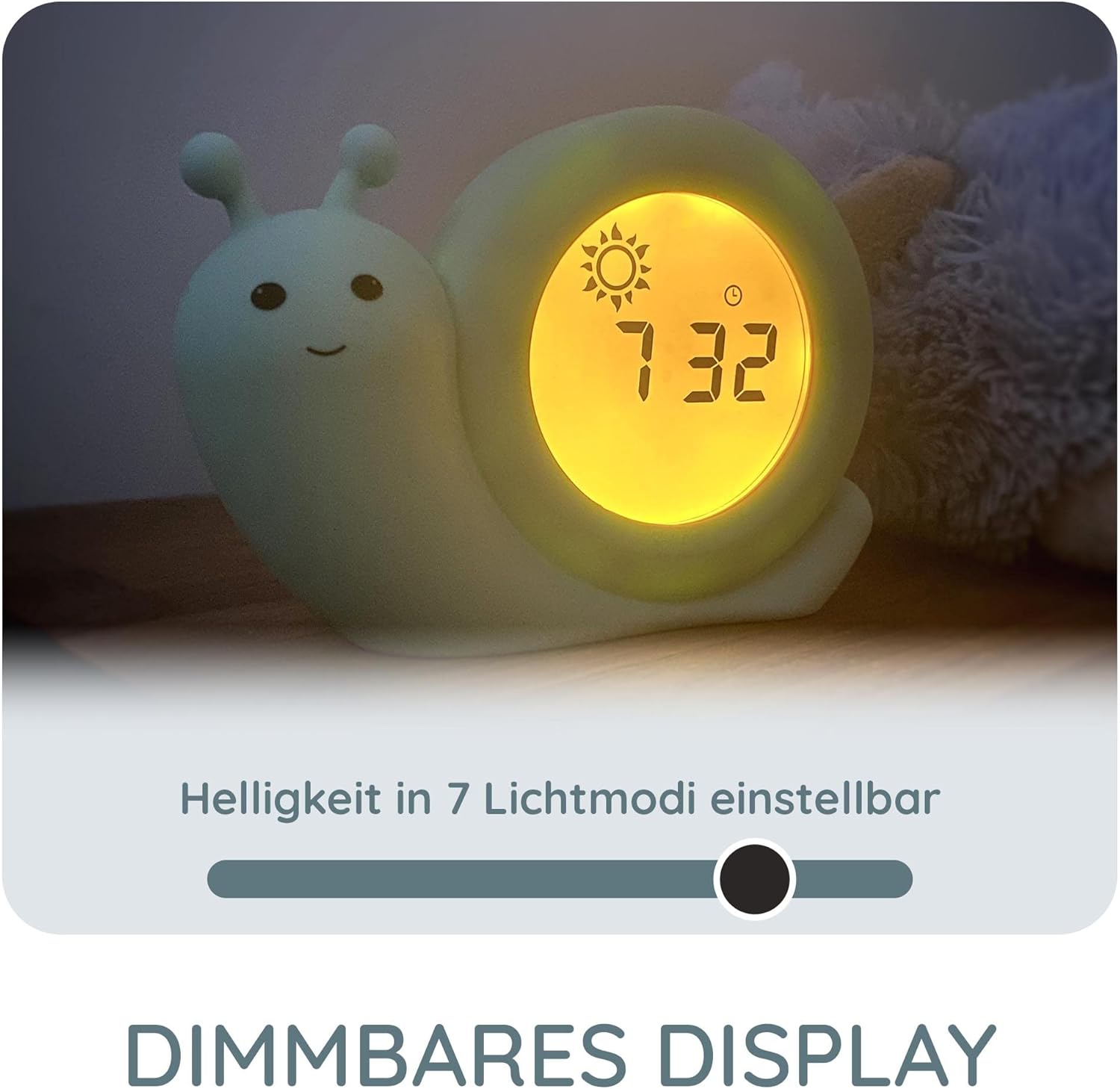

Image: The sleep trainer with a visual representation of its 7-level dimmable display.
Refer to the detailed manual for specific steps on adjusting brightness.
Maintenance
- Cleaning: Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the device in a cool, dry place when not in use for extended periods.
- Battery Care: To prolong battery life, avoid fully discharging the device frequently. Recharge when the battery indicator is low.
The device features a shock-absorbing silicone cover for protection against minor impacts.
Troubleshooting
Device Not Turning On
- Ensure the main power On/Off switch on the back is in the 'On' position.
- Check if the battery is charged. Connect the device to a power source using the USB cable.
Display Not Changing Colors
- Verify that the sleep and wake-up times are correctly set.
- Ensure the sleep training function is activated (refer to the full manual for specific activation steps).
Alarm Not Sounding
- Confirm that the alarm time is set and the alarm function is activated (alarm icon visible).
- Check the volume settings if applicable (refer to the full manual).
For further assistance, consult the complete multilingual user manual provided with the product.
Specifications
| Brand | Alecto |
| Model Number | BC110GN |
| Color | Green (Mint) |
| Dimensions (L x W x H) | 14 x 3.81 x 9.5 cm |
| Weight | 280 grams |
| Material | Plastic (with shock-absorbing silicone cover) |
| Power Source | Battery Powered (1 Lithium-polymer battery required) |
| Charging | Micro-USB (DC 5V/500mA) |
| Display Type | Digital, Dimmable (7 light modes) |
Warranty and Support
Information regarding specific warranty terms and conditions is typically provided within the product packaging or on the manufacturer's official website. Please refer to the included safety instructions and the full user manual for detailed warranty information.
For product support, technical assistance, or inquiries about spare parts, please contact Alecto customer service. Contact details can usually be found in the provided manual or on the Alecto brand website.
