FAHKNS 2HP Electric Motor 108067 User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your FAHKNS 2HP Single Phase Electric Motor, Model 108067. Please read this manual thoroughly before use and retain it for future reference.

Key Features:

• Power: 2 Horsepower (HP)
• Speed: 3450 Revolutions Per Minute (RPM)
• Phase: Single Phase
• Frame Size: 56C Frame
• Voltage: 115V/230V (Dual Voltage)
• Shaft Diameter: 5/8 inches
• Construction: Rolled Steel Shell, TEFC (Totally Enclosed Fan Cooled) enclosure
• Frequency: 60Hz
• Rotation: CW/CCW (Clockwise/Counter-Clockwise) reversible

This motor is designed for a wide range of industrial and agricultural applications, including air compressors, water pumps, and various machinery requiring reliable power.

2. Safety Information

WARNING: Electrical shock hazard. Always disconnect power before installation, maintenance, or troubleshooting.

• Ensure all wiring is performed by a qualified electrician and complies with local electrical codes.
• Verify the motor's voltage and current ratings match your power supply before connection.
• Proper grounding is essential to prevent electrical shock.
• Do not operate the motor in wet or explosive environments unless specifically rated for such conditions.
• Keep hands and clothing clear of rotating parts during operation.
• Wear appropriate personal protective equipment (PPE) when working with the motor.
• The motor surface may become hot during operation. Avoid direct contact.

3. Setup and Installation

3.1 Unboxing and Initial Inspection

Carefully remove the motor from its packaging. The motor is protected by thickened carton and foam inserts to prevent damage during transit.

Image: The FAHKNS 2HP Electric Motor securely packaged in a carton with foam protection.

Inspect the motor for any visible damage. The motor should have a smooth surface and be free from dents or scratches. Ensure the shaft is clean and undamaged.

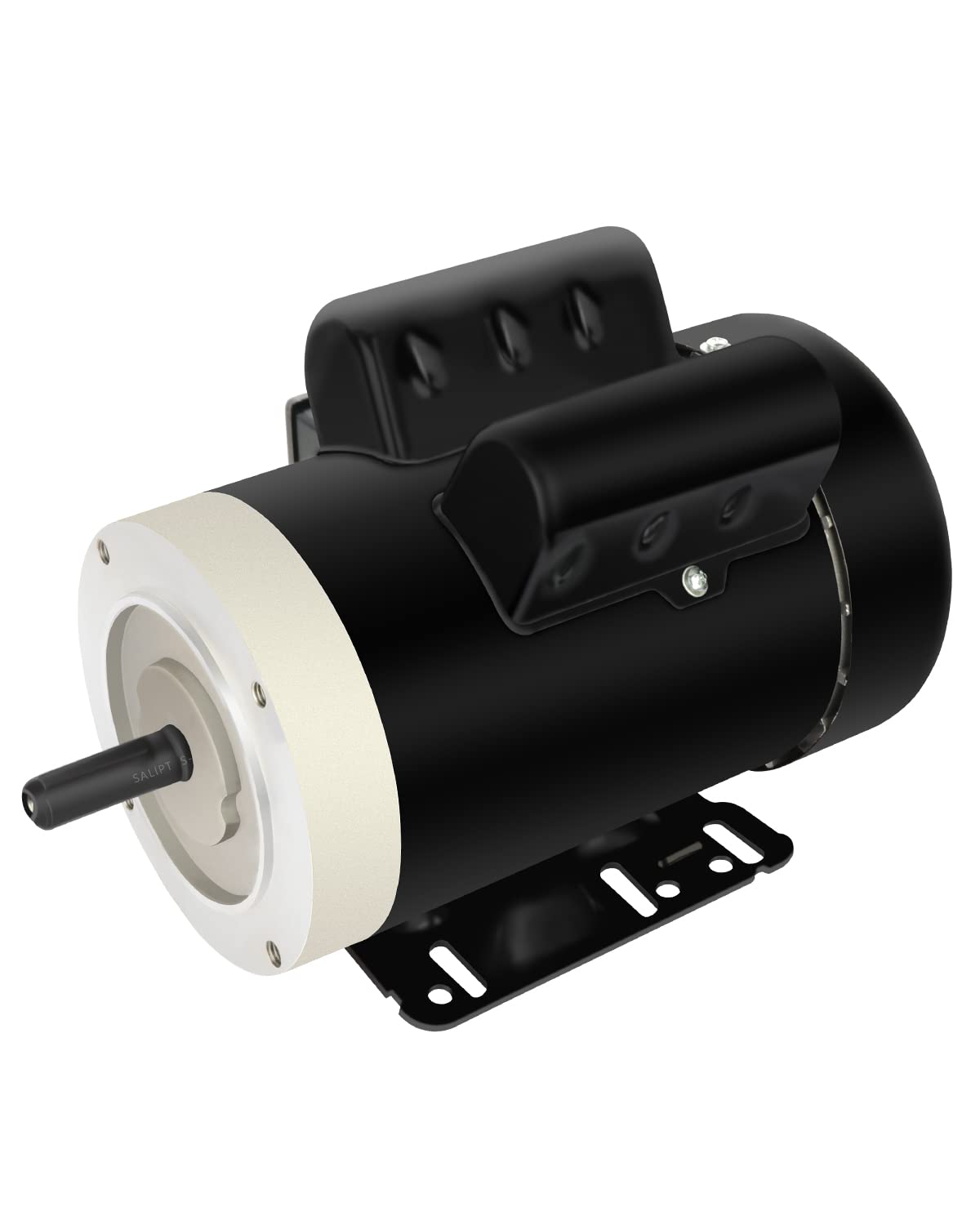

Image: A close-up view of the FAHKNS 2HP Electric Motor, highlighting its smooth, undamaged surface.

The motor shaft is protected by a black rubber cover. Remove this cover before installation.

Image: Detail of the motor shaft, showing the protective rubber cover in place.

3.2 Mounting

The motor features a rigid base mount for stable installation. Secure the motor firmly to a stable, level surface using appropriate fasteners. Ensure adequate ventilation space around the motor.

Image: Underside view of the motor, showing the rigid base mount with mounting holes.

3.3 Electrical Wiring

IMPORTANT: All electrical connections must be made by a qualified professional. Refer to the wiring diagram located on the motor's nameplate and follow all local electrical codes.

To access the wiring terminals, open the motor's junction box. The nameplate provides specific wiring instructions for both 115V and 230V configurations, including details for changing rotation direction (CW/CCW).

Image: Close-up of the motor's nameplate, displaying the wiring diagram for 115V and 230V connections and rotation reversal.

Ensure all connections are secure and insulated. Double-check the wiring against the diagram to prevent damage to the motor or connected equipment.

4. Operating Instructions

4.1 First Start-Up (No-Load Operation)

Before connecting the motor to any load, perform a no-load test run. This ensures the motor is functioning correctly and smoothly without any external resistance.

• Ensure all safety precautions are observed.
• Apply power to the motor.
• Observe the motor for unusual noises, vibrations, or excessive heat.
• Confirm the shaft rotates freely and in the desired direction.
• If any issues are detected, immediately disconnect power and refer to the Troubleshooting section.

4.2 Ventilation and Cooling

This motor features a TEFC (Totally Enclosed Fan Cooled) enclosure, meaning it has a fan at one end to cool the motor during operation. This design helps maintain optimal operating temperatures and extends service life, even in dusty conditions.

Image: Side view of the motor, showing the fan enclosure for cooling.

Ensure the fan and ventilation openings are not obstructed to allow for proper airflow and cooling.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your electric motor.

• Cleaning: Periodically clean the exterior of the motor, especially the fan and ventilation grilles, to prevent dust and debris buildup that can hinder cooling.
• Lubrication: The motor's bearings are pre-lubricated. No further lubrication is typically necessary under normal operating conditions. Refer to the motor nameplate for specific lubrication instructions if applicable.
• Inspection: Regularly check for loose connections, worn wiring, or unusual wear on the shaft or mounting. Address any issues promptly.
• Storage: If storing the motor for an extended period, ensure it is kept in a dry, clean environment.

6. Troubleshooting

This section provides solutions to common issues. For problems not listed or if solutions do not resolve the issue, contact customer support.

7. Specifications

8. Warranty and Support

For warranty information or technical support, please contact FAHKNS customer service. Keep your purchase receipt and product model number (108067) handy when contacting support.

While this manual provides comprehensive guidance, professional assistance may be required for complex installations or repairs. Always prioritize safety and consult qualified personnel when in doubt.
