1. Introduction
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your Mytkoj Generator Petcock Fuel Tank Shut Off Valve. This valve is designed to control fuel flow from the tank to the engine in various generator models. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. Safety Information
- Fuel is highly flammable. Always work in a well-ventilated area, away from open flames, sparks, or other ignition sources.
- Wear appropriate personal protective equipment, including safety glasses and fuel-resistant gloves, when handling fuel or fuel system components.
- Ensure the generator engine is cool and turned off before attempting any installation or maintenance.
- Drain all fuel from the tank before removing or installing the shut-off valve to prevent spills and fire hazards.
- Dispose of drained fuel and any fuel-soaked materials according to local regulations.
- If you are unsure about any step, consult a qualified technician.
3. Product Overview and Components
The Mytkoj Generator Petcock Fuel Tank Shut Off Valve is a robust metal component designed for reliable fuel flow control. It features an ON/OFF lever for easy operation and an integrated filter to prevent debris from entering the fuel line.
Figure 3.1: Exploded View of Valve Components
This image shows the individual components of the fuel tank shut-off valve, including the fuel cup, O-ring, main valve body, cock lever, fuel cock gasket, white leg petcock, oil seal, and screen filter. Also visible are the lever fitting plate, pressure washer, and cross screws.
Key components include:
- Fuel Cup: Collects sediment and provides access for cleaning.
- O-Ring: Ensures a tight seal between components.
- Cock Lever: Controls the ON/OFF position of the fuel flow.
- Fuel Cock Gasket: Seals the cock lever mechanism.
- White Leg Petcock: The main valve body.
- Oil Seal: Prevents fuel leakage.
- Screen Filter: Filters out impurities from the fuel before it enters the fuel line.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | Mytkoj |
| Model Numbers | 168F, 170F, 173F, 177F, 182F, 188F, 190F |
| Material | Metal (Superior zinc alloy) |
| Inlet Connection Type | Threaded (M16 x 1.5mm) |
| Outlet Connection Type | NPT |
| Outlet Connection Size | 16 Millimeters |
| Nut Threading | M16 x 1.5mm |
| Hex Nut Size | 22mm |
| Operation | On / Off 90 degree |
| Item Dimensions (L x W x H) | 2.2 x 1.8 x 3.2 inches |
| Item Weight | 2.88 ounces |

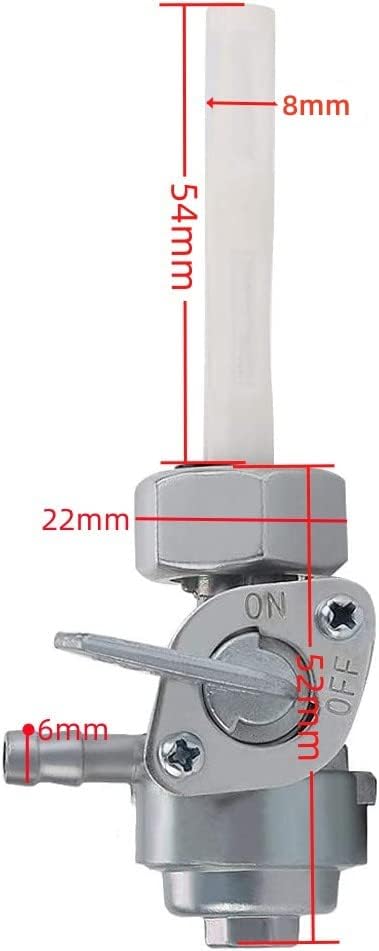

Figure 4.1: Valve Dimensions
This image illustrates the key dimensions of the fuel shut-off valve, including the overall length of the filter tube (54mm), filter tube diameter (8mm), hex nut width (22mm), and outlet barb diameter (6mm).
Figure 4.2: Nut Dimensions
This image details the dimensions of the valve's mounting nut, showing a 22mm hex width, 16mm internal thread diameter, and 12mm height.
5. Compatibility
This fuel tank shut-off valve is compatible with a wide range of small engines and generators. Please verify your original part's specifications (especially nut threading and hex size) against those provided in Section 4 before purchasing and installation.
Compatible Generator Brands:
- Yamaha
- Honda
- Predator
- Firman
- Durostar
- Rato
- Lifan
- Westing
- Alton
- ETQ
- Husky
- Wen
- Homelite
- Powermax
Compatible Generator Models/Engines (Examples):
- Honda EB3500X, EB3500XK1, EB3800X, EB5000X, EB5000XK1, EB5000XK2, EB6500SX, EB6500X
- Honda EM3500SX, EM3500SXK1, EM3500X, EM3800SX, EM5000SX, EM5000SXK1, EM5000SXK2, EM5000X
- Engines with power ratings: 5.5HP, 6.5HP, 7HP, 8HP, 9HP, 11HP, 13HP, 14HP, 15HP, 16HP
- Engine models: 168F, 163CC, 196CC, 170F, 208CC, 211CC, 173F, 177F, 182F, 188F, 190F
- Generator wattages: 600w, 650w, 900w, 950w, 1200w, 1400w
- ET600, ET650, ET950
6. Installation Instructions
Follow these steps carefully to install the Mytkoj Generator Petcock Fuel Tank Shut Off Valve.
- Prepare the Generator:
- Ensure the generator is turned off and the engine is cool.
- Locate the existing fuel shut-off valve on the generator's fuel tank.
- Drain Fuel:
- Place a suitable fuel-safe container under the fuel tank.
- Open the existing fuel valve (if applicable) and drain all fuel from the tank into the container.
- Once the tank is empty, close the existing valve.
- Remove Old Valve:
- Carefully disconnect the fuel line from the old shut-off valve.
- Unscrew and remove the old fuel shut-off valve from the fuel tank. Be prepared for any residual fuel.
- Install New Valve:
- Ensure the new Mytkoj valve is clean and free of debris.
- Important: Screw the end of the valve that contains the screen filter into the bottom of the fuel tank. This ensures proper filtration.
- Tighten the valve securely using a 22mm wrench on the hex nut (refer to Figure 4.2 for nut dimensions). Do not overtighten.
- Connect Fuel Line:
- Connect the fuel pipe to the barb fitting on the other end of the newly installed shut-off valve (refer to Figure 4.1 for barb dimensions).
- Secure the fuel line connection, typically with a hose clamp if one was present or recommended.
- Refill and Check for Leaks:
- Refill the fuel tank with the appropriate fuel type.
- Inspect all connections for any signs of fuel leakage. If leaks are present, tighten connections or re-seat components as necessary. Do not operate the generator with fuel leaks.
Figure 6.1: Valve Views
This image displays two different angles of the Mytkoj fuel shut-off valve, showing the ON/OFF lever and the fuel outlet barb.
Figure 6.2: Fuel Cup and Filter
This image shows the removable fuel cup and the integrated screen filter, which must be screwed into the tank first during installation.
7. Operating Instructions
The Mytkoj fuel shut-off valve features a simple ON/OFF lever for controlling fuel flow.
Figure 7.1: Valve Operation Markings
This image highlights the clear ON and OFF markings on the valve, indicating the position of the lever for fuel flow control. It also shows the zinc alloy material and the oil cup for impurity precipitation.
- To Allow Fuel Flow (ON): Move the lever to the "ON" position. This typically aligns the lever with the direction of fuel flow or as indicated by the markings on the valve body.
- To Stop Fuel Flow (OFF): Move the lever to the "OFF" position. This will shut off the fuel supply to the engine. It is recommended to turn the fuel off when the generator is not in use or during transport to prevent fuel leaks and reduce fire risk.
8. Maintenance
Regular maintenance ensures the longevity and proper function of your fuel shut-off valve.
- Inspect for Leaks: Periodically check the valve and fuel line connections for any signs of fuel leakage. Address any leaks immediately.
- Clean Filter: The integrated screen filter can become clogged over time. If fuel flow is restricted, drain the fuel tank, remove the valve, and carefully clean the screen filter. Replace if damaged.
- Check O-Rings and Gaskets: Inspect O-rings and gaskets for cracks, wear, or damage. Replace them if necessary to maintain a proper seal.
- Storage: When storing the generator for extended periods, it is advisable to turn the fuel valve to the "OFF" position and run the engine until it runs out of fuel, or drain the fuel tank completely.
9. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fuel Leakage | Loose connections, damaged O-ring/gasket, cracked valve body. | Tighten connections. Inspect and replace O-rings or gaskets. If valve body is cracked, replace the entire valve. |
| No Fuel Flow / Restricted Fuel Flow | Valve in "OFF" position, clogged screen filter, kinked fuel line. | Ensure valve is in "ON" position. Clean or replace screen filter. Inspect fuel line for obstructions or kinks. |
| Lever is Stiff or Hard to Turn | Accumulation of debris or corrosion. | Remove valve and clean thoroughly. Apply a small amount of fuel-safe lubricant if necessary. |
10. Warranty and Support
Specific warranty information for this Mytkoj product is not provided in this manual. For details regarding warranty coverage or technical support, please refer to the product packaging, the retailer where the product was purchased, or contact Mytkoj customer service directly through their official channels.
