BURCHDA R7PRO Electric Mountain Bike User Manual

Introduction

Welcome to the user manual for your BURCHDA R7PRO Electric Mountain Bike. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new e-bike. Please read it thoroughly before your first ride to ensure optimal performance and safety.

The BURCHDA R7PRO is a versatile, foldable electric mountain bike designed for city commuting, trail riding, and various off-road environments. It features a powerful brushless motor, a removable 48V 16Ah lithium battery, a smart LCD display, and high-quality components for a reliable and enjoyable riding experience.

Safety Information

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to local traffic laws and regulations. Regular maintenance checks are crucial for safe operation.

• Always wear a certified helmet.
• Perform a pre-ride inspection before each use, checking brakes, tires, and battery.
• Do not ride under the influence of alcohol or drugs.
• Be aware of your surroundings and other road users.
• Avoid riding in adverse weather conditions if possible.
• Ensure all quick releases and folding mechanisms are securely locked before riding.

Components Overview

Familiarize yourself with the main components of your BURCHDA R7PRO E-Bike.

Figure 1: The BURCHDA R7PRO Electric Mountain Bike, showcasing its robust design and integrated front basket.

Figure 2: Close-up view of key product details including the hydraulic brake system, bright LED headlight, removable battery pack, and rear warning tail light.

Figure 3: Detail of the lockable front suspension, designed to absorb shocks and provide a smoother ride on varied terrain.

Figure 4: The smart LCD control panel, providing real-time information such as speed, distance, battery level, and assist mode.

• Frame: Durable aluminum alloy, foldable design.
• Motor: Powerful brushless geared motor.
• Battery: Removable 48V 16Ah Lithium Battery.
• Display: Smart LCD display for ride data.
• Brakes: High-quality hydraulic disc brakes.
• Gears: Shimano 8-speed shifting system.
• Tires: 20 x 4.0 inch fat tires for various terrains.
• Suspension: Front fork suspension with lockout.
• Lights: Bright LED headlight and warning tail light.

Setup

Your BURCHDA R7PRO E-Bike comes 95% pre-assembled. Follow these steps for final assembly and preparation:

1. Unpacking: Carefully remove the bike from its packaging. Retain packaging for future transport or storage.
2. Unfolding: Unlock the frame and handlebar folding mechanisms and carefully unfold the bike until it clicks into place. Ensure all latches are securely fastened.
3. Handlebar Adjustment: Adjust the handlebar height and angle to a comfortable riding position. Tighten all bolts securely.
4. Seat Adjustment: Adjust the seat post height to ensure proper leg extension while pedaling. The minimum seat height is 37.4 inches (95 cm). Secure the quick release lever.
5. Pedal Installation: Identify left (L) and right (R) pedals. Thread them into the crank arms (left pedal counter-clockwise, right pedal clockwise). Tighten firmly with a wrench.
6. Tire Inflation: Inflate tires to the recommended pressure (check sidewall of the tire for details). The 20x4.0 inch fat tires are suitable for various terrains.
7. Battery Installation: Insert the fully charged battery into its compartment and lock it with the provided key.
8. Brake Check: Test both front and rear hydraulic brakes to ensure they are functioning correctly and provide adequate stopping power.
9. Gear Check: Test the 8-speed Shimano shifting system to ensure smooth transitions between gears.

If you encounter any difficulties during assembly, please refer to the detailed assembly guide or contact customer support.

Operating Your E-Bike

Powering On/Off and LCD Display

The smart LCD display provides all necessary riding information and controls.

Figure 5: The LCD display showing various functions including speed, fault display, battery display, USB charging, mode selection, speed regulation, and mileage value.

• Power On: Press and hold the power button on the display for a few seconds.
• Power Off: Press and hold the power button again until the display turns off.
• Information Display: The LCD shows current speed, distance traveled (trip/total), battery level, and pedal assist level (PAS).
• USB Charging: The display features a USB port for charging mobile devices.

Pedal Assist System (PAS) and Throttle

The R7PRO offers multiple riding modes:

• Pedal Assist Mode: The motor provides assistance as you pedal. Use the '+' and '-' buttons on the control panel to adjust the assist level (typically 1-5). Higher levels provide more assistance.
• Electric Mode (Throttle): Engage the throttle for pure electric power without pedaling. The smart cruise feature allows maintaining speed for 3 seconds to activate cruise control, freeing your fingers.
• Manual Mode: Ride the bike like a traditional bicycle without any motor assistance.

Gear Shifting and Braking

• 8-Speed Shimano System: Use the gear shifter on the handlebar to change gears according to terrain and desired speed. Shift smoothly to avoid strain on the drivetrain.
• Hydraulic Brakes: The high-quality hydraulic brakes provide reliable stopping power. Apply both front and rear brakes simultaneously for effective and safe braking.

Battery Usage and Charging

The 48V 16Ah removable lithium battery offers a long range. Charging time is approximately 5-6 hours.

• Charging: Connect the charger to the battery charging port and then to a power outlet. The indicator light on the charger will show charging status.
• Removable Design: The battery can be removed for convenient charging indoors or at your office.
• Battery Life: To maximize battery life, avoid fully discharging the battery regularly and store it in a cool, dry place.

Folding and Transport

The foldable design makes the R7PRO easy to transport and store.

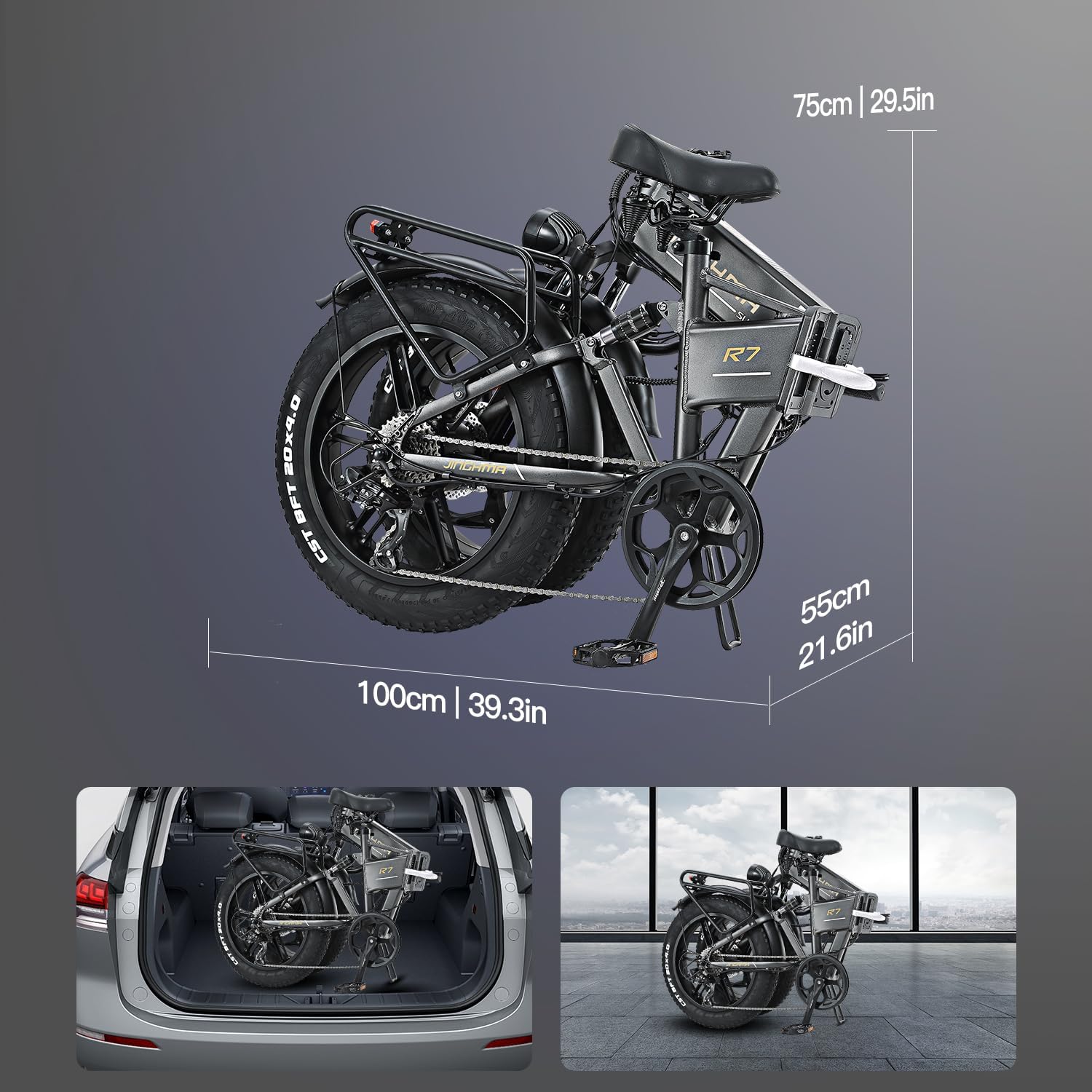

Figure 6: The folded dimensions of the BURCHDA R7PRO, illustrating its compact size for easy storage in a car trunk or small spaces.

• To fold the bike, disengage the frame and handlebar folding latches. Carefully fold the frame and handlebars.
• Ensure all folding mechanisms are securely latched when unfolded for riding and when folded for transport.

Maintenance

Regular maintenance ensures the longevity and safe operation of your e-bike.

• Cleaning: Clean your e-bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
• Tires: Regularly check tire pressure and inspect for wear or damage. The 20x4.0 inch fat tires are designed for durability across various terrains.
• Brakes: Inspect brake pads and rotors for wear. Ensure brake levers are responsive and provide firm stopping power. Adjust or replace as needed.
• Chain and Drivetrain: Keep the chain clean and lubricated. Check for proper tension and wear on the chain, gears, and derailleur.
• Suspension: Periodically check the front fork suspension for proper function and cleanliness.
• Fasteners: Regularly check all bolts, nuts, and quick releases for tightness.
• Battery Care: Store the battery in a cool, dry place. If storing for extended periods, charge it to 50-70% and recharge every 2-3 months.

Troubleshooting

This section addresses common issues you might encounter.

For issues not listed here or if solutions do not resolve the problem, please contact BURCHDA customer support.

Specifications

Warranty and Support

BURCHDA offers a one-year warranty on the motor and battery of your R7PRO E-Bike from the date of purchase. This warranty covers manufacturing defects under normal use.

For warranty claims, technical support, or any questions regarding your e-bike, please contact BURCHDA customer service. Have your purchase receipt and product model number ready when contacting support.

You can visit the official BURCHDA store for more information: BURCHDA Store on Amazon
