MUBVIEW J9 Wireless Video Doorbell User Manual

1. Introduction

Thank you for choosing the MUBVIEW J9 Wireless Video Doorbell. This manual provides essential information for setting up, operating, and maintaining your device. The MUBVIEW J9 is designed for enhanced home security and convenience, featuring high-definition video, two-way communication, and smart motion detection. Its wireless design and long-lasting battery ensure easy installation and reliable performance.

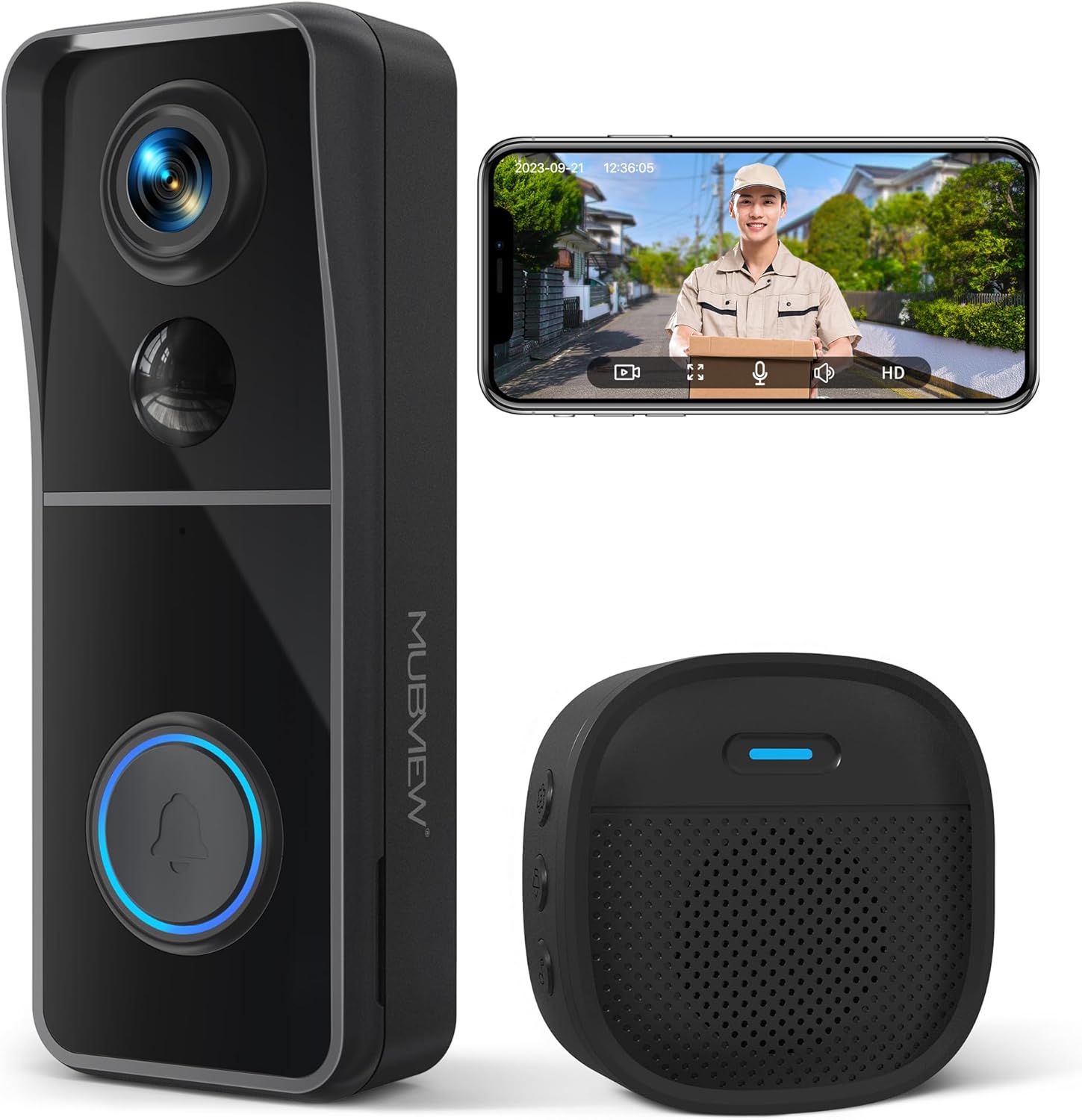

Image: The MUBVIEW J9 Wireless Video Doorbell and its accompanying chime unit.

2. What's Included

Please check the package contents to ensure all items are present:

• Video Doorbell Unit
• Wireless Chime Unit
• User Manual
• USB Charging Cable
• Screw Set for Installation
• 3M Double-Sided Strong Tape

Image: All components included in the MUBVIEW J9 package.

3. Setup and Installation

The MUBVIEW J9 doorbell is designed for easy, wire-free installation. Before mounting, ensure the doorbell is fully charged using the provided USB cable. A full charge takes approximately 6-8 hours and can last up to 3 months, depending on usage.

3.1 Charging the Doorbell

Connect the USB charging cable to the doorbell's charging port (located on the side, under a protective flap) and plug it into a standard USB power adapter (not included). The indicator light will show charging status.

3.2 App Download and Connection

Download the 'Mubview' app from your smartphone's app store (iOS or Android). Follow the in-app instructions to create an account and add your device. Ensure your Wi-Fi network is 2.4GHz, as 5GHz is not supported.

Video: Step-by-step guide on connecting the MUBVIEW J9 doorbell to your Wi-Fi network via the app.

3.3 Physical Installation

The doorbell can be installed using either the provided 3M double-sided tape or the screw set. For optimal performance, install the doorbell at least 4 feet (1.2 meters) above the ground.

• Using 3M Tape: Clean the mounting surface thoroughly. Apply the tape to the backplate of the doorbell and firmly press it onto the desired location on your wall or door frame.
• Using Screws: Use the backplate as a template to mark drill holes. Drill the holes, insert the wall anchors (if needed), and secure the backplate with screws. Then, slide the doorbell unit onto the mounted backplate until it clicks into place.

Video: Detailed instructions on how to physically install the MUBVIEW J9 doorbell on your door or wall.

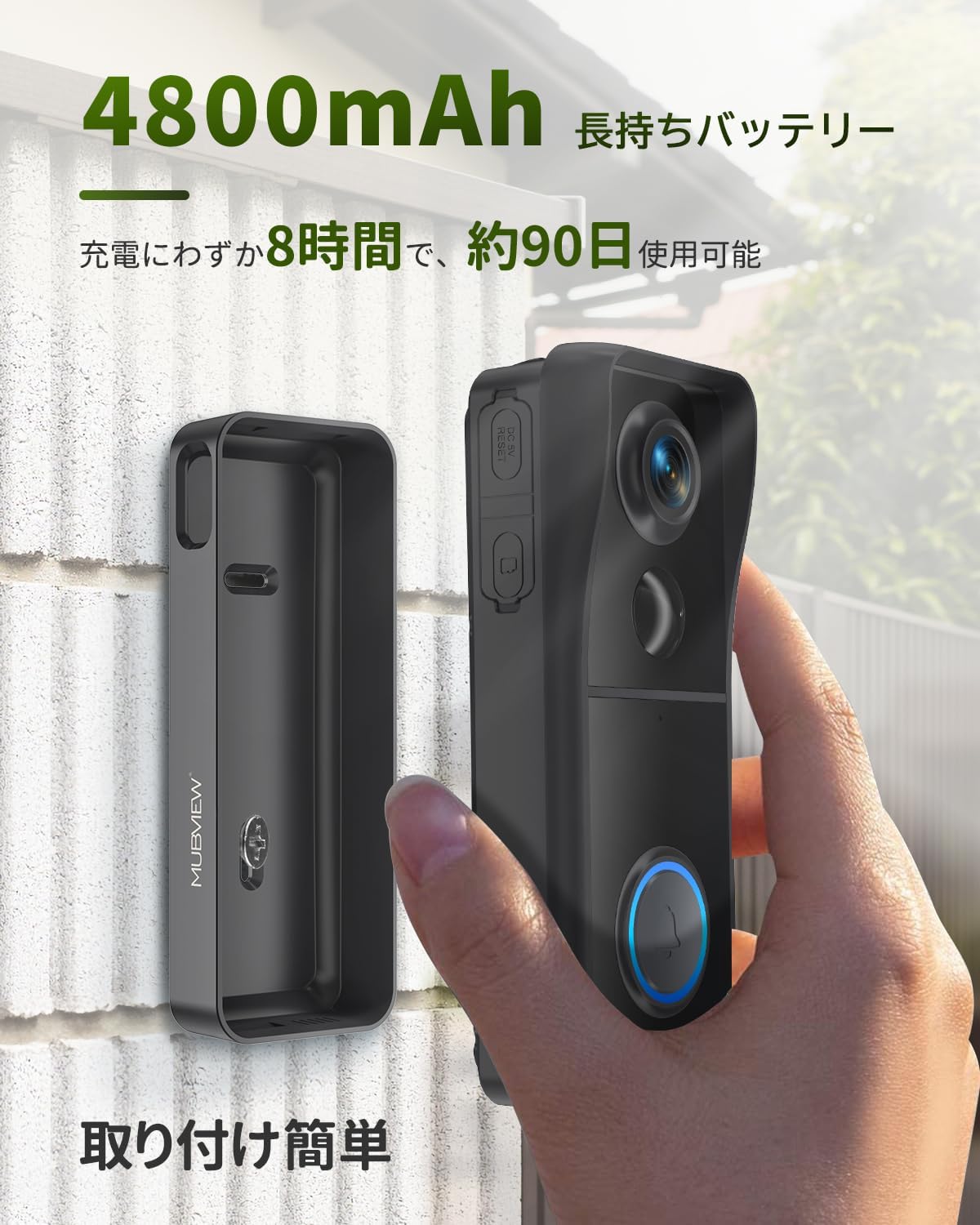

Image: The doorbell unit being attached to its mounting bracket on a wall, highlighting its easy installation.

4. Operating Instructions

Once installed and connected, your MUBVIEW J9 doorbell offers a range of features for enhanced security and communication.

4.1 Live View and Two-Way Talk

Access the live video feed from your doorbell anytime through the Mubview app. When a visitor presses the doorbell, you will receive an instant notification on your smartphone, allowing you to see and speak to them in real-time, even when you're away from home.

Image: A user engaging in two-way communication with a visitor via the MUBVIEW app on their smartphone.

4.2 Motion Detection and Alerts

The doorbell features PIR motion detection. When motion is detected within the customizable area, the doorbell automatically starts recording and sends an alert to your phone. You can adjust the detection sensitivity and schedule within the app to minimize false alarms.

Image: Screenshot of the app interface showing how to customize the motion detection area for the doorbell.

4.3 High-Definition Video and Night Vision

The MUBVIEW J9 captures video in 1080P high-definition, ensuring clear visuals. Its infrared night vision, powered by a Starlight CMOS image sensor, provides excellent visibility up to 10 meters even in complete darkness. The 166° ultra-wide-angle lens offers a broad field of view.

Image: Comparison of daytime 1080P video quality and clear infrared night vision captured by the doorbell.

4.4 Voice Message and Sharing

You can pre-record up to three 10-second voice messages to respond to visitors quickly. The doorbell also supports sharing access with multiple family members or friends through their own accounts on the Mubview app.

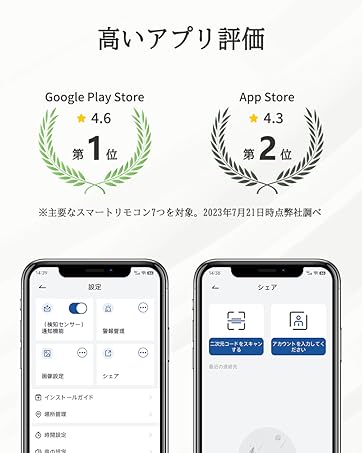

Image: Illustration of how multiple users can share access to the doorbell's features via the app.

5. Maintenance

To ensure the longevity and optimal performance of your MUBVIEW J9 doorbell, follow these maintenance guidelines:

• Regular Cleaning: Wipe the camera lens and the doorbell surface with a soft, damp cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive materials.
• Battery Management: Monitor the battery level via the app. Recharge the doorbell promptly when the battery is low to ensure continuous operation.
• Firmware Updates: Keep the Mubview app and doorbell firmware updated to the latest versions to benefit from new features and security enhancements.
• Weather Resistance: The doorbell is IP66 rated, meaning it is dustproof and waterproof. It can withstand temperatures from -20°C to 50°C. However, avoid submerging it in water or exposing it to extreme conditions beyond its specified limits.

Image: The doorbell unit shown with water droplets, illustrating its IP66 weather-resistant design.

6. Troubleshooting

If you encounter issues with your MUBVIEW J9 doorbell, try the following troubleshooting steps:

• No Power/Not Turning On: Ensure the doorbell is fully charged. Connect it to the USB charging cable and check if the indicator light turns on.
• Cannot Connect to Wi-Fi: Verify that your Wi-Fi network is 2.4GHz. Ensure the doorbell is within range of your router. Try resetting the doorbell by pressing the reset button for 5 seconds until the red indicator light flashes.
• No Notifications: Check your smartphone's app settings to ensure notifications for the Mubview app are enabled. Verify that motion detection is activated and configured correctly in the app.
• Poor Video Quality: Ensure the camera lens is clean. Check your Wi-Fi signal strength in the app; a weak signal can affect video quality.
• Two-Way Audio Issues: Ensure the microphone and speaker are not obstructed. Check the volume settings in the app.

If the issue persists after trying these steps, please contact MUBVIEW customer support.

7. Specifications

8. Warranty and Support

MUBVIEW offers a 3-year quality guarantee for this product. If you experience any defects or malfunctions, MUBVIEW will provide a new product exchange or a refund.

For any inquiries or support, please contact MUBVIEW customer service at support@mubview.com. They strive to provide prompt assistance and continuously improve their software based on customer feedback.
