EROMMY Louvered Pergola 10' x 20' Instruction Manual

Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your EROMMY Louvered Pergola. Designed for outdoor living spaces, this pergola features an adjustable louvered roof, durable aluminum frame, and includes curtains and netting for enhanced comfort and privacy. Please read this manual thoroughly before beginning assembly or operation to ensure safe and proper use of your product.

Safety Information

Adherence to the following safety guidelines is crucial for preventing injury and ensuring the longevity of your pergola:

• Always follow the assembly instructions provided in this manual.
• Secure the pergola to a stable foundation to prevent tipping, especially in windy conditions.
• Exercise caution when handling heavy components during assembly and disassembly. It is recommended to have 3-4 people for assembly.
• Regularly inspect and clean the pergola to maintain its stability and safety.
• Keep curtains and netting away from heat sources and open flames to prevent fire hazards.

Product Features

• Adjustable & Flexible Louvered Roof: The louvered roof can be adjusted to control sunlight and shade, adapting to various weather conditions and seasons. This allows for basking in sunlight or seeking shelter as desired.
• Durable & Strong Construction: Constructed with a high-quality aluminum frame and a robust louvered roof, designed to withstand outdoor elements. The pillars feature pads and anchoring designs for enhanced stability.
• Aesthetics & Protection: Modern design seamlessly integrates with various outdoor spaces. Includes removable curtains and mesh screens for privacy, insect protection, and creating a versatile living area.
• Innovative Drainage System: Horizontal beams function as drainage channels, directing rainwater into a built-in gutter system and discharging it through the pillars, preventing water accumulation on the roof.
• Secure Curtain & Netting System: Three bands on the poles are designed to secure detachable curtains and nets, preventing them from flapping during strong winds.

Setup and Assembly

The EROMMY Louvered Pergola is designed for straightforward assembly. All components are clearly identified, and detailed instructions are provided in the included assembly manual. Assembly typically requires 3-4 people and can be completed in approximately 2-3 hours.

Assembly Steps Overview:

1. Unpack and Identify Parts: Carefully unpack all boxes and lay out components. Verify all parts are present against the packing list.
2. Assemble Frame: Begin by assembling the main aluminum frame according to the step-by-step instructions. Ensure all connections are secure.
3. Install Louvered Roof Panels: Attach the louvered roof panels. Pay attention to the orientation of the panels to ensure proper functionality of the adjustable mechanism.
4. Attach Curtains and Netting: Install the removable curtains and mesh screens onto the frame. Utilize the integrated straps for secure attachment.
5. Secure to Ground: Once assembled, position the pergola in its desired location. Secure the base stands to the ground using the provided expansion screws for stability.

Figure 1: Fully assembled EROMMY Louvered Pergola in an outdoor setting.

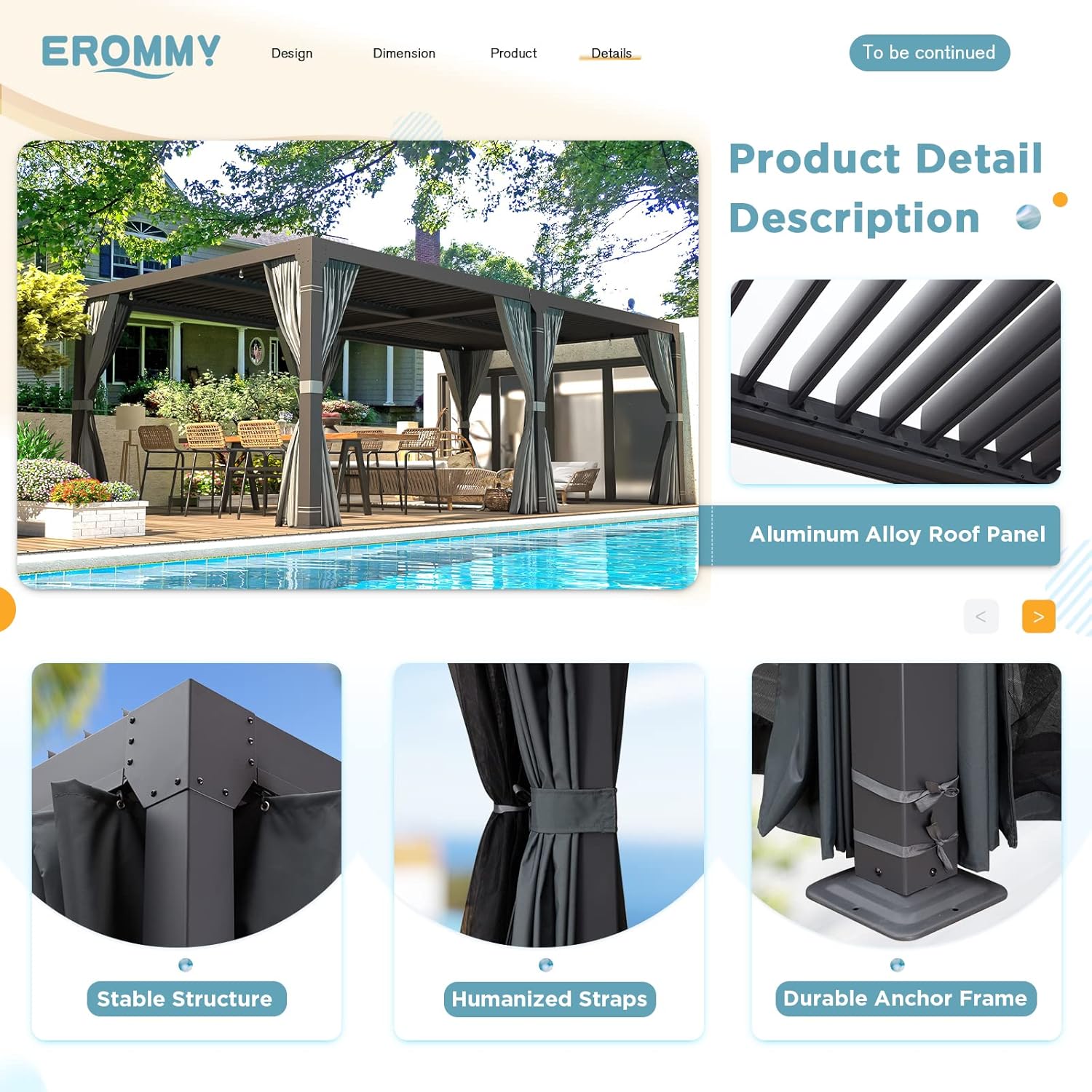

Figure 2: Detailed view of key structural components: aluminum alloy roof panel, stable corner structure, humanized straps for curtains, and durable anchor frame at the base.

Operating Instructions

Adjusting the Louvered Roof:

The louvered roof consists of multiple sections that can be individually adjusted to control the amount of sunlight or shade. Use the provided handle to turn the mechanism, tilting the louvers from a fully open position (allowing maximum sunlight) to a fully closed position (providing full shade and rain protection).

Figure 3: The adjustable louvered roof allows for control over sunlight and shade.

Figure 4: Multiple states of the louvered roof: fully closed, half-open, and fully open.

Using Curtains and Netting:

The included curtains and netting can be deployed or retracted as needed. The netting provides protection from insects while allowing airflow, and the curtains offer privacy and additional shade. Use the humanized straps on the poles to secure the curtains and netting in place, preventing them from moving in windy conditions.

Figure 5: Customize side shade for privacy, anti-mosquito protection, or fully open for ventilation.

Maintenance

Regular maintenance will ensure the longevity and optimal performance of your EROMMY Louvered Pergola.

• Cleaning: Periodically clean the aluminum frame, louvered panels, and fabric components with mild soap and water. Rinse thoroughly with clean water and allow to air dry. Avoid abrasive cleaners or harsh chemicals.
• Inspection: Regularly inspect all bolts, screws, and connections to ensure they remain tight and secure. Check the louver mechanism for smooth operation.
• Drainage System: Ensure the built-in gutter system and pillars are free from debris (leaves, dirt) to allow for efficient rainwater drainage.
• Fabric Care: If curtains or netting become excessively dirty, they can be removed and hand-washed or machine-washed on a gentle cycle with cold water. Air dry only.

Figure 6: The innovative in-built gutter system ensures efficient water drainage.

Troubleshooting

Specifications

Warranty and Support

For information regarding warranty coverage, replacement parts, or technical support, please contact EROMMY customer service directly. Refer to your purchase documentation or the EROMMY official website for contact details.
