PowerXL CRISP'N BAKE Air Fryer Oven User Manual

1. Introduction

Thank you for choosing the PowerXL CRISP'N BAKE Air Fryer Oven. This versatile 8-in-1 appliance combines the functions of an air fryer and a toaster oven, allowing you to air fry, bake, roast, cook pizza, prepare bagels, toast, reheat, and keep food warm. With its 22-liter extra-large capacity, you can cook a 12-inch pizza or prepare meals for the whole family. This manual provides essential information for safe and efficient operation of your appliance.

Image: The PowerXL CRISP'N BAKE Air Fryer Oven highlighting its 8 cooking functions.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury. Read all instructions before using this appliance.

• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance housing in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.

3. Product Components

Your PowerXL CRISP'N BAKE Air Fryer Oven comes with several components designed to enhance your cooking experience:

• Main Unit: The oven housing with a digital display that illuminates during use.
• Air Fry Basket: Designed for optimal air circulation to achieve crispy results.
• Baking Pan: For baking, roasting, and catching drips.
• 2-Position Rack: An adjustable rack for flexible cooking heights.

Image: The PowerXL Air Fryer Oven displaying its included accessories.

4. Setup

Before first use, follow these steps to set up your PowerXL CRISP'N BAKE Air Fryer Oven:

1. Unpack: Carefully remove all packaging materials, stickers, and labels from the appliance.
2. Clean: Wipe the exterior of the oven with a damp cloth. Wash the air fry basket, baking pan, and rack in warm, soapy water. Rinse thoroughly and dry completely.
3. Placement: Place the oven on a stable, heat-resistant surface, ensuring adequate ventilation around all sides (at least 4 inches of space). Do not place it directly against a wall or under cabinets.
4. Initial Burn-Off: Before cooking food, operate the oven empty for approximately 15 minutes at 200°C (400°F) to burn off any manufacturing residues. A slight odor or smoke is normal during this process. Ensure the area is well-ventilated.
5. Power Connection: Plug the power cord into a grounded electrical outlet.

5. Operating Instructions

Your PowerXL CRISP'N BAKE Air Fryer Oven features a digital display and intuitive controls for easy operation.

Control Panel Overview

Image: Detailed view of the digital display and control knob.

• Digital Display: Shows selected function, temperature, and time. It illuminates only when the oven is in use.
• Function Selector: Use the control knob to cycle through the 8 cooking functions: Air Fry, Bake, Roast, Pizza, Bagel, Toast, Reheat, and Keep Warm.
• Temperature Control: Adjust the cooking temperature using the dedicated control. The temperature range is 70°C to 260°C (150°F to 500°F).
• Timer Control: Set the cooking time using the timer knob.
• Start/Stop Button: Press to begin or end a cooking cycle.

Using the 8 Functions

Each function is optimized for specific cooking tasks:

• Air Fry: Utilizes powerful hot air circulation for crispy, fried results with little to no oil. Ideal for fries, chicken wings, and vegetables.
• Bake: Perfect for cakes, cookies, casseroles, and other baked goods.
• Roast: For cooking meats, poultry, and larger vegetables.
• Pizza: Specifically designed for cooking pizzas up to 12 inches.
• Bagel: Toasts bagels to perfection.
• Toast: For bread and other toasted items.
• Reheat: Gently warms leftovers without drying them out.
• Keep Warm: Maintains food at a serving temperature until ready to eat.

Image: The PowerXL Air Fryer Oven in action, air frying curly fries for a crispy texture.

6. Cooking Guide

Achieve optimal results by understanding rack positions and general cooking guidelines.

Rack Positions

The oven features a 2-position rack for versatile cooking. Use the lower position for larger items like roasts or whole chickens, and the upper position for items requiring closer proximity to the heating elements, such as toast or for crisping.

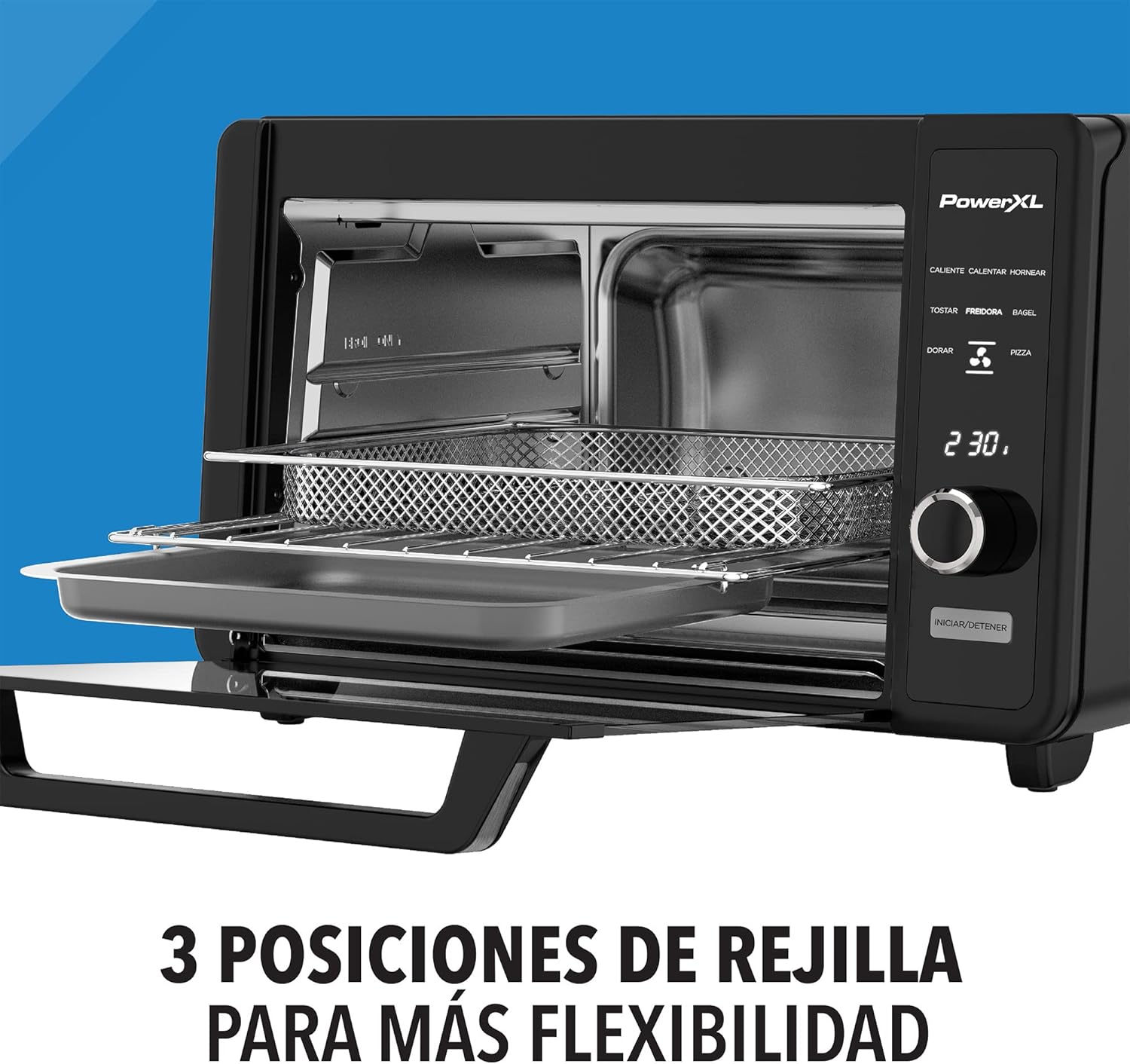

Image: Interior view of the oven demonstrating the adjustable rack positions and air fry basket.

General Cooking Tips

• Preheating: For best results, preheat the oven for 5-10 minutes before adding food, especially for baking and air frying.
• Even Cooking: For air frying, shake the basket halfway through the cooking time to ensure even crisping. For baking or roasting, rotate the pan if necessary.
• Oil Usage: When air frying, a small amount of oil (1-2 tablespoons) can enhance crispiness, but it is often not required.
• Capacity: The 22-liter capacity can accommodate a 12-inch pizza or multiple servings of other dishes.

Image: A pizza being cooked inside the PowerXL Air Fryer Oven.

7. Cleaning and Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your oven.

1. Always Unplug: Before cleaning, always unplug the oven from the electrical outlet and allow it to cool completely.
2. Exterior Cleaning: Wipe the exterior surfaces with a damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads.
3. Interior Cleaning: Wipe the interior walls with a damp cloth. For stubborn food residue, use a non-abrasive sponge with mild soap. Ensure the interior is completely dry before next use.
4. Accessories: The air fry basket, baking pan, and rack are dishwasher-safe for easy cleaning. For hand washing, use warm, soapy water and a non-abrasive sponge.
5. Crumb Tray: Regularly remove and clean the crumb tray located at the bottom of the oven to prevent grease buildup and potential fire hazards.

8. Troubleshooting

If you encounter issues with your PowerXL CRISP'N BAKE Air Fryer Oven, refer to the following common problems and solutions:

9. Specifications

Detailed technical specifications for your PowerXL CRISP'N BAKE Air Fryer Oven.

• Brand: PowerXL
• Model Name: Horno Crisp'n Bake
• Model Number: TOD3415B
• Capacity: 22 Liters
• Dimensions (Depth x Width x Height): 50.7 cm x 39 cm x 33 cm
• Weight: 7.36 Kilograms
• Material: Stainless Steel
• Power: 1500 Watts
• Control Type: Touch Control (Digital)
• Temperature Range: 70-260 Degrees Celsius
• Included Components: Air Fry Basket, Baking Pan, 2-Position Rack
• Door Style: Drop-down door

10. Warranty and Support

Your PowerXL CRISP'N BAKE Air Fryer Oven comes with a 2-year limited warranty. This warranty covers defects in materials and workmanship under normal household use.

For warranty claims, technical support, or any questions regarding your appliance, please refer to the contact information provided in your product packaging or visit the official PowerXL website. Please have your model number (TOD3415B) and proof of purchase ready when contacting support.
