1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your ECO-WORTHY 400W MPPT Complete Solar Panel Kit. Please read this manual thoroughly before using the product and retain it for future reference.
2. Safety Information
Always observe the following safety precautions to prevent personal injury or damage to the equipment:
- Ensure all connections are correct and secure before applying power. Incorrect wiring can cause damage or fire.
- Do not attempt to disassemble or modify any components of the kit.
- Wear appropriate personal protective equipment (PPE) such as gloves and eye protection during installation.
- Avoid touching live electrical parts.
- Keep children and unauthorized personnel away from the installation area.
- Disconnect all power sources before performing any maintenance or troubleshooting.
- The battery contains a low-temperature cut-off protection. Do not attempt to charge the battery below -7°C (19.4°F).
3. Package Contents
The ECO-WORTHY 400W MPPT Complete Solar Panel Kit includes the following components:
- 4 x 100W N-Type Bifacial Solar Panels
- 1 x 1100W 12V Pure Sine Wave Solar Inverter
- 1 x 12V 100AH LiFePO4 Bluetooth Battery
- 1 x 40A MPPT Solar Charge Controller
- Necessary Cable Accessories (including 16ft 12AWG cable with MC4 connectors, Y-branch connectors, Z-shape mount brackets, battery-controller cable)
Image: Included accessories such as Z-shape mounting brackets, 16ft 12AWG cable with MC4 connectors, and Y-branch connectors.
4. Product Overview
The ECO-WORTHY 400W MPPT Complete Solar Panel Kit is designed for off-grid applications, providing a reliable power source for RVs, cabins, vans, and other backup energy needs. It features high-efficiency N-Type bifacial solar panels, an advanced MPPT charge controller, a durable LiFePO4 battery with Bluetooth monitoring, and a pure sine wave inverter.
4.1 Solar Panels

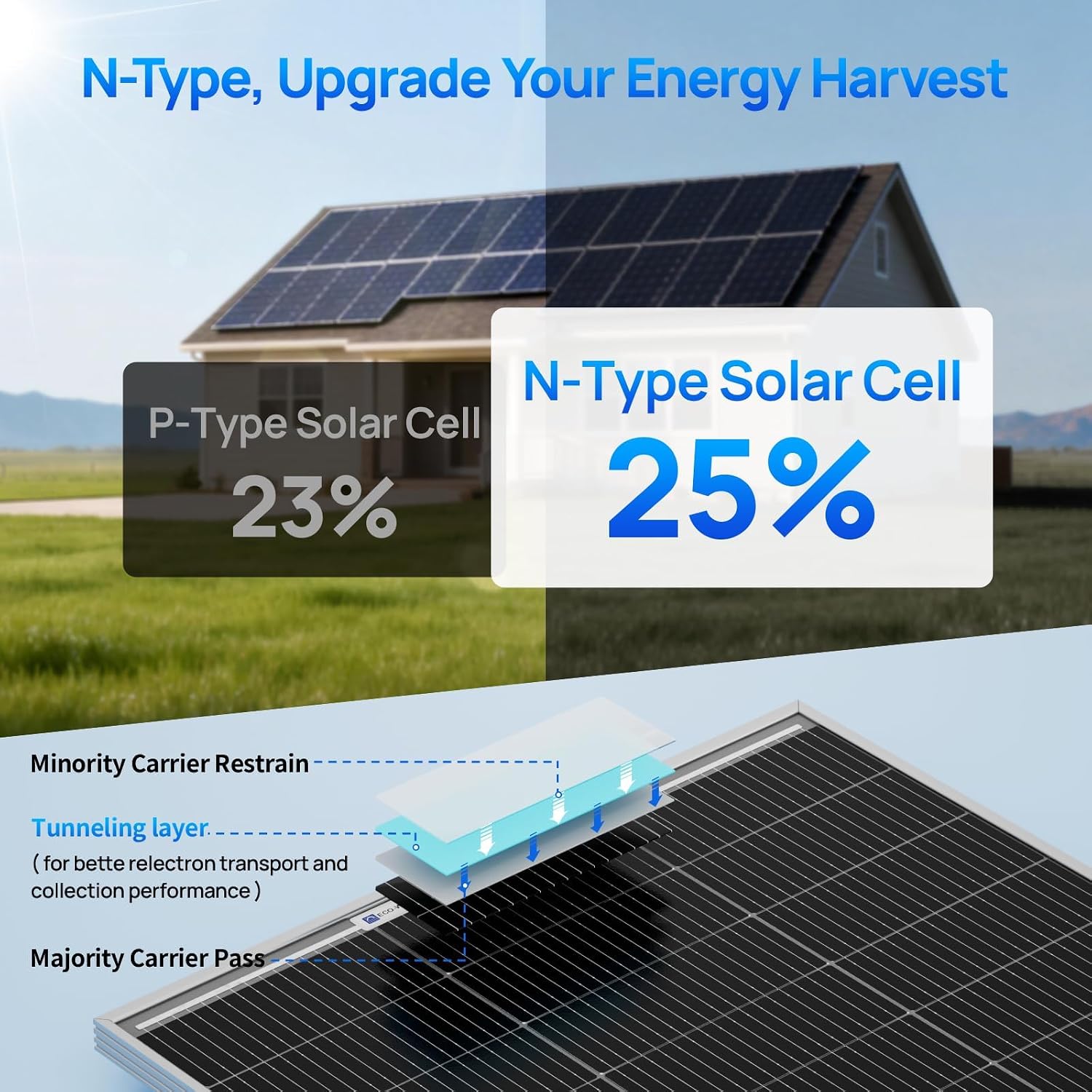

- Type: 100W N-Type Bifacial Monocrystalline Solar Panels (4 units)
- Efficiency: 25% conversion efficiency.
- Technology: Advanced 16BB cell technology for improved light absorption and reduced power loss.
- Durability: Corrosion-resistant aluminum frame, 3.2mm high-transmission glass, IP68 rated junction box. Withstands high winds (2400Pa) and snow loads (5400Pa).
- Bifacial Design: Absorbs direct sunlight from the front and captures reflected ground light from the back, providing additional power.
Image: Detailed view of the solar panel highlighting its dimensions (35.2 x 23.03 inches), 16BB technology, 3.2mm high-transmission glass, sturdy aluminum frame, and pre-drilled holes for easy installation.
Image: Explanation of the bifacial design, showing how the panel absorbs light from both front and back surfaces, increasing energy harvest from various surfaces like glass sheds, snow, concrete, and grass.
4.2 LiFePO4 Battery
- Type: 12V 100Ah LiFePO4 Lithium Battery
- Storage Capacity: 1.28kWh (1280Wh)
- Management System: Built-in smart Battery Management System (BMS)
- Connectivity: Bluetooth 5.0 module for real-time monitoring via the ECO-WORTHY APP.
- Protection: Low-temperature cut-off protection automatically stops charging when cell temperature is below -7°C (19.4°F) to prevent damage.
Image: The 12.8V 100Ah LiFePO4 battery, showing its dimensions (10.24 x 6.61 x 8.43 inches) and weight (23.15 lbs), highlighting its higher energy density and smaller, lighter design.
4.3 MPPT Solar Charge Controller
- Type: 40A MPPT (Maximum Power Point Tracking)
- System Voltage: 12V/24V auto-recognition (operates at 12V for this kit).
- Efficiency: Up to 99% tracking efficiency, increasing charging efficiency by 20-30% compared to PWM controllers.
- Protection: Prevents current overcharge and overdischarge, anti-reflux, overvoltage, and short circuit protection.

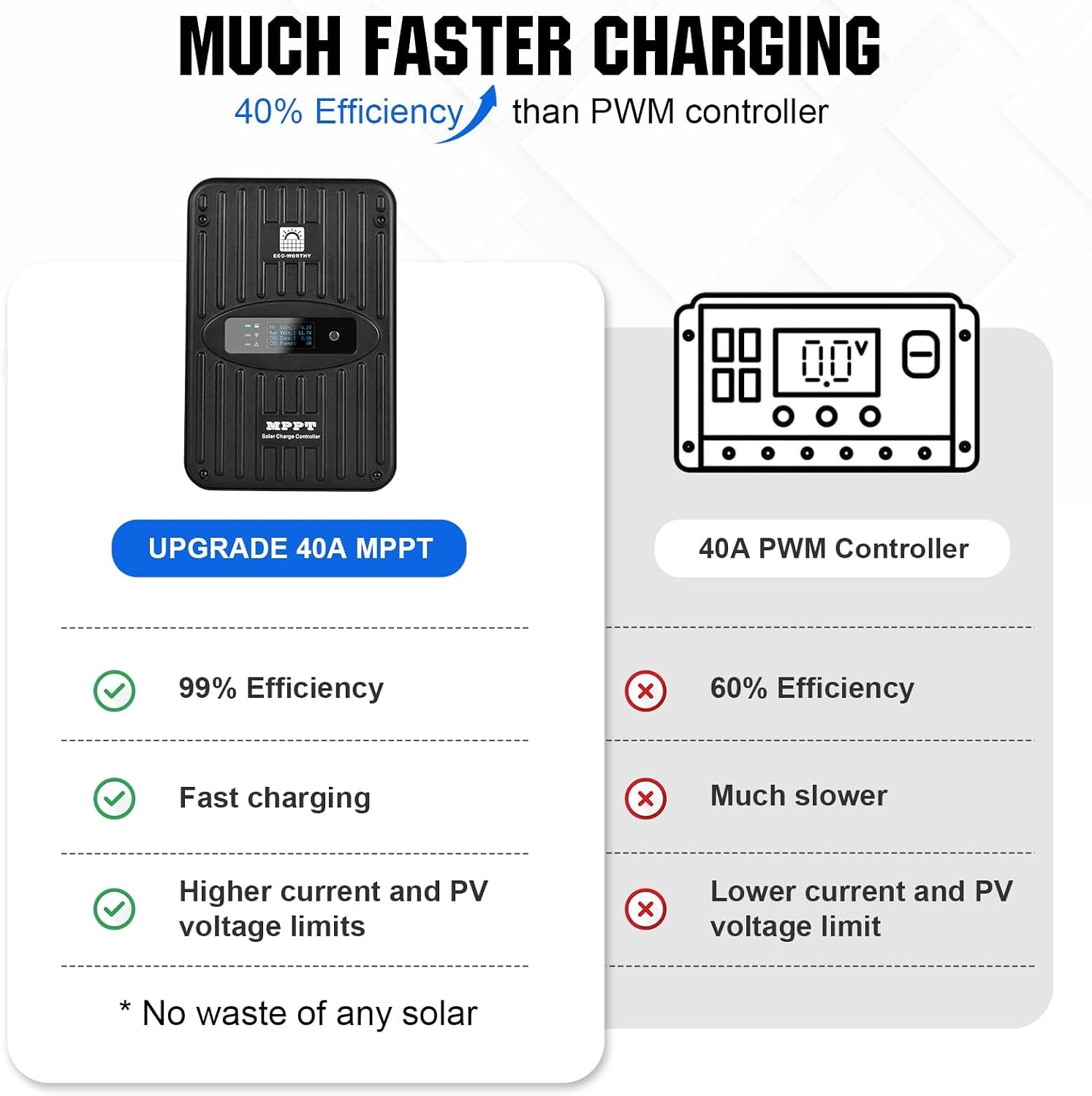

Image: Comparison illustrating the superior performance of the 40A MPPT controller (99% efficiency, fast charging, higher current/PV voltage limits) over a 40A PWM controller (60% efficiency, slower charging, lower limits).
4.4 Pure Sine Wave Inverter
- Type: 1100W 12V Pure Sine Wave Inverter
- Output: Provides clean and stable AC power suitable for sensitive electronics.
- Cooling: Double smart cooling fans to protect the inverter and extend service life.
- Display: LCD display shows battery power, output power, in/out voltage, and warning indicators (overvoltage, undervoltage, current overload).
- Protection: Built-in fuse, external fuse, short-circuit protection, overload protection, overheat protection, ground terminal.
Image: The 1100W inverter, detailing its comprehensive protection features against fire, explosion, short-circuit, overload, and overheating, along with external and built-in fuses and a ground terminal.
5. Setup and Installation
Follow these steps for proper installation of your solar panel kit. Refer to the wiring diagram for visual guidance.
5.1 Component Placement
- Solar Panels: Mount panels in a location that receives maximum direct sunlight throughout the day, free from shading. Use the provided Z-brackets for secure mounting.
- MPPT Controller: Install the controller in a cool, dry, and well-ventilated area, close to the battery.
- Battery: Place the LiFePO4 battery in a secure, dry, and temperature-controlled environment.
- Inverter: Mount the inverter in a well-ventilated area, away from flammable materials, and as close to the battery as practical to minimize cable length.
5.2 Wiring Instructions
Important: Always connect the battery to the charge controller first, then the solar panels, and finally the inverter. Disconnect in reverse order.
- Connect Solar Panels: Connect the four 100W solar panels in parallel. This means connecting all positive terminals together and all negative terminals together. Use the provided Y-branch connectors to combine the panel outputs.
- Connect Panels to MPPT Controller: Connect the combined positive and negative outputs from the solar panels to the PV input terminals on the 40A MPPT solar charge controller. Ensure correct polarity.
- Connect Battery to MPPT Controller: Connect the 12V 100Ah LiFePO4 battery to the battery terminals on the MPPT solar charge controller. Ensure correct polarity (positive to positive, negative to negative). The controller will detect the 12V system voltage.
- Connect Inverter to Battery: Connect the 1100W inverter directly to the 12V 100Ah LiFePO4 battery terminals. Ensure correct polarity. The inverter typically has thicker cables for this connection.
Image: Comprehensive wiring diagram illustrating the connection of four solar panels, MPPT charge controller, LiFePO4 battery, and 1100W inverter. Panels are shown connected in parallel to a combiner, which then feeds the MPPT controller. The controller is connected to the battery, and the inverter is also connected to the battery.
6. Operating Instructions
6.1 System Start-up
- After completing all wiring, ensure all connections are tight and correct.
- The MPPT controller should power on automatically once the battery is connected.
- If sunlight is available, the controller will begin charging the battery.
- Turn on the inverter using its power switch. The LCD display will show system status.
6.2 Monitoring with ECO-WORTHY APP
The 12V 100Ah LiFePO4 battery features Bluetooth 5.0 connectivity. Download the ECO-WORTHY APP on your smartphone to monitor battery information in real-time, including voltage, current, state of charge, and temperature.
6.3 Inverter Operation
The 1100W inverter converts 12V DC battery power to 110V AC power for your appliances. The LCD display provides critical information:
- Battery Power: Current battery charge level.
- Output Power: Power being drawn by connected AC devices.
- In/Out Voltage: DC input voltage from battery and AC output voltage.
- Warning Indicator: Alerts for overvoltage, undervoltage, or current overload. Address any warnings promptly.
The kit is capable of powering various AC 110V devices. For example, it can run a refrigerator (150W) for approximately 34 hours, an LED bulb (10W) for 128 hours, a fan (40W) for 32 hours, or a microwave (500W) for 2.5 hours, based on the 1.28kWh storage capacity.
Image: Illustrates the approximate run times for common appliances (Fridge 150W: 34 hours, LED Bulb 10W: 128 hours, Fan 40W: 32 hours, Microwave 500W: 2.5 hours) based on the kit's storage capacity.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your solar kit.
- Solar Panels: Periodically clean the surface of the solar panels with a soft cloth and water to remove dust, dirt, and debris. Avoid abrasive cleaners or harsh chemicals. Inspect for any physical damage or loose connections.
- Battery: Monitor battery health via the ECO-WORTHY APP. Ensure the battery is not exposed to extreme temperatures. The built-in BMS protects against overcharge and overdischarge.
- Connections: Annually check all electrical connections for tightness and corrosion.
- Ventilation: Ensure the MPPT controller and inverter have adequate ventilation to prevent overheating. Keep vents clear of obstructions.
8. Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power output from inverter | Inverter off, low battery voltage, overload, loose connections. | Turn on inverter. Check battery charge. Reduce load. Inspect and tighten connections. |
| Battery not charging | No sunlight, solar panel wiring error, controller fault, battery low-temp cut-off. | Ensure panels are in direct sunlight. Verify panel-to-controller wiring. Check controller display for errors. Ensure ambient temperature is above -7°C. |
| Low power generation | Partial shading on panels, dirty panels, incorrect panel angle, cloudy weather. | Clear shading. Clean panels. Adjust panel angle for optimal sun exposure. |
| Bluetooth app not connecting | Bluetooth off on phone, battery too far, app issue. | Ensure phone Bluetooth is on. Move closer to battery. Restart app or phone. |
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact ECO-WORTHY customer service.
9. Specifications
Image: Detailed specifications table for each major component: 12V 100Ah LiFePO4 Battery, 12V/24V 40A Charge Controller, 1100W Off-grid Inverter, and 100W Mono Solar Panel.
General System Specifications:
- Brand: ECO-WORTHY
- Model Number: CA-L02M100N-MCWMZIUS1000L100-4
- Material: Monocrystalline Silicon (panels)
- Maximum System Power: 400W (solar panels), 1600W (total system capacity)
- System Voltage: 12 Volts
- Daily Power Output (Ideal): 1.6KWH (under 4 hours sunlight)
- Storage Capacity: 1.28kWh
Individual Component Specifications:
- 100W Solar Panel (x4):
- Cell Type: Monocrystalline Silicon N-Type
- Dimensions: 89.5L x 58.5W x 3.5H cm (35.2L x 23.03W x 1.18H inches)
- Weight: 5.19kg (11.46 lbs)
- Maximum Power Voltage (Vmp): 21.6V ±3%
- Maximum Power Current (Imp): 4.63A ±3%
- Open Circuit Voltage (Voc): 25.2V ±3%
- Short Circuit Current (Isc): 4.92A ±3%
- Connector Type: MC4
- 12V 100Ah LiFePO4 Battery (x1):
- Rated Capacity: 100Ah (1280Wh)
- Nominal Voltage: 12.8V
- Voltage Range: 10 - 14.6V
- Max Continuous Charging Current: 80A
- Max Continuous Discharging Current: 100A
- Charging Temperature: 0-55°C
- Discharging Temperature: -4-55°C
- Dimensions: 26L x 16.8W x 20.5H cm (10.24L x 6.61W x 8.43H inches)
- Weight: 9.6kg (21.16 lbs)
- 40A MPPT Solar Charge Controller (x1):
- System Voltage: 12V/24V Auto
- Nominal Max Input Power: 560W (12V), 1120W (24V)
- Max Battery Charging Current: 40A
- Rated Load Current: 20A
- Self-Consumption: 1-2W
- Conversion Efficiency (Peak): 97%
- Dimensions: 22L x 14.8W x 6.6H cm (8.66L x 5.82W x 2.59H inches)
- Weight: 1.5kg (3.3 lbs)
- 1100W 12V Solar Inverter (x1):
- Output Continuous Watts: 1100W
- Surge Capacity (Peak Power): 2200W
- Rated Input DC Voltage: 12V
- Input Voltage Range: 10.5-16V DC
- Rated Frequency: 60Hz ±0.5Hz
- Rated Output AC Voltage: 110V AC ±10%
- Output Wave Form: Pure Sine Wave
- Dimensions: 34.5L x 19.5W x 8.4H cm (13.5L x 7.67W x 3.3H inches)
- Weight: 3.48kg (7.67 lbs)
10. Warranty and Support
10.1 Warranty Information
ECO-WORTHY provides a 1-year warranty for this product. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
10.2 Customer Support
If you have any questions, require technical assistance, or need to make a warranty claim, please contact ECO-WORTHY customer service. You can reach our support team via Amazon email. We are committed to assisting you promptly with any inquiries.
