Estink USB H-Shifter Instruction Manual

1. Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your Estink USB H-Shifter. This device is designed to enhance your PC racing simulation experience by providing realistic gear shifting. Please read this manual thoroughly before use to ensure proper functionality and longevity of the product.

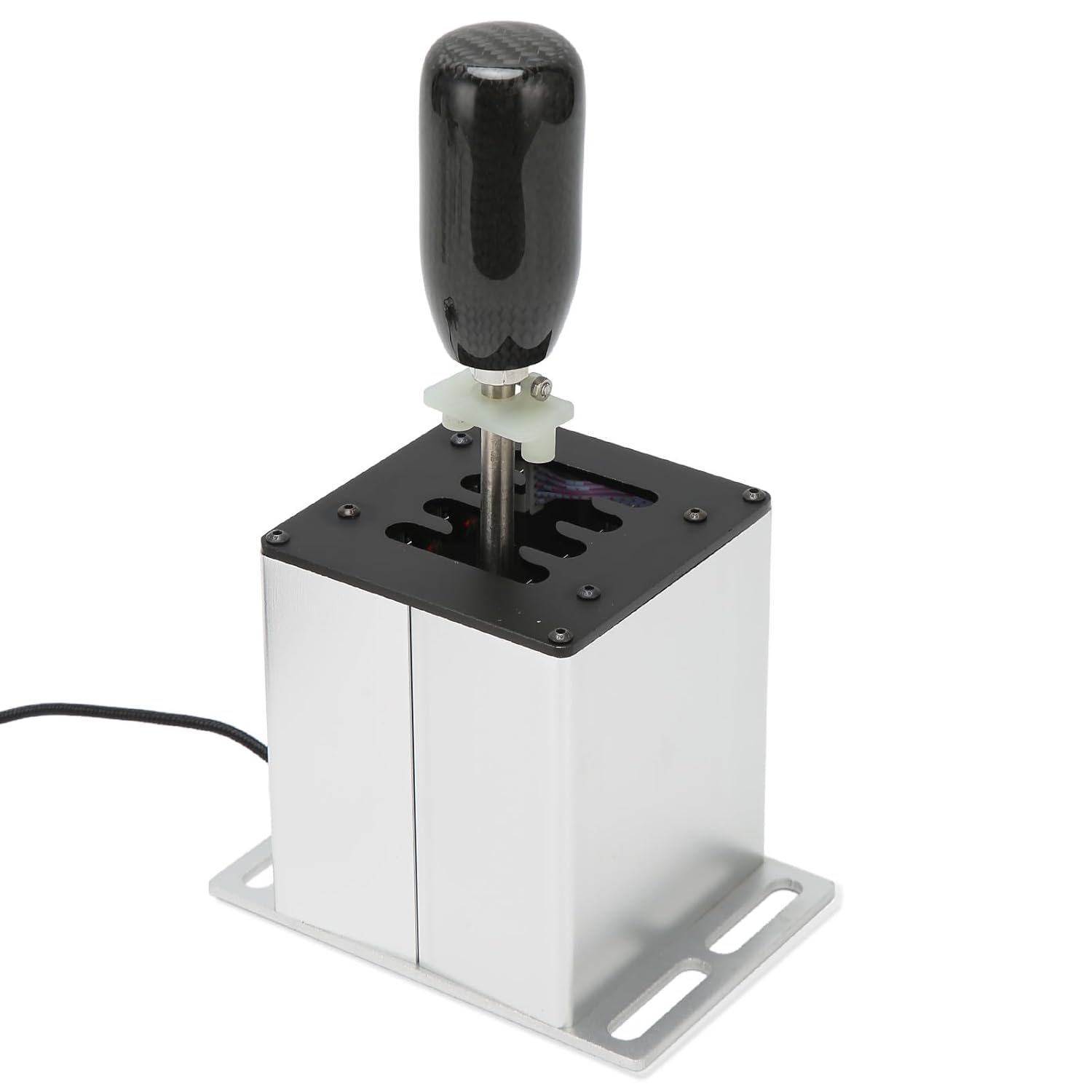

Image 1.1: Estink USB H-Shifter. This image displays the complete USB H-shifter unit, featuring a carbon fiber grip and a robust metal housing, ready for connection to a PC.

2. Product Features

• Strong Applicability: Supports all PC racing games with 6, 7, or 8-speed shifting configurations.
• Comfortable Replaceable Handle: Features a 36mm (1.4in) diameter carbon fiber grip, ergonomically designed for comfortable use during racing. The ball head is replaceable, with an M8 threaded rod.
• Robust Construction: The main internal structure is made of low carbon steel, with an aluminum alloy base and shell, ensuring durability and precise shifting.
• Universal Compatibility: Operates as an independent USB system, compatible with various steering wheel bases. Plug-and-play functionality for Windows 12, 11, 10, 8, 7, and XP.

Image 2.1: 7 Plus R H Gear Shifter. This image highlights the shifter's capability to support 6 to 8-speed settings, adjustable through in-game configurations.

3. Package Contents

Please verify that all items listed below are included in your package:

• Estink USB H-Shifter Unit
• Carbon Fiber Gear Knob (pre-installed or separate)
• USB Cable
• Mounting Hardware (screws, nuts, washers)

Image 3.1: Package Contents. This image displays the Estink USB H-shifter unit along with its detachable carbon fiber gear knob, USB cable, and various mounting screws and nuts.

4. Setup Instructions

1. Mounting the Shifter: Secure the shifter to your racing rig or desk using the provided mounting hardware. Ensure it is stable and does not move during use.
2. Connecting to PC: Plug the USB cable from the shifter into an available USB port on your Windows PC. The device is plug-and-play and should be automatically recognized by Windows (12, 11, 10, 8, 7, XP). No specific drivers are typically required.
3. In-Game Configuration:
   • Launch your preferred racing simulation game.
   • Navigate to the game's controller or input settings.
   • Locate the option to configure a shifter or H-pattern gearbox.
   • Assign each gear position (1st, 2nd, 3rd, 4th, 5th, 6th, 7th, 8th, Reverse) to the corresponding input from the Estink H-Shifter. For games supporting 6 speeds, you may only need to configure up to 6th gear and reverse.

Image 4.1: Game Support Configuration. This image illustrates the shifter's compatibility with various racing games on PC, supporting 6, 7, and 8-speed shifting by adjusting in-game settings.

5. Operating Instructions

Once the Estink USB H-Shifter is properly set up and configured in your game, you can begin using it for a more immersive racing experience.

• Shifting Gears: Engage the clutch (if your setup includes one) and move the shifter lever into the desired gear position. The robust internal mechanism ensures accurate and tactile feedback for each shift.
• Reverse Gear: Typically, reverse gear requires pushing down on the shifter lever before moving it into the reverse position, as configured in your game. Refer to your game's specific controls for reverse engagement.
• Replaceable Handle: The carbon fiber ball head can be unscrewed and replaced with another M8 threaded gear knob if desired. Ensure any replacement is securely fastened.

Image 5.1: Shifting Mechanism Diagram. This image provides a visual representation of the internal shifting gate, illustrating the path for engaging different gears.

6. Compatibility

The Estink USB H-Shifter is designed for broad compatibility with popular racing simulation hardware and software:

• Compatible Steering Wheels:
  • Logitech G29, G27, G25, G920
  • Thrustmaster T300RS GT
• Compatible Games:
  • DiRT 2.0, DiRT 4
  • WRC
  • EST
  • LFS
  • Project Cars
  • Assetto Corsa
• Operating System: Windows 12, 11, 10, 8, 7, XP.
• Note: Not compatible with Forza Horizon 1 to 5 versions on Steam.

Image 6.1: Compatible Racing Wheels. This image visually lists and displays various compatible steering wheels, including Logitech G25, G27, G29, G920, Thrustmaster T-GT, and T300RS.

7. Maintenance

To ensure the longevity and optimal performance of your Estink USB H-Shifter, follow these simple maintenance guidelines:

• Cleaning: Use a soft, dry cloth to wipe down the shifter's exterior. Avoid using harsh chemicals or abrasive materials.
• Storage: When not in use, store the shifter in a clean, dry environment away from direct sunlight and extreme temperatures.
• Cable Care: Avoid bending or kinking the USB cable excessively. Do not pull the cable to disconnect the shifter; always grasp the plug.
• Handle Security: Periodically check that the carbon fiber gear knob is securely tightened to the M8 threaded rod.

8. Troubleshooting

If you encounter issues with your Estink USB H-Shifter, refer to the following common problems and solutions:

9. Specifications

• Model Number: Estinkgq5hynum0c
• Manufacturer: Estink
• Item Weight: 2.07 pounds (approximately 0.94 kg)
• Package Dimensions: 8.27 x 6.65 x 4.21 inches (approximately 21 x 16.9 x 10.7 cm)
• Gear Knob Diameter: 36mm (1.4 inches)
• Gear Rod Thread: M8
• Material: Low carbon steel (internal structure), Aluminum alloy (base/shell), Carbon fiber (grip)
• Connectivity: USB (Plug and Play)
• Supported OS: Windows 12, 11, 10, 8, 7, XP

10. Warranty and Support

Estink products are manufactured to high-quality standards. For specific warranty information, please refer to the product packaging or the retailer's terms of sale. If you require technical assistance or have questions not covered in this manual, please contact Estink customer support through the official website or your purchase platform.
