1. Introduction
This manual provides essential instructions for the proper setup, operation, and maintenance of your Lubluelu Charging Station. This station is designed to automatically recharge compatible Lubluelu robot vacuum cleaners, including models SL60D, SL61, and SG60. Please read this manual thoroughly before using the product to ensure safe and efficient operation.
2. Safety Instructions
- Ensure the charging station is placed on a flat, stable surface.
- Keep the charging station away from water or damp environments.
- Do not use the charging station if the power cord or plug is damaged.
- Only use the original power adapter provided with your robot vacuum cleaner or a compatible adapter with the correct specifications (Input: 230V, Output: 5V DC, 18W).
- Do not attempt to disassemble or repair the charging station yourself. Contact customer support for assistance.
- Keep children and pets away from the charging station during operation.
- Avoid placing the charging station in direct sunlight or near heat sources.
3. Product Overview
The Lubluelu Charging Station serves as the home base for your robot vacuum cleaner, providing a charging point and a location for the robot to return to after cleaning cycles.
Figure 3.1: Front-top view of the Lubluelu Charging Station. This image displays the overall design of the charging station, including the charging contacts and the docking area for the robot vacuum.
Figure 3.2: Side view of the Lubluelu Charging Station, highlighting the power input port. This port is where the power adapter connects to supply electricity to the station.
Figure 3.3: Bottom view of the Lubluelu Charging Station, showing the product label with electrical specifications and regulatory marks. This label provides important technical details about the device.
4. Setup
- Choose a Location: Select a location for the charging station that is against a wall, on a hard, level surface. Ensure there are no obstacles within 0.5 meters (1.6 feet) to either side and 1 meter (3.3 feet) in front of the station. This clear space allows the robot vacuum to easily dock and undock.
- Connect Power: Plug the power adapter into the power input port on the side of the charging station (refer to Figure 3.2). Then, plug the other end of the power adapter into a wall outlet.
- Verify Power: A small indicator light on the charging station may illuminate, indicating it is receiving power.
- Initial Placement of Robot: Place your robot vacuum cleaner onto the charging station manually to ensure it makes proper contact and begins charging. The robot's indicator light should show it is charging.

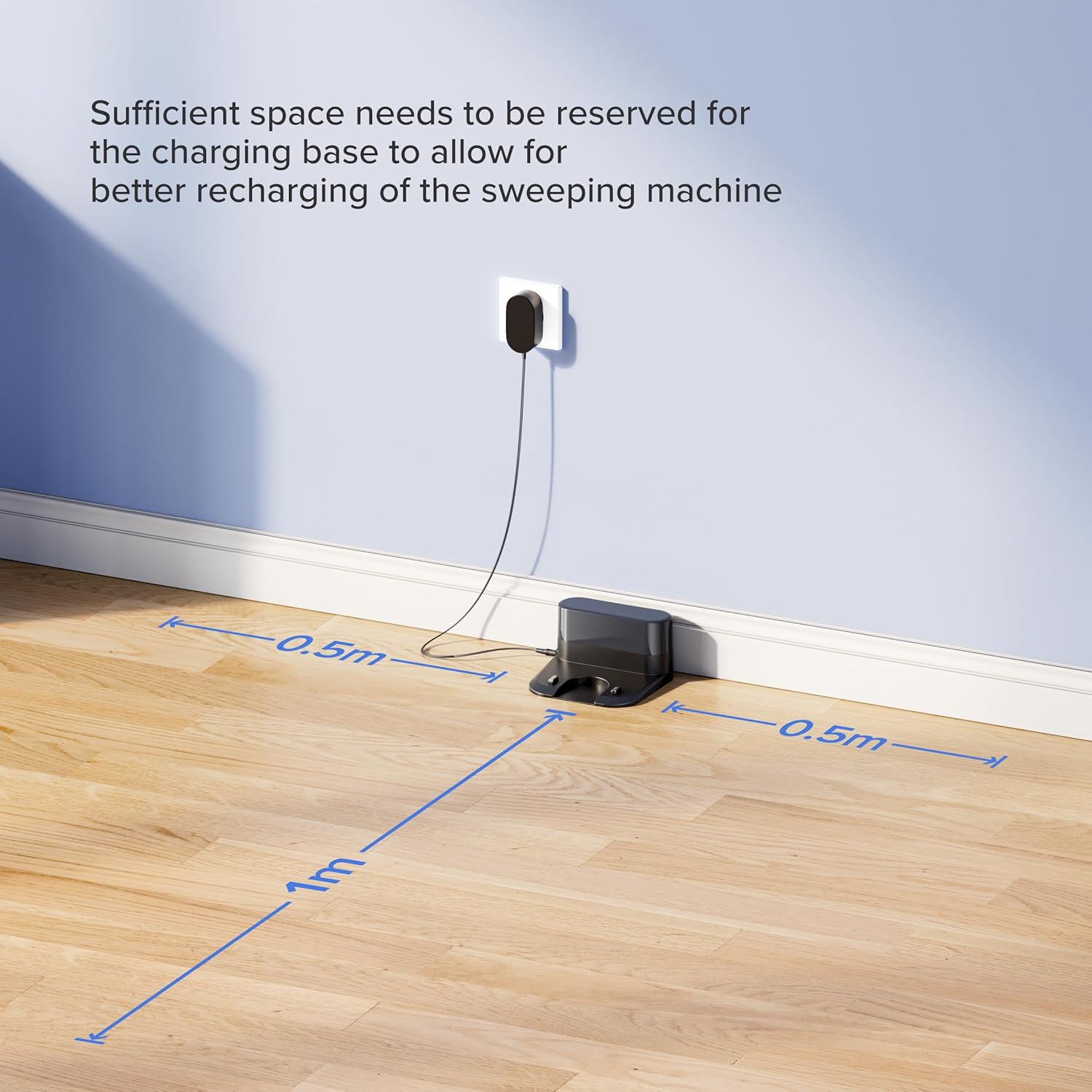

Figure 4.1: Recommended placement for the charging station, showing required clear space of 0.5m to the sides and 1m in front for optimal robot docking.
5. Operation
Once the charging station is set up, your robot vacuum cleaner will interact with it automatically.
- Automatic Return: When the robot vacuum's battery level is low, it will automatically return to the charging station to recharge. Ensure the charging station is powered on and accessible.
- Manual Docking: You can also manually place the robot vacuum onto the charging station. Align the robot's charging contacts with those on the station.
- Charging Indicator: Refer to your robot vacuum's instruction manual for details on its charging indicator lights. Typically, a solid or blinking light indicates charging status.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your charging station.
- Cleaning Contacts: Periodically wipe the charging contacts on both the station and the robot vacuum with a clean, dry cloth. This prevents dust and debris buildup that could interfere with charging. Do not use water or cleaning solutions directly on the contacts.
- Keep Area Clear: Ensure the area around the charging station remains free of obstructions, dust, and debris.
- Power Cord Inspection: Regularly check the power cord for any signs of damage, fraying, or kinks. If damage is found, discontinue use and replace the power cord.
7. Troubleshooting
If you encounter issues with your charging station, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Robot does not return to charging station. |
|
|
| Robot does not charge when docked. |
|
|
| Charging station indicator light is off. |
|
|
8. Specifications
| Brand | Lubluelu |
| Model Compatibility | Lubluelu Robot Vacuum Cleaners SL60D, SL61, SG60 |
| Color | Black |
| Input Voltage | 230V |
| Output Voltage | 5V DC |
| Power | 18W |
| Connector Type | Proprietary |
| Special Feature | Lightweight design |
9. Warranty and Support
Specific warranty information for this Lubluelu Charging Station is not provided in the product data. For details regarding warranty coverage, return policies, or technical support, please refer to the documentation included with your original robot vacuum cleaner or visit the official Lubluelu website. You may also contact Lubluelu customer service directly for assistance.
For general inquiries or support, please visit: www.lubluelu.com
