Introduction
This manual provides detailed instructions for the safe and effective use of your Retevis NR630 professional two-way radio. The NR630 is designed for reliable communication, featuring IP67 waterproofing, intelligent noise reduction, and a long-lasting battery. Please read this manual thoroughly before operating the device.
Package Contents
Verify that all items are present in your package:
- 2 x Retevis NR630 Two-Way Radios
- 2 x Antennas
- 2 x Earpieces
- 2 x Belt Clips
- 2 x Hand Straps
- 2 x Charging Bases
- 2 x USB-C Charging Cables
- 1 x User Manual

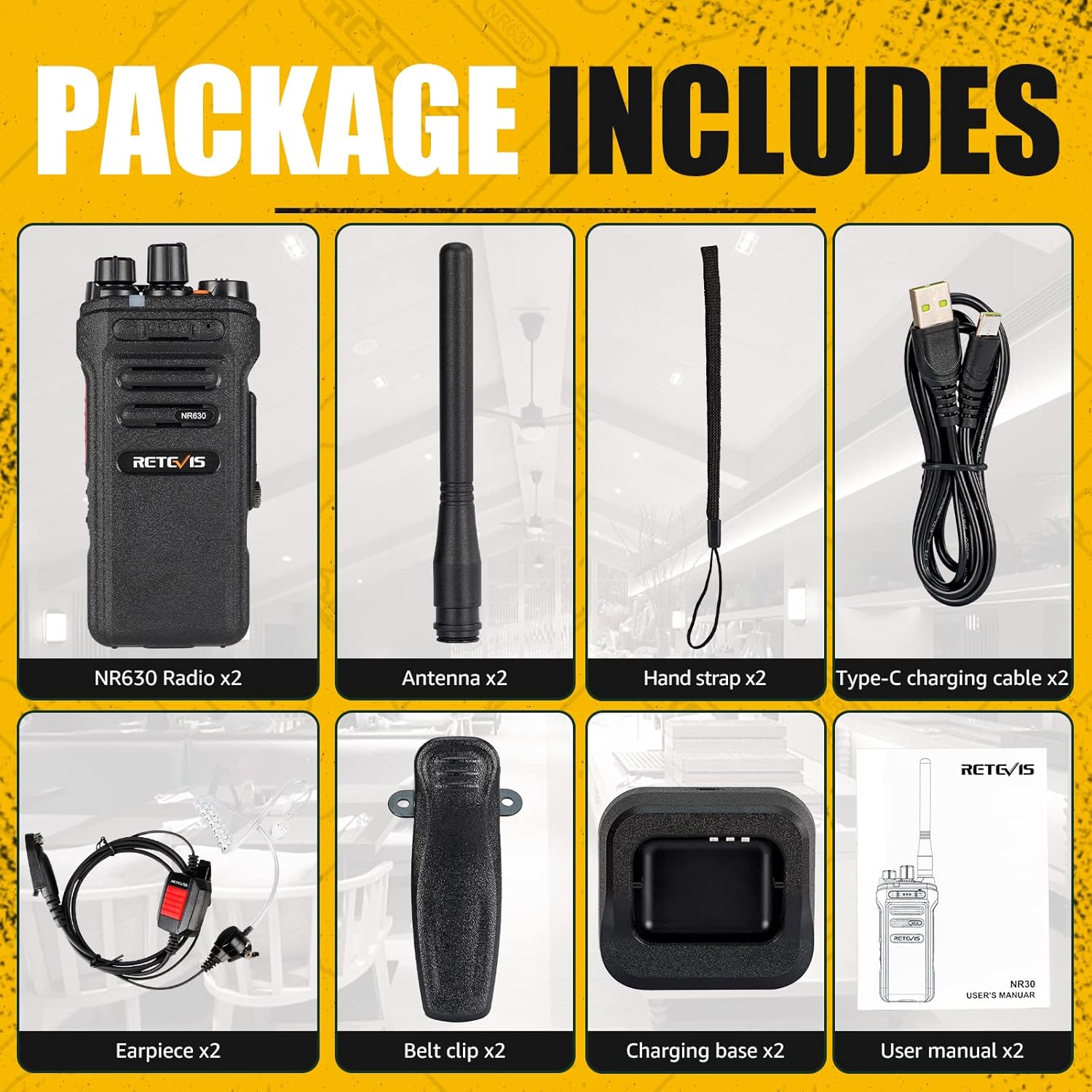

Figure 1: All items included in the Retevis NR630 package.
Setup
1. Battery Installation
- Ensure the radio is powered off.
- Align the Lithium-ion battery with the battery compartment on the back of the radio.
- Press the battery firmly until it clicks into place.
2. Antenna Attachment
- Screw the antenna clockwise into the connector on the top of the radio until it is finger-tight. Do not overtighten.
3. Charging the Radio
Before first use, fully charge the radio's 2800mAh Lithium-ion battery.
- Connect the USB-C charging cable to the charging base and then to a power source.
- Place the radio into the charging base. The indicator light on the base will show charging status.
- A full charge typically takes several hours. The indicator light will change when charging is complete.
Figure 2: Charging the Retevis NR630 radio. The 2800mAh battery provides extended working and standby times.
4. Earpiece and Belt Clip Attachment
- To attach the earpiece, open the rubber cover on the side of the radio and firmly insert the earpiece plug.
- Slide the belt clip onto the designated slot on the back of the radio until it locks securely.

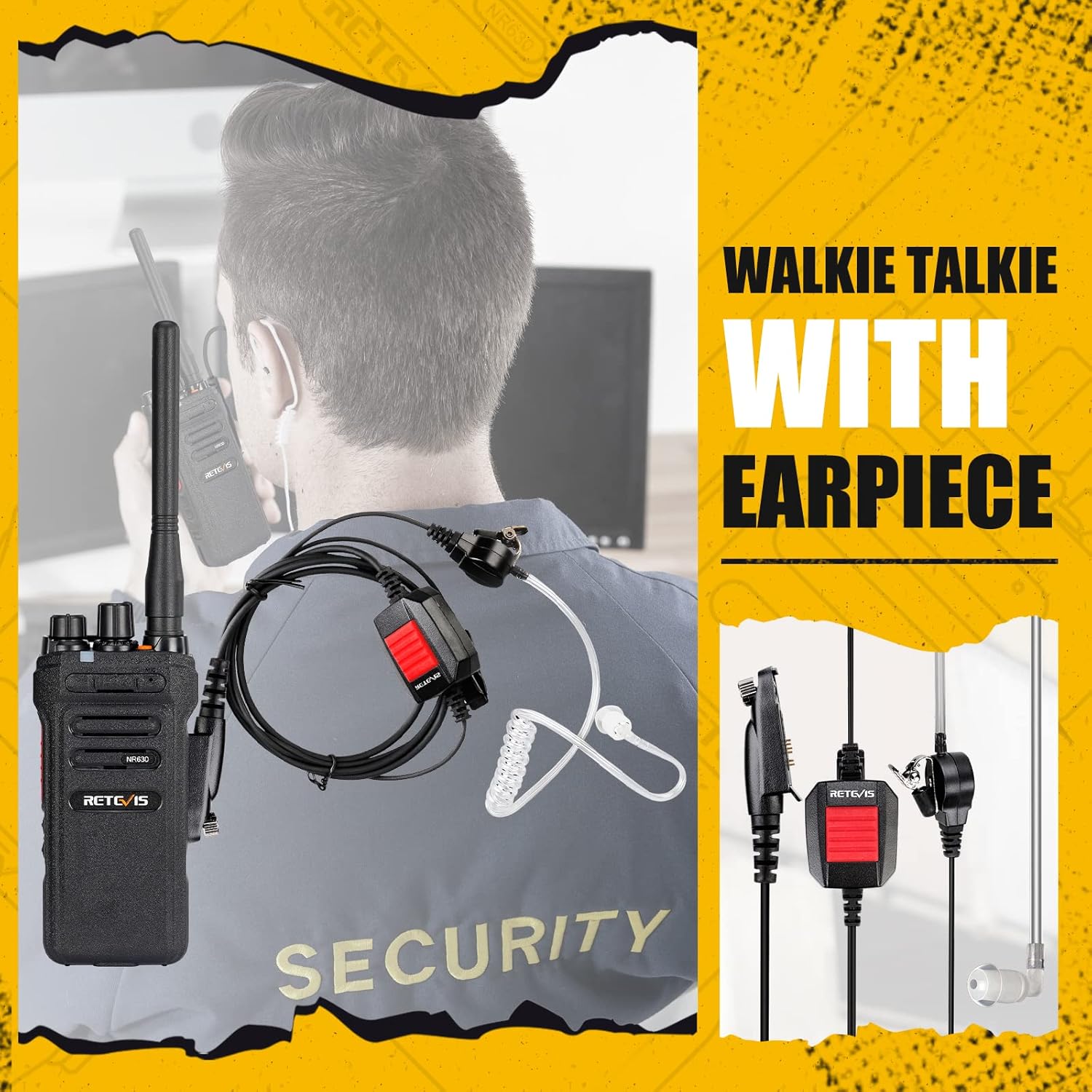

Figure 3: Retevis NR630 with earpiece for hands-free operation.
Figure 4: The Retevis NR630 with belt clip for easy carrying.
Operating Instructions
1. Power On/Off and Volume Control
- To power on the radio, rotate the Power/Volume knob clockwise until you hear a click.
- Continue rotating the knob to adjust the volume to a comfortable level.
- To power off, rotate the knob counter-clockwise until it clicks.
2. Channel Selection
The NR630 supports 32 channels. Use the Channel Selector knob on top of the radio to choose your desired channel. Ensure all radios in your group are on the same channel for communication.
3. Transmitting and Receiving (PTT)
- To transmit, press and hold the Push-to-Talk (PTT) button on the side of the radio. Speak clearly into the microphone.
- Release the PTT button to stop transmitting and listen for a response.
- The radio will automatically receive transmissions when the PTT button is not pressed.
4. VOX Function (Hands-Free Operation)
The Voice Operated Exchange (VOX) function allows you to transmit without pressing the PTT button. This feature is particularly useful when using the earpiece.
- Refer to the full user manual for specific instructions on enabling and adjusting VOX sensitivity.
- When VOX is active, the radio will automatically transmit when it detects your voice.
5. One-Key Group Call
The NR630 features a dedicated button for initiating a group call, allowing you to communicate with multiple team members simultaneously.
- Press the designated Group Call button (refer to your radio's layout for exact button).
- Speak into the microphone to broadcast your message to all radios on the same group call setting.
Figure 5: The Retevis NR630 supports one-key group calls for efficient team communication.
6. Alarm Function
The radio includes local and remote alarm functions for emergency situations. Consult the full user manual for details on how to activate and configure these alarms.
7. Intelligent Noise Reduction
The NR630 features intelligent two-way noise reduction technology. This system automatically identifies human voices and ambient noise, reducing background interference and preserving voice clarity during communication.
Figure 6: Intelligent noise reduction ensures clear audio even in noisy environments.
Figure 7: The Retevis NR630 offers wide-range communication capabilities.
Maintenance
1. Cleaning
The NR630 is IP67 waterproof, allowing it to withstand submersion in up to 1 meter of water for 30 minutes. To clean the radio:
- Wipe the exterior with a damp cloth. For stubborn dirt, use a mild soap solution.
- Ensure all port covers (e.g., earpiece port) are securely closed before rinsing the radio under running water.
- Dry the radio thoroughly with a soft, lint-free cloth after cleaning.

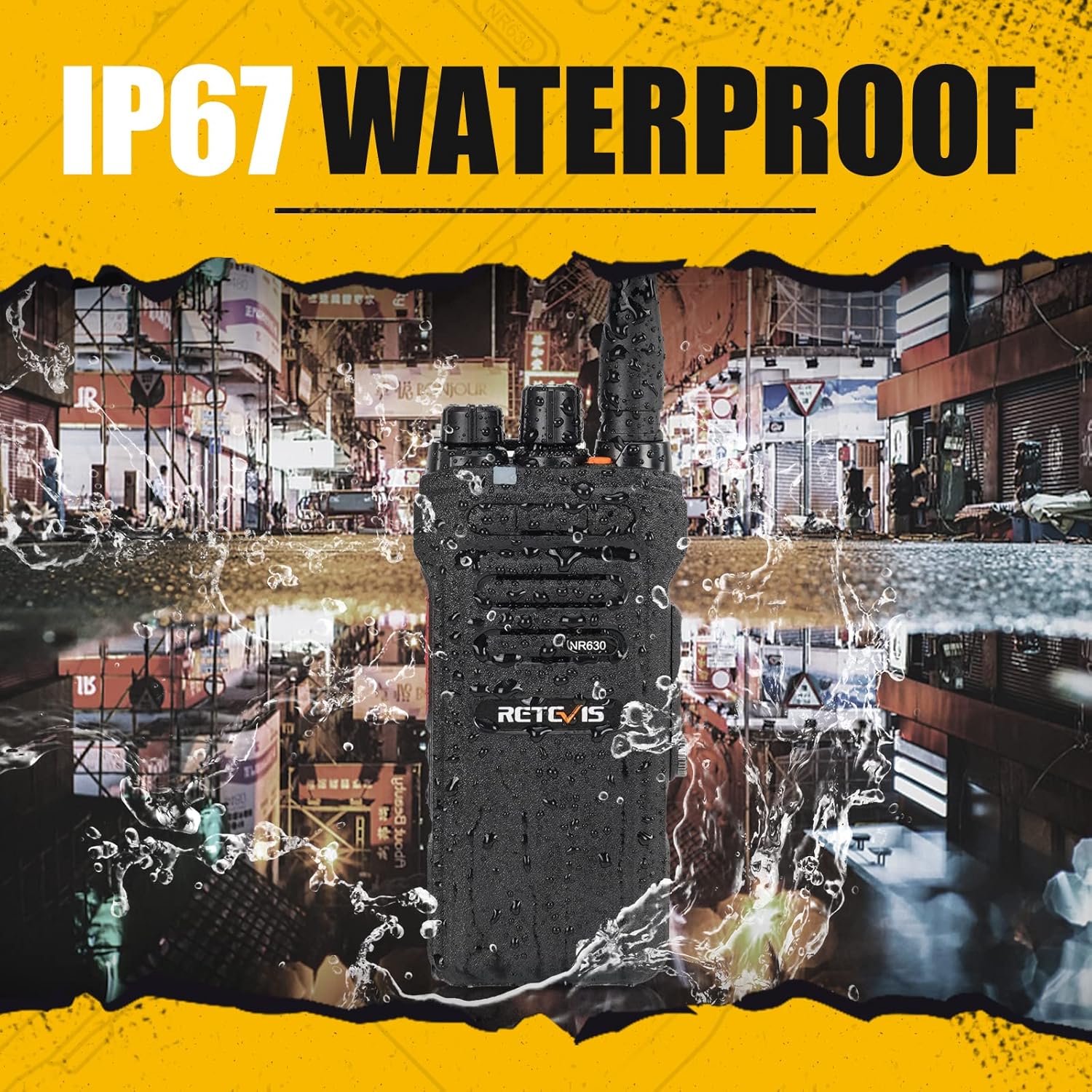

Figure 8: The Retevis NR630 is IP67 waterproof, ensuring durability in wet conditions.
2. Battery Care
- To maximize battery life, avoid fully discharging the Lithium-ion battery frequently.
- Store the radio in a cool, dry place when not in use for extended periods.
- Use only the provided charging base and USB-C cable.
3. Antenna Care
- Do not bend or force the antenna, as this can damage it and affect communication range.
- Ensure the antenna is securely attached before use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Radio does not power on | Low or dead battery; Power/Volume knob not turned on | Charge the battery; Rotate Power/Volume knob clockwise until it clicks |
| Cannot transmit or receive | Incorrect channel; Out of range; Antenna loose or damaged | Verify channel matches other radios; Move closer to other radios; Check antenna connection |
| Poor audio quality | Low volume; Obstructions; Interference | Adjust volume; Move to an open area; Ensure noise reduction is active |
| Short communication range | Environmental factors (buildings, terrain); Antenna issue; Low battery | Move to higher ground or open area; Check antenna connection; Fully charge battery |
If you encounter issues not listed here or if the problem persists after attempting these solutions, please contact Retevis customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | Retevis |
| Model Number | NR630 |
| Color | Black |
| Number of Channels | 32 |
| Frequency Range | 440-461.9 MHz / 468-470 MHz |
| Maximum Range | Up to 1.13 Kilometers (Actual range varies significantly with terrain and conditions) |
| Water Resistance Level | IP67 Waterproof |
| Battery Capacity | 2800mAh Lithium-ion (Rechargeable) |
| Voltage | 7.4 Volts |
| Special Features | Intelligent Noise Reduction, Long Range, VOX Function, One-Key Group Call, Local/Remote Alarm |
| Compatible Devices | Devices with USB-C interface for charging |
| Product Dimensions | 67P x 39l x 232H millimeters |
| Manufacturer | Retevis |
| Country of Origin | China |
Warranty and Support
Warranty Information
Retevis offers a 2-year warranty for the radio body and a 1-year warranty for accessories from the date of purchase. Additionally, a 30-day return policy is provided without requiring a specific reason.
Post-Warranty Service
Beyond the warranty period, maintenance services are still available. Buyers are responsible for covering any associated costs for such services.
Customer Support
For any questions, technical assistance, or warranty claims, please contact Retevis customer support through Amazon. We aim to respond to all inquiries within 12 hours.
