Introduction
This instruction manual provides essential information for the safe assembly, operation, and maintenance of your Merax Twin Over Full Bunk Bed with Stairway and Storage. Please read this manual thoroughly before assembly and retain it for future reference. Proper assembly and adherence to safety guidelines are crucial for the longevity and safe use of this product.
Image: Fully assembled Merax Twin Over Full Bunk Bed in gray, shown with bedding in a bedroom setting.
Safety Information
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
- Read all instructions before using the bunk bed. Keep this manual for future reference.
- Maximum Weight Capacity: The top bunk is designed for a maximum weight of 175 lbs. The bottom bunk is designed for a maximum weight of 250 lbs.
- Age Restriction: The top bunk is not suitable for children under 6 years of age.
- Guardrails: Always use the guardrails on both sides of the upper bunk. Ensure the guardrails are properly installed and secured.
- Mattress Requirements: Use only mattresses that are 74-75 inches long and 37.5-38.5 inches wide for the top bunk, and 74-75 inches long and 53-54 inches wide for the bottom bunk. The maximum mattress thickness for the top bunk should not exceed 6 inches to ensure adequate guardrail height.
- Prohibit horseplay on or under the bed. Always prohibit jumping on the bed.
- Always use the provided stairway for entering and exiting the upper bunk. Never use other means.
- Periodically check and ensure that the guardrail, ladder, and other components are in their proper position, free from damage, and that all connectors are tight.
- Do not use substitute parts. Contact the manufacturer for replacement parts.
- Keep these instructions for future reference.
Image: Detail of the top bunk's guardrail, highlighting its sturdy construction.
Package Contents
Before beginning assembly, ensure all parts and hardware are present. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.
Included Components:
- Bunk Bed Frame Components (Headboards, Footboards, Side Rails, Slats)
- Stairway Unit with Integrated Storage Shelves
- Guardrails for Upper Bunk
- All necessary hardware (screws, bolts, nuts, washers, dowels)
- Assembly Tools (e.g., Allen wrench)
Image: An angled view of the gray bunk bed, showcasing the wooden slats for mattress support and the integrated stairway with storage compartments.
Setup and Assembly Instructions
Assembly of this bunk bed requires two adults. Please follow the step-by-step instructions provided in the separate assembly diagram and hardware pack. Ensure you have ample space for assembly and keep all small parts out of reach of children.
- Unpack and Identify Parts: Carefully unpack all components and lay them out on a soft, clean surface to prevent scratches. Refer to the parts list in your assembly diagram to identify each piece.
- Assemble Base Frames: Begin by assembling the headboards and footboards for both the twin and full beds, attaching the side rails as instructed.
- Install Slats: Securely attach the wooden slats to the bed frames. Ensure even spacing and firm attachment for proper mattress support.
- Assemble Stairway Unit: Construct the stairway unit, ensuring all storage shelves are correctly positioned and secured.
- Attach Stairway to Bed Frame: Connect the assembled stairway unit to the full-size bed frame as per the instructions.
- Position Upper Bunk: Carefully lift and place the twin-size bed frame onto the full-size bed frame, aligning the connection points. Secure with the specified hardware.
- Install Guardrails: Attach the guardrails to the upper bunk, ensuring they are firmly secured to prevent accidental falls.
- Final Checks: Once assembled, double-check all bolts, screws, and connections to ensure they are tight and secure. Do not overtighten.
Note on Conversion: This twin over full stairway bunk bed can be converted into two separate beds (one twin and one full). When separated, the top bunk footboard will have a gap where the stairway unit was originally attached. This is a design feature for conversion.
Image: The Merax bunk bed disassembled into two separate beds, a twin and a full, demonstrating its convertible feature.

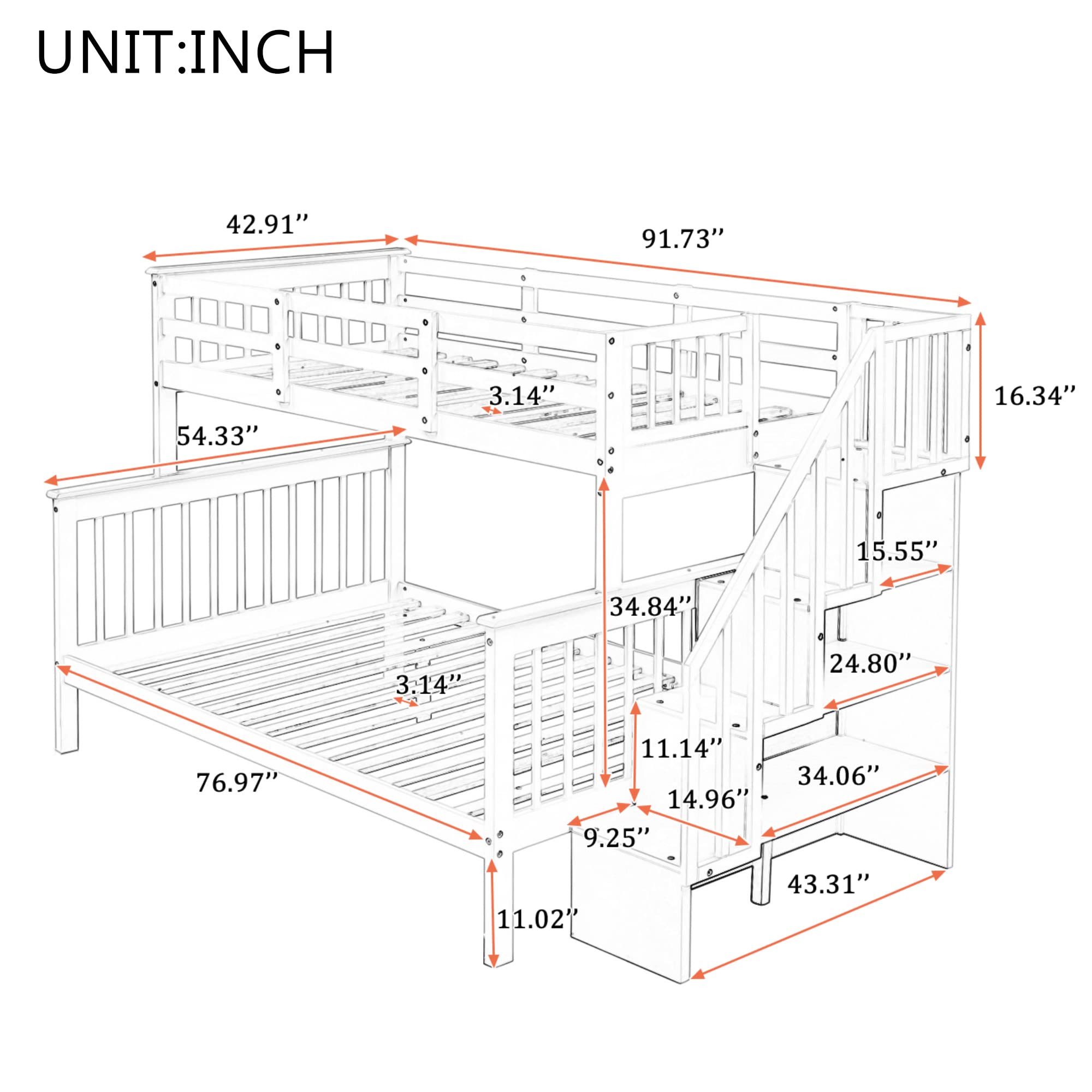

Image: A detailed diagram showing the overall dimensions of the Merax Twin Over Full Bunk Bed in inches.
Operating Instructions
Using your Merax bunk bed is straightforward once assembled correctly.
- Accessing the Upper Bunk: Always use the integrated stairway to access the upper bunk. The wide steps and built-in safety bar provide secure climbing for children.
- Storage Use: The stairway unit features four integrated storage shelves. These can be used to store books, toys, or other small items, helping to keep the bedroom tidy.
- Mattress Placement: Place your twin mattress on the upper bunk and your full mattress on the lower bunk directly onto the wooden slats. No box spring is required for either bed.
Image: A close-up view of the integrated storage shelves within the stairway unit, demonstrating their utility.
Maintenance and Care
Regular maintenance will help preserve the appearance and structural integrity of your bunk bed.
- Cleaning: Wipe the wood surfaces with a soft, dry cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the finish.
- Hardware Check: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and fasteners. Tighten any that have become loose to ensure the bed remains stable and safe. Do not overtighten.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause wood finishes to fade or crack. Position the bed away from direct sunlight if possible.
- Humidity Control: Maintain a consistent humidity level in the room to prevent wood from expanding or contracting excessively, which can lead to cracking or warping.
Image: A close-up view of the wooden slats that support the mattress, illustrating the bed's foundation.
Troubleshooting
If you encounter any issues with your Merax bunk bed, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels wobbly or unstable | Loose hardware connections | Inspect all bolts and screws. Tighten any loose fasteners using the provided tools. Do not overtighten. |
| Squeaking noises | Loose connections or friction between wood parts | Tighten all hardware. If squeaking persists, apply a small amount of paraffin wax or silicone spray to contact points between wood components. |
| Stairway feels loose | Stairway attachment hardware is loose | Check and tighten all bolts connecting the stairway unit to the bed frame. |
| Missing parts or damaged components | Shipping damage or packaging error | Do not attempt to assemble. Contact Merax customer support immediately for replacement parts. |
If the problem persists after attempting these solutions, please contact Merax customer support for further assistance.
Specifications
- Product Type: Twin Over Full Bunk Bed
- Brand: Merax
- Model: Twin/Full Stairway Bunk Bed
- Color: Grey
- Material: Pine Wood, Wood
- Overall Product Dimensions: 91.73"L x 54.33"W x 61.4"H
- Included Components: Bunk Bed Frame, Stairway with Storage, Guardrails
- Assembly Required: Yes
- Box Spring Required: No
- UPC: 196986590410
- ASIN: B0BYHPZBFP
Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Merax website. Keep your proof of purchase for any warranty claims.
If you require assistance with assembly, missing parts, or have any questions regarding your Merax bunk bed, please contact Merax customer service directly. Contact details are typically found on the packaging or the manufacturer's website.
