Reloop Turn 7 Premium HiFi Turntable User Manual

Introduction

Welcome to your new Reloop Turn 7 Premium HiFi Turntable. This manual provides essential information for setup, operation, and maintenance to ensure optimal performance and longevity of your device. Please read these instructions carefully before using your turntable.

What's in the Box

• Turn 7 Turntable Unit
• Dust Cover
• 2x Hinges
• Felt Mat
• International Power Supply (UK/EU/US)
• RCA Cable
• Headshell with Ortofon 2M Red (pre-installed)
• 7" Aluminium Adapter
• Acrylic Turntable Platter
• Allen Key
• USB Cable
• Operation Manual
• Counterweight

Setup Instructions

1. Unpacking and Placement

Carefully remove all components from the packaging. Place the turntable on a stable, level surface away from direct sunlight, heat sources, and strong vibrations. Ensure adequate ventilation around the unit.

2. Platter Installation

Place the acrylic platter onto the spindle. The precision-manufactured 20 mm thick acrylic platter is designed for excellent evenness and antistatic characteristics, eliminating the need for a platter mat.

Image: The solid acrylic platter, a key component for stable record playback.

3. Belt Installation

Locate the external drive belt. Carefully loop the belt around the platter and the motor pulley. The decentralized, low-vibration DC motor drives the platter via this external flat belt.

Image: Close-up of the external motor and drive belt mechanism.

4. Tonearm and Cartridge Setup

The Ortofon 2M Red cartridge system comes pre-installed on the headshell. Ensure it is securely attached to the high-quality carbon tonearm. Adjust the counterweight for proper tracking force. Refer to the Ortofon 2M Red cartridge manual for specific tracking force recommendations. The tonearm features height adjustment (Vertical Tracking Angle - VTA) and anti-skating adjustment for maximum precision. Adjust these settings for optimal sound reproduction.

Image: The carbon tonearm with the pre-installed Ortofon 2M Red cartridge.

Image: Detailed view of the Ortofon 2M Red cartridge.

5. Connecting to Audio System

Connect the RCA cables from the turntable's audio output to your amplifier or receiver. The Turn 7 features a high-quality preamplifier, allowing switching between line and phono signals. If your amplifier has a dedicated phono input, set the turntable's pre-amp switch to OFF. If connecting to a line-level input (AUX, CD), set the pre-amp switch to ON. Connect the ground wire (if applicable) to your amplifier's ground terminal to minimize hum. For digitizing vinyl records, connect the USB output to your computer.

Image: Rear panel showing RCA and USB outputs, and pre-amp switch.

6. Power Connection

Connect the international power supply to the turntable and a suitable power outlet.

7. Dust Cover Installation

Attach the dust cover using the provided hinges to protect the turntable from dust when not in use.

Image: The Reloop Turn 7 turntable with its protective dust cover.

Operating Instructions

1. Powering On/Off

Use the power switch to turn the turntable on or off.

2. Speed Selection

The start/stop rotary switch allows selection between 33 and 45 RPM. For 78 RPM records, an appropriate stylus and cartridge may be required, and the speed can be selected via the rotary switch.

Image: Close-up of the speed selection dial (33, 45 RPM).

3. Playing a Record

Place a record on the platter. Select the appropriate speed. Carefully lift the tonearm using the cueing lever and position it over the desired track. Lower the tonearm gently onto the record using the cueing lever.

4. Platter Illumination

The Turn 7 features optional blue platter illumination. This can be activated or deactivated via a switch, creating a warm and inviting ambiance.

Image: The Reloop Turn 7 turntable showcasing its blue LED platter illumination.

5. Digitizing Records (USB)

Connect the USB cable to your computer. Use appropriate recording software to capture the audio from your vinyl records.

Key Features

• Belt-driven HiFi turntable with pre-installed Ortofon 2M Red cartridge.
• 20 mm thick acrylic platter with optional blue LED illumination.
• Decentralized, low-vibration DC motor with external flat belt drive.
• High-quality carbon tonearm with adjustable height (VTA) and anti-skating.
• Integrated phono preamplifier with switchable line/phono output.
• USB output for digitizing vinyl records.
• Sturdy MDF wooden plinth with high-gloss piano lacquer finish.
• Height-adjustable isolator feet for effective decoupling.
• Universal headshell connection (SME) for cartridge versatility.

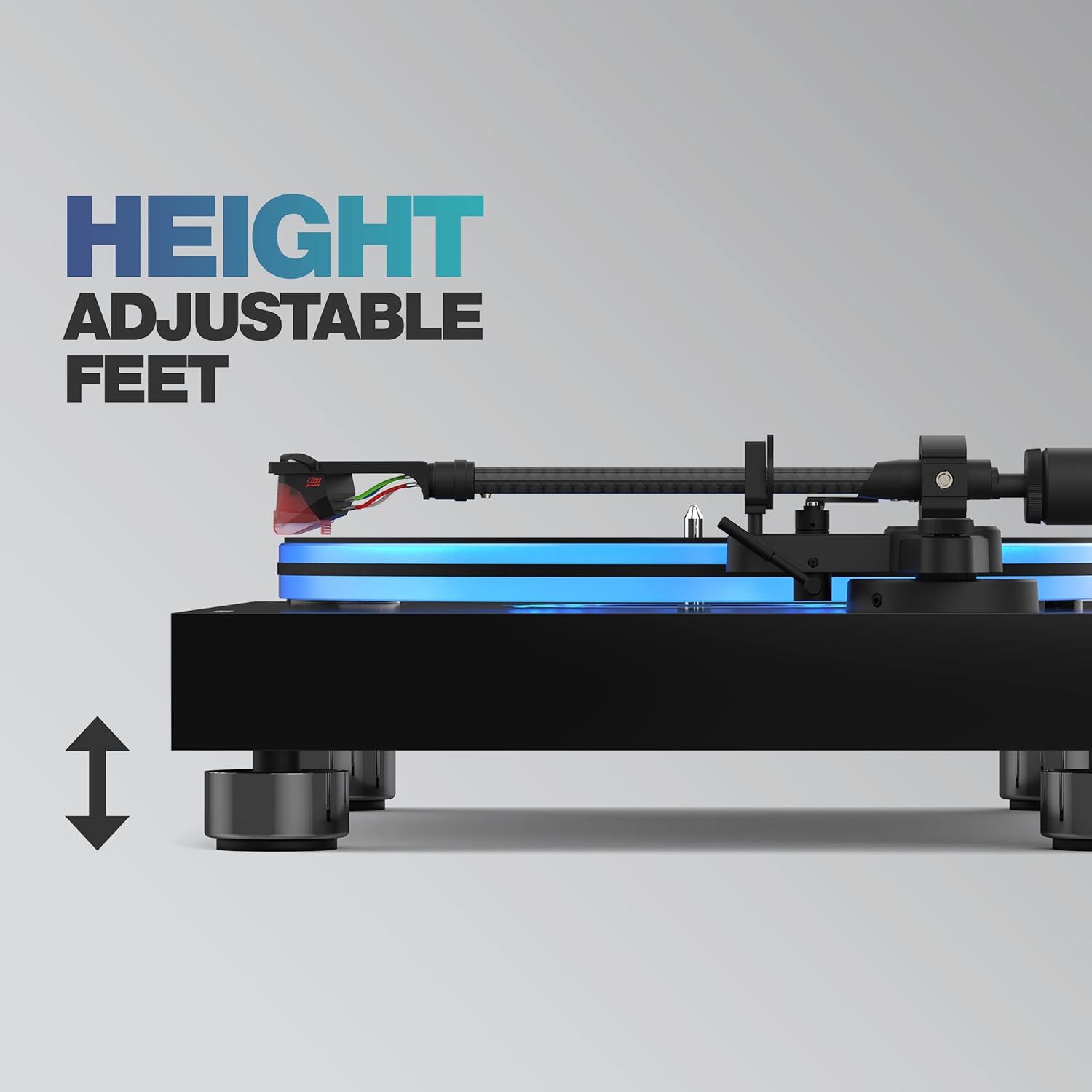

Image: Height-adjustable insulator feet for optimal stability and vibration damping.

Technical Specifications

Maintenance

1. Cleaning the Turntable

Use a soft, dry cloth to clean the plinth and dust cover. Avoid abrasive cleaners. For the acrylic platter, use a specialized acrylic cleaner and a microfiber cloth to prevent scratches.

2. Stylus Care

Regularly clean the stylus using a soft brush designed for stylus cleaning, brushing from back to front. Inspect the stylus for wear or damage periodically. A worn stylus can damage records and degrade sound quality.

3. Belt Care

Check the drive belt for signs of wear or stretching. Replace if necessary to maintain consistent playback speed.

Troubleshooting

No Sound or Low Volume

• Check all cable connections (RCA, power).
• Ensure the pre-amp switch is set correctly (ON for line input, OFF for phono input).
• Verify the amplifier input selection.
• Check stylus condition and ensure it is properly seated.

Humming Noise

• Ensure the ground wire is properly connected.
• Check for interference from other electronic devices. Move the turntable if necessary.
• Verify RCA cable shielding.

Inconsistent Speed

• Check the drive belt for proper placement and tension. Replace if worn.
• Ensure the platter is clean and free of debris.
• Verify the speed selection switch is set correctly.

Skipping or Distortion

• Clean the record and stylus.
• Adjust tracking force and anti-skating settings.
• Ensure the turntable is on a level and stable surface.

Warranty and Support

The Reloop Turn 7 Premium HiFi Turntable comes with a 2-year manufacturer's warranty. For warranty claims or technical support, please contact Reloop customer service or visit the official Reloop website.

Official Reloop Website: www.reloop-hifi.com
