Stadler Form Sophie little Lantern Aroma Diffuser User Manual

1. Introduction

Thank you for choosing the Stadler Form Sophie little Lantern Aroma Diffuser. This mobile aroma diffuser is designed to create a pleasant atmosphere both indoors and outdoors, featuring a unique flame-like effect generated by cool mist. Its IP44 rating ensures suitability for outdoor use as a lantern, and it is ideal for diffusing essential oils, including natural insect repellents.

This manual provides important information on the safe and efficient operation, maintenance, and troubleshooting of your Sophie little diffuser. Please read it thoroughly before first use and keep it for future reference.

Image: The Sophie little diffuser in an outdoor setting, highlighting its lantern-like appearance.

2. Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This includes:

• Read all instructions before using the appliance.
• Do not immerse the unit, power cord, or plug in water or other liquids.
• Keep the appliance out of reach of children and pets.
• Use only the power adapter supplied with the unit.
• Do not block the mist outlet.
• Ensure the unit is placed on a stable, flat, and water-resistant surface.
• Unplug the diffuser before cleaning or refilling.
• Only use 100% pure essential oils. Do not use synthetic oils or fragrances.
• Avoid direct contact with essential oils, as they can cause irritation.
• The unit is IP44 rated for outdoor use, meaning it is protected against splashing water from any direction. However, do not submerge it or expose it to heavy rain.

3. Package Contents

Please check that all items are present in the packaging:

• Stadler Form Sophie little Lantern Aroma Diffuser Unit
• USB-C Charging Cable (Power adapter not included, use a standard 5V/2A USB adapter)
• User Manual

4. Setup

4.1 Unpacking and Placement

1. Carefully remove the diffuser from its packaging.
2. Place the unit on a firm, level, and water-resistant surface, away from direct sunlight or heat sources.

4.2 Filling the Water Tank and Adding Essential Oils

1. Gently twist and lift the upper part of the diffuser to access the water tank.
2. Fill the water tank with clean, cool tap water up to the maximum fill line (50ml capacity). Do not overfill.
3. Add 2-3 drops of your preferred 100% pure essential oil directly into the water tank. For insect repellent purposes, recommended oils include lemongrass, citronella, eucalyptus, peppermint, or geranium.
4. Carefully replace the upper part, ensuring it is securely seated.

Image: Adding essential oils to the diffuser's water tank.

4.3 Charging the Battery

The Sophie little diffuser is equipped with a rechargeable battery for mobile use. Before first use, fully charge the battery.

1. Connect the USB-C charging cable to the port on the diffuser.
2. Plug the other end of the USB cable into a compatible USB power adapter (e.g., 5V/2A phone charger) or a computer USB port.
3. The charging indicator light will illuminate. Once fully charged, the light will change or turn off (refer to specific indicator behavior in the operating section).
4. A full charge provides approximately 7 hours of continuous operation.

5. Operating Instructions

5.1 Power On/Off and Mist Control

• To turn on the diffuser, press the power button located on the unit. The diffuser will start producing mist and the flame-like light effect.
• The Sophie little features a 1-stage airflow control. Pressing the power button again will turn off the unit.
• The diffuser has an automatic shut-off feature when the water tank is empty.

Image: The Sophie little diffuser showcasing its realistic flame effect.

5.2 Mobile Operation

The integrated bamboo handle allows for easy portability, making it convenient to move the diffuser between indoor and outdoor spaces. The battery provides up to 7 hours of wireless operation on a full charge.

Image: The Sophie little diffuser operating wirelessly, emphasizing its portability and battery life.

6. Maintenance

Regular cleaning is essential to ensure optimal performance and longevity of your diffuser.

6.1 Daily Cleaning

1. Unplug the diffuser and remove the upper part.
2. Empty any remaining water from the tank.
3. Wipe the inside of the water tank with a soft, damp cloth.
4. Do not use abrasive cleaners or harsh chemicals.
5. Dry thoroughly before next use or storage.

6.2 Weekly Cleaning / Descaling

Depending on water hardness and frequency of use, mineral deposits may accumulate. To remove them:

1. Unplug the unit and empty the water tank.
2. Pour a small amount of white vinegar (approx. 1 tablespoon) into the water tank and let it sit for 10-15 minutes.
3. Gently scrub the inside of the tank and the ultrasonic disc with a soft brush or cotton swab.
4. Rinse the tank thoroughly with clean water to remove all vinegar residue.
5. Wipe dry.

7. Troubleshooting

8. Technical Specifications

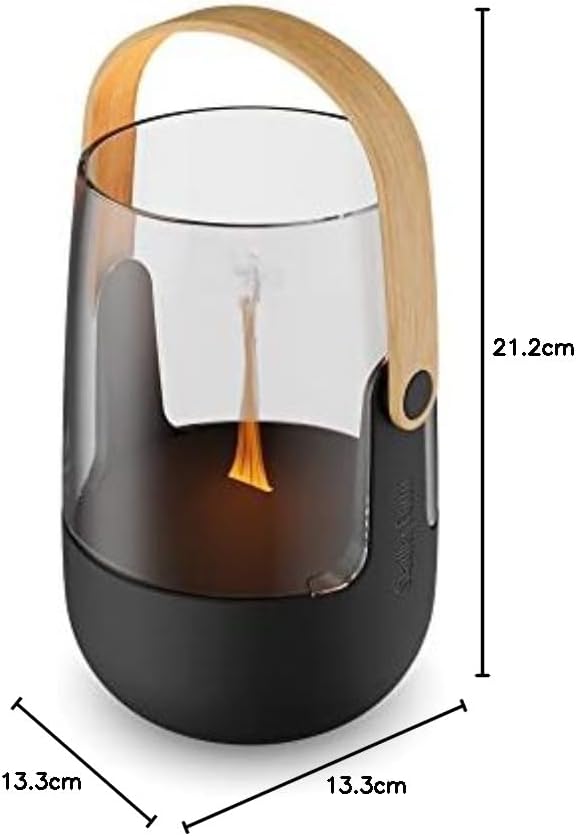

Image: Dimensions of the Sophie little diffuser.

Image: Confirmation that Sophie little is BPA/BPS free.

Image: Detail of the shatterproof polycarbonate upper part.

9. Warranty and Support

Stadler Form products are manufactured with high-quality materials and undergo strict quality control. For information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official Stadler Form website.

For technical support, spare parts, or any questions not covered in this manual, please contact Stadler Form customer service:

• Website: www.stadlerform.com
• Email: Refer to the website for regional contact information.
