KEMEI KM-1948/KM-1949 Hair Trimmer User Manual

1. Introduction

This manual provides detailed instructions for the safe and effective use, maintenance, and care of your KEMEI KM-1948/KM-1949 Hair Trimmer. Please read this manual thoroughly before first use and retain it for future reference.

2. Safety Information

Important Safety Precautions:

• Always keep the product away from the face and eyes while in use.
• Do not ingest or inhale any small parts.
• Keep the charging cable away from water and heat sources.
• Always supervise children when using the product.
• Do not immerse the trimmer in water.
• Ensure the trimmer is fully dry before charging.

3. Package Contents

Verify that all items listed below are included in your package:

• KEMEI KM-1948/KM-1949 Hair Trimmer
• 3 Guide Combs (1mm, 2mm, 3mm)
• USB Charging Cable (Type-C)
• Cleaning Brush
• Hair Comb
• Barber Cape
• Storage Pouch

Image showing the KEMEI KM-1948 hair trimmer in gold, along with its accessories: three guide combs (1mm, 2mm, 3mm), a hair comb, a barber cape, a USB charging cable, a cleaning brush, and a storage pouch.

4. Product Overview

Familiarize yourself with the components of your KEMEI hair trimmer:

• Carbon Steel Blade: Precision-engineered for close cutting.
• LCD Display: Shows battery power percentage and charging status.
• Power Switch: To turn the trimmer on or off.
• USB-C Charging Port: For convenient charging.
• Hook Design: For easy storage.

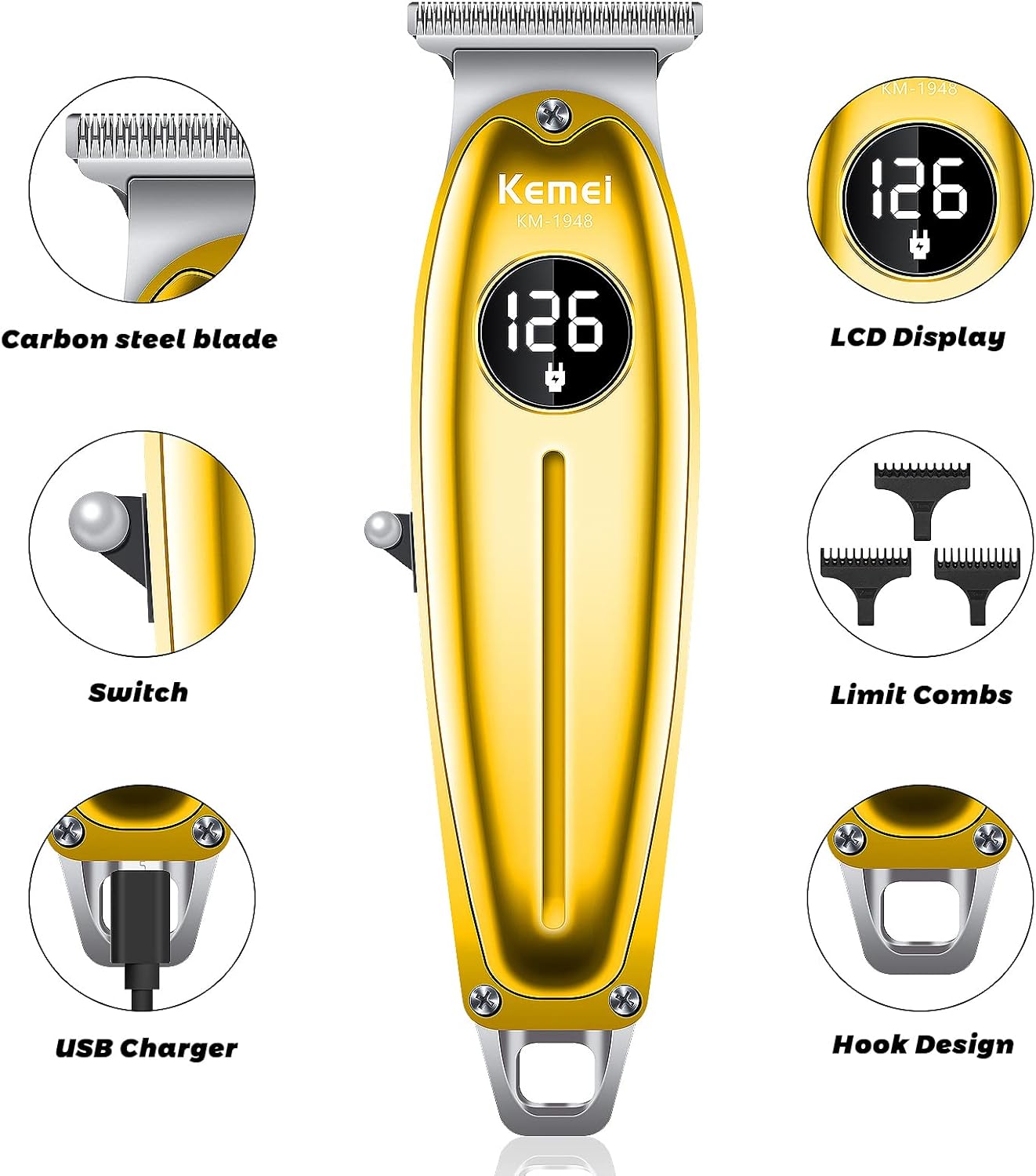

Diagram highlighting key features of the KEMEI KM-1948 hair trimmer: carbon steel blade, LCD display, power switch, limit combs, USB charger port, and hook design.

5. Charging Instructions

The trimmer is equipped with a 1400 mAh lithium battery. Before first use, fully charge the device.

1. Connect the Type-C end of the USB charging cable to the trimmer's charging port.
2. Connect the USB-A end of the cable to a compatible USB power source (e.g., computer, power bank, or wall adapter).
3. The LCD display will show the battery percentage and a charging indicator.
4. A full charge takes approximately 2.5 hours and provides up to 180 minutes of usage time.

Image illustrating the charging process and battery specifications of the KEMEI KM-1948 hair trimmer. It shows the trimmer connected via USB-C, indicating a 1400mAh battery, 2.5 hours charging time, and 180 minutes usage time. Compatible with USB charge, computer, and power bank.

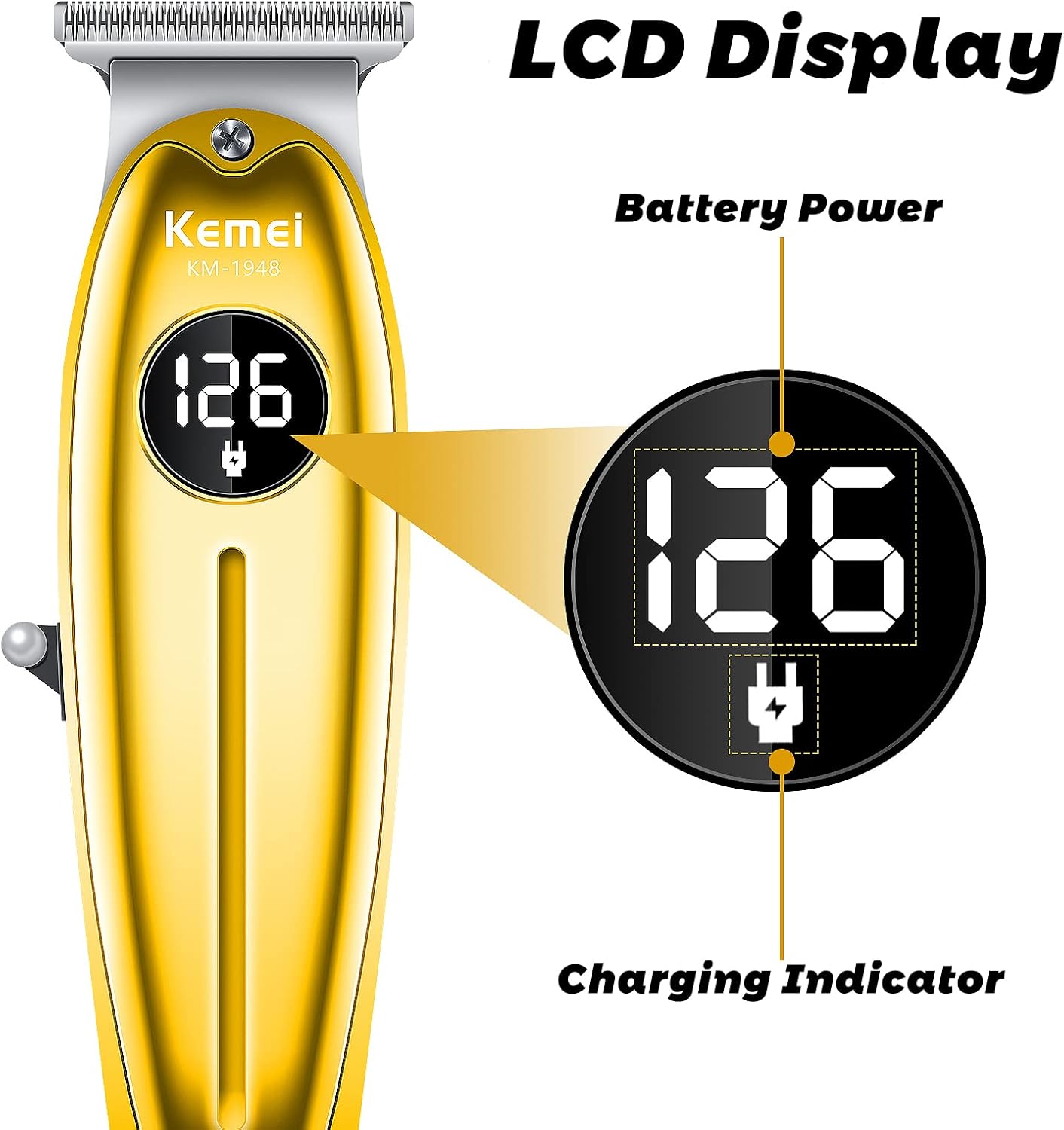

Close-up view of the KEMEI KM-1948 hair trimmer's LCD display, showing the battery power percentage and a charging indicator icon.

6. Setup: Attaching Guide Combs

The trimmer comes with three guide combs (1mm, 2mm, 3mm) for varying hair lengths.

1. Select the desired guide comb size.
2. Align the comb with the trimmer blade and slide it firmly into place until it clicks.
3. To remove, gently push the comb upwards and away from the blade.

Instructions on how to attach the limit combs to the KEMEI KM-1948 hair trimmer. It shows the comb sliding onto the blade and lists the three available sizes: 1mm, 2mm, and 3mm.

7. Operating Instructions

The KEMEI hair trimmer is designed for precise hair cutting and detailing.

Powering On/Off

• Press the power switch to turn the trimmer on.
• Press the power switch again to turn the trimmer off.

Trimming Techniques

The trimmer's R-shaped blade design ensures skin safety during use, making it suitable for various styles including oil head, inch head, engraving, and gradient haircuts.

• For general trimming, attach the appropriate guide comb and move the trimmer against the direction of hair growth.
• For detailing and outlining, remove the guide comb and use the bare blade. The precise sharp T-shaped carbon steel cutter head is ideal for extremely close cutting.
• Always ensure the blade is clean and oiled for optimal performance and to prevent pulling or snagging.

Image demonstrating the R-angle design of the KEMEI KM-1948 hair trimmer blade, emphasizing that it is designed not to hurt the skin during use.

Collage of images showing various hair styles and trimming applications achievable with the KEMEI KM-1948 hair trimmer, including detailed carving and different haircut styles.

8. Maintenance

Regular cleaning and maintenance will prolong the life of your trimmer and ensure optimal performance.

Cleaning the Blades

1. Turn off the trimmer and disconnect it from any power source.
2. Carefully remove any attached guide comb.
3. Use the provided cleaning brush to remove loose hairs from the blades and the trimmer body.
4. For a more thorough clean, you may carefully detach the blade assembly (refer to product diagrams if available for specific detachment instructions).
5. Apply a small drop of clipper oil (not included) to the blades after each use to maintain sharpness and smooth operation.
6. Reattach the blade assembly if removed.

Storage

Store the trimmer in a cool, dry place, away from direct sunlight and moisture. Use the provided storage pouch to protect the trimmer and its accessories.

9. Troubleshooting

If you encounter issues with your KEMEI hair trimmer, refer to the following common solutions:

• Trimmer not turning on: Ensure the battery is charged. Connect the trimmer to a power source and allow it to charge for at least 30 minutes before attempting to turn it on again.
• Trimmer pulling hair or not cutting effectively: The blades may be dull, dirty, or not properly oiled. Clean the blades thoroughly, apply clipper oil, and ensure no hair is trapped. If the issue persists, blade replacement may be necessary.
• Short battery life: Ensure the trimmer is fully charged before each use. Battery performance can degrade over time with extensive use.
• Unusual noise: Clean and oil the blades. If the noise persists, discontinue use and contact customer support.

10. Specifications

11. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact KEMEI customer service through their official website or the retailer where the product was purchased. Please have your model number and purchase date available when contacting support.

12. Legal Disclaimer

Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This product is intended for personal grooming purposes only.
