1. Introduction
Thank you for choosing the FUNSICLE Rectangular Frame Pool. This manual provides essential information for the safe assembly, operation, maintenance, and storage of your pool. Please read all instructions carefully before setting up and using the pool to ensure a safe and enjoyable experience.
2. Important Safety Information
WARNING: Failure to follow these instructions can result in serious injury or death.
- Adult supervision is required at all times when children are in or near the pool.
- Empty the pool when not in use to prevent accidental drowning.
- Do not dive or jump into the pool. The water depth is shallow.
- Keep children away from the pool cover to avoid entanglement and drowning.
- Ensure the pool is set up on a level, stable surface.
- Keep electrical devices away from the pool.
- Regularly check the pool for damage and wear.
- Do not sit, stand, or climb on the pool frame.
- This pool is for outdoor use only.
3. Product Overview
The FUNSICLE Rectangular Frame Pool is designed for recreational use, accommodating 4 to 5 people. It features a durable 3-layer liner and a robust SmartConnect™ steel frame for easy assembly.
3.1 Components
- Pool Liner (3-layer puncture-resistant material)
- Steel Frame Components (SmartConnect™ system)
- Drain Valve with garden hose connection
- Repair Patch

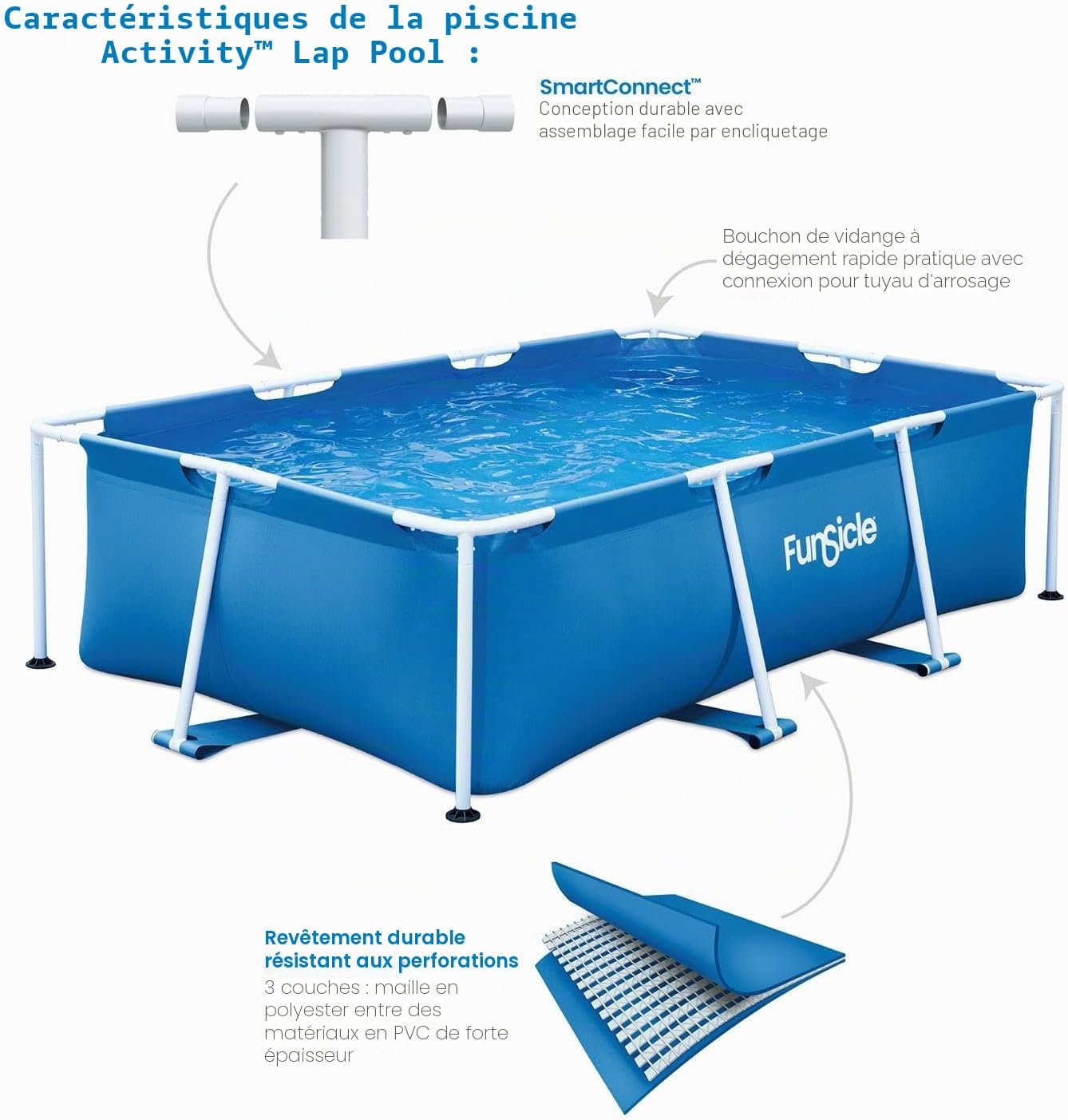

Figure 1: Key features of the FUNSICLE Activity™ Lap Pool, illustrating the SmartConnect frame, quick-release drain plug, and the durable 3-layer liner.
Figure 2: Detailed view of the 3-layer puncture-resistant pool liner, composed of thick PVC and a polyester mesh for enhanced durability.
4. Setup Instructions
4.1 Site Preparation
- Choose a firm, level surface free of sharp objects, debris, and excessive slopes.
- Ensure the area is clear of overhead power lines and at least 2 meters (6.5 feet) from any structures or obstructions.
- Avoid setting up the pool on soft ground, sand, or mud, as this can cause instability.
- Consider placing a ground cloth (not included) under the pool for added protection.
4.2 Assembly
Assembly of the FUNSICLE Rectangular Frame Pool typically takes approximately 45 minutes with one person, but two people are recommended for easier setup. No tools are required for the SmartConnect™ frame system.
- Unpack all components and lay them out on the prepared ground cloth.
- Identify the pool liner and the various steel frame components (horizontal beams, vertical legs, corner joints, T-joints).
- Thread the horizontal beams through the sleeves at the top edge of the pool liner.
- Connect the horizontal beams using the SmartConnect™ corner and T-joints. Ensure all connections click securely into place.
- Insert the vertical support legs into the corresponding holes on the frame joints.
- Ensure the entire frame is stable and the liner is evenly spread.
Figure 3: Example of a SmartConnect™ joint, designed for easy and secure frame assembly.
5. Operating Instructions
5.1 Filling the Pool
- Ensure the drain valve is securely closed.
- Begin filling the pool with water. As the water level rises, gently smooth out any wrinkles in the bottom of the liner.
- Fill the pool to the recommended water height of 50 cm (approximately 2470 liters). Do not overfill.
5.2 Usage
- Always supervise children in and around the pool.
- Do not allow rough play or diving.
- Keep pets out of the pool to prevent damage to the liner.
- Use appropriate pool chemicals to maintain water quality (refer to a pool chemical guide for proper dosage and application).
Figure 4: The FUNSICLE Rectangular Frame Pool in use, demonstrating its capacity for family enjoyment.
6. Maintenance
6.1 Water Treatment
- Regularly test pool water for pH and chlorine levels.
- Add appropriate pool chemicals as needed to maintain clean and safe water.
- Consider using a filter pump (not included) for continuous water circulation and filtration.
6.2 Cleaning
- Remove debris (leaves, insects) from the water surface daily using a skimmer net.
- Brush the pool walls and bottom regularly to prevent algae growth.
- If necessary, use a pool vacuum (not included) to clean the bottom of the pool.
6.3 Liner Repair
In case of a small puncture, use the included repair patch:
- Clean and dry the damaged area thoroughly.
- Cut the repair patch to a size slightly larger than the puncture.
- Apply the patch firmly over the hole, pressing out any air bubbles.
- Allow several hours for the patch to cure before refilling the pool.
Figure 5: The included repair patch for minor liner damage.
7. Draining and Storage
7.1 Draining the Pool
It is important to empty the pool when not in use, especially for long periods or during colder seasons.
- Locate the drain valve on the side of the pool.
- Attach a garden hose (not included) to the drain valve connection.
- Open the drain valve to allow water to flow out. Direct the hose to a suitable drainage area, away from foundations or electrical outlets.
- Once most of the water has drained, you may need to gently lift one side of the pool to remove remaining water.
Figure 6: The quick-release drain plug with connection for a garden hose, facilitating easy water drainage.
7.2 Storage
- After draining, thoroughly clean and dry the pool liner and frame components.
- Disassemble the frame by reversing the assembly steps.
- Fold the liner neatly and store all components in a dry, cool place, away from direct sunlight and extreme temperatures.
- Store in the original packaging if possible to protect components.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water is cloudy or green. | Improper chemical balance, algae growth, insufficient filtration. | Test water and adjust chemicals (chlorine, pH). Clean pool walls and bottom. Consider a filter pump. |
| Water level is dropping. | Leak in liner, evaporation. | Check for punctures and use repair patch. Cover pool when not in use to reduce evaporation. |
| Pool frame feels unstable. | Uneven ground, frame not fully connected. | Ensure pool is on a perfectly level surface. Recheck all SmartConnect™ joints for secure connection. |
9. Specifications
| Brand: | FUNSICLE |
| Model Number: | P30509260000 |
| Shape: | Rectangular |
| Dimensions (L x W x H): | 260 cm x 160 cm x 66 cm (8.5 ft x 5.2 ft x 2.1 ft) |
| Water Capacity (approx.): | 2470 Liters (652 US Gallons) |
| Recommended Water Height: | 50 cm (1.6 ft) |
| Material: | Steel (frame), 3-layer PVC/Polyester (liner) |
| Color: | Blue (liner), White (frame) |
| Included Components: | Pool liner, steel frame, repair patch |
| Usage: | Outdoor |
| Assembly Required: | Yes |
10. Warranty Information
FUNSICLE products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official FUNSICLE website. Keep your proof of purchase for any warranty claims.
11. Customer Support
For further assistance, troubleshooting tips, or to view product videos, please visit the FUNSICLE support page or scan the QR code on your product packaging.
Online Resources: funsicle.co/ActivityQR
Please have your model number (P30509260000) ready when contacting support.
