QWORK Easy Utility Bicycle Rack Instruction Manual

1. Introduction

Thank you for choosing the QWORK Easy Utility Bicycle Rack. This freestanding bicycle floor stand is designed to provide a stable and convenient solution for bicycle storage, repair, cleaning, and maintenance. Its robust construction and foldable design make it ideal for both indoor and outdoor use, offering portability and space-saving benefits. Please read this manual carefully to ensure proper setup, operation, and maintenance of your bicycle rack.

2. Product Features

• Sturdy Construction: The bicycle frame is crafted from high-strength steel, ensuring excellent toughness and hardness. This design provides a firm hold for heavy bicycles, preventing shaking and deformation.
• Universal Size: Designed to accommodate various bicycle types, fitting bike frames with a diameter up to 2 inches. The distance between the chainstay brackets is adjustable from 3.5 inches to 4.25 inches, ensuring compatibility.
• Versatile Bicycle Stand: Features a swivel mount that securely attaches to the rear hub axle of your bike. This makes it suitable for a wide range of uses including bike repair, convenient storage, stable parking, thorough cleaning, and general maintenance.
• Easy to Carry & Store: The bike rack is highly portable, lightweight, and designed for space efficiency. It folds completely flat when not in use, allowing for easy transport and minimal storage space requirements.

3. Specifications

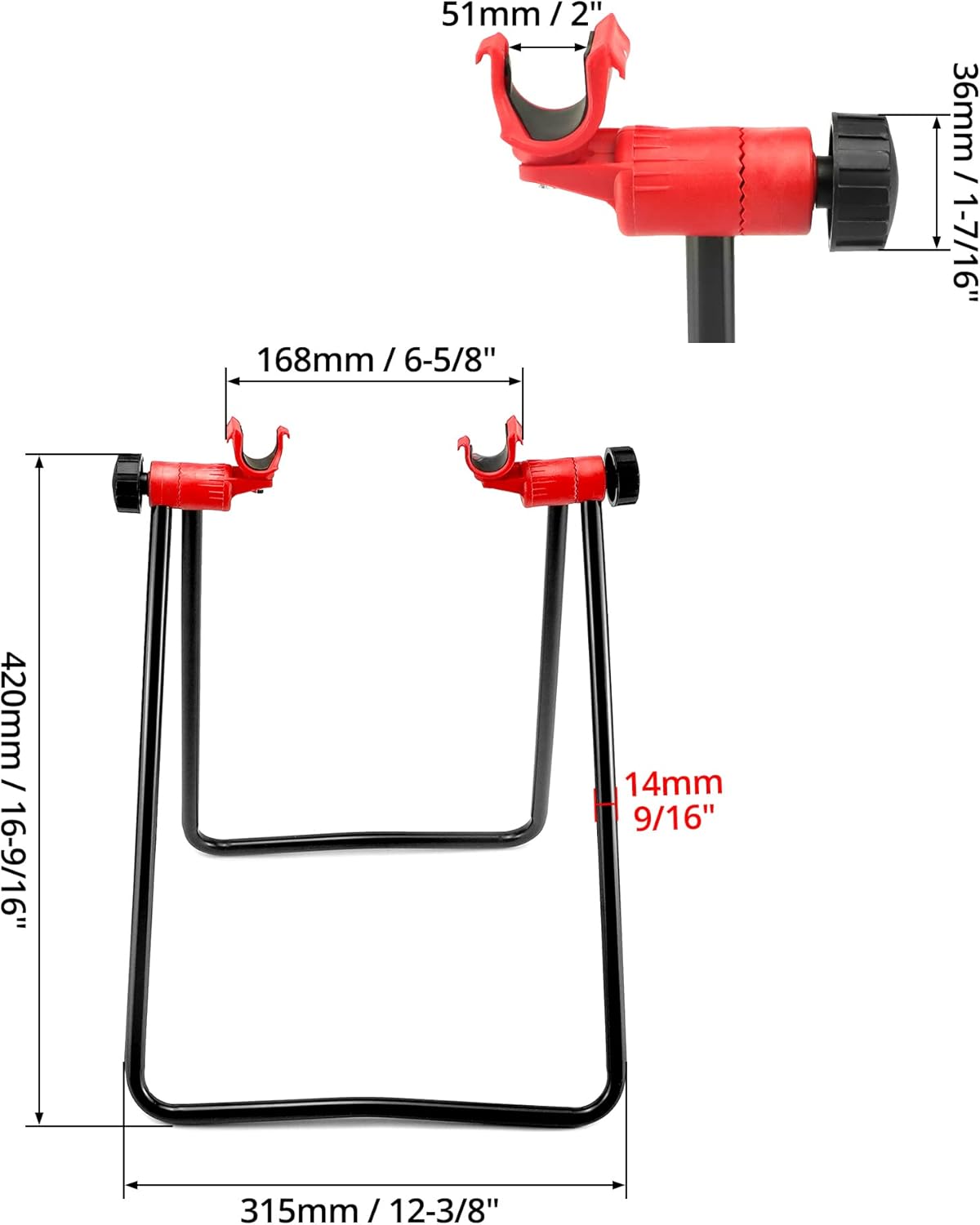

Figure 3.1: Detailed dimensions of the QWORK Easy Utility Bicycle Rack.

4. Setup and Assembly

The QWORK Easy Utility Bicycle Rack comes pre-assembled and requires minimal setup. Follow these steps to prepare your stand for use:

1. Unfold the Stand: Gently unfold the stand from its compact, flat position until it forms a stable A-frame shape. Ensure both legs are fully extended and locked into place for maximum stability.

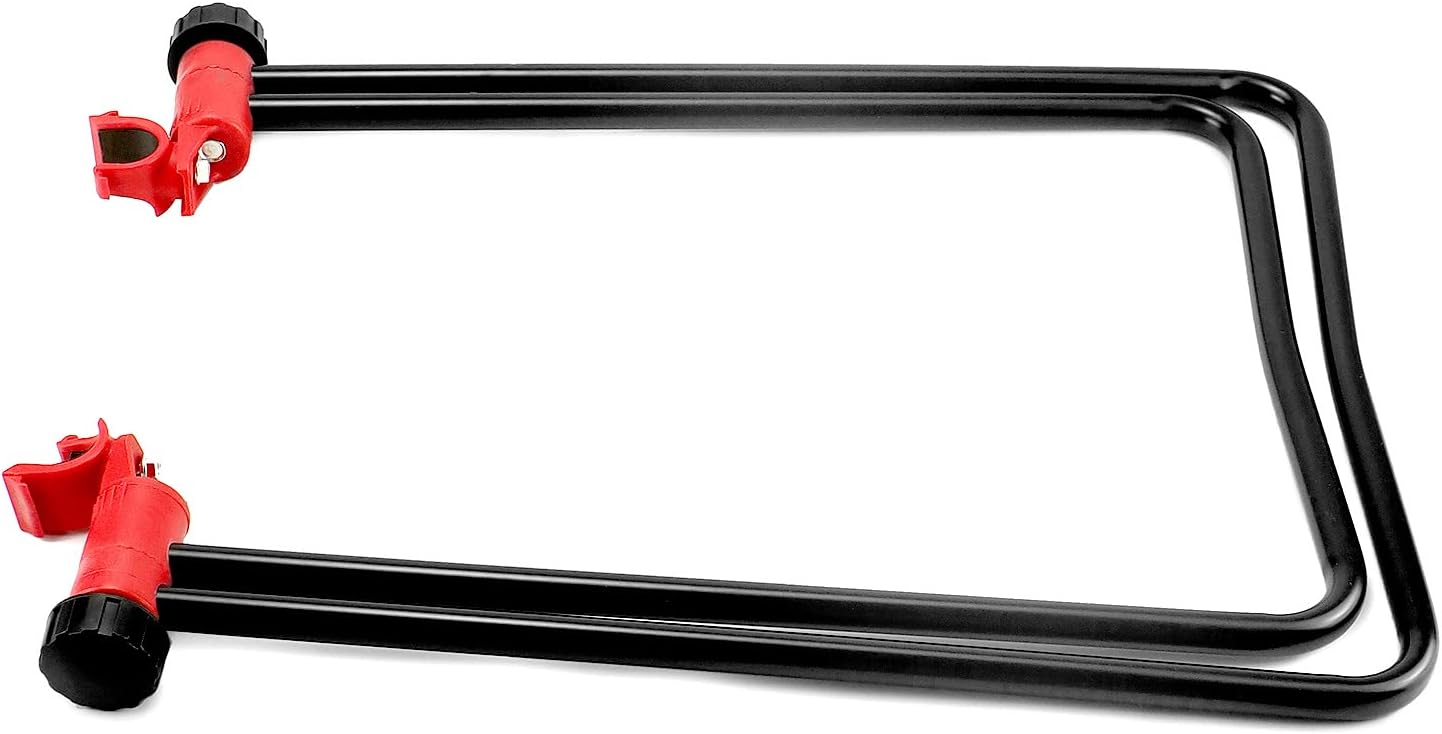

Figure 4.1: The bicycle stand in its folded state, ready for unfolding.

Figure 4.2: The bicycle stand fully unfolded and stable.

2. Adjust Mount Width: The red chainstay mounts are adjustable. Rotate the black knobs on the side of the mounts to widen or narrow the distance between them. Adjust this to match the width of your bicycle's rear chainstay.
3. Orient Swivel Mounts: The red mounts feature a two-way axis rotation (360 degrees). Ensure the U-shaped cradles are oriented correctly to receive the bicycle's chainstay.

Figure 4.3: Adjustable width and rotational mounts for optimal fit.

5. Operating Instructions

Using your QWORK Bicycle Rack is straightforward. Follow these guidelines for safe and effective use:

1. Placing the Bicycle: Position the stand behind your bicycle. Carefully lift the rear wheel of your bicycle and align the chainstay with the U-shaped cradles of the stand's mounts. Gently lower the bicycle so that the chainstay rests securely within the mounts. The swivel mount is designed to securely attach to the rear hub axle area.

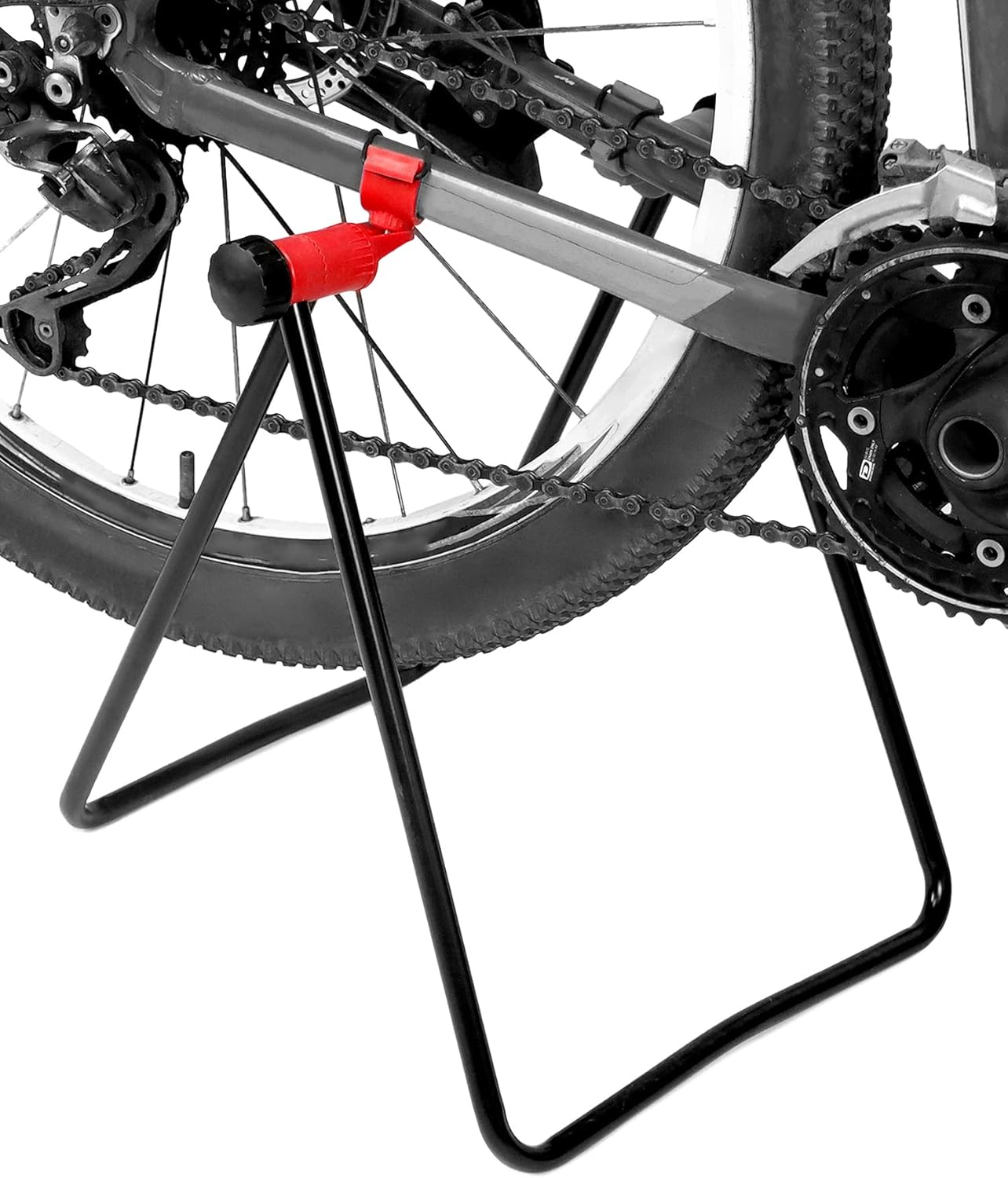

Figure 5.1: Proper placement of the bicycle on the stand's chainstay mounts.

Figure 5.2: The QWORK bicycle stand supporting a bicycle.

2. Ensuring Stability: Once the bicycle is on the stand, gently rock it to ensure it is stable and balanced. The stand should be placed on a flat, level surface.
3. Using for Repair/Maintenance: The stand elevates the rear wheel, allowing for easy access to the drivetrain, brakes, and tires for cleaning, adjustments, or repairs.
4. Storage and Parking: Use the stand to keep your bicycle upright and organized in your garage, home, or outdoor space, preventing it from falling over and saving space.

Figure 5.3: The stand supporting a bicycle, demonstrating its load capacity.

Figure 5.4: Another perspective of the bicycle rack in use.

6. Maintenance

To ensure the longevity and optimal performance of your QWORK Easy Utility Bicycle Rack, follow these simple maintenance tips:

• Cleaning: Wipe down the steel frame and plastic components with a damp cloth periodically to remove dust, dirt, and grime. Avoid using harsh abrasive cleaners that could damage the finish.
• Inspection: Regularly inspect the stand for any signs of wear, damage, or loose connections. Pay close attention to the steel frame for rust and the plastic mounts for cracks or excessive wear.
• Storage: When not in use, fold the stand flat and store it in a dry place to prevent rust and prolong its lifespan. Its compact design makes storage easy.

7. Troubleshooting

If you encounter any issues with your QWORK Easy Utility Bicycle Rack, refer to the following common problems and solutions:

• Stand is Unstable:
  • Ensure the stand is placed on a flat, level surface.
  • Verify that the bicycle's chainstay is properly seated and balanced within both U-shaped cradles.
  • Check that the stand is fully unfolded and its legs are stable.
• Bicycle Does Not Fit in Mounts:
  • Adjust the width of the chainstay brackets by rotating the black knobs until they match the width of your bicycle's chainstay.
  • Ensure the mounts are rotated to the correct orientation to receive the chainstay.
• Difficulty Folding the Stand:
  • Check for any obstructions or debris that might be preventing the stand from folding smoothly.
  • Ensure no components are misaligned.

8. Warranty and Support

For any questions, concerns, or support regarding your QWORK Easy Utility Bicycle Rack, please contact QWORK customer service. Refer to the product packaging or the retailer's website for specific warranty information and contact details. We are committed to providing high-quality products and excellent customer support.
