Introduction
The Egretech Sonic 1200W Portable Power Station is a versatile and efficient power solution designed for various applications, including outdoor activities, camping, RVs, and emergency backup. Featuring a 999Wh lithium battery and 1200W continuous output (2400W peak), it provides reliable power for multiple devices.
Key features include G-Flow Fast Recharge Technology for rapid charging, G-Wave Overload Inverter for high-wattage appliances, multiple output ports including PD 3.0 USB-C, and a Dynamic MPPT Intelligent Algorithm for efficient solar charging. Its lightweight and compact design enhances portability, while the advanced Battery Management System (BMS) ensures safety and longevity.
Setup
Included Components
- 1 * AC Charging Cable
- 1 * Car Charging Cable
- 1 * Sonic 1200W Power Station
Charging the Power Station
The Sonic 1200W offers multiple convenient charging methods:
- Wall Socket Recharge: Utilize the included 1000W AC charging cable to connect directly to a wall outlet. The unit can charge from 0% to 80% in approximately 60 minutes, and to 100% in 100 minutes, thanks to its bi-directional inverter technology.
- Solar Recharge: The power station supports a maximum 200W solar input. With a 200W solar panel, it can be fully recharged in 6-7 hours. A 100W solar panel will take approximately 12-13 hours. The Dynamic MPPT Intelligent Algorithm increases solar recharging speed by 22%.
- Car Recharge: Use the included car charging cable to charge the power station from your vehicle's cigarette lighter (10-24V). This method typically takes around 9 hours for a full charge.
Figure 1: Charging options for the Egretech Sonic 1200W Power Station, including wall socket, solar panel, and car charger.
Operating Instructions
Output Ports
The Sonic 1200W is equipped with 8 output ports for simultaneous power delivery:
- 2x 1200W AC Sockets
- 2x 24W USB-A Ports
- 1x 132W Car Charging Port
- 2x 100W USB-C (PD 3.0) Ports: These USB-C outlets have independent circuits, allowing simultaneous 100W fast charging for two devices without sharing output.
Figure 2: Overview of the 8 simultaneous output ports on the Egretech Sonic 1200W Power Station.
Powering Devices
The G-Wave Overload Inverter allows the power station to power appliances with a maximum of 2400W, despite its rated power being 1200W. This enables it to handle a wide range of devices for home backup, outdoor camping, or electric tool use.
Figure 3: Examples of device runtimes for home backup (coffee machine, refrigerator, LED lamp) and outdoor camping (laptop, phone, acoustic bass).
Figure 4: Examples of electric tool runtimes (cutting machine, electric saw, jack hammer, electric drill, hot water kettle).
LED Lighting Modes
The power station features 5 LED lighting modes, making it a suitable option for road trips, RV travel, camping, or fishing:
- Soft lighting
- Intense lighting
- SOS (distress signal)
- Flashing
- Off
Figure 5: The Egretech Sonic 1200W Power Station's integrated LED light with various modes for different situations.
Maintenance
BMS Battery Protection
The power station is equipped with an advanced Battery Management System (BMS). This system precisely measures battery voltage and effectively prevents or mitigates abnormal situations such as over-discharging, overcharging, and overheating of the battery. This ensures the long-term stability and safe operation of the battery.
Figure 6: The internal structure of the Egretech Sonic 1200W highlighting the Battery Management System (BMS) for enhanced protection.
Troubleshooting
If you encounter any issues with your Egretech Sonic 1200W Portable Power Station, please refer to the following general troubleshooting tips:
- No Power Output: Ensure the power station is sufficiently charged. Check that the specific output ports (AC, DC, USB) are activated.
- Charging Issues: Verify that the charging cable is securely connected to both the power station and the power source. If using solar, ensure panels are clean and receiving adequate sunlight.
- Overload Protection: If the unit shuts down unexpectedly, it may be due to an overload. Disconnect some devices and restart the power station. The G-Wave Overload Inverter helps manage peak loads, but continuous high loads can trigger protection.
- Unusual Behavior: If the display shows error codes or the unit behaves abnormally, try restarting the device. If the problem persists, contact customer support.
Specifications
| Feature | Specification |
|---|---|
| Brand | Egretech |
| Model Name | Sonic 1200W |
| Wattage (Battery Capacity) | 999 Watt-hours |
| Running Wattage (Output) | 1200 Watts |
| Starting/Peak Wattage | 2400 Watts |
| Power Source | Battery Powered |
| Fuel Type | Electric |
| Voltage | 120 Volts |
| Total Power Outlets | 8 |
| Item Weight | 22.94 Pounds (9.5kg) |
| Product Dimensions | 11.81"L x 8.46"W x 7.67"H |
| Material | Aluminum |
| Special Features | Digital Display, Extra-Long Run Time, Overload Protection, Portable, Short Circuit Protection |

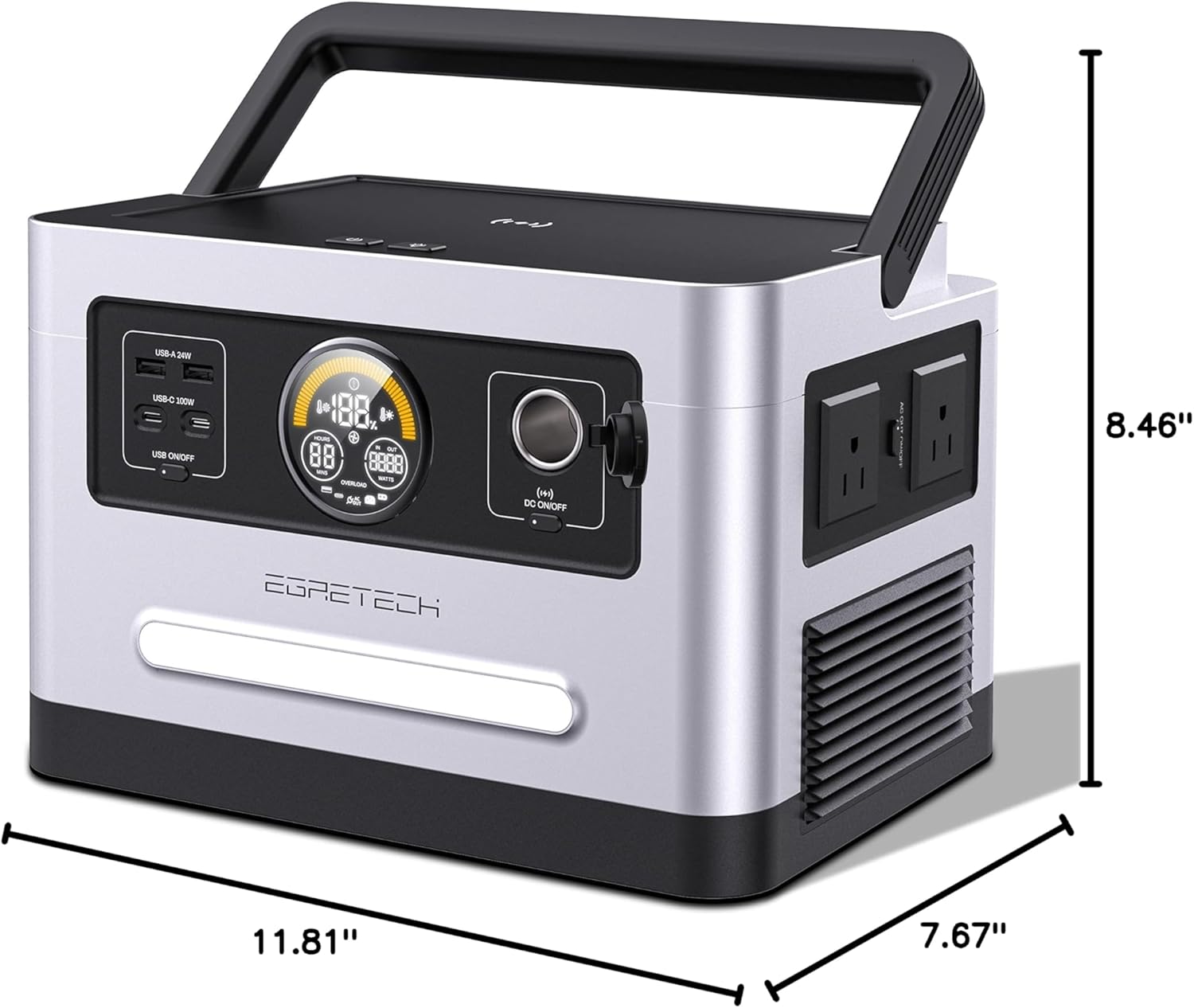

Figure 7: Physical dimensions of the Egretech Sonic 1200W Power Station.
Warranty and Support
Egretech provides a 2-year after-sales service for all products. This includes Q&A and consultation, repair and return services, and technical support. For any inquiries or assistance, please refer to the contact information provided in your product packaging or visit the official Egretech store.
Video 1: An overview of the Egretech Sonic 1200W Portable Power Station, showcasing its features and design.
Video 2: Demonstrates the Egretech 1200W Power Station's use for camping, highlighting its portability and power capabilities.
