Introduction
Thank you for choosing the Ibergrif M11003Y Lavabo Mixer Tap. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new faucet. Please read these instructions carefully before installation and retain them for future reference.
Front view of the Ibergrif M11003Y single-lever lavabo mixer tap, showcasing its brushed gold finish and modern design.
Safety Information
- Always turn off the main water supply before beginning any installation or maintenance work.
- Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
- Ensure all connections are securely tightened to prevent leaks. Do not overtighten.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- This product is designed for bathroom lavabo use only.
Setup and Installation
Required Tools (Not Included):
- Adjustable wrench
- Phillips head screwdriver
- Sealant tape (PTFE tape)
- Basin wrench (optional, for tight spaces)
Included Components:

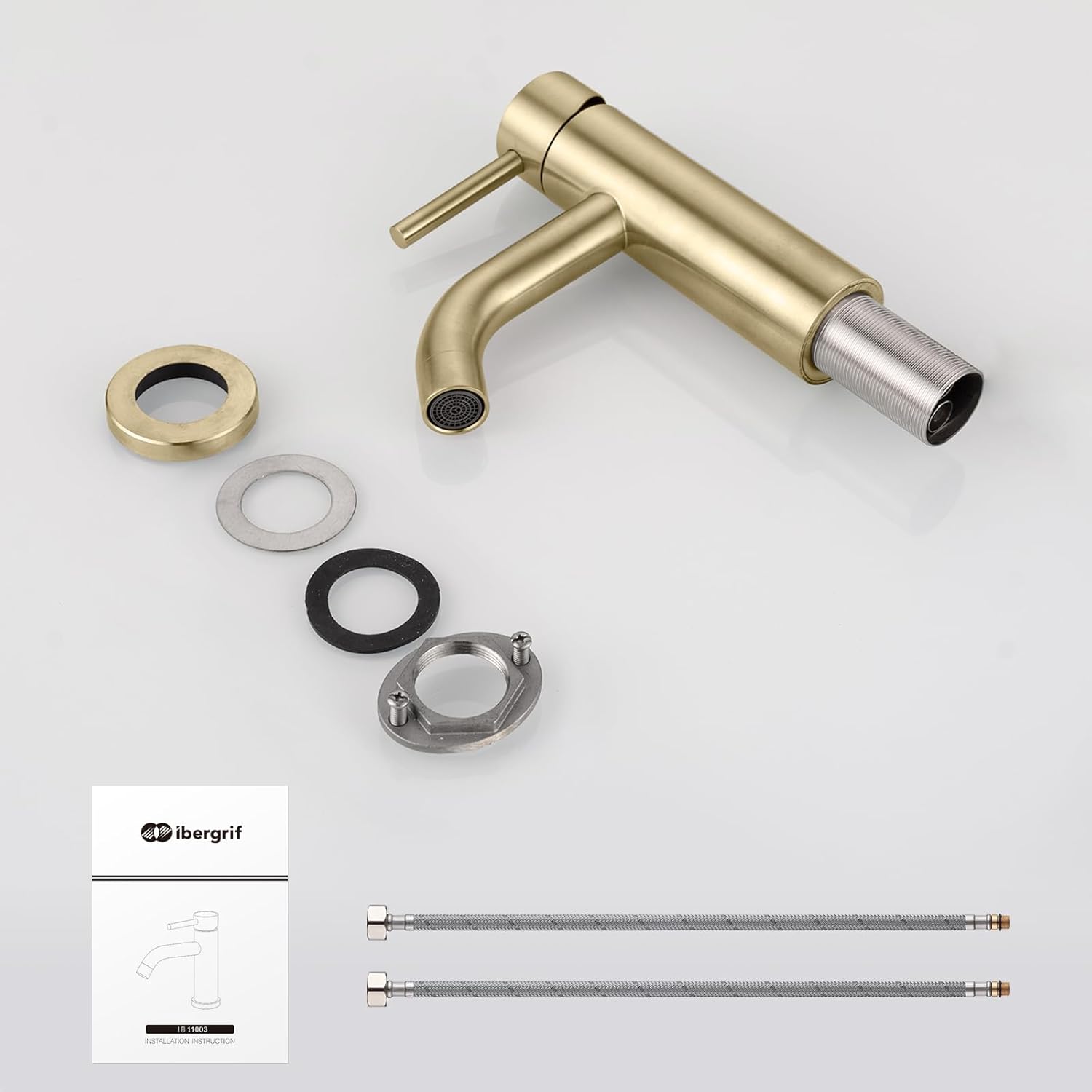

An overview of all included components for installation, including the faucet body, mounting hardware (gaskets, nut, washer), and braided hot and cold water supply hoses.
Installation Steps:
- Prepare the Basin: Ensure the mounting hole in your basin is approximately 35mm in diameter. Clean the area around the hole.
- Insert the Faucet: Place the faucet body into the mounting hole from above the basin. Ensure the base gasket is properly seated.
- Secure the Faucet: From underneath the basin, slide the rubber washer, metal washer, and mounting nut onto the threaded shank of the faucet.
- Tighten the Mounting Nut: Hand-tighten the mounting nut, then use a screwdriver to firmly secure the screws on the mounting nut, ensuring the faucet is stable and centered.
- Connect Water Supply Lines: Attach the hot (marked 'H' or red) and cold (marked 'C' or blue) water supply hoses to the corresponding inlets on the faucet. Use sealant tape on the threads for a watertight seal.
- Connect to Water Supply: Connect the other ends of the supply hoses to your hot and cold water shut-off valves. Tighten securely with an adjustable wrench.
- Test for Leaks: Slowly turn on the main water supply and check all connections for leaks. If leaks occur, tighten the connections slightly.
A four-step visual guide detailing the installation process: inserting the faucet into a 35mm hole, securing it with the mounting nut, tightening with a screwdriver, and connecting hot (H) and cold (C) water supply lines.
Basin Compatibility:
Visual guide indicating that the faucet is suitable for under-desktop basins, showing examples of compatible and incompatible basin types.
The Ibergrif M11003Y faucet is designed for installation with under-desktop basins. Please refer to the image above for visual guidance on compatible basin types.
Operating Instructions
The Ibergrif M11003Y features a single-lever handle for easy control of water flow and temperature.
- Water Flow: Lift the lever upwards to increase water flow. Push it downwards to decrease or shut off the flow.
- Water Temperature: Move the lever to the left for hot water and to the right for cold water. Adjust the position between left and right to achieve your desired temperature.
Maintenance
Cleaning the Faucet:
The stainless steel surface of your Ibergrif faucet is designed for easy cleaning and maintenance. To preserve its finish:
- Clean regularly with a soft cloth and mild soap or a non-abrasive cleaner.
- Avoid using abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
- Rinse thoroughly with clean water after cleaning and dry with a soft cloth to prevent water spots.
Aerator Cleaning:
Over time, mineral deposits can accumulate in the aerator, affecting water flow. The Neoperl aerator can be easily removed for cleaning.
Image demonstrating how to easily remove and clean the Neoperl aerator from the faucet spout by hand, ensuring optimal water flow.
- Unscrew the aerator from the end of the spout by hand.
- Rinse the aerator under running water to remove any loose debris.
- For stubborn deposits, soak the aerator in a solution of equal parts white vinegar and water for 15-30 minutes.
- Brush away any remaining deposits with a small brush (e.g., an old toothbrush).
- Rinse thoroughly and screw the aerator back into the spout.
Ceramic Cartridge:
The faucet is equipped with a superior ceramic disc cartridge, designed for long-lasting, drip-free performance, tested for up to 500,000 cycles. If you experience persistent drips or issues with temperature control, the cartridge may need replacement. Contact customer support for assistance.
A collage showing the assembled faucet, an exploded view of the ceramic cartridge, the product packaging, and a solid 304 stainless steel bar, highlighting material quality.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valve; debris in supply line. | Clean the aerator (see Maintenance); ensure shut-off valves are fully open; flush supply lines. |
| Leaking from Spout | Worn ceramic cartridge; debris in cartridge. | Replace the ceramic cartridge; clean the cartridge. |
| Leaking at Base | Loose mounting nut; improperly seated gaskets. | Tighten the mounting nut; check and reseat gaskets. |
| No Hot/Cold Water | Shut-off valve closed; supply line kinked; issue with water heater. | Ensure shut-off valves are open; check supply lines for kinks; consult a plumber for water heater issues. |
Specifications
Technical drawing illustrating the key dimensions of the faucet, including height (173mm), spout reach (170mm), and base diameter (54mm).
- Manufacturer: Ibergrif Griferias S.L
- Model Number: M11003Y
- Product Dimensions (L x W x H): 17.3 x 17 x 17.3 cm
- Weight: 980 grams
- Color: Gold
- Style: Classic
- Finish: Brushed
- Material: Stainless steel
- Installation Method: Single hole, Deck Mount
- Number of Handles: 1
- Handle Material: Stainless steel
- Special Features: Lead-free
- Included Components: Installation hardware
- Number of Holes Required: 1
- Recommended Uses: Bathroom
- Country of Origin: Spain
Warranty and Support
Specific warranty details for the Ibergrif M11003Y Lavabo Mixer Tap are not provided in this document. For warranty information, technical support, or to inquire about replacement parts, please contact Ibergrif customer service directly or visit their official website. Keep your proof of purchase for any warranty claims.
