Introduction
Thank you for choosing a Whirlpool appliance. This user manual provides essential information for the safe and efficient use of your new TDLR6240LFR/N top-load washing machine. Please read these instructions carefully before using the appliance and keep them for future reference.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons. This appliance is intended for domestic use only.
- Ensure the appliance is properly grounded.
- Do not allow children to play on or in the appliance.
- Unplug the appliance before cleaning or performing any maintenance.
- Do not operate the appliance if it is damaged or malfunctioning.
- Keep flammable materials away from the appliance.
Setup and Installation
Proper installation is crucial for the performance and longevity of your washing machine. This model is designed for freestanding installation.
1. Unpacking
Remove all packaging materials, including the polystyrene base and any protective film. Ensure all transit bolts and packing materials are removed from the drum and machine interior before first use. Keep packaging materials out of reach of children.
2. Placement and Leveling
Place the washing machine on a flat, stable floor. Use a spirit level to ensure the machine is perfectly level. Adjust the adjustable feet as necessary to prevent vibrations during operation.
Image: Front view of the Whirlpool TDLR6240LFR/N washing machine, showing its compact, white design.
3. Water Connection
Connect the water inlet hose to a cold water tap with a 3/4" thread. Ensure the connection is tight to prevent leaks. Do not use old hoses; always use the new hoses supplied with the appliance.
4. Drain Connection
Position the drain hose correctly, either into a standpipe or over the edge of a sink, ensuring it is securely fastened to prevent displacement during draining. The height of the drain point should be between 65 cm and 100 cm from the floor.
5. Electrical Connection
Plug the power cord into a grounded electrical outlet. Ensure the voltage and frequency match the specifications on the rating plate of the appliance (220 Volts). Do not use extension cords or multiple adapters.
6. First Use
Before washing laundry, run an empty wash cycle at 60°C with a small amount of detergent to clean the drum and remove any manufacturing residues.
Operating Instructions
This section guides you through the daily operation of your Whirlpool washing machine.
1. Loading Laundry
Open the top lid of the washing machine. Ensure the drum flaps are open. Load laundry loosely into the drum, making sure not to overload it. The maximum capacity is 6 kg. Close the drum flaps and then the top lid securely.
Image: Top view of the washing machine with the lid open, revealing the drum ready for loading.
2. Adding Detergent and Fabric Softener
Pull out the detergent dispenser drawer, usually located on the top panel. Add the recommended amount of detergent to the main wash compartment and fabric softener to its designated compartment. Do not exceed the MAX fill line for either.
3. Selecting a Program
Turn the program selector dial, located on the control panel, to choose one of the 13 available wash programs. The machine features 6th Sense Technology, which automatically adapts resources (water, energy, time) to the actual load, ensuring optimal performance and efficiency.
Image: Angled view of the washing machine with the lid closed, highlighting the control panel with its mechanical dial.
4. Selecting Options
After selecting a program, you can choose additional options using the buttons on the control panel. Common options include:
- Delayed Start: Postpones the start of the wash cycle.
- FreshCare+: Keeps laundry fresh inside the drum for up to 6 hours after the cycle ends by gently tumbling.
- Spin Speed: Adjusts the spin speed up to 1200 rpm.
5. Starting the Cycle
Press the Start/Pause button to begin the selected wash cycle. The indicator light will illuminate, and the machine will start filling with water.
6. Ending the Cycle
At the end of the cycle, the machine will signal completion. Open the lid and remove your laundry promptly to prevent wrinkles and odors. Unplug the machine from the power outlet when not in use.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your washing machine.
1. Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents, as they can damage the glossy finish.
2. Cleaning the Detergent Dispenser
Periodically remove and clean the detergent dispenser drawer under running water to prevent residue buildup. Use a brush if necessary to remove stubborn deposits.
3. Cleaning the Drain Filter (if applicable)
Consult your specific model's diagram for the location of the drain filter. Regularly clean the filter to remove lint, coins, or other small objects that may obstruct drainage. Ensure the machine is unplugged and drain any residual water before opening the filter cover.
4. Drum Cleaning
Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent or washing machine cleaner) once a month to prevent odors and mold buildup in the porcelain enamel drum.
Troubleshooting
Before contacting customer service, refer to this section for solutions to common issues.
- Machine does not start:
- Check if the power cord is securely plugged in.
- Ensure the door/lid is properly closed.
- Verify that the water supply tap is open.
- Check if a program has been selected and the Start/Pause button pressed.
- Water not draining:
- Check if the drain hose is kinked or blocked.
- Clean the drain filter.
- Excessive vibration/noise:
- Ensure the machine is level and all four feet are firmly on the floor.
- Check if transit bolts have been fully removed.
- Make sure the laundry load is balanced inside the drum.
- Detergent residue in dispenser:
- Clean the detergent dispenser regularly.
- Ensure water pressure is adequate.
If the problem persists after checking these points, please contact Whirlpool customer support.
Specifications
Key technical specifications for the Whirlpool TDLR6240LFR/N washing machine.
| Feature | Specification |
|---|---|
| Model Name | TDLR6240LFR/N |
| Brand | Whirlpool |
| Type | Top-Load, Freestanding |
| Capacity | 6 kg (42 Liters) |
| Maximum Spin Speed | 1200 rpm |
| Energy Class | C (New European Energy Label) |
| Energy Consumption (per 100 cycles) | 56 kWh |
| Water Consumption (per cycle) | 43 Liters |
| Noise Level (Spin Cycle) | 76 dB |
| Number of Programs | 13 |
| Controls Type | Mechanical Dial |
| Drum Material | Porcelain Enamel |
| Voltage | 220 Volts |
| Item Weight | 57.81 Kilograms |
| Depth | 27 inches |

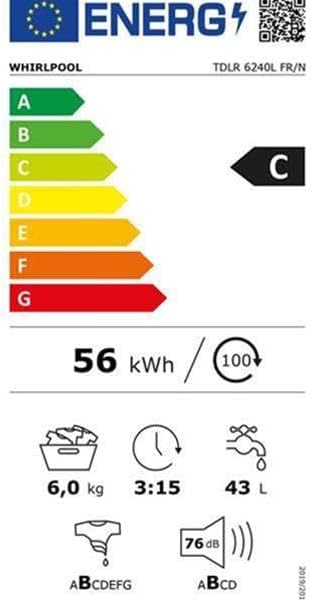

Image: Energy label providing key performance metrics for the washing machine.
Warranty and Support
Your Whirlpool TDLR6240LFR/N washing machine comes with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your appliance or visit the official Whirlpool website.
For technical assistance, spare parts, or to schedule a service appointment, please contact Whirlpool Customer Service. You can find contact information on the Whirlpool website or in the documentation provided with your product.
Whirlpool Official Website: www.whirlpool.com/support
