UGEARS Tracked Off-Road Vehicle: Assembly and Operation Manual

Introduction

Welcome to the UGEARS Tracked Off-Road Vehicle assembly and operation manual. This document provides detailed instructions for building and enjoying your 3D wooden model kit. Please read all instructions carefully before beginning assembly.

Components

Your UGEARS Tracked Off-Road Vehicle kit includes all necessary components for assembly:

• Plywood boards with pre-cut pieces
• Rubber bands
• Fishing line
• Paraffin wax
• Sandpaper

Assembly Instructions

Assembly Overview

The UGEARS Tracked Off-Road Vehicle kit contains 423 pieces and has an estimated assembly time of approximately 8 hours. No glue or special tools are required for assembly, making it a hands-on and engaging project.

Follow the step-by-step instructions provided in the manual, which includes illustrations and is available in 11 languages for clear guidance.

Key Assembly Tips

• Detaching Pieces: Carefully detach all pieces from the plywood boards. Use a gentle pushing motion to avoid breakage.
• Smoothing Edges: Use the provided sandpaper to smooth any rough edges on the pieces. This ensures a better fit and smoother operation.
• Following Instructions: Follow the numbered steps precisely as illustrated in the manual to ensure correct functionality and structural integrity.
• Lubrication: Apply paraffin wax to moving parts as indicated in the detailed instructions. This is crucial for smooth gear movement and overall vehicle performance.

Product Features

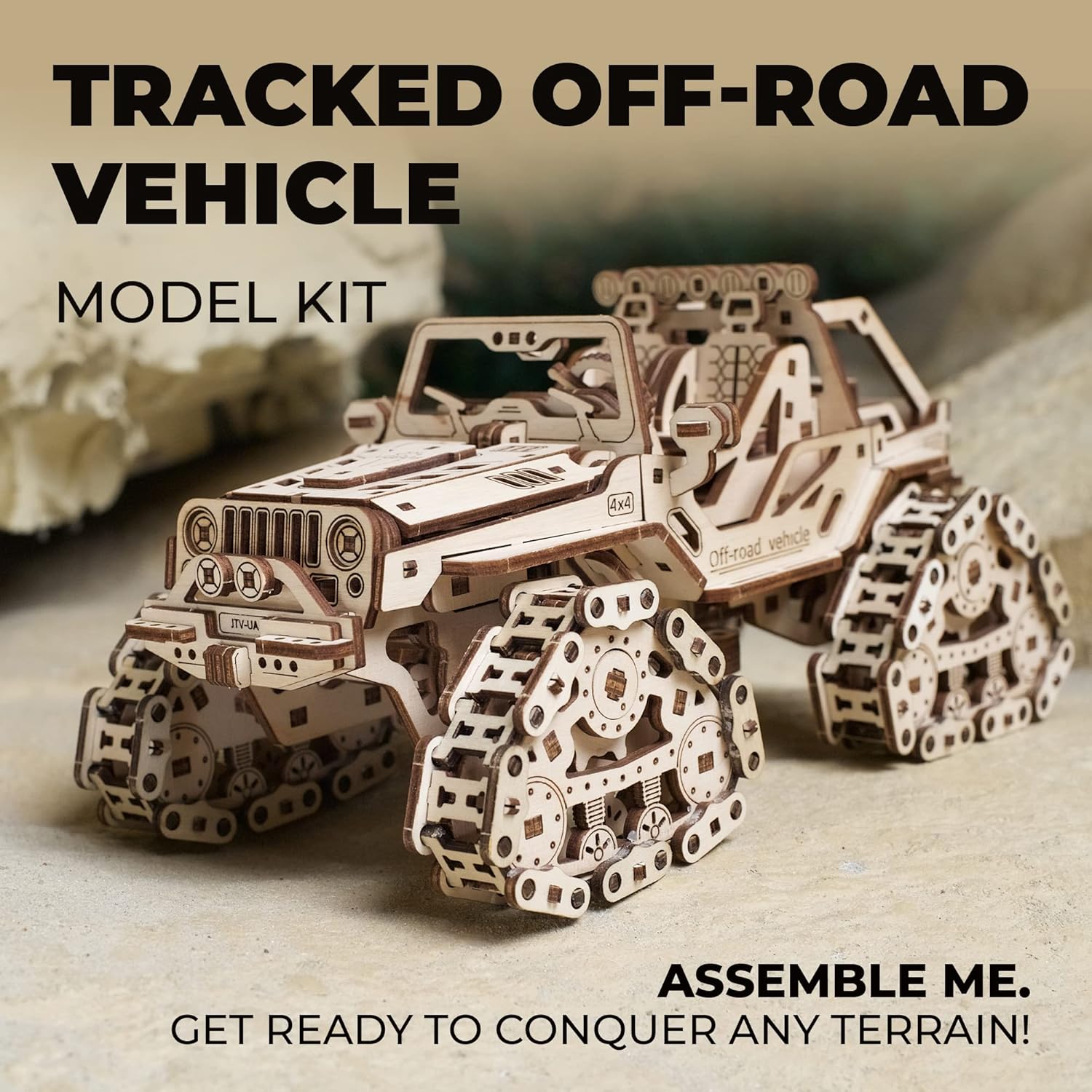

The UGEARS Tracked Off-Road Vehicle is a sophisticated 3D wooden model with several unique features:

• Tracked Modules: Equipped with four tracked modules instead of traditional wheels, enabling superior maneuverability and cross-country ability over various terrains.
• Spring Motor: Features a powerful spring motor that drives the vehicle, allowing it to travel distances of 3-4 meters.
• Two Driving Modes: Offers two distinct driving modes for versatile operation.
• Openable Hood with Engine: The hood can be opened to reveal a detailed, functional engine mechanism.

Operating the Vehicle

To operate your UGEARS Tracked Off-Road Vehicle, follow these steps:

1. Wind the Motor: Locate the winding mechanism (typically on the side or rear of the vehicle). Turn it clockwise until you feel resistance, indicating the spring is fully wound.
2. Select Driving Mode: If your model has multiple driving modes, select your desired mode using the designated lever or switch.
3. Place on Surface: Place the vehicle on a flat, smooth surface. For optimal performance, ensure the surface is free of debris.
4. Release Mechanism: Gently release the safety catch or lever to engage the spring motor. The vehicle will then move forward.

Care and Maintenance

Proper care will ensure the longevity and optimal performance of your UGEARS model:

• Storage: Store the model in a dry environment, away from direct sunlight and extreme temperature fluctuations, to prevent wood warping or damage.
• Cleaning: Clean the model with a soft, dry cloth. Do not use water, chemical cleaners, or abrasive materials, as these can damage the wood.
• Lubrication: Periodically check all moving parts, especially gears and axles. If you notice increased friction or stiffness, apply a small amount of paraffin wax to the contact points.
• Handling: Handle the model gently, especially delicate parts, to avoid accidental breakage.

Troubleshooting

If you encounter any issues with your UGEARS Tracked Off-Road Vehicle, consider the following solutions:

• Model not moving smoothly:
  - Ensure all gears and moving parts are properly aligned according to the instructions.
  - Verify that all contact points have been adequately lubricated with paraffin wax.
  - Check for any small debris or loose pieces obstructing the movement of gears or tracks.
• Pieces breaking during assembly:
  - Handle pieces gently when detaching them from the plywood boards. If a piece breaks, use the extra parts provided in the kit.
  - If you run out of spare parts or need specific replacements, contact UGEARS customer support.
• Difficulty detaching pieces from boards:
  - Use the provided tool or a small, flat object to carefully push out pieces. Avoid forcing them, as this can cause damage.
• Spring motor not winding or releasing:
  - Double-check the assembly of the spring mechanism and ensure all connections are secure.
  - Make sure the winding key is fully engaged and turning the spring correctly.

Product Specifications

Warranty and Support

UGEARS is committed to providing high-quality mechanical models. For any inquiries regarding missing parts, manufacturing defects, or assembly assistance, please contact UGEARS customer support directly.

Please visit the official UGEARS website for the most up-to-date warranty information and contact details.
