FEICHONGHO W300B Automatic Watch Winder Instruction Manual

1. Introduction and Overview

The FEICHONGHO W300B Automatic Watch Winder is designed to keep your automatic watches wound and ready to wear. This device supports both single and dual watch modes and features a timer shutdown function for customizable operation. Its unique design offers enhanced durability compared to traditional box-style winders, which are prone to motor carbon brush wear.

This watch winder is compatible with approximately 95% of automatic watches on the market, especially suitable for Seiko watches. Ensure the rotating center of your watch's oscillating weights aligns with the winder's mechanism for optimal performance.

2. Setup

Follow these steps to set up your FEICHONGHO W300B Automatic Watch Winder:

1. Unboxing: Carefully remove all components from the packaging. Verify that you have the main winder unit, watch holders, and power cable.
2. Power Connection: Connect the provided power cable to the DC-IN port on the winder unit and plug it into a suitable power outlet.
3. Watch Holder Installation: The watch holders are designed to securely cradle your watches. Ensure they are properly seated in the winder's mechanism. If using for a single watch, a counterweight may be provided to balance the mechanism.
4. Placing Your Watch(es): Gently place your automatic watch(es) onto the watch holder(s). Ensure the watch is snug but not overly tight to avoid damage.

For a visual guide on unboxing and initial setup, please refer to the video below:

3. Operating Instructions

The FEICHONGHO W300B Watch Winder offers simple operation with a timer shutdown function.

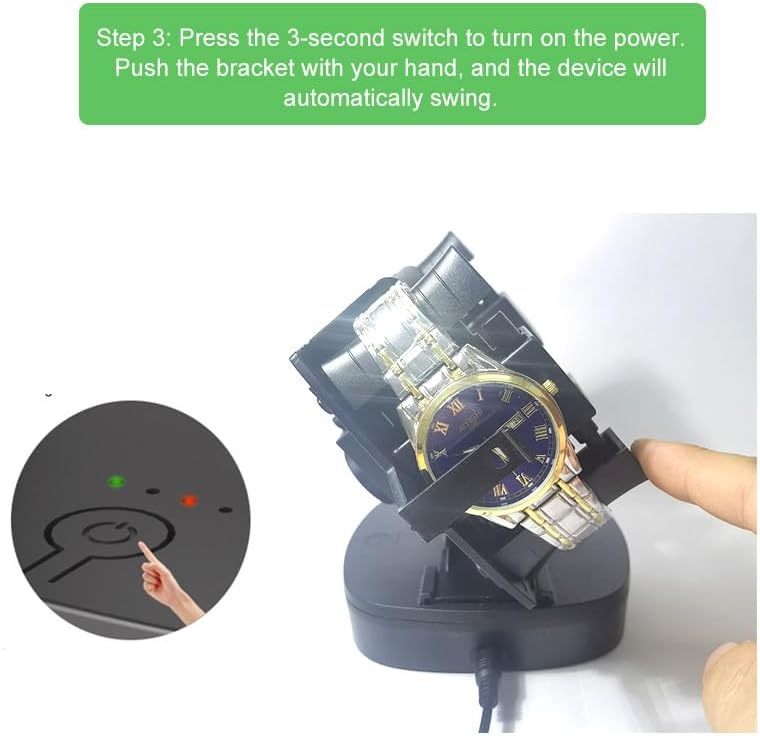

1. Power On: After connecting the power, press and hold the power button for 3 seconds to turn on the device. The LED light display will activate.
2. Initiate Rotation: Gently push the bracket with your hand to initiate the automatic swinging motion.
3. Timer Shutdown Function:
   • Press the power button once to activate the timer.
   • Each subsequent press of the button will increase the timer duration by one hour, up to a maximum of 12 hours.
   • The second LED light will flash to indicate that the timer is active.
   • The device will automatically shut down after the set timer duration.
4. Power Off: To turn off the device manually, press and hold the power button until the lights turn off.

For a detailed demonstration of the watch winder's operation, please watch the video below:

4. Compatibility

The FEICHONGHO W300B Watch Winder is designed for broad compatibility with automatic watches. It is suitable for 95% of watches on the market, with particular effectiveness for Seiko watches.

Important Note: For proper winding, ensure that the rotating center of your watch's oscillating weights overlaps with the center of the winder's mechanism. Refer to the image below for visual guidance on compatible and incompatible watch movements.

The device utilizes an electromagnetic drive principle, similar to a motor, but the watch holder is positioned far enough from the magnet (over 65mm) to prevent magnetization of your watch.

The magnetism of this device is weak, even weaker than that of typical box-style winders, further ensuring the safety of your timepieces.

The inner circumference of the watch should not exceed 21.5 cm (8.46 inches) to fit properly on the watch holder.

5. Maintenance

To ensure the longevity and optimal performance of your FEICHONGHO W300B Watch Winder, follow these simple maintenance guidelines:

• Cleaning: Use a soft, dry cloth to gently wipe the exterior of the winder. Avoid abrasive cleaners or solvents that could damage the plastic material.
• Dust Protection: Keep the winder in a clean, dust-free environment. Dust can accumulate in the moving parts and affect performance.
• Handle with Care: While designed for durability, avoid dropping the unit or subjecting it to strong impacts.
• Power Disconnection: When not in use for extended periods, disconnect the power cable from the outlet.

6. Troubleshooting

If you encounter any issues with your FEICHONGHO W300B Watch Winder, consider the following:

• Device Not Turning On:
  • Ensure the power cable is securely connected to both the winder and a working power outlet.
  • Verify that the power outlet is functional by plugging in another device.
  • Press and hold the power button for 3 seconds to ensure it is properly activated.
• Watch Not Winding:
  • Check if the watch is an automatic movement. This winder is not designed for quartz or manual-wind watches.
  • Ensure the watch is correctly placed on the holder and is not loose or obstructed.
  • Confirm that the winder is powered on and rotating.
  • Verify that your watch's oscillating weight center aligns with the winder's mechanism (refer to Compatibility section).
• Unusual Noise:
  • Ensure the winder is placed on a flat, stable surface.
  • Check if any part of the watch or holder is rubbing against the winder's casing.
  • The winder is designed to be quiet; excessive noise may indicate an issue.

If these steps do not resolve the issue, please contact customer support for further assistance.

7. Specifications

• Model Number: W300B
• Brand: FEICHONGHO
• Material: Plastic
• Weight: Approximately 1.06 Pounds (350 grams)
• Dimensions: 8.43 x 4.65 x 4.41 inches
• Compatibility: Supports single and dual automatic watches; suitable for watches with inner circumference not exceeding 21.5 cm (8.46 inches).
• Features: Timer shutdown function (1-12 hours), electromagnetic drive principle.
• Power Source: USB power supply (AC adapter included).

8. Warranty and Support

For any questions or concerns regarding your FEICHONGHO W300B Automatic Watch Winder, please contact the seller or manufacturer directly. Product support and warranty information are typically provided with your purchase documentation.

Note: Specific warranty terms and conditions may vary. Please refer to the documentation included with your product for detailed information.
