1. Introduction
Thank you for purchasing the PUZILOZA DMX-14CH 5-in-1 LED Stage Light. This versatile lighting unit is designed to create dynamic and vibrant light effects for various events and venues. It combines multiple lighting technologies, including RGB 3-in-1 LEDs, monochrome LEDs, and strobe lights, offering a wide range of patterns and colors. Please read this manual carefully before operation to ensure safe and correct use.

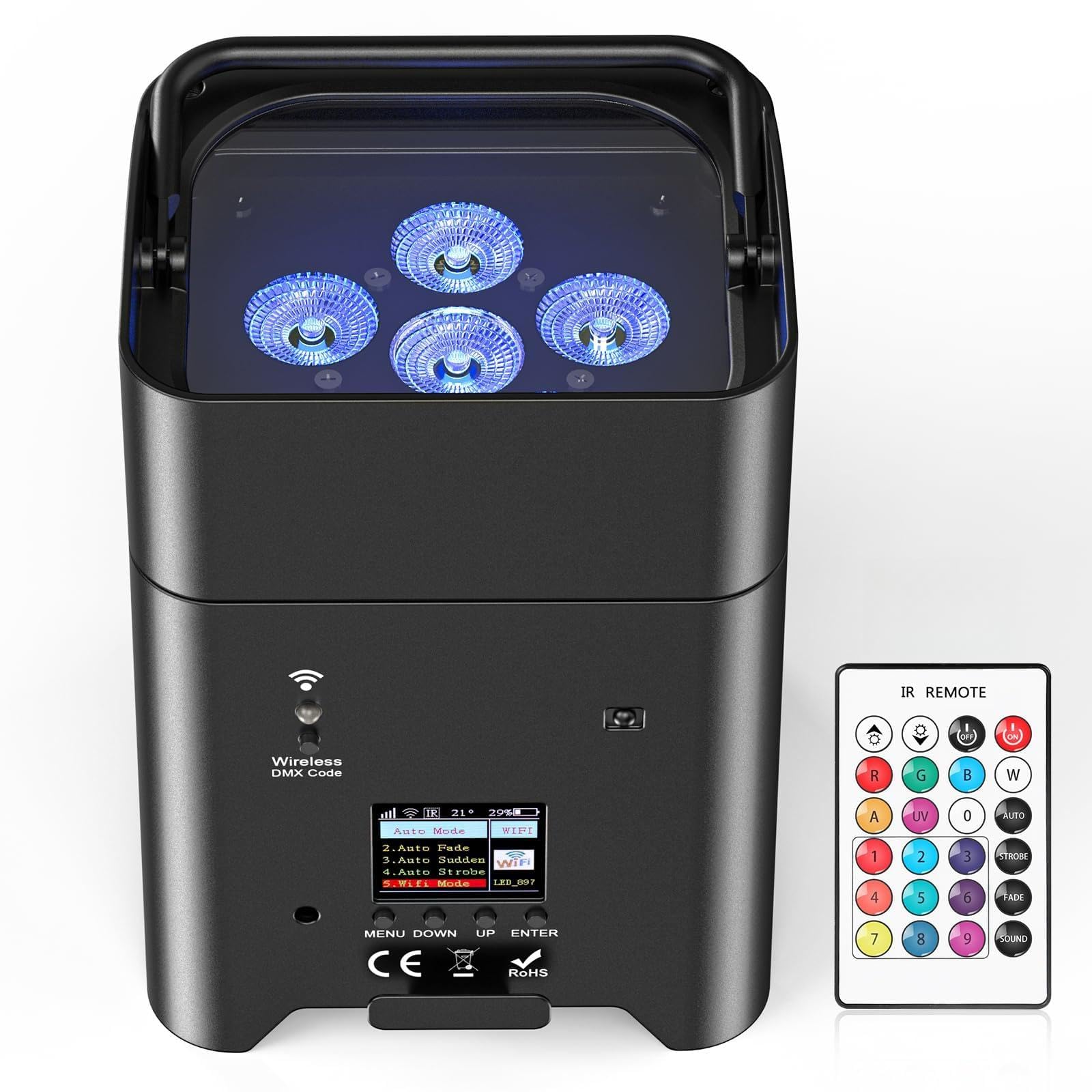

Figure 1.1: The PUZILOZA DMX-14CH 5-in-1 LED Stage Light.
2. Safety Instructions
- Indoor Use Only: This product is designed for indoor use. Protect it from water, moisture, dust, and shocks.
- Power Supply: Ensure the operating voltage is within the specified range (245 VAC). If the voltage is outside this range, use a voltage regulator to prevent damage.
- Do Not Disassemble: To prevent damage and maintain warranty, do not attempt to disassemble or modify the unit.
- Avoid Direct Eye Exposure: Do not look directly into the light source, as it can cause eye strain or damage.
- Ventilation: Ensure adequate ventilation around the unit to prevent overheating. Do not block cooling vents.
- Mounting: Securely install the unit using the provided bracket and screws. Ensure it is mounted on a stable surface or structure.
- Cleaning: Disconnect power before cleaning. Use a soft, dry cloth. Do not use harsh chemicals or abrasives.
3. Package Contents
Verify that all items are present in the package:
- 1 x PUZILOZA DMX-14CH 5-in-1 LED Stage Light
- 1 x Remote Control
- 1 x Power Cord
- 1 x Mounting Bracket
- 2 x Screws
- 1 x English User Manual
4. Product Features
Figure 4.1: Overview of the 5-in-1 LED Stage Light's features.
- High-Quality LED Beads: Equipped with 2x 5W RGB 3-in-1 LED beads, 6 monochrome LED beads, and 3 high-quality beads for flash, red, and green light. These produce uniform, vibrant colors and high brightness for a rainbow effect.
- Multiple Control Modes: Supports 5 operational modes: DMX512, Master/Slave, Auto-run, Sound Control, and Remote Control.
- Enhanced Performance: Constructed from durable iron with stable performance. Features multiple cooling vents and internal fans for rapid heat dissipation, extending the product's lifespan.
- Easy Installation: Comes with a mounting bracket and screws, allowing for flexible installation on walls, trusses, or floors. Its compact design ensures ease of use and portability.
- Wide Application Range: Ideal for DJs, shows, concerts, nightclubs, parties, bars, KTVs, dance venues, and other events requiring dynamic lighting.
5. Setup
The PUZILOZA DMX-14CH is designed for straightforward setup.
- Unpack: Carefully remove the light and all accessories from the packaging.
- Mounting:
- Surface Mounting: Place the unit on a flat, stable surface.
- Wall/Truss Mounting: Use the provided bracket and screws to securely attach the light to a wall or truss. Ensure the mounting surface can support the weight of the fixture.
- Power Connection: Connect the power cord to the unit and then to a suitable power outlet (245 VAC).
- DMX Connection (Optional): If using DMX control, connect a DMX cable from your DMX controller to the DMX IN port on the light. For multiple units, daisy-chain them using DMX OUT to DMX IN connections.
Figure 5.1: Side view of the light (left) and DMX connection (right).
6. Operating Modes
The light offers five primary operating modes:
- DMX512 Mode: Allows professional control over each light function (color, pattern, strobe, dimmer) using a DMX controller. Refer to the DMX channel chart in the full manual for detailed control.
- Master/Slave Mode: Connect multiple units via DMX cables. Set one unit as the 'Master' and others as 'Slave' units. The slave units will synchronize their effects with the master unit.
- Auto-run Mode: The light cycles through pre-programmed patterns and effects automatically.
- Sound Control Mode: The light reacts to ambient sound or music, changing patterns and intensity in sync with the beat.
- Remote Control Mode: Use the included infrared remote control to select modes, colors, patterns, and adjust settings from a distance.
Figure 6.1: Examples of light patterns and effects.
7. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your light.
- Cleaning: Periodically clean the lens and housing with a soft, lint-free cloth. Do not use liquid cleaners or solvents.
- Cooling System: Ensure the cooling vents are free from dust and debris. The internal fan helps dissipate heat efficiently.
Figure 7.1: The cooling fan ensures optimal performance and longevity.
8. Troubleshooting
If you encounter issues, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power | Power cord not connected; outlet not active; fuse blown. | Check power connections; test outlet; replace fuse if necessary. |
| No light output | Unit in standby mode; mode not selected; DMX signal issue. | Check remote/menu settings; select an operating mode; verify DMX connections and address. |
| Remote control not working | Battery depleted; obstruction; remote too far. | Replace CR2032 battery; ensure clear line of sight; operate within range. |
| Light overheats | Blocked ventilation; prolonged use in high ambient temperature. | Clear vents; ensure adequate airflow; allow unit to cool down. |
If problems persist, contact customer support.
9. Specifications
| Feature | Specification |
|---|---|
| Brand | PUZILOZA |
| Model Number | ZQ05154 |
| Product Dimensions | 16 x 16 x 20 cm |
| Weight | 1.69 kg |
| Power | 38.5W (9W for Gobo, 12W for Dye, 8W for Magic Ball, 3W for Strobe) |
| Voltage | 245 VAC |
| Light Source | 2x 5W RGB 3-in-1 LEDs, 6x 3535 Monochrome LEDs, 1x 3W Strobe |
| Control Modes | DMX512, Master/Slave, Auto-run, Sound Control, Remote Control |
| DMX Channels | 14 Channels |
| Flash Rate | 20 times per second |
| Power Cord Length | Approx. 123.5 cm |
| Material | Iron |
| Remote Control Battery | 1x CR2032 (included) |
| Lamp Features | Dimmable, Color Change, Strobe, Sound-controlled |
10. Applications
This stage light is suitable for a wide array of events and settings, enhancing the atmosphere with its dynamic lighting effects.
Figure 10.1: The light in various party and event settings.
Figure 10.2: Example of stage lighting in a performance venue.
11. Warranty and Support
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official PUZILOZA website. Keep your proof of purchase for any warranty claims.
