Brigii H5 Pet Hair Vacuum User Manual

1. Introduction

Thank you for choosing the Brigii H5 Pet Hair Vacuum. This cordless handheld vacuum is designed for efficient cleaning of pet hair and dust from various surfaces in your home and car. With its powerful brushless DC motor, triple filtration system, and versatile attachments, the Brigii H5 provides a convenient and effective cleaning solution.

Figure 1.1: Brigii H5 Pet Hair Vacuum and Included Accessories

2. Product Features

• Anti-tangle Hair Tool: Enables efficient removal of pet hair from surfaces such as blankets, sofas, furniture, stairs, and upholstery.
• Triple Filtration System: Effectively filters pet hair and dust, expelling clean air.
• Powerful Suction: Equipped with a high-performance DC brushless motor, offering up to 14,000Pa of powerful suction with two modes (strong and standard).
• Reliable Lithium Battery: Features a safe power lithium battery with a Type-C charging cable. Fully charges within 4 hours and provides up to 22 minutes of powerful suction in standard mode.
• Quiet Operation: Designed for low noise levels during use.

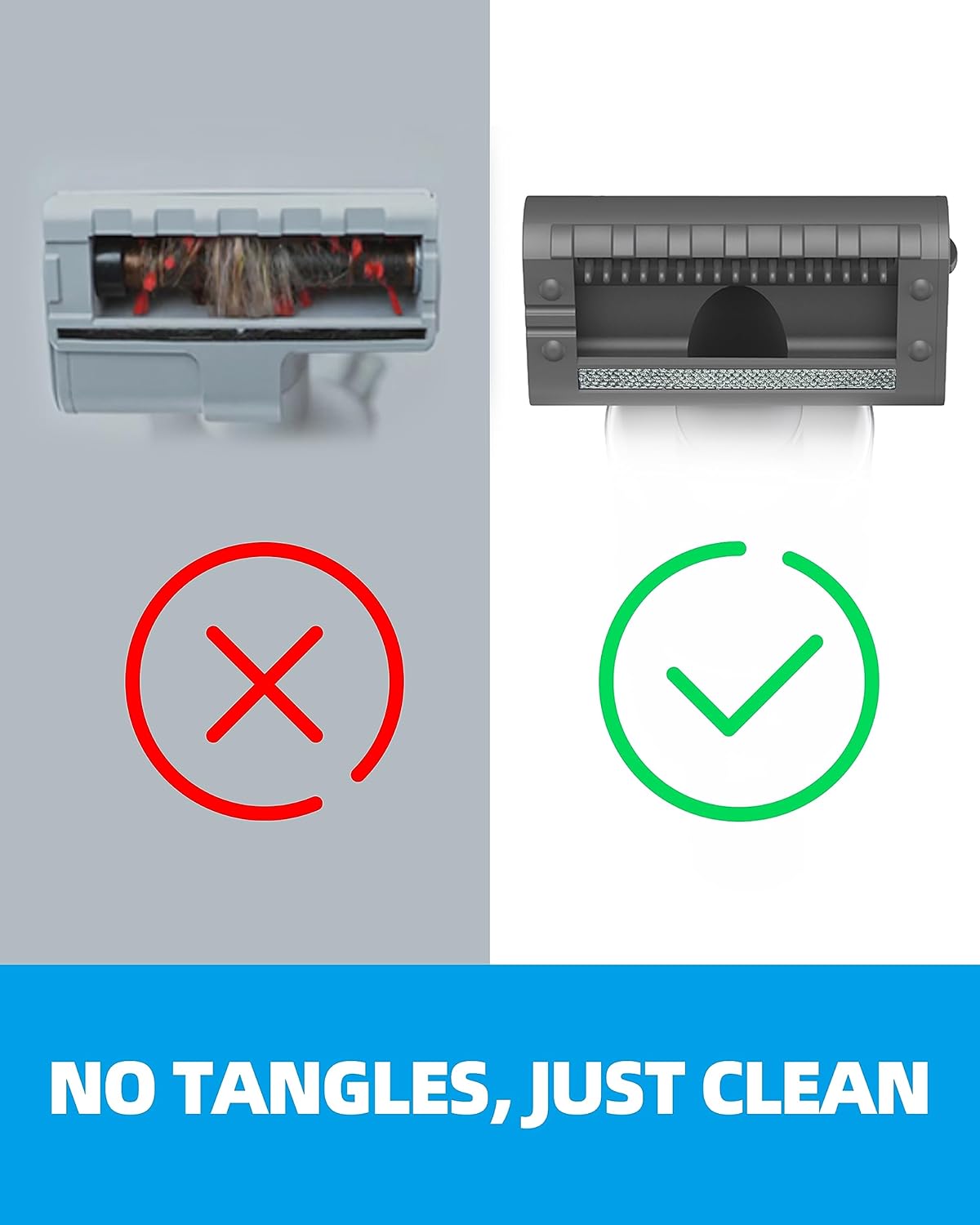

Figure 2.1: Anti-Tangle Hair Tool Design for Effortless Cleaning

3. Package Contents

Ensure all items are present in the package:

• Brigii H5 Pet Hair Vacuum Unit
• Anti-tangle Hair Tool (Multi-surface tool)
• 2-in-1 Brush Nozzle
• Crevice Tool
• USB-C Charging Cable
• Wall Mount Base (with two fixing methods: screw fixation and mounting tape fixation)

Figure 3.1: Contents of the Brigii H5 Package

4. Setup

4.1 Charging the Vacuum

Before first use, fully charge the vacuum. Connect the provided USB-C charging cable to the vacuum's charging port and plug the other end into a compatible USB power adapter (not included). The battery indicator lights will show charging progress. A full charge takes approximately 4 hours.

4.2 Attaching Accessories

The Brigii H5 comes with several attachments for different cleaning needs:

• Anti-tangle Hair Tool: Ideal for pet hair on upholstery, carpets, and stairs. Simply push it onto the vacuum's suction opening until it clicks into place.
• 2-in-1 Brush Nozzle: Can be used as a brush for delicate surfaces or extended as a narrow nozzle for tight spaces. Attach by pushing onto the suction opening.
• Crevice Tool: Perfect for reaching into narrow gaps, corners, and edges. Attach by pushing onto the suction opening.

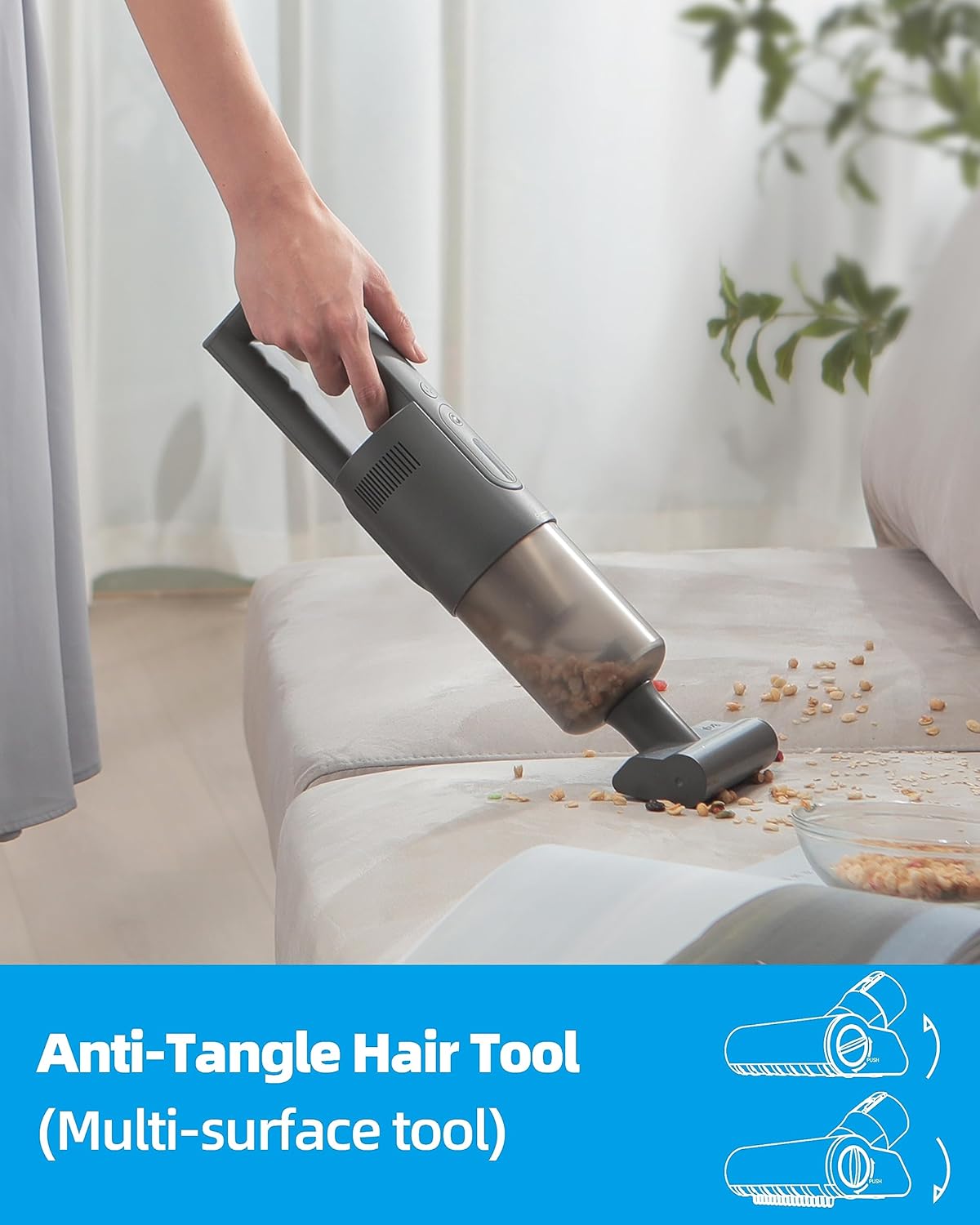

Figure 4.1: Attaching the Anti-Tangle Hair Tool

4.3 Wall Mount Installation

The included wall mount base provides convenient storage and charging. Choose a suitable location near a power outlet. The mount can be fixed using screws or the provided mounting tape. Ensure the surface is clean and dry before applying tape or drilling for screws. Once installed, the vacuum and its accessories can be neatly stored.

Figure 4.2: Wall Mount for Convenient Storage

5. Operating Instructions

5.1 Powering On/Off and Suction Modes

Press the power button to turn on the vacuum. It will start in standard suction mode (9,000Pa). Press the power button again to switch to strong suction mode (14,000Pa). Press a third time to turn off the vacuum.

5.2 Using the Anti-tangle Hair Tool

This tool is specifically designed to pick up pet hair without tangling. Use it on upholstered furniture, pet beds, carpets, and stairs. Glide the tool over the surface, applying gentle pressure for optimal hair removal.

Figure 5.1: Effective Pet Hair Removal

5.3 Using the Crevice Tool

The crevice tool is ideal for cleaning tight spaces, such as between couch cushions, car seats, along baseboards, and in corners. Its narrow design allows for precise cleaning in hard-to-reach areas.

Figure 5.2: Cleaning with the Crevice Tool

5.4 Using the 2-in-1 Brush Nozzle

This versatile tool can be used in two ways: as a soft brush for delicate surfaces like keyboards or car dashboards, or with the brush retracted for general vacuuming of crumbs and debris on flat surfaces.

Figure 5.3: Versatile 2-in-1 Brush Nozzle

6. Maintenance

6.1 Emptying the Dust Cup

For optimal performance, empty the 0.4-liter dust cup regularly, especially after each significant use. To empty, twist the dust cup counter-clockwise to detach it from the main unit. Dispose of the collected debris and reattach the dust cup by twisting clockwise until secure.

Figure 6.1: Emptying the Dust Cup

6.2 Cleaning the Triple Filtration System

The triple filtration system includes a pre-filter, HEPA filter, and a sponge filter. These should be cleaned periodically to maintain suction power and air quality. Detach the dust cup and carefully remove the filter components. Tap off loose dust or rinse them with water if heavily soiled. Ensure all filter components are completely dry before reassembling them into the vacuum.

Figure 6.2: Triple Filtration System Components

6.3 General Cleaning

Wipe the exterior of the vacuum with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the charging port is free of dust and debris.

7. Troubleshooting

8. Specifications

9. Warranty & Support

9.1 Warranty Information

The Brigii H5 Pet Hair Vacuum comes with a one-year limited warranty from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use. Please retain your proof of purchase for warranty claims.

9.2 Customer Support

If you encounter any issues with your Brigii H5 vacuum or have questions not covered in this manual, please do not hesitate to contact our customer support team. We are committed to resolving your concerns and ensuring your satisfaction.

Contact Information:
Email: support@brigii.com
Website: Visit the Brigii Store on Amazon
