1. Safety Information
Read all instructions carefully before installation and use. Failure to follow these instructions can result in serious injury or death.
- Maximum Weight Capacity: This ladder is designed to support a maximum of 300 pounds (136 kg). Do not exceed this weight limit.
- Secure Installation: Ensure the ladder is securely installed and anchored to the pool deck or pool wall according to the instructions. Loose ladders can cause falls.
- Supervision: Always supervise children and individuals with limited mobility when using the pool ladder.
- No Diving or Jumping: Do not dive or jump from the ladder. It is intended for entry and exit only.
- Clear Area: Keep the area around the ladder clear of obstructions.
- Inspect Regularly: Periodically inspect the ladder for loose hardware, cracks, or damage. Do not use if damaged.
- One Person at a Time: Only one person should use the ladder at a time.
2. Package Contents
Verify that all components are present before beginning assembly.
- Ladder Frame Sections
- Steps (4 total)
- Hardware (screws, washers, nuts)
- Caps (for top rails)
- Feet (suction cups for pool bottom)
- Flanges (for deck mounting)
3. Specifications
| Feature | Detail |
|---|---|
| Brand | Aqua Select |
| Model Number | ResinInPoolLadder |
| Material | Resin |
| Color | White |

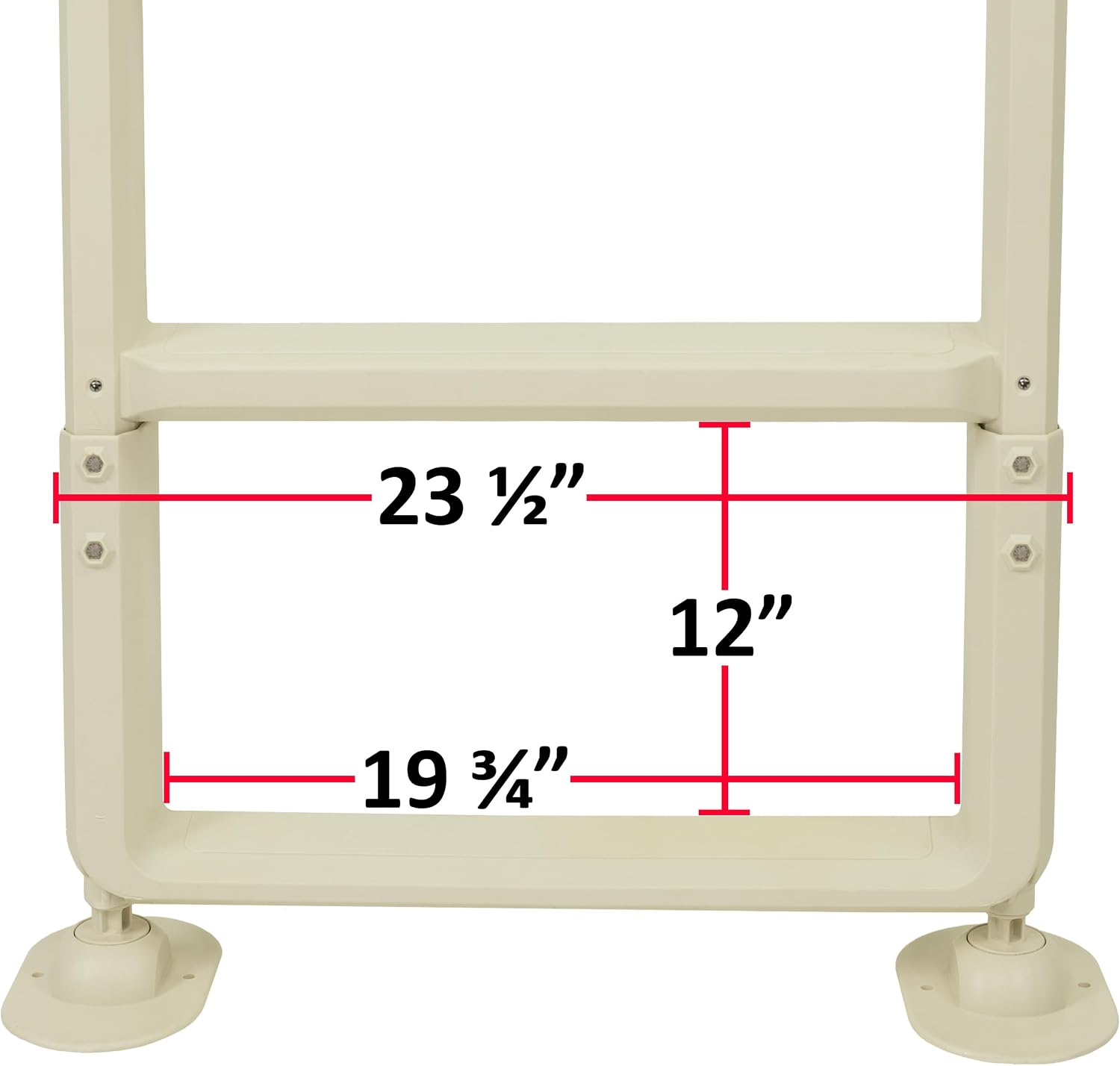

| Product Dimensions (W x H) | 24"W x 54"H (Adjustable height for pool depth 48"-54") |
| Load Capacity | 300 Pounds (136 kg) |
| Number of Steps | 4 |
| Item Weight | 23 Pounds (10.4 kg) |
4. Setup and Installation
4.1 Assembly Instructions
Follow these steps to assemble your Aqua Select In-Pool Ladder:
- Unpack Components: Carefully remove all parts from the packaging and verify against the 'Package Contents' list.
- Assemble Ladder Sections: Connect the ladder frame sections. Ensure all connections are secure.
- Attach Steps: Securely attach the four steps to the ladder frame using the provided hardware. Ensure steps are level and firmly fastened.
- Install Feet and Flanges: Attach the suction cup feet to the bottom of the in-pool section and the flanges to the top rails for deck mounting.

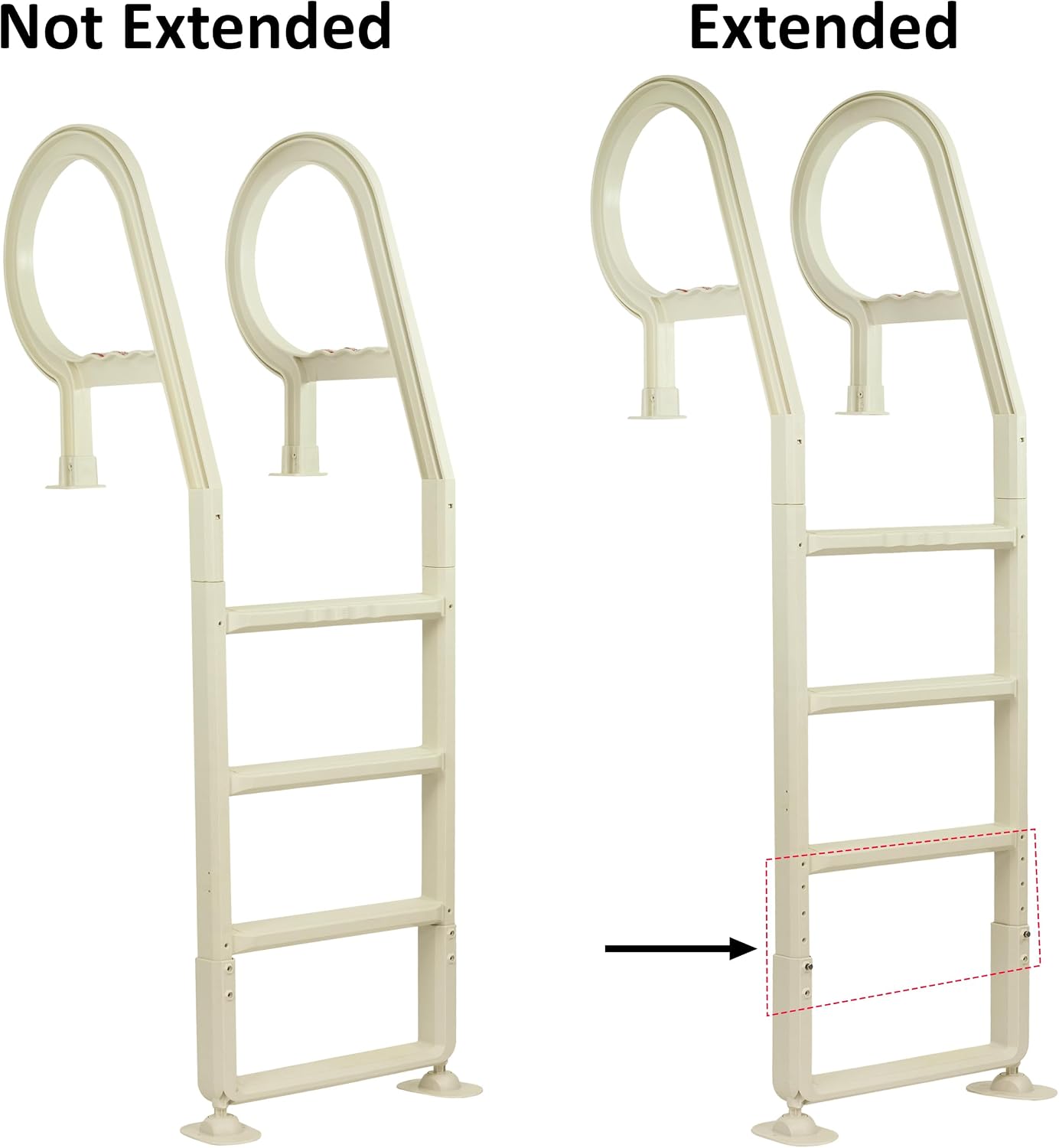

- Adjust Height (if applicable): The ladder features an adjustable design. Extend the lower section to match your pool's depth (48"-54"). Refer to Figure 4.1.
- Secure Top Caps: Place the decorative caps on the top ends of the ladder rails.
4.2 Placement and Anchoring
Proper placement and anchoring are critical for stability and safety.
- Position Ladder: Place the ladder in a location that allows for safe and unobstructed entry and exit from the pool.
- Deck Mounting: Use the provided flanges and appropriate fasteners (not included, specific to your deck material) to securely anchor the top of the ladder to your pool deck. Ensure the ladder is plumb and stable.
- In-Pool Stability: Ensure the suction cup feet are firmly pressed against the pool bottom to prevent movement.
5. Operating Instructions
The Aqua Select Heavy-Duty In-Pool Ladder is designed for simple and safe pool access.
- Entry: Face the ladder, hold onto the handrails, and carefully descend one step at a time into the pool.
- Exit: Face the ladder, hold onto the handrails, and carefully ascend one step at a time out of the pool.
- Handrails: Always use the handrails for support and stability.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your ladder.
- Cleaning: Clean the ladder regularly with a mild soap and water solution. Avoid abrasive cleaners or harsh chemicals that could damage the resin material.
- Inspection: Periodically check all bolts, screws, and connections to ensure they are tight. Tighten any loose hardware.
- Winterization: If you live in an area with freezing temperatures, remove the ladder from the pool during the off-season to prevent damage from ice expansion. Store in a dry, protected area.
- Damage: If any part of the ladder becomes cracked, broken, or significantly worn, discontinue use immediately and replace the damaged component or the entire ladder.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Ladder feels unstable or wobbly. | Loose hardware; improper anchoring; suction cups not fully engaged. | Tighten all bolts and screws. Ensure flanges are securely anchored to the deck. Press suction cups firmly onto the pool bottom. |
| Difficulty extending or retracting the ladder. | Debris or mineral buildup in sliding mechanisms. | Clean the sliding parts with a brush and mild soap. Ensure no debris is obstructing movement. |
| Ladder appears discolored or stained. | Exposure to harsh chemicals or prolonged sunlight. | Clean with a non-abrasive cleaner. Avoid using strong pool chemicals directly on the ladder. |
8. Warranty and Support
Aqua Select products are manufactured to high standards. For warranty information or technical support, please refer to the documentation included with your purchase or contact Aqua Select customer service. Keep your proof of purchase for warranty claims.
Return Policy: This product is eligible for return within 30 days of purchase, subject to the retailer's return policy.
