Sunrosa LED Wall-Mounted Mirror User Manual

1. Safety Precautions

Please read all instructions carefully before installation and use. Keep this manual for future reference.

• Handle the mirror with care to prevent damage.
• Use appropriate tools and techniques for wall mounting to prevent injury.
• Keep the mirror away from heat sources to prevent damage.
• Avoid using the mirror in areas with extreme temperatures or humidity.
• Ensure proper electrical wiring by a qualified professional if hardwiring is required.

2. Product Features

• Enhanced Durability: Constructed with 5mm tempered glass, offering superior resistance to breakage and explosion-proof properties. The back of the mirror features a shatterproof film for added safety.
• Robust Frame: Features an aluminum alloy frame for stable and secure wall mounting, providing excellent stability and shock resistance.
• Anti-Fog Function: Equipped with an anti-fog heater, preventing the mirror surface from fogging up in humid environments like bathrooms. Automatically shuts down after 1 hour.
• Adjustable LED Lighting: Offers 3-stage color temperature adjustment (warm, natural, white light) and stepless brightness control. Includes a memory function to retain your last lighting settings.
• Versatile Installation: Can be mounted both horizontally and vertically to suit various room layouts and preferences.
• Optimal Illumination: The large LED illumination around the mirror provides comprehensive facial lighting, ideal for makeup application and grooming.

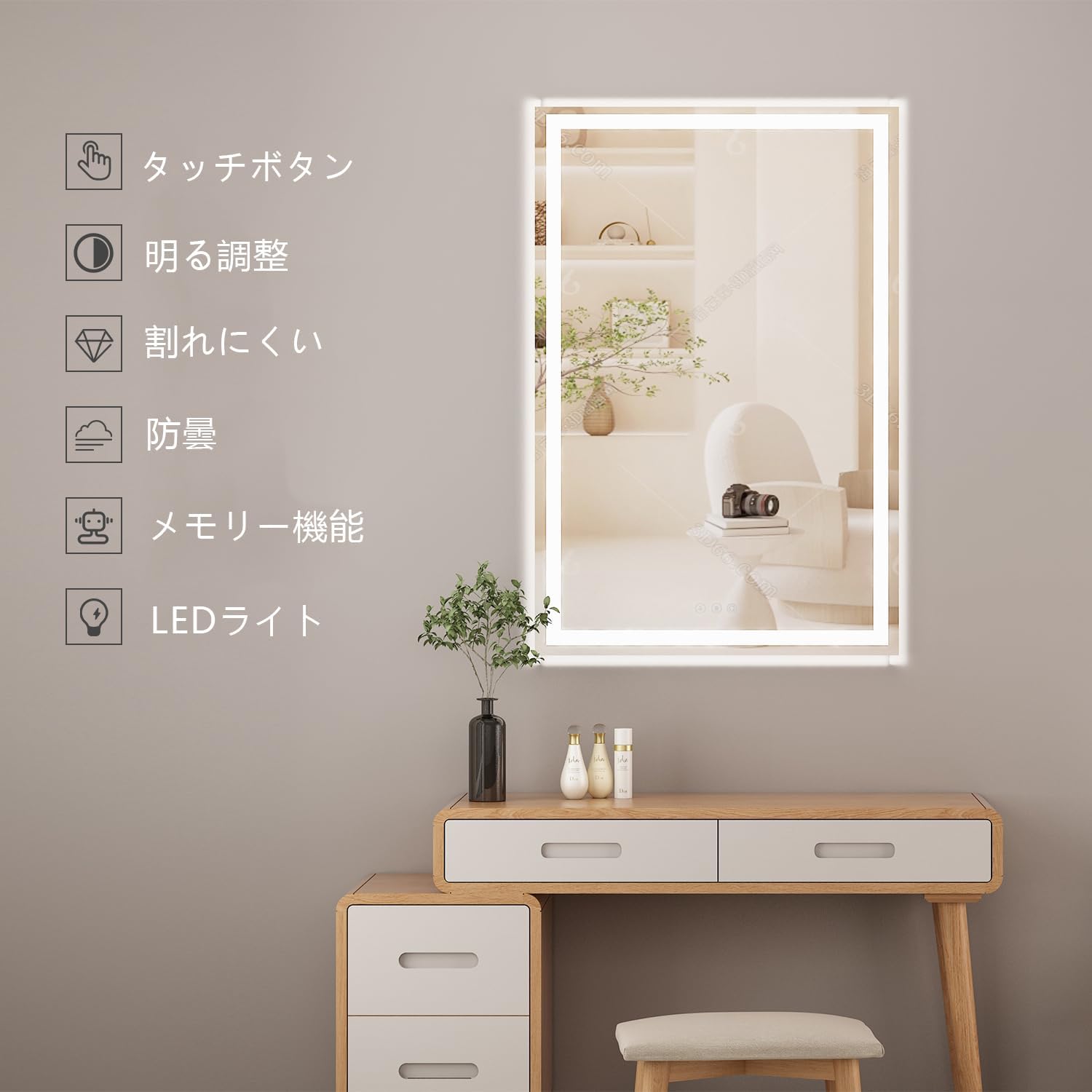

Image: Overview of Sunrosa LED Mirror features, including touch controls, anti-fog, and adjustable lighting.

3. Installation Guide

This mirror is designed for wall mounting. Ensure the wall can support the mirror's weight and that electrical connections are made safely.

3.1 Mounting Orientation

The mirror can be installed either horizontally or vertically, depending on your preference and space requirements.

Image: Demonstrates flexible installation options, showing the mirror mounted both horizontally and vertically.

3.2 Electrical Wiring

The mirror requires a 100-120V AC, 50/60Hz power supply. It is recommended to have a qualified electrician perform the wiring to ensure safety and proper function.

• Identify the power cable location on the wall.
• Connect the mirror's electrical wires to the main power supply, ensuring all connections are secure and insulated.
• Refer to the detailed wiring diagram provided in the packaging for specific instructions.

Image: Wiring diagram illustrating how to connect the mirror to the power supply.

4. Operating Instructions

The Sunrosa LED mirror features intuitive touch controls for its various functions.

4.1 Power and Color Temperature Adjustment

• Power ON/OFF: Tap the power button icon on the mirror surface to turn the LED light ON or OFF.
• Color Temperature: After turning on the light, tap the power button again to cycle through three color temperatures: warm light, natural light, and white light. The mirror will remember your last setting.

Image: Demonstrates how to use the touch controls to switch between different light colors.

4.2 Brightness Adjustment (Dimming)

• Stepless Dimming: With the light ON, long-press the power button icon to continuously adjust the brightness from 20% to 100%. Release your finger when the desired brightness is reached. The mirror will remember your last setting.

Image: Illustrates the long-press function for stepless brightness adjustment.

4.3 Anti-Fog Function

• Activate Anti-Fog: Tap the anti-fog button icon (often represented by steam waves) to activate the defogging heater. The icon will illuminate when active.
• Deactivate Anti-Fog: Tap the anti-fog button again to turn off the defogging heater. The heater will automatically turn off after 1 hour of continuous operation.

Image: Visual representation of the anti-fog function clearing condensation from the mirror surface.

5. Maintenance

Regular cleaning and proper care will ensure the longevity and optimal performance of your Sunrosa LED mirror.

• Cleaning the Mirror Surface: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into the electrical components.
• Cleaning the Frame: Wipe the aluminum frame with a soft, damp cloth. Avoid harsh chemicals that may damage the finish.
• Electrical Components: Ensure the mirror is disconnected from the power supply before cleaning any electrical parts. Do not spray water directly onto the mirror's electrical components.

6. Specifications

Image: Dimensions of the Sunrosa LED Wall-Mounted Mirror.

7. Warranty & Support

Sunrosa provides a 90-day after-sales service for this product. If you have any questions or encounter product damage during use, please contact our customer support team for assistance.

For further inquiries, please visit the Sunrosa brand page on Amazon.
