1. Introduction
This manual provides instructions for the assembly, operation, and maintenance of your METRO Super Erecta Metroseal Green Epoxy Shelving Unit. This industrial-grade wire shelving unit is designed for durability and high capacity, featuring a Metroseal Green Epoxy finish with Microban antimicrobial protection, making it suitable for various environments, including wet and high-humidity areas.

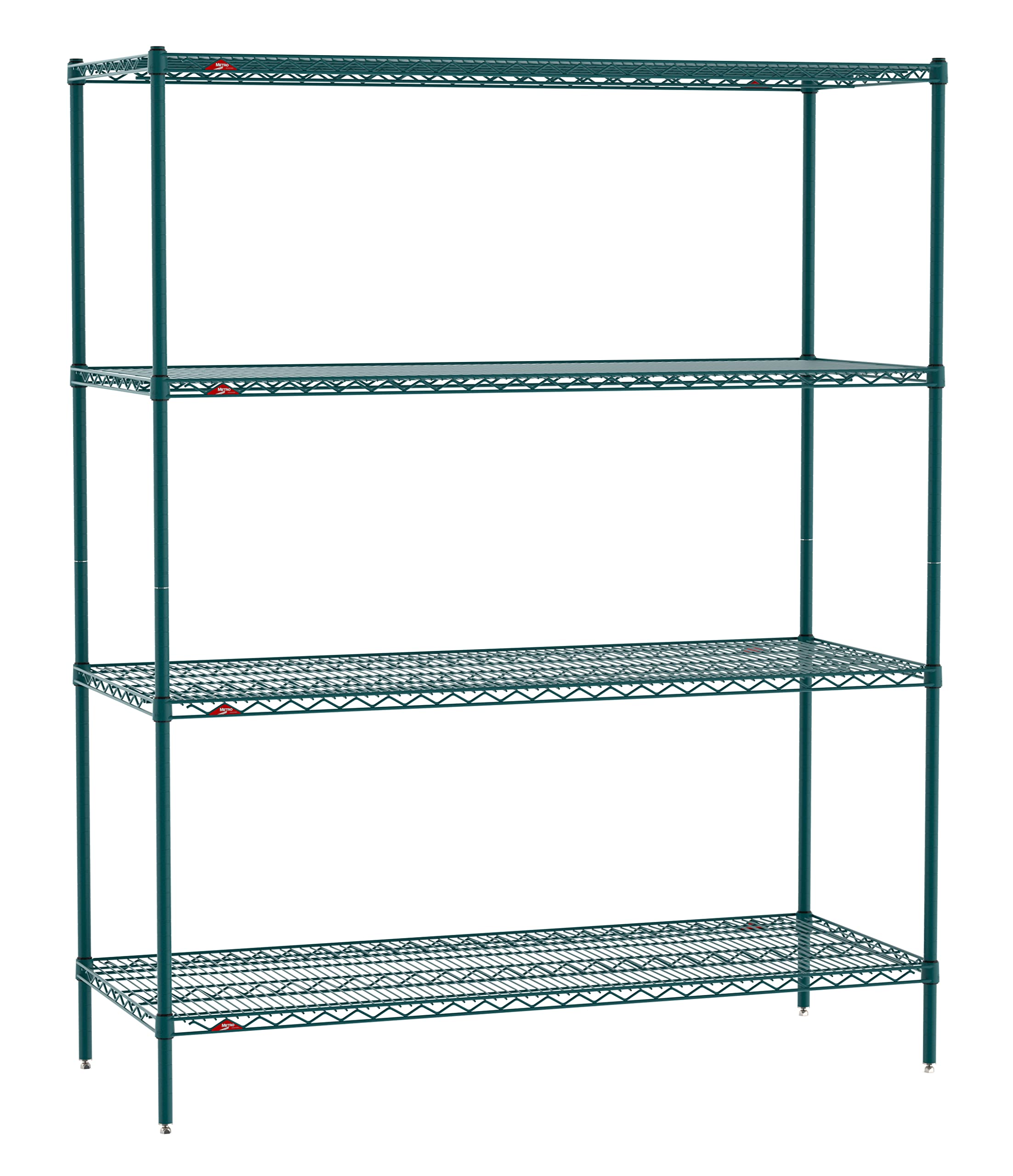

Image 1.1: The METRO Super Erecta Metroseal Green Epoxy Shelving Unit.
The unit offers a total load rating of 2000 lbs, with each shelf supporting up to 600 lbs when evenly distributed. Its open-wire design promotes air circulation and minimizes dust accumulation. Please read all instructions carefully before assembly and use.
2. Parts List
Verify that all components are present before beginning assembly. The complete shelving unit includes the following parts:
- 4 x Wire Shelves
- 4 x Posts (with leveling bolts for bottom posts and threaded connectors for top posts)
- Split Sleeves (multiple bags, each containing 8 sleeve pieces)
Image 2.1: Exploded view of the shelving unit components, including wire shelves, posts, and split sleeves.
3. Assembly Instructions
The METRO Super Erecta shelving unit is designed for tool-free assembly. Follow these steps for proper setup:
- Connect Posts: If your posts are in two sections, connect the top posts (with threaded connectors) to the bottom posts (with leveling bolts) by screwing them together until secure.
- Attach Split Sleeves: Select the desired height for your first shelf. Snap two split sleeves around each post at the same groove level. Ensure the tapered side of the sleeves faces downwards.
- Install First Shelf: Slide the first wire shelf over the posts, ensuring each corner fits securely over the split sleeves. Press down firmly on the shelf to seat it properly.
- Install Remaining Shelves: Repeat step 2 and 3 for the remaining shelves, positioning them at your desired heights.
- Secure Shelves: Once all shelves are in place, use a rubber mallet to gently tap down on each corner of every shelf. This ensures the shelves are fully seated and locked onto the split sleeves.
- Level the Unit: Adjust the leveling bolts at the bottom of each post to ensure the unit is stable and level on your floor surface.
Image 3.1: Nominal dimensions of the assembled shelving unit: 24"D x 60"W x 74"H.
Image 3.2: Detail of split sleeves correctly installed on a post, ready to receive a shelf.
Assembly Video
Video 3.1: Official METRO "Shelving Kit Assembly" video demonstrating the step-by-step process for setting up the shelving unit.
4. Operating Instructions
This shelving unit is designed for heavy-duty storage in various environments, including foodservice, industrial, pantry, and garage settings. To ensure optimal performance and safety:
- Weight Capacity: The unit has a maximum total weight capacity of 2000 lbs. Each individual shelf can hold up to 600 lbs.
- Even Distribution: Always distribute weight evenly across the shelves to prevent stress on specific areas and maintain stability.
- Adjustable Shelves: Shelves can be adjusted in 1-inch increments to accommodate items of various sizes. Refer to the assembly instructions for re-positioning shelves.
- Air Circulation: The open-wire design allows for free air circulation, light penetration, and visibility of stored items.
Image 4.1: The shelving unit is designed to safely hold up to 2000 lbs total.
5. Maintenance
Proper maintenance will extend the life and performance of your shelving unit:
- Cleaning: Wipe the unit with a dry cloth. For deeper cleaning, use a mild detergent and water, then dry thoroughly. Avoid abrasive cleaners.
- Metroseal Green Epoxy Finish: The proprietary Metroseal Green Epoxy finish provides enhanced durability and corrosion protection, especially in wet and high-humidity environments.
- Microban Antimicrobial Protection: The exclusive Microban technology integrated into the Metroseal finish helps inhibit the growth of stain and odor-causing bacteria, keeping the product cleaner between cleanings.
Image 5.1: The Metroseal Epoxy Finish provides an added layer of protection with built-in Microban antimicrobial product protection.
Image 5.2: Metroseal is designed for use in wet, damp, and high-humidity environments like coolers and freezers.
6. Safety Warnings
To prevent injury or damage to the unit, observe the following safety precautions:
- Do not exceed the maximum weight capacity of 2000 lbs for the entire unit or 600 lbs per shelf.
- Ensure shelves are properly supported and evenly loaded to prevent structural failure or injury.
- Always ensure the unit is level and stable before loading items.
- Avoid climbing on the shelving unit.
7. Specifications
| Feature | Detail |
|---|---|
| Material | Metal |
| Mounting Type | Floor Mount |
| Room Type | Bathroom, Closet, Garage, Kitchen, Office |
| Shelf Type | Wire |
| Number of Shelves | 4 |
| Product Dimensions (D x W x H) | 24"D x 60"W x 74"H |
| Style | Industrial |
| Finish Type | Zinc (with Metroseal Green Epoxy coating) |
| Weight Capacity Maximum | 2000 Pounds (Unit), 600 Pounds (Per Shelf) |
| Specific Uses | Wet environments, Food Service, Industrial, Pantry, Garage |
| Color | Green |
| Required Assembly | Yes |
| Installation Type | Freestanding |
8. Warranty and Support
Manufacturer: METRO
Warranty Description: The product is warranted to be free from defects in material and workmanship under normal use, service, and maintenance for a period of one (1) year from the date of shipment by the seller, unless otherwise specified in writing. Metroseal shelves and posts also carry a fifteen (15) year warranty against rust formation and corrosion.
For support or warranty claims, please contact METRO customer service. Refer to the official METRO website for contact information.
