Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Alpena TrekTec MR12 LED Pod Lights. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Product Overview
The Alpena TrekTec MR12 LED Pod Lights are designed to provide enhanced visibility for off-road vehicles. These durable, waterproof, and dustproof lights are suitable for trucks, cars, SUVs, UTVs, and ATVs, operating on 12V to 24V DC systems.
Key Features:
- Powerful Illumination: Each pod features 12 LED lights, providing bright white 5500k light with 1,100 lumens per light.
- Durable Construction: Built with a durable alloy-sealed housing and stainless steel mounting hardware for resilience in harsh conditions.
- Weather Resistant: IP67 rated for waterproof and dustproof performance.
- Low Power Consumption: Optimized circuitry for efficient power usage in powersports applications.
- Adjustable Mounting: Features an adjustable angle side mount system for precise positioning.
- Universal Compatibility: Compatible with 12V to 24V DC systems, suitable for various off-road vehicles.
Package Contents
- 2 x Alpena TrekTec MR12 LED Pod Lights
- Mounting Hardware (stainless steel brackets, bolts, nuts, washers)

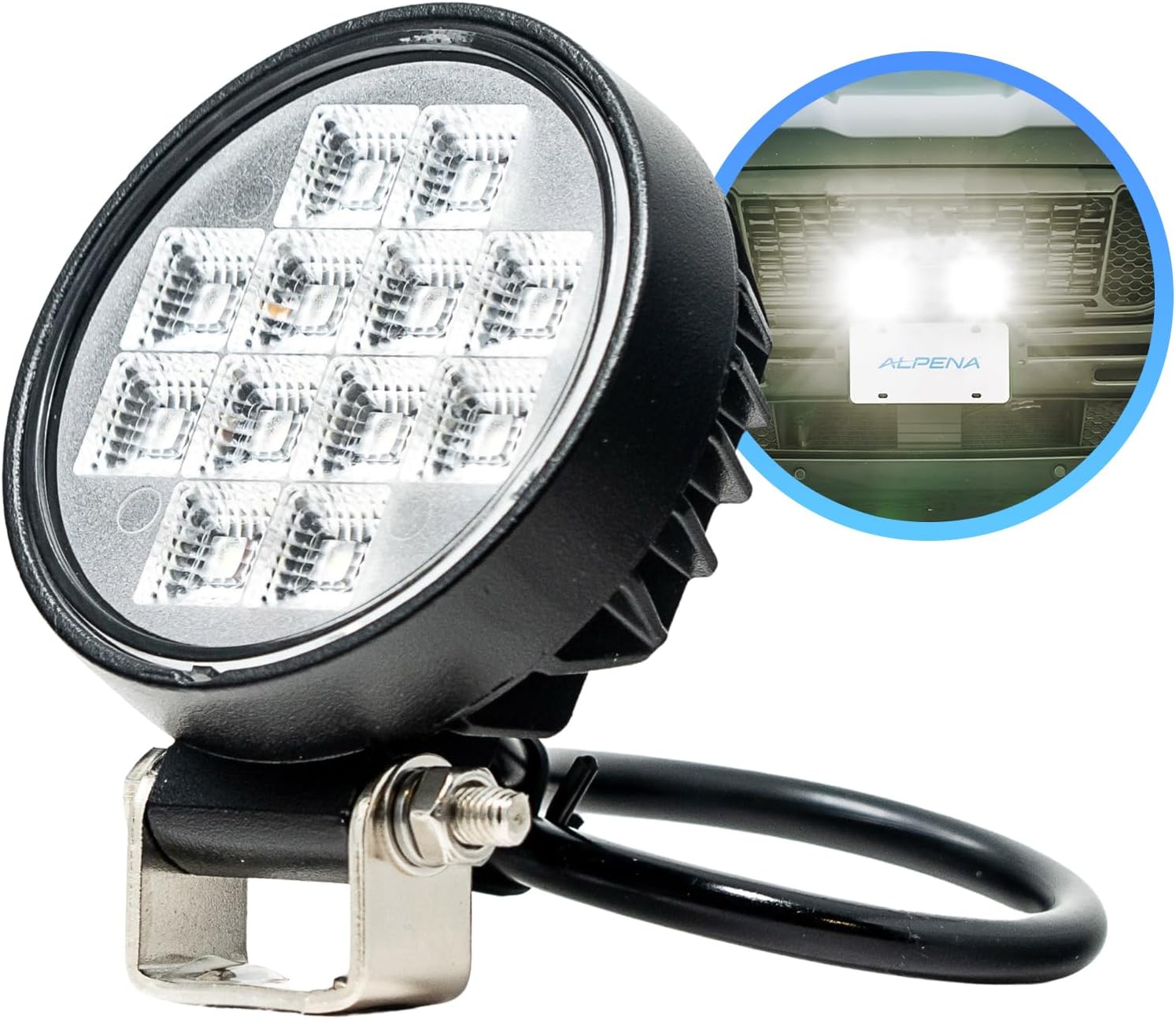

Image: Two Alpena TrekTec MR12 LED Pod Lights, showing the front view of the LED array and the attached mounting brackets.
Specifications
| Feature | Specification |
|---|---|
| Model Number | MR12 |
| Light Source Type | LED |
| Voltage Compatibility | 12V to 24V DC |
| Wattage | 12 watts per light |
| Color Temperature | 5500k (Bright White) |
| Lumen Output | 1,100 lm per light |
| Product Dimensions (L x W x H) | 5.35" x 3.54" x 4.53" |
| Item Weight | 1.32 pounds (per pair) |
| IP Rating | IP67 (Waterproof and Dustproof) |
| Mounting Type | Adjustable Angle Side Mount |
Installation Guide
Safety Precautions:
- Ensure the vehicle's power is off and the battery is disconnected before starting installation.
- Wear appropriate safety gear, including eye protection.
- Consult a professional if you are unsure about any steps.
- Check local laws and regulations regarding auxiliary lighting before using this product on public roadways.
Tools Required:
- Wrench set
- Wire strippers/crimpers
- Electrical tape or heat shrink tubing
- Drill (if new mounting holes are required)
Installation Steps:
- Choose Mounting Location: Select a suitable location on your vehicle (e.g., bumper, grille guard, ditch light brackets) that provides optimal light projection and does not obstruct vehicle functions or existing lights.
- Assemble Mounting Brackets: Attach the stainless steel mounting brackets to the LED pod lights using the provided hardware. Do not fully tighten yet, as adjustments may be needed.
- Secure Lights to Vehicle: Mount the assembled lights to your chosen location on the vehicle. If drilling is required, ensure no vital components are behind the drilling area. Securely fasten the lights.
- Wiring Connection:
- Connect the positive (+) wire (typically red) from the LED pod light to a fused 12V-24V power source, often through a relay and switch (not included).
- Connect the negative (-) wire (typically black) to a suitable ground point on the vehicle chassis.
- Ensure all connections are secure and insulated to prevent short circuits.
- Test and Adjust: Reconnect the vehicle battery. Turn on the lights and adjust their angle for optimal beam pattern and coverage. Once satisfied, fully tighten all mounting hardware.
Image: An Alpena TrekTec MR12 LED Pod Light mounted on the front bumper of a dark-colored truck, demonstrating a typical installation scenario.
Operating Instructions
The Alpena TrekTec MR12 LED Pod Lights are designed for straightforward operation once properly installed.
- Power On/Off: Activate the lights using the switch connected during installation.
- Beam Pattern: These lights provide a spot beam pattern, ideal for focused illumination over longer distances.
- Usage: Use these lights for off-road driving, trail navigation, or in situations requiring additional forward illumination. Always be mindful of other drivers and local regulations when using auxiliary lights.
Image: A dark truck with two Alpena TrekTec MR12 LED Pod Lights mounted on the front, actively illuminating the area ahead, showcasing their bright output.
Maintenance
Minimal maintenance is required for the Alpena TrekTec MR12 LED Pod Lights due to their durable construction and sealed design.
- Cleaning: Periodically clean the lens with a soft cloth and mild soap and water to remove dirt and debris that may obstruct light output. Avoid abrasive cleaners.
- Inspection: Regularly check mounting hardware for tightness and wiring for any signs of wear, corrosion, or damage. Tighten loose hardware as needed.
- No User-Serviceable Parts: Do not attempt to open or modify the light housing, as this will void the warranty and may damage the product.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power, loose wiring, blown fuse, faulty switch. | Check all wiring connections, ensure power source is active, inspect fuse, test switch. |
| Lights flicker or are dim. | Poor electrical connection, insufficient voltage, damaged wiring. | Verify connections are secure, check vehicle's voltage output, inspect wiring for damage. |
| Moisture inside the lens. | Seal compromise (unlikely due to IP67 rating), extreme temperature changes causing condensation. | If condensation persists, contact customer support. Do not attempt to open the light. |
Safety Information
- Do not look directly into the LED lights when they are on, as this may cause eye strain or damage.
- Ensure proper wiring and fusing to prevent electrical hazards.
- Always adhere to local and national regulations regarding vehicle lighting.
- Keep out of reach of children.
Warranty and Support
Alpena products are manufactured to high-quality standards. For warranty information, technical support, or assistance with your TrekTec MR12 LED Pod Lights, please visit the official Alpena website or contact their customer service department.
Alpena Official Website: www.alpena.ca
