Beliani La Rochelle Upholstered Waterbed 180 x 200 cm Instruction Manual

Introduction

Thank you for choosing the Beliani La Rochelle Upholstered Waterbed. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your new waterbed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Included Components:

• 1 x Bed Frame
• 1 x Waterbed Mattress (mono/dual, with various wave reduction levels)
• 1 x Waterbed Mattress Cover
• 2 x Thermostat Control
• 1 x Foam Frame
• 1 x Waterbed Frame
• 2 x Conditioner
• 1 x Slat Base (Note: The slat base is included but should NOT be assembled if using the product as a waterbed.)

Bed linen is not included.

Safety Instructions

• Ensure the bed is placed on a level and stable surface.
• Do not overfill the waterbed mattress.
• Keep sharp objects away from the mattress to prevent punctures.
• Always use the recommended waterbed conditioner to prevent algae and bacteria growth.
• Ensure all electrical connections for the heater are properly installed and grounded.
• Do not allow children or pets to play unsupervised on or around the waterbed.
• The maximum weight capacity for this bed is 280 kg.

Setup and Assembly

Assembly is required and typically takes 60-90 minutes with two people. Follow the detailed instructions provided in the separate assembly guide for the bed frame. The following steps are specific to the waterbed components.

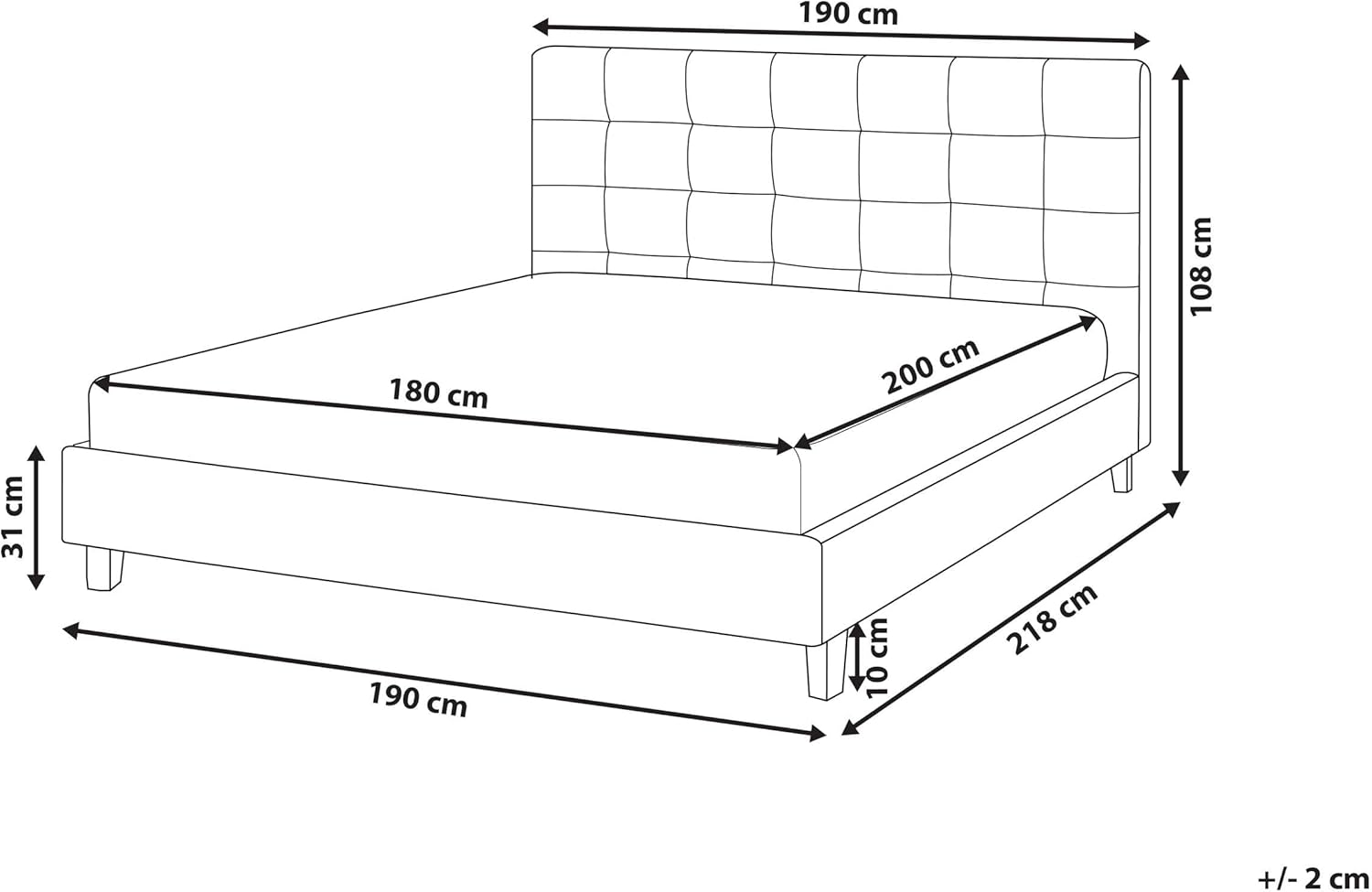

Figure 1: Waterbed Dimensions. Headboard width: 190 cm, Headboard height: 108 cm, Total length: 218 cm, Total width: 190 cm, Bed frame height: 31 cm, Leg height: 10 cm, Sleeping surface: 180x200 cm.

1. Frame Assembly: Assemble the bed frame according to the separate instructions. Important: Do NOT install the slat base if you intend to use this as a waterbed. The waterbed system replaces the need for a traditional slat base.
2. Foam Frame Installation: Place the foam frame inside the assembled bed frame. Ensure it fits snugly.
3. Heater Placement: Carefully place the waterbed heater on the base inside the foam frame. Ensure it is centered and flat. Follow the heater's specific instructions for electrical connection.
4. Mattress Placement: Unfold the waterbed mattress and place it inside the foam frame, ensuring it is centered and flat.
5. Filling the Mattress:
   • Connect a water hose to the mattress fill valve.
   • Slowly fill the mattress with lukewarm water. As it fills, smooth out any air bubbles or wrinkles from the center outwards.
   • Fill until the water level is just below the top of the foam frame when you lie on it. Do not overfill.
   • Once filled, remove the hose and securely close the fill valve.
6. Mattress Cover Installation: Place the waterbed mattress cover over the filled mattress and secure it according to its design (usually zippers or elastic bands).
7. Thermostat Control: Connect the thermostat control to the heater and plug it into a grounded electrical outlet. Set the desired temperature.

Operating Your Waterbed

Temperature Control

The waterbed heater maintains a comfortable sleeping temperature. Use the thermostat control to adjust the temperature to your preference. It may take several hours for the water to reach the set temperature initially.

Wave Reduction Levels

Your waterbed mattress offers various wave reduction levels (e.g., no reduction, medium, strong, or total). The specific wave reduction level was chosen during purchase. This affects the movement and stability of the water within the mattress.

Mono or Dual System

Depending on your selection, your waterbed may have a mono (single) or dual (two separate) mattress system. Dual systems allow for individual temperature control and wave reduction settings for each side of the bed.

Maintenance

Waterbed Conditioner

It is crucial to add waterbed conditioner to the mattress every 6-12 months (as per conditioner instructions). This prevents the growth of algae, bacteria, and fungi, which can damage the mattress material and cause odors. Two bottles of conditioner are included with your purchase.

Cleaning

• Mattress Surface: Periodically wipe the vinyl surface of the mattress with a damp cloth and a mild vinyl cleaner (specifically designed for waterbeds). Avoid harsh chemicals.
• Mattress Cover: The mattress cover can typically be removed and machine washed according to its care label.
• Upholstered Frame: Clean the upholstered bed frame with a soft brush or vacuum cleaner. For spills, blot immediately with a clean, dry cloth. Do not use abrasive cleaners.

Air Removal

Over time, air bubbles may accumulate in the mattress, causing gurgling sounds. To remove air, open the fill valve and gently push the air towards the opening using a waterbed air pump or by hand, then reseal the valve.

Troubleshooting

Specifications

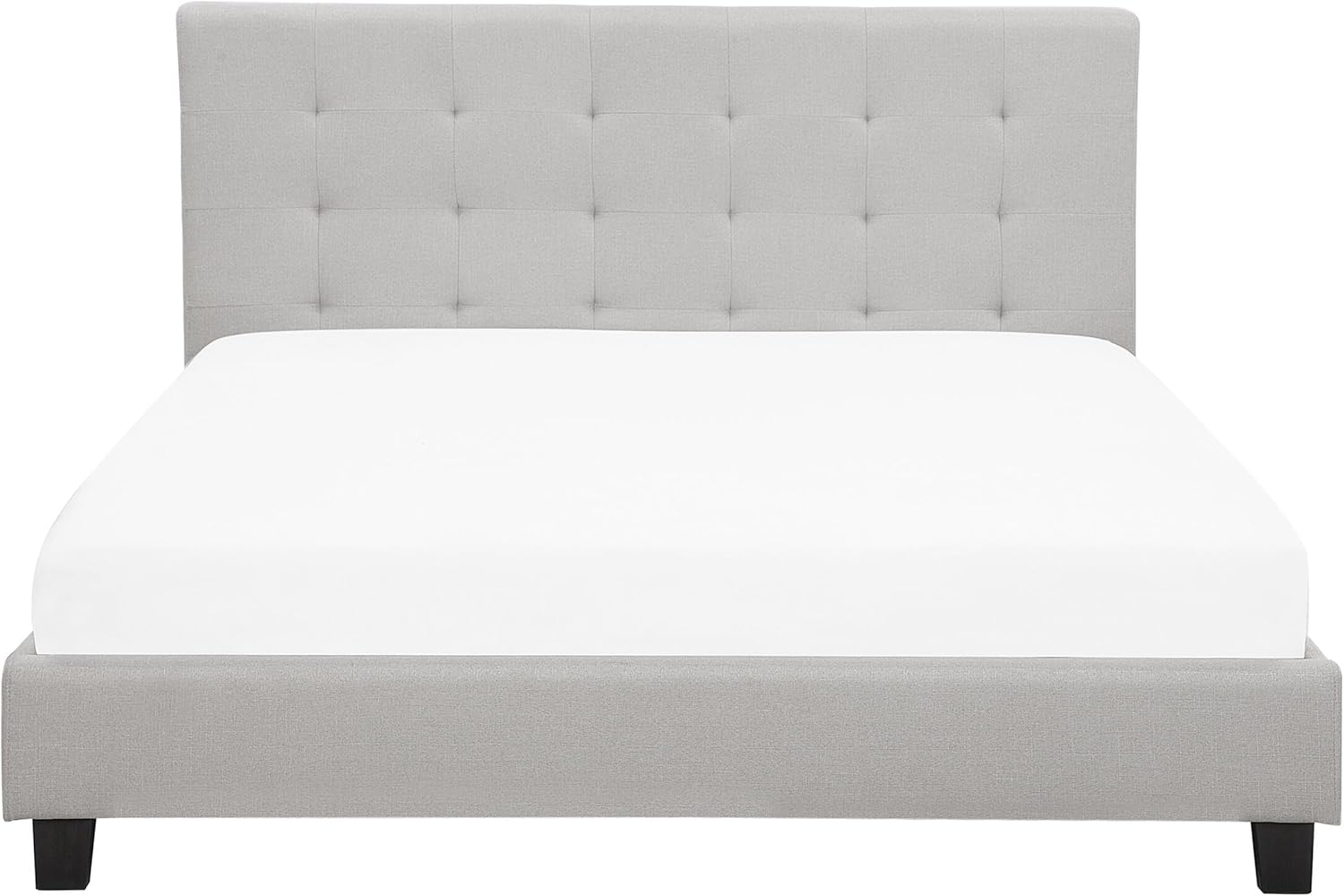

Figure 2: Front view of the Beliani La Rochelle Waterbed.

Figure 3: Waterbed Mattress Cover Detail.

Warranty and Support

Beliani products come with a standard warranty. Please refer to your purchase documentation or the official Beliani website for specific warranty terms and conditions. For technical assistance, missing parts, or any other inquiries, please contact Beliani customer support.

Beliani Customer Support:

• Contact Page
• Beliani Store on Amazon.fr

When contacting support, please have your model number (365334) and ASIN (B0BXCV35X6) ready.
