WokHok G8 20W Halogen Microwave Oven Light Bulb Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective installation and use of your WokHok G8 20W Halogen Microwave Oven Light Bulb. Please read these instructions carefully before installation and retain for future reference.

What's in the Box

• Four (4) WokHok G8 20W Halogen Bulbs

2. Safety Information

Always observe the following safety precautions to reduce the risk of fire, electric shock, or injury.

• Power Disconnection: Always disconnect power to the microwave oven at the circuit breaker or by unplugging the appliance before attempting any installation or maintenance.
• High Temperature: These bulbs operate at high temperatures (up to 300℃ / 572℉). Allow the bulb to cool completely before handling or replacing.
• Handle with Care: Avoid touching the glass part of the bulb directly with bare hands. Oils from your skin can create hot spots, leading to premature bulb failure. Use a clean cloth or gloves when handling.
• Correct Voltage: Ensure your appliance operates on 120 Volts, which is compatible with these bulbs.
• Compatibility: Only use these G8 bi-pin base bulbs as replacements for existing G8 bi-pin base bulbs. Do not attempt to use them in G9 or G4 bases.

3. Installation

This section outlines the steps for replacing your microwave oven light bulb. The process is generally straightforward, but always refer to your microwave oven's specific instruction manual for detailed access procedures.

1. Disconnect Power: Ensure the microwave oven is completely disconnected from its power source.
2. Locate Bulb Access: Depending on your microwave model, the light bulb may be accessible from the interior of the oven, behind a vent cover, or from the bottom panel. Consult your microwave's manual if unsure.
3. Remove Old Bulb: Carefully pull out the old G8 bi-pin bulb. It may require a gentle but firm pull.
4. Insert New Bulb: Align the two pins of the new WokHok G8 bulb with the holes in the socket. Gently push the bulb straight into the socket until it is fully seated. Avoid forcing the bulb. Remember to use a clean cloth or gloves to handle the new bulb.
5. Secure Access Panel: Reattach any covers or panels that were removed to access the bulb.
6. Restore Power: Reconnect power to the microwave oven.
7. Test: Turn on the microwave light to confirm proper installation.

Figure 1: Illustration of the bulb installation process in a microwave oven. The image highlights the simplicity of replacing the G8 bi-pin bulb by pulling out the old one and plugging in the new one.

Figure 2: A set of four WokHok G8 120V 20W halogen bulbs, ready for installation.

4. Operation

The WokHok G8 20W Halogen Bulb functions as a direct replacement for your microwave oven's surface light. It is designed to work with high and low switch settings, offering dimmable functionality where supported by your microwave oven's controls.

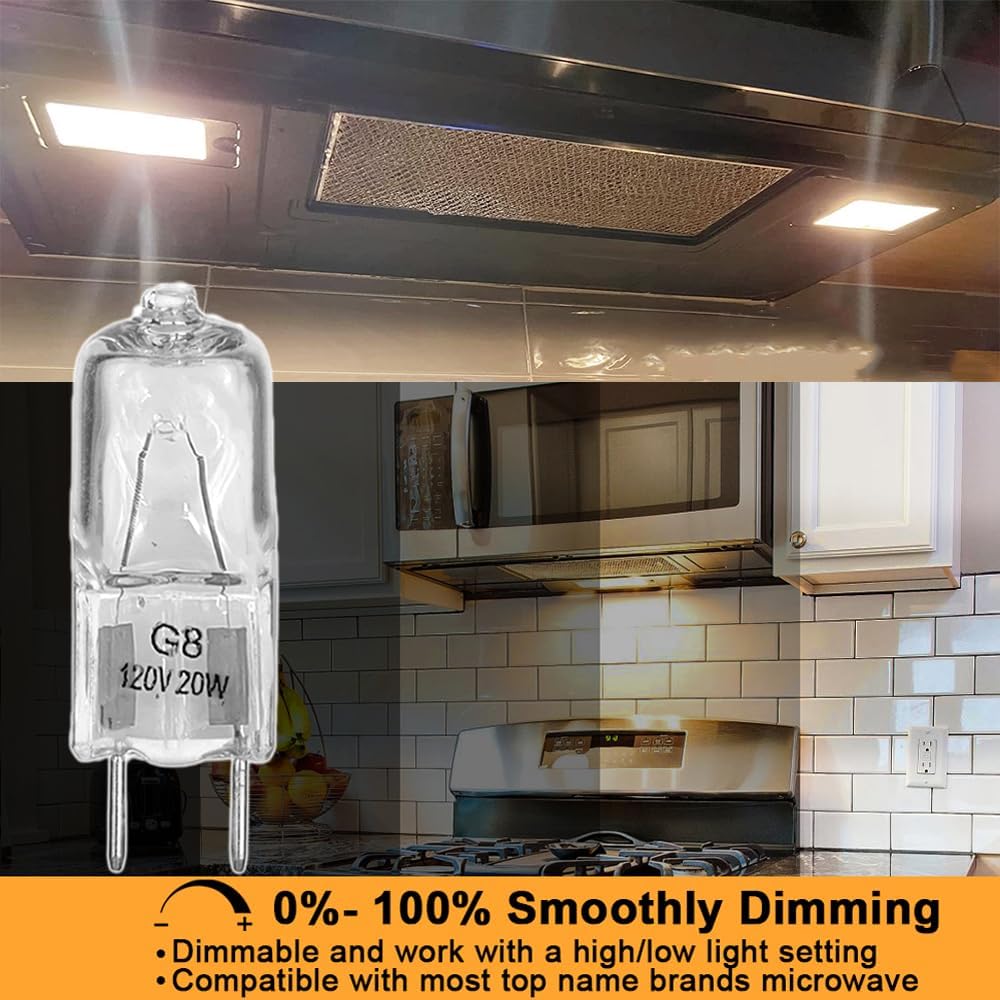

Figure 3: The WokHok G8 bulb is compatible with dimmable light settings, allowing adjustment from 0% to 100% brightness.

5. Maintenance

These halogen bulbs are designed for durability with an average lifespan of 2000+ hours. Regular maintenance is minimal, primarily involving replacement when the bulb burns out.

• Replacement: Replace the bulb following the installation steps outlined in Section 3 when it ceases to function.
• Cleaning: If the bulb or surrounding area becomes dusty, ensure the power is off and the bulb is cool before gently wiping with a dry, soft cloth.

6. Troubleshooting

If your WokHok G8 bulb is not functioning as expected, consider the following:

• Bulb Not Lighting:
  • Ensure the microwave oven has power.
  • Verify the bulb is correctly seated in the socket.
  • Check if the bulb is burned out. Replace with a new bulb if necessary.
• Short Lifespan:
  • Ensure the bulb was handled with a clean cloth or gloves during installation to avoid skin oils on the glass.
  • Confirm the bulb is not exposed to excessive heat beyond its operating temperature range (e.g., from an adjacent oven).
  • Verify the microwave's voltage matches the bulb's 120V requirement.
• Incompatibility: Ensure the original bulb was a G8 bi-pin base. These bulbs are not compatible with G9 or G4 bases.

7. Specifications

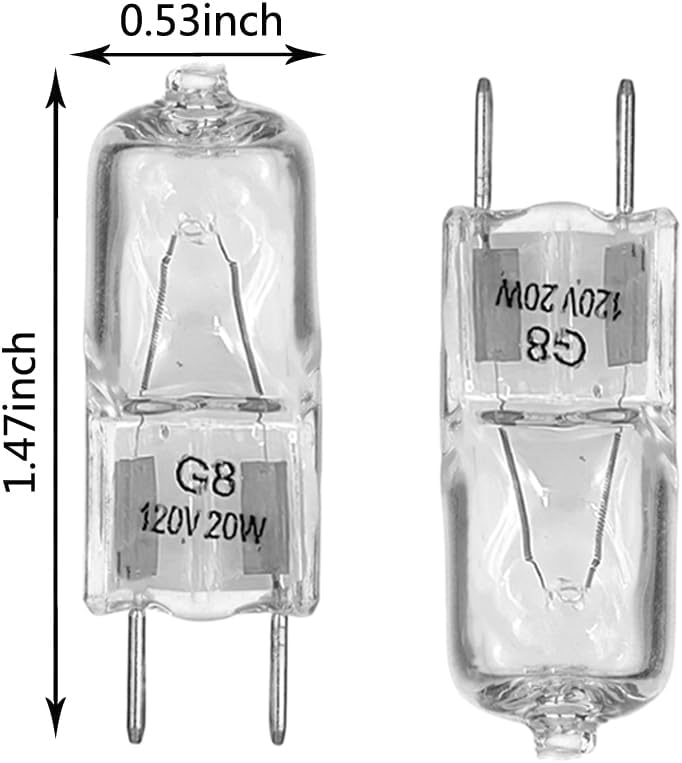

Figure 4: Detailed dimensions of the WokHok G8 bulb.

Figure 5: Key features and base compatibility of the WokHok G8 bulb.

Figure 6: Lighting Facts for the WokHok G8 20W bulb.

8. Warranty and Support

WokHok is committed to providing quality products. If you encounter any issues with your bulbs, such as damage or premature burnout, please contact the seller for assistance. We are dedicated to providing a satisfactory solution.

For support, please refer to the contact information provided by your retailer or on the product packaging.
