1. Important Safety Information
Please read all instructions carefully before installation and use. Keep this manual for future reference.
- Electrical Safety: Ensure power is disconnected at the circuit breaker before installation or maintenance. All electrical work should be performed by a qualified electrician.
- Installation: Always follow the provided installation instructions. Be cautious when installing the cabinet to avoid injury from the protruding edge.
- Moisture Exposure: Do not expose the cabinet to excessive water or moisture. The IP44 rating provides protection against splashing water, but it is not submersible.
- Glass Handling: Be careful when handling the glass shelves to avoid breakage.
- Maintenance: Always unplug the cabinet before cleaning or performing any maintenance.
- Weight Limit: Do not overload the shelves. Each glass shelf has a weight limit of 11 pounds.
- Intended Use: Use the cabinet only in accordance with the manufacturer's guidelines to ensure safe operation.
2. Package Contents
Verify that all components are present and undamaged before beginning installation.
- ExBrite LED Lighted Bathroom Medicine Cabinet (72''x30'')
- Adjustable Glass Shelves (3 pieces)
- Installation Instruction Manual
- Mounting Screws and Anchors
3. Setup & Installation
This medicine cabinet supports both surface mounting and recessed installation. Professional installation is recommended for electrical connections and secure mounting.
3.1 Installation Overview
The 72''x30'' model consists of four sections: two 24''x30'' LED medicine cabinets (one with left hinge, one with right hinge) and two 12''x30'' storage medicine cabinets in the center.
Image: Overview of the 72x30 inch ExBrite LED medicine cabinet, showing its four-section design.
3.2 Mounting Options
- Surface Mounting: The cabinet is mounted directly onto the wall surface.
- Recessed Installation: The cabinet is embedded into a wall cutout, with approximately 1 inch protrusion for easy opening and closing. This method allows for a flush appearance.

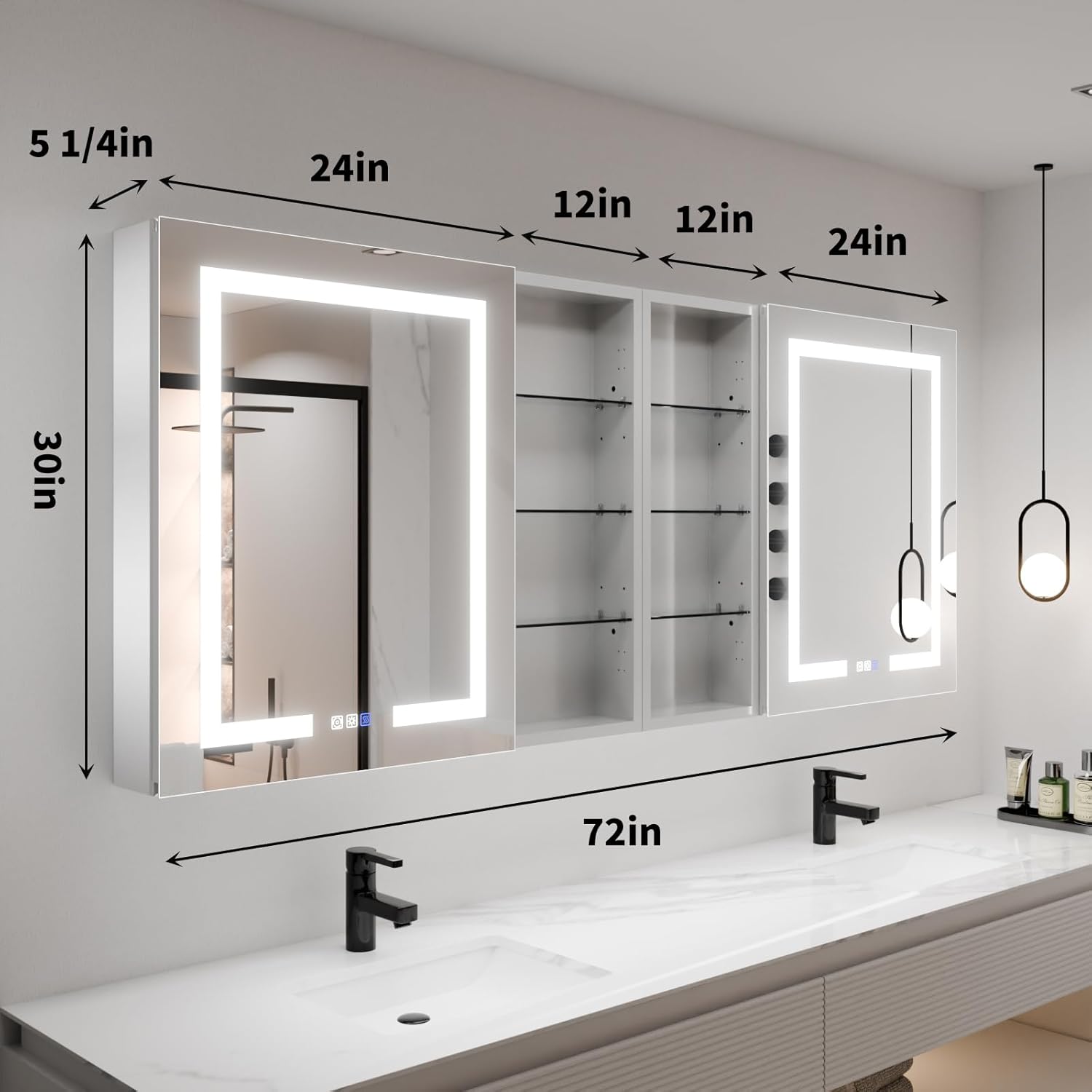

Image: Dimensional diagram of the 72x30 inch ExBrite LED medicine cabinet, illustrating its overall size and the individual section dimensions.
3.3 Step-by-Step Installation (Hanging Walls)
Refer to the detailed instructions provided in the package for precise measurements and safety guidelines.
- Combine Cabinet Sections: Use the connecting blocks to assemble the individual cabinet sections into a single unit.
- Drill Holes for Hanging: Level and mark the desired mounting locations on the wall. Drill holes and insert appropriate anchors suitable for your wall type.
- Hook onto Mounting Bar: Lift the assembled cabinet onto the mounting bar, ensuring the hooks engage securely.
- Bottom Support: Place the support angle on the bottom of the cabinet. Mark the hole location on the wall and drill.
- Secure Cabinet: Secure the cabinet to the wall using the provided screws and hardware.
Image: Visual guide showing the five key steps for installing the ExBrite LED medicine cabinet on a wall.
3.4 Electrical Connection
The cabinet features built-in 2 Amp dual outlets and 2 USB ports for charging devices like shavers or electric toothbrushes. Ensure proper electrical connection by a qualified professional.
Image: Close-up view of the internal features of the ExBrite LED medicine cabinet, highlighting the interior LED lighting, dual outlets, dual USB ports, 110° soft-close hinges, and adjustable tempered glass shelves.
4. Operating Instructions
4.1 LED Lighting Control
The LED lighting is controlled via touch sensors on the mirror surface.
- Power On/Off: Short press the center switch to turn the LED light on or off.
- Brightness Adjustment (Stepless Dimming): Long press the center switch to adjust the brightness from 10% to 100%.
- Color Temperature Change: Short press the right switch to cycle through 3000K (warm light), 4000K (neutral light), and 6400K (cold light).
- Memory Function: The LED light has a memory function. When turned on via the wall switch, it will automatically return to the last adjusted mode (brightness and color temperature).
Image: Illustration of the stepless dimming feature, showing the LED light at 100%, 50%, and 10% brightness levels.
Image: Demonstration of the color temperature adjustment, displaying the LED light at 3000K (warm), 4000K (neutral), and 6000K (cool) settings.
4.2 Defogging Function
The medicine cabinet features a defogging function to keep the mirror clear.
- Activate Defogger: Lightly press the left switch to activate the defogging function.
- Automatic Shut-off: The newly developed technology allows the mirror surface to reach approximately 40°C quickly for a faster and safer defogging effect. The defogging function automatically turns off when the light is switched off.
4.3 Storage and Features
- Adjustable Glass Shelves: The three glass shelves are adjustable in height, providing flexible storage options. Each shelf is 5mm thick and can bear up to 11 pounds.
- Dual Outlets & USB Ports: Conveniently located inside the cabinet for charging small electronic devices.
- Soft-Close Hinges: The 110° open swing soft-close hinges ensure quiet and gentle closing of the cabinet doors.
Image: The ExBrite LED medicine cabinet with all doors open, revealing the spacious interior and adjustable glass shelves for extensive storage.
Image: A wider view of the ExBrite LED medicine cabinet with doors open, emphasizing the extra-large storage capacity provided by its multi-section design.
4.4 Video Demonstrations
Product Features Overview
Video: This video demonstrates the key features of the ExBrite medicine cabinet, including its large storage capacity, easy installation, LED light controls (on/off, brightness, color temperature), defogging function, and memory feature.
Blossom LED Lighted Mirror Medicine Cabinet for Bathroom
Video: This video showcases the Blossom LED Lighted Mirror Medicine Cabinet, highlighting its two soft keys for one-touch defogger and easy turn on/off, built-in defogger, brightness and color temperature adjustment, inside LED light on the door, mirrors on both sides of the door, door concealed finger-pull with soft close hinges, 8mm thick adjustable shelves, grooved door edges and corners, anti-black copper-free silver door front mirror, surface and recess mounting options, and smart setting memory.
Nice Choice for Your Bathroom-Lighted Cabinet Mirror|Imgflx
Video: This video from Imgflx demonstrates the features of a lighted cabinet mirror, including color adjustable and dimmable lighting, mirrored interior, adjustable tempered glass shelves, USB outlet, soft close hinges, and one-touch defogging.
New LED Medicine Cabinet
Video: This video showcases a new LED medicine cabinet, highlighting its lighting configuration (front, back, or combined), mirrored sides, one-touch quick defogging with 60-minute auto shut-off, integrated door-sensing light for interior illumination, adjustable tempered glass shelves, powerful 1800W socket, automatic power-off protection, and recessed installation options.
Taiored Gift(Mirror Cabinet) for Your Bathroom
Video: This video from Prosaiet Premium presents a mirror cabinet for bathrooms, demonstrating its color adjustable and dimmable lighting, mirrored interior, adjustable tempered glass shelves, USB outlet, soft close hinges, and one-touch defogging.
5. Maintenance
- Cleaning the Mirror: Use a soft, damp cloth and a mild glass cleaner. Avoid abrasive cleaners or harsh chemicals that could damage the mirror surface or frame.
- Cleaning the Frame: Wipe the aluminum frame with a soft, damp cloth.
- Electrical Components: Ensure the cabinet is unplugged before cleaning any electrical components or areas near outlets/USB ports.
- Shelf Care: Clean glass shelves with glass cleaner. Handle with care to prevent chipping or breaking.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED light does not turn on. | No power supply; loose connection; faulty switch. | Check circuit breaker. Ensure all connections are secure. Contact a qualified electrician if the issue persists. |
| Defogging function not working. | Defogger not activated; electrical issue. | Ensure the left touch switch is pressed. Check power supply. If the light is off, the defogger will also be off. |
| Light brightness or color temperature cannot be adjusted. | Incorrect operation; sensor malfunction. | Review operating instructions for touch switch functions (long press for brightness, short press for color). Ensure the mirror surface is clean. |
| Outlets/USB ports not providing power. | No power supply to the cabinet; internal wiring issue. | Verify the cabinet is receiving power. Check for any tripped internal breakers if applicable. Consult an electrician. |
| Cabinet doors do not close smoothly. | Hinge misalignment; obstruction. | Check for any obstructions. Inspect hinges for damage or misalignment and adjust if necessary. |
7. Specifications
| Brand | ExBrite |
| Model Name | Lighted medicine cabinet |
| Size | 72''x30'' (locker without door) |
| Product Dimensions | 5.25"D x 42"W x 30"H (Note: This dimension appears to be for a different variant or a partial section. The 72" width is derived from the sum of the four sections described in the product description. Please refer to the actual product for exact dimensions.) |
| Color | Silver |
| Material | Aluminum, Glass |
| Mounting Type | Wall Mount (Surface or Recessed) |
| Number of Shelves | 3 |
| Shelf Weight Limit | 11 Pounds per shelf |
| Special Features | 3 color temperature, Adjustable Glass Shelves, Dimmable, Defog, Lighting Memory Function, Surface Mounted |
| Item Weight | 85.4 Pounds |
| UPC | 669423317739 |
8. Warranty & Support
ExBrite offers a 1-year warranty on this product. For any questions, technical assistance, or warranty claims, please contact ExBrite customer service.
- Customer Service: ExBrite aims to reply by email within 24 hours.
- Returns: 30-Day Free Return policy applies.
- Manufacturer: ExBrite USA
For further assistance, please visit the ExBrite Store on Amazon.
