1. Safety Instructions
Please read all safety instructions carefully before operating the appliance to prevent injury or damage. Keep this manual for future reference.
- Ensure the power supply voltage matches the appliance's requirements.
- Do not operate the appliance if the power cord is damaged.
- Avoid placing the appliance in direct sunlight or near heat sources.
- Ensure adequate ventilation around the appliance.
- Do not immerse the appliance in water or expose it to heavy rain.
- Keep children away from the appliance during operation.
2. Product Overview
The BougeRV CRPRO 29L portable compressor refrigerator is designed for cooling and freezing food and beverages on the go. It operates on both 12/24V DC and 110-240V AC power sources, making it suitable for various applications including vehicles, camping, and outdoor activities.
Figure 1: Front view of the BougeRV CRPRO 29L Portable Refrigerator.
Figure 2: Key features of the refrigerator, including a built-in bottle opener, intuitive control panel, and 30° anti-shake capability for rough terrain.
3. Setup and Installation
3.1 Unpacking
Carefully remove the refrigerator from its packaging. Inspect for any damage during transit. Retain packaging for future transport or returns.
3.2 Placement
Place the refrigerator on a flat, stable surface. Ensure there is sufficient space around the unit for proper ventilation (at least 10 cm on all sides). Avoid placing it in direct sunlight or near heat sources.
3.3 Power Connection
The refrigerator can be powered by:
- 12/24V DC: Connect the DC power cable to your vehicle's cigarette lighter socket or a compatible 12/24V power source.
- 110-240V AC: Connect the AC power cable to a standard wall outlet.
Figure 3: Connecting the refrigerator to its power source using the provided cables.
3.4 Multifunctional Storage Compartment
The refrigerator features a dedicated storage compartment. This space is designed to hold the power cables or an optional portable power station (277Wh battery, sold separately) to extend the refrigerator's operational time.
Figure 4: The multifunctional storage compartment, ideal for cables or an optional portable power station.
3.5 Securing the Refrigerator
The CRPRO refrigerator includes four fixation points on two sides. These points allow you to secure the unit using ropes or straps (not included) to prevent movement during travel, especially in vehicles or on uneven surfaces.
Figure 5: Illustrates the security anchor points for safely securing the refrigerator in a vehicle.
4. Operating Instructions
4.1 Control Panel
The control panel allows you to power on/off the unit, adjust temperature, and select operating modes. Refer to the display for current temperature and battery status.
Figure 6: Detailed view of the control panel for temperature and mode adjustments.
4.2 Temperature Settings and Modes
The cooling range is from -22°C to 10°C. You can choose between two operating modes:
- MAX Mode: Provides faster and more efficient cooling with a power consumption of 45W.
- ECO Mode: Offers energy-saving operation with a power consumption of 36W, ideal for maintaining temperature over longer periods.
Figure 7: Displaying the wide temperature range (-22°C to 10°C) and the MAX/ECO operating modes.
4.3 Battery Protection System
The freezer is equipped with a three-level battery monitoring system. You can set the input voltage limit to prevent your vehicle's battery from fully discharging. When the car battery voltage drops below the set level, the refrigerator automatically shuts off.
4.4 Interior LED Lighting
The refrigerator includes an interior LED light for convenient use in low-light conditions or at night.
Figure 8: The interior LED lighting provides visibility inside the refrigerator, especially useful in dark environments.
4.5 Low Noise Operation
The CRPRO refrigerator operates at a low noise level of approximately 45 dB, ensuring minimal disturbance during use, even in quiet environments like a tent or vehicle cabin.
Figure 9: Illustrates the low noise level of the refrigerator (45 dB), comparable to a quiet conversation.
5. Maintenance
5.1 Cleaning
Regularly clean the interior and exterior of the refrigerator with a damp cloth and mild detergent. Avoid abrasive cleaners or solvents. Ensure the unit is unplugged before cleaning.
5.2 Condensation Management
Condensation may form inside the refrigerator, especially in humid conditions. It is recommended to periodically empty and wipe dry the interior every 2-3 days to prevent water accumulation. This model does not feature an automatic drainage system.
5.3 Storage
When not in use for extended periods, ensure the refrigerator is clean, dry, and stored in a well-ventilated area with the lid slightly ajar to prevent odors.
6. Troubleshooting
If you encounter issues with your BougeRV CRPRO refrigerator, please refer to the following common troubleshooting steps:
- No Power: Check if the power cable is securely connected to both the refrigerator and the power source. Verify the power source is active (e.g., vehicle engine running for 12V socket, wall outlet functional).
- Not Cooling: Ensure the temperature setting is appropriate. Check for obstructions around the ventilation grilles. Verify the lid is properly closed.
- Unusual Noise: Ensure the refrigerator is on a stable, level surface. Check for any loose items inside or around the unit.
- Error Codes: If an error code appears on the display, consult the specific error code section in the full manual (if available) or contact customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | BougeRV |
| Model Name | CRPRO30 |
| Capacity | 29 Liters |
| Cooling Range | -22°C to 10°C |
| Power Input | 12V/24V DC, 110-240V AC |
| Power Consumption (MAX Mode) | 45W |
| Power Consumption (ECO Mode) | 36W |
| Dimensions (D x W x H) | 56.5 cm x 31.5 cm x 41.5 cm |
| Item Weight | 11.65 Kilograms |
| Cooling Method | Compressor |
| Special Feature | Water dispenser (Note: This feature is listed in specifications but not explicitly detailed in product features, may refer to a drain plug or similar) |
| Defrost System | Automatic |
| Noise Level | 45 dB |
| Refrigerant | Possible R134a |

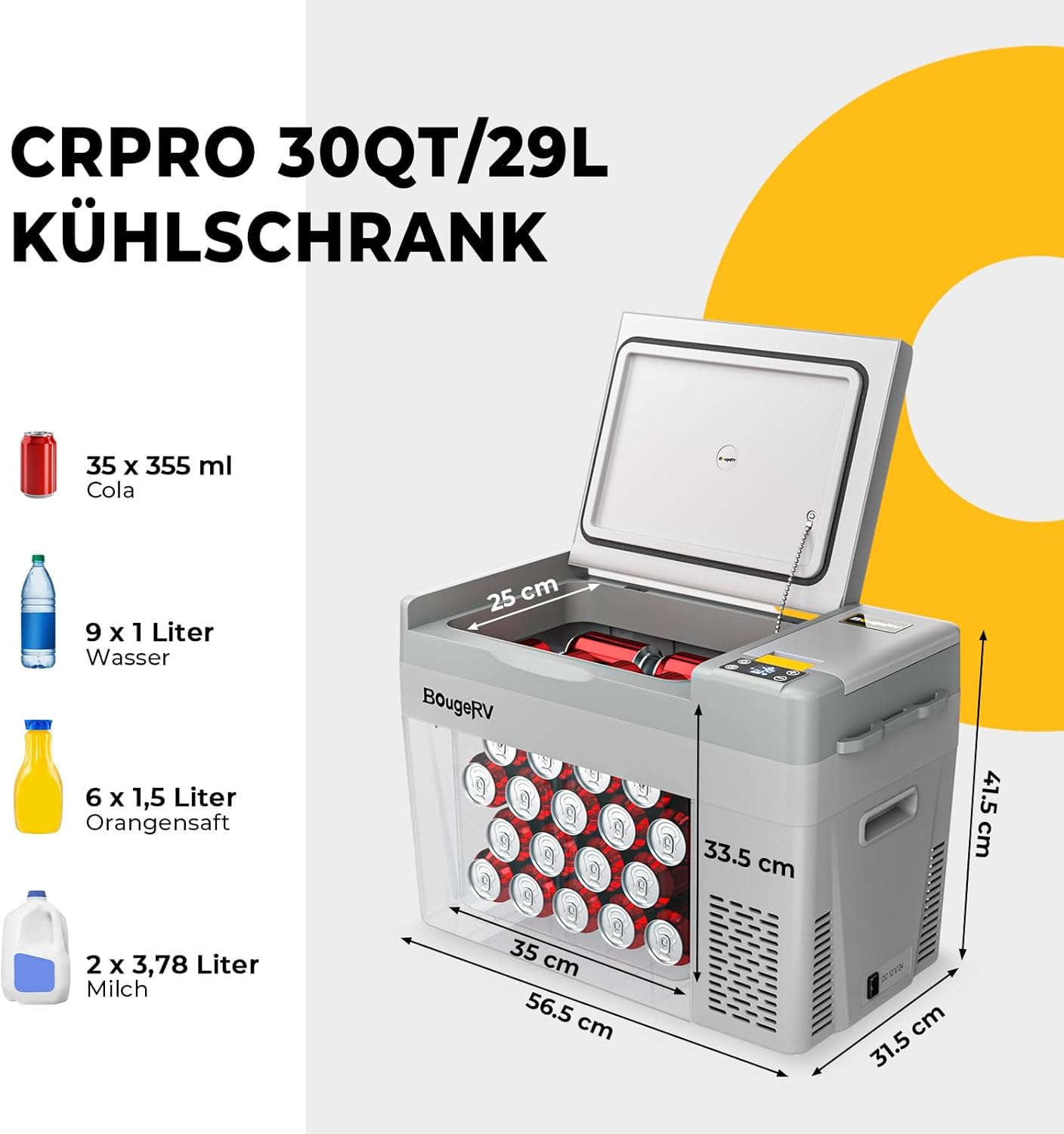

Figure 10: Visual representation of the refrigerator's dimensions and capacity, showing how various items can fit.
8. Product Video
Watch this official video for a visual guide to the BougeRV CRPRO refrigerator's features and functionality.
Video 1: This video demonstrates the key features of the BougeRV CRPRO 12V Refrigerator, including its multifunctional storage compartment, supplementary DC charging cable connection, energy-saving compressor technology, LED interior lighting, and secure fixation points for vehicle use.
9. Warranty and Support
The BougeRV CRPRO 12V refrigerator comes with a 2-year warranty. For any questions regarding the product, please contact BougeRV customer service before returning the item. BougeRV offers comprehensive after-sales support.
Contact information can be found on the official BougeRV website or through your purchase platform.
