E·Bycco EB7 Electric Mountain Bike User Manual

1. Product Overview

The E·Bycco EB7 is a high-performance electric mountain bike designed for versatile terrain. It features a powerful 750W brushless motor, a long-range 48V/16Ah removable battery, and a full suspension system for enhanced comfort and control. Equipped with 26" x 4.0 fat tires and dual mechanical disc brakes, the EB7 is suitable for various riding conditions, from daily commuting to challenging off-road adventures.

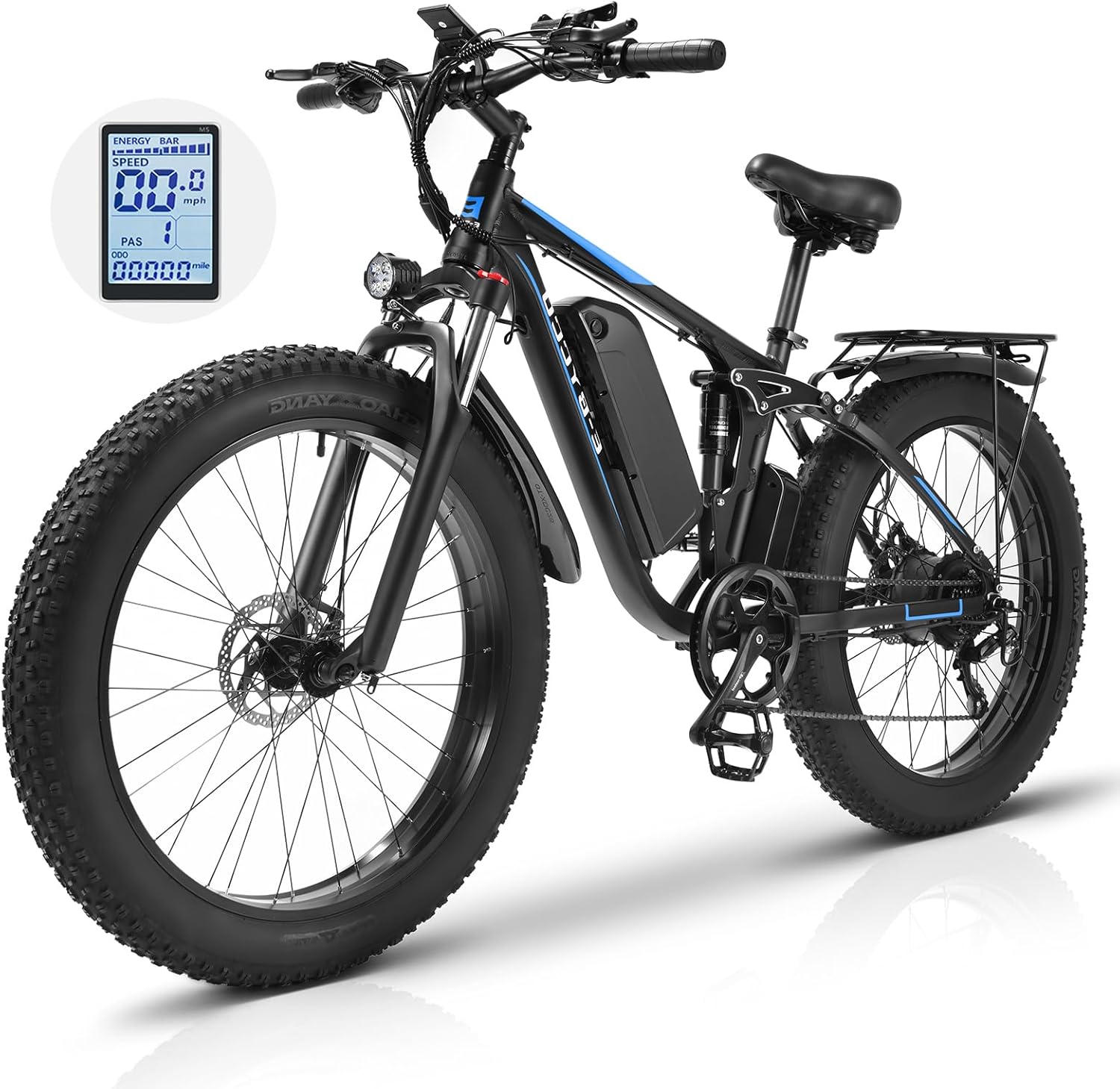

Image: E-Bycco EB7 Electric Mountain Bike with its digital display showing speed and battery.

2. Setup and Assembly

The E·Bycco EB7 electric bicycle comes 95% pre-assembled. The following steps detail the final assembly required before your first ride.

2.1. Installation Video Guide

For a visual step-by-step guide, please refer to the official installation video:

2.2. Step-by-Step Assembly Instructions

1. Install Handlebar:
   Remove the four screws from the handlebar stem. Place the handlebar into position and tighten the four screws to secure it. Ensure the handlebar is centered and firm.


   Image: Close-up of the E-Bycco EB7 handlebar showing the 3.5-inch LCD display, Shimano 7-speed shifter, and USB phone holder.
2. Connect Front Light Cable:
   Locate the front light cable near the handlebar and connect the two ends securely.
3. Install Front Wheel:
   Remove the protective cap from the front fork. Align the front wheel with the fork, ensuring the disc brake rotor slides correctly into the caliper. Install and lock the quick release skewer.


   Image: Detail of the E-Bycco EB7's full suspension system, highlighting the lockable suspension fork and rear hydraulic shock absorber.

4. Install Pedals:
   Identify the left (L) and right (R) pedals. The left pedal screws in counter-clockwise, and the right pedal screws in clockwise. Ensure they are tightened securely to prevent loosening during riding.
5. Install Front Fender and Light:
   Remove the screw from the front fork bridge. Place the front fender into position and secure it with the screw. Attach the headlight to the designated mounting point on the front fork and tighten the screw.
6. Install Rear Fender and Rack:
   Attach the rear fender to the frame using the provided screws. Then, install the rear rack by securing it to the designated mounting points on the frame and fender.
7. Install Battery:
   Insert the 48V/16Ah removable battery into its compartment on the bike frame. Use the key to lock the battery in place, ensuring it is secure before riding.
8. Adjust Seat Height:
   Adjust the seat post to your comfortable riding height. Ensure the quick release lever is securely locked to prevent the seat from moving during your ride.

3. Operating Instructions

The E·Bycco EB7 offers multiple riding modes and features for a versatile experience.

3.1. Riding Modes

• Normal Bike Mode: Power off, pedal like a traditional bicycle.
• Pedal Assist Mode (PAS): The motor provides assistance as you pedal. The EB7 features 5 levels of pedal assist, adjustable via the handlebar controls. Higher levels provide more motor power.


  Image: The E-Bycco EB7 electric bike positioned on a dirt path, showcasing its all-terrain fat tires and robust frame.

• Throttle Mode: Engage the motor without pedaling by rotating the throttle. This mode provides instant power up to 34 MPH.
• Constant Speed Cruise Mode: Maintain a set speed without continuous throttle input or pedaling.
• Walk-push Assist Mode: Provides low-speed motor assistance for walking the bike, useful for navigating steep inclines or crowded areas.

3.2. Display and Controls

The 3.5-inch large LCD display provides real-time information including battery level, current gear, speed, and mileage. The handlebar controls allow for easy adjustment of pedal assist levels and activation of the throttle.

3.3. Braking System

The EB7 is equipped with front and rear hydraulic disc brakes, providing effective and responsive stopping power in various conditions.

3.4. Gear System

The 7-speed transmission system allows for smooth gear changes, adapting to different terrains and riding preferences, whether climbing uphill or cruising on flat ground.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your E·Bycco EB7 electric bike.

4.1. Battery Care

• Charge the battery regularly, even when not in use, to maintain its health.
• Avoid fully discharging the battery.
• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• Use only the original charger provided with the bike.

Image: Detailed view of the E-Bycco EB7's 48V 16AH removable battery, highlighting its capacity and UL certification.

4.2. Tire Maintenance

• Regularly check tire pressure and inflate to the recommended PSI (indicated on the tire sidewall).
• Inspect tires for wear, cuts, or punctures before each ride.

Image: The 26x4.0 fat tire of the E-Bycco EB7 shown in different environments, including snow, sand, and gravel roads, demonstrating its versatility.

4.3. General Cleaning and Lubrication

• Clean the bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
• Lubricate the chain and moving parts periodically to ensure smooth operation and prevent rust.

5. Troubleshooting

If you encounter issues with your E·Bycco EB7, refer to the following common troubleshooting tips:

• Bike Not Turning On:
  Check if the battery is fully charged and properly seated in its compartment. Ensure the battery is locked and the power button on the battery or display is pressed.
• Motor Not Assisting:
  Verify that the pedal assist level is not set to 0. Check if the throttle is engaged. Ensure all electrical connections are secure.
• Brakes Squeaking or Not Effective:
  Inspect brake pads for wear and replace if necessary. Check for any debris on the brake rotors. If issues persist, professional adjustment may be required.
• Gears Not Shifting Smoothly:
  Check for proper chain lubrication. Inspect the derailleur for alignment issues or damage. Adjust the shifter cables if needed.

6. Specifications

7. Warranty and Support

E·Bycco provides a 12-month warranty and lifetime free technical support for the EB7 electric bike. For any inquiries or assistance, please contact E·Bycco customer support.

Please retain your original packaging for potential returns or warranty claims.

For further assistance, visit the official E·Bycco Store.
