Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Milwaukee 2579-20 M12 Stick Transfer Pump. Please read this manual thoroughly before using the product and retain it for future reference.
Safety Information
WARNING: Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.
- Read all instructions before operating the pump.
- Do not operate the pump in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Keep children and bystanders away while operating the pump.
- Use only Milwaukee M12 REDLITHIUM batteries and chargers.
- Do not immerse the battery or charger in water.
- Always wear appropriate personal protective equipment (PPE) suchs as safety glasses.
- Ensure the pump is securely positioned before operation.
Product Components
Familiarize yourself with the main parts of your M12 Stick Transfer Pump:
- Pump Body: Houses the motor and control switch.
- Submersible Barrel: The long shaft that extends into the liquid.
- Inlet Filter: Located at the bottom of the submersible barrel, designed to prevent debris from entering the pump.
- Outlet Port: A 3/4 inch threaded port for attaching a standard garden hose.
- Battery Compartment: Located at the top for M12 REDLITHIUM batteries.
- Battery Fuel Gauge: LED indicators showing battery charge level.
Figure 1: Overall view of the Milwaukee M12 Stick Transfer Pump, showing the main body, submersible barrel, and outlet port.

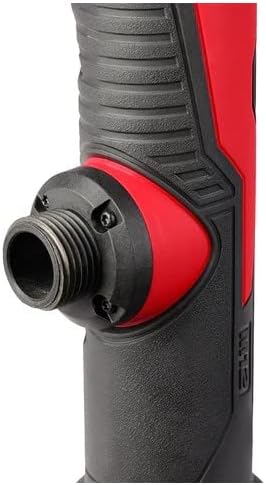

Figure 2: Detail of the 3/4 inch outlet port, designed for standard garden hose attachment.

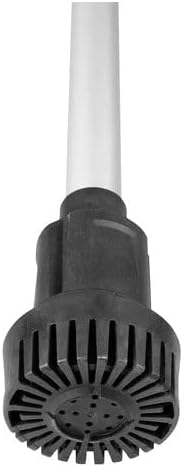

Figure 3: Detail of the submersible inlet filter, which helps prevent debris from entering the pump mechanism.
Setup Instructions
- Charge Battery: Ensure your M12 REDLITHIUM battery is fully charged. The battery fuel gauge on the pump will indicate the charge level (4 lights for full charge).
- Install Battery: Slide the charged M12 battery into the battery compartment at the top of the pump until it clicks into place.
- Attach Hose: Thread a standard 3/4 inch garden hose onto the outlet port of the pump. Ensure a tight connection to prevent leaks.
- Position Pump: Place the submersible barrel of the pump into the liquid you intend to transfer. Ensure the inlet filter is fully submerged and positioned to avoid large debris.
Operating Instructions
- Submerge Inlet: Ensure the pump's inlet filter is completely submerged in the liquid.
- Direct Outlet: Position the attached garden hose to direct the discharged liquid to the desired location.
- Activate Pump: Slide the power switch to the "ON" position. The pump will begin to draw liquid and discharge it through the hose.
- Monitor Operation: Observe the flow and ensure the pump is operating smoothly. The pump can move up to 9 gallons per minute.
- Deactivate Pump: Once the desired amount of liquid has been transferred or the liquid level is too low for effective pumping, slide the power switch to the "OFF" position.
- Remove Pump: Carefully remove the pump from the liquid, allowing any remaining liquid to drain from the barrel.

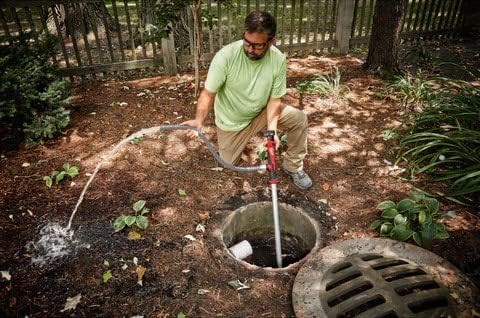

Figure 4: An individual demonstrating the use of the pump to drain a catch basin, highlighting its practical application.
Maintenance
- Clean After Use: After each use, rinse the submersible barrel and inlet filter with clean water to remove any residue or debris.
- Inspect Filter: Regularly check the inlet filter for blockages or damage. Clean or replace as necessary to maintain optimal flow.
- Battery Care: Store batteries in a cool, dry place. Do not store fully discharged batteries for extended periods.
- General Inspection: Periodically inspect the pump for any signs of wear, damage, or loose connections. Address any issues promptly.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start |
|
|
| Low flow rate or no water pumped |
|
|
| Pump runs but no water comes out |
|
|
Specifications
- Model: 2579-20
- Power Source: 12V Battery Powered (M12 REDLITHIUM)
- Maximum Flow Rate: 9 Gallons Per Minute (GPM)
- Maximum Lifting Height: 15 Feet
- Submersible Barrel Length: 36 inches
- Outlet Size: 3/4 inch (standard garden hose)
- Material: Aluminum, Stainless Steel (submersible components)
- Weight: Approximately 5.29 pounds (tool only)
- Dimensions: 7.6"L x 3.13"W x 9.35"H
Warranty and Support
For warranty information, service, or technical support, please refer to the official Milwaukee Tool website or contact their customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
Manufacturer: generic (Note: Product is commonly associated with Milwaukee M12 system)
