Introduction
This manual provides essential instructions for the safe and efficient use of your Rowenta RO4B11 Compact Power XXL Bagless Vacuum Cleaner. Please read it thoroughly before first use and keep it for future reference.
Image 1: The Rowenta RO4B11 Compact Power XXL Bagless Vacuum Cleaner, fully assembled with its hose, telescopic tube, and floor nozzle.
Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Do not use the appliance if the power cord or plug is damaged.
- Do not vacuum water or other liquids.
- Do not vacuum hot ashes, burning cigarette butts, or sharp objects.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- Unplug from the outlet when not in use and before cleaning or servicing.
- This appliance is for household use only.
Product Components
Familiarize yourself with the main components of your vacuum cleaner.
- Main Unit (Motor housing, dust container)
- Flexible Hose
- Telescopic Tube
- Floor Nozzle
- Power Cord with Automatic Rewind
- Dust Container (2.5L capacity)
- Filtration System (3-stage: pre-filter, foam filter, HEPA filter)
- Integrated Brush on Handle

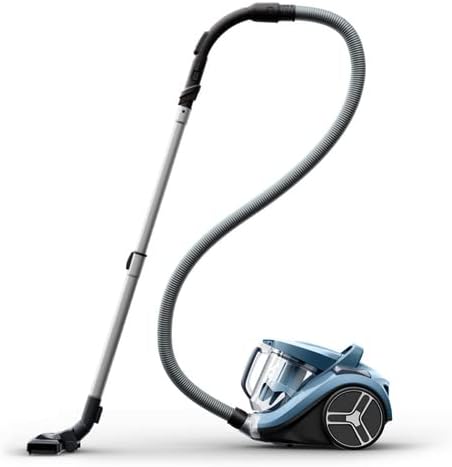

Image 2: The Rowenta RO4B11 vacuum cleaner showing the main unit, flexible hose, telescopic tube, and floor nozzle.
Setup and Assembly
Follow these steps to assemble your vacuum cleaner before first use.
- Attach the Flexible Hose: Insert the end of the flexible hose into the suction inlet on the main unit until it clicks securely into place.
- Connect the Telescopic Tube: Attach the handle end of the flexible hose to the telescopic tube.
- Attach the Floor Nozzle: Connect the floor nozzle to the other end of the telescopic tube. Ensure all connections are firm.
- Power Cord: Extend the power cord to the desired length and plug it into a suitable electrical outlet.
Operating Instructions
Using your Rowenta RO4B11 vacuum cleaner is straightforward.
- Power On/Off: Press the power button located on the main unit to start or stop the vacuum cleaner.
- Adjusting Suction Power: The suction power can be regulated using the slider on the handle. Open the slider to reduce suction (e.g., for delicate fabrics or small rugs) and close it for maximum suction.
- Floor Nozzle Adjustment: The floor nozzle can be adjusted for different floor types (hard floors or carpets) using the foot switch on the nozzle.
- Integrated Brush: If your model includes an integrated brush on the handle, slide it forward for use on upholstery or tight spaces, and slide it back when not needed.
- Operating Radius: The vacuum cleaner offers an operating radius of 8.8 meters, allowing you to clean large areas without frequently changing power outlets.
Image 3: The Rowenta RO4B11 vacuum cleaner in operation, demonstrating its compact design and extended power cord for wide area coverage.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
Emptying the Dust Container
- Disconnect Power: Always unplug the vacuum cleaner from the power outlet before performing any maintenance.
- Remove Dust Container: Press the release button and carefully remove the dust container from the main unit.
- Empty Contents: Position the dust container over a waste bin and open the bottom flap to empty the collected dust and debris.
- Clean Container: If necessary, the dust container can be rinsed with warm water. Ensure it is completely dry before reassembling.
- Reattach Container: Place the empty and dry dust container back into the main unit until it clicks securely.
Image 4: A hand demonstrating the process of easily removing and emptying the dust container of the Rowenta RO4B11 vacuum cleaner into a waste bin.
Cleaning the Filters
The Rowenta RO4B11 features a 3-stage filtration system. Regular cleaning of these filters is crucial for maintaining suction power and air quality.
- Access Filters: After removing the dust container, you will gain access to the internal filters. These typically include a pre-filter and a foam filter. A HEPA filter is also part of the system, usually located near the motor exhaust.
- Clean Pre-filter and Foam Filter: Remove these filters and tap them gently to dislodge loose dust. They can also be rinsed under cold running water.
- Dry Filters Thoroughly: It is critical that all filters are completely dry before being placed back into the vacuum cleaner. Allow at least 24 hours for air drying. Do not use heat to dry them.
- HEPA Filter: The HEPA filter should be checked periodically. Depending on usage, it may need to be replaced annually or as indicated by reduced performance. Refer to the product packaging or Rowenta's official website for replacement filter information.
- Reassemble: Once all filters are clean and dry, reinsert them into their respective positions and reattach the dust container.
Note: An extra set of filters is not included with the product, so ensure filters are fully dry before re-use to avoid downtime.
Troubleshooting
If you encounter issues with your vacuum cleaner, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| No power | Not plugged in; power outlet fault; damaged cord | Check plug connection; test outlet with another appliance; inspect cord for damage. |
| Reduced suction power | Full dust container; clogged filters; blockage in hose/tube/nozzle | Empty dust container; clean or replace filters; check and clear any blockages. |
| Unusual noise | Blockage; foreign object in fan/motor area | Turn off and unplug. Check for and remove any blockages or foreign objects. |
| Dust escaping from vacuum | Dust container not properly sealed; damaged filters; hose not securely attached | Ensure dust container is correctly installed; check filters for damage and replace if necessary; verify all hose connections are secure. |
Specifications
Key technical specifications for the Rowenta RO4B11 Compact Power XXL Bagless Vacuum Cleaner.
- Model Number: RO4B11
- Type: Bagless Cylinder Vacuum Cleaner
- Dust Container Capacity: 2.5 Liters
- Motor Power: Up to 900 Watts max (EU N°666/2013 compliant for low energy consumption)
- Filtration System: 3-stage (Pre-filter, Foam filter, HEPA filter) - captures over 99.98% of dust particles
- Operating Radius: 8.8 meters
- Power Cord Length: 6.2 meters
- Dimensions (Product): 40.9 x 27.6 x 29.1 cm
- Weight: 5.9 kg
- Special Features: Compact, Portable, Wheels, Bagless
- Included Components: Mini turbo brush
Image 5: Diagram showing the dimensions of the Rowenta RO4B11 vacuum cleaner: 40.9 cm length, 27.6 cm width, and 29.1 cm height.
Warranty and Support
For warranty information, technical support, or to purchase replacement parts and accessories, please visit the official Rowenta website or contact their customer service.
You can find more information and support on the Rowenta Brand Store.
