1. Introduction
Thank you for choosing the Foxydry Vivo active ironing board. This manual provides essential information for the safe and efficient use of your new appliance. Please read it thoroughly before first use and keep it for future reference.
The Foxydry Vivo is designed to revolutionize your ironing experience with its advanced features, including a heated surface, powerful suction, and gentle blowing functions. Its compact, foldable design and integrated wheels ensure easy storage and mobility.
Image 1.1: The Foxydry Vivo Ironing Board in its fully assembled, ready-to-use state.
2. Setup
2.1 Unfolding the Ironing Board
- Place the folded ironing board on a flat, stable surface.
- Gently pull the legs outwards until they lock into place, forming a stable base.
- Ensure all four feet are firmly on the ground and the board is level.
2.2 Adjusting Height
The Foxydry Vivo features multiple height adjustments to suit your comfort. Locate the height adjustment lever or mechanism usually found underneath the board. Press or pull the lever and raise or lower the board to your desired height. Release the lever to lock the board securely in position.

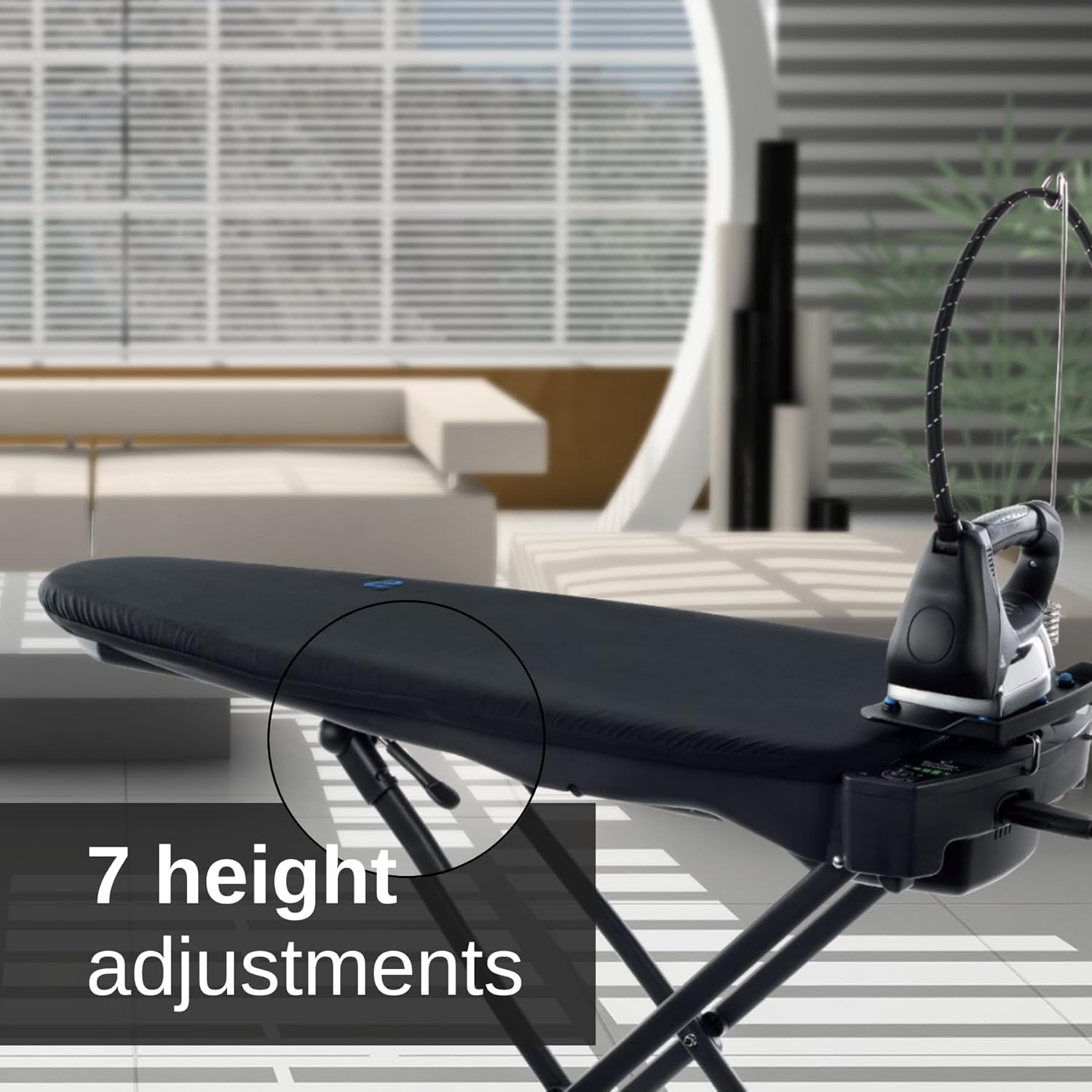

Image 2.1: Detail of the height adjustment lever, allowing for 7 different height settings.
2.3 Power Connection
Connect the power cable of the ironing board to a suitable 220-240V, 50/60Hz electrical outlet. The board is equipped with an integrated socket for your iron, allowing for a tidy setup.
Image 2.2: The integrated socket for connecting your iron directly to the board.
3. Operating Instructions
3.1 Heated Surface Function
Activate the heated surface function. The heating element keeps the ironing surface dry and helps to warm the steam as it passes through fabrics, softening fibers and reducing ironing effort. This can reduce ironing time by up to 50%.

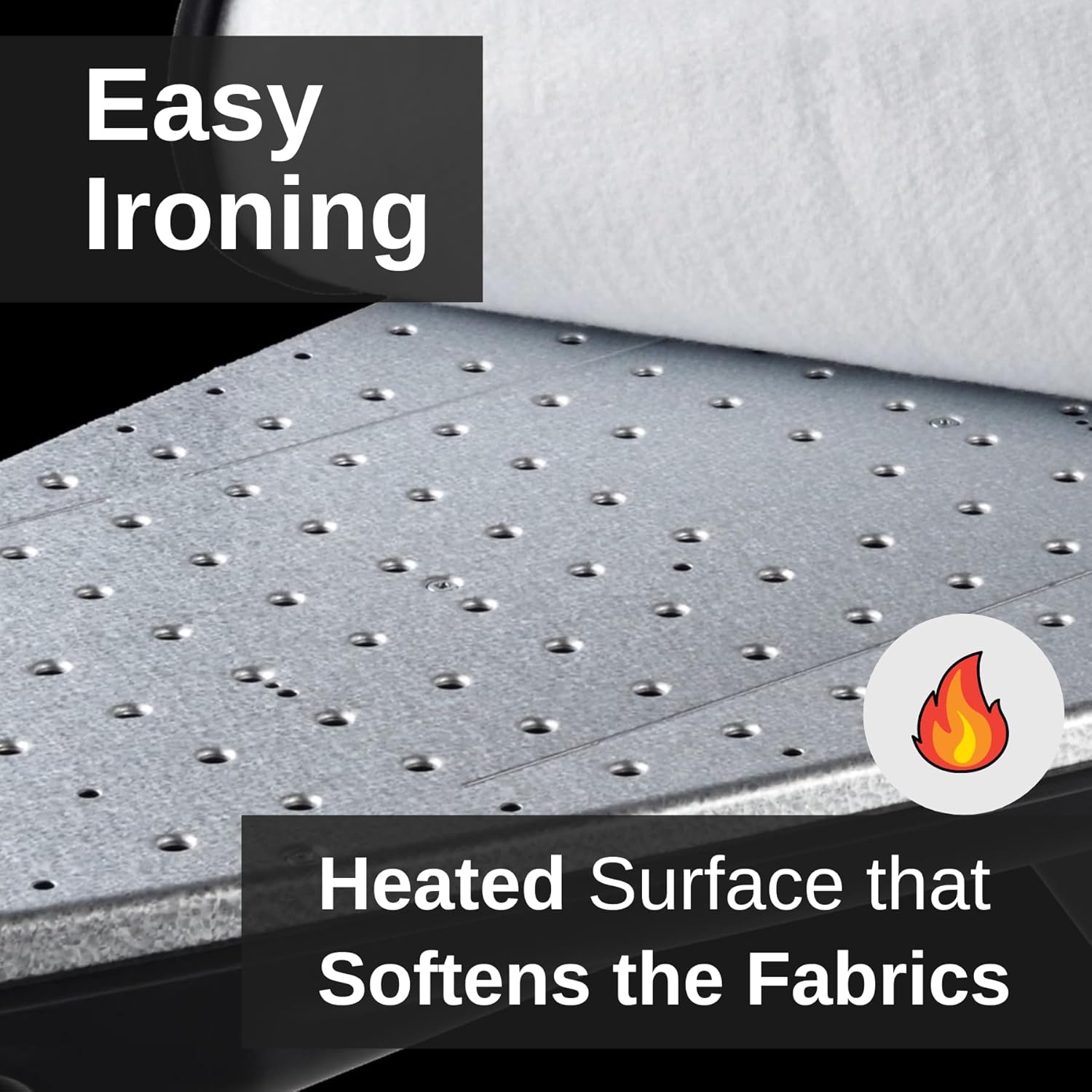

Image 3.1: The heated surface feature, designed to soften fabrics and improve ironing efficiency.
3.2 Suction Function
The suction function draws steam downwards through the fabric, preventing condensation and moisture buildup. This ensures garments are dry and ready for immediate storage. It also helps to hold lightweight fabrics firmly in place on the board, allowing for precise ironing and perfect creases.
Image 3.2: Ironing in progress, demonstrating the effectiveness of the board's features.
3.3 Blowing Function
The blowing function creates an air cushion, ideal for delicate fabrics, sequins, prints, or for creating perfect trouser creases without applying direct pressure. This feature uses steam power to smooth out wrinkles and prevent secondary creases or seam marks.
Image 3.3: The blowing function gently smooths out wrinkles using an air cushion.
4. Maintenance
4.1 Cleaning the Cover
The Foxydry Vivo comes with a machine-washable cotton cover. To clean, remove the cover from the board and wash according to the care instructions on the label. Ensure the cover is completely dry before reattaching it to the board.
Image 4.1: The soft cotton cover, designed for comfort and easy maintenance.
4.2 General Care
- Wipe the metal parts of the board with a damp cloth as needed.
- Do not use abrasive cleaners or solvents, as they may damage the finish.
- Store the board in a dry place when not in use. Its compact, foldable design and wheels make it easy to store in narrow spaces.
Image 4.2: The ironing board is easy to move and store when folded, thanks to its integrated wheels.
5. Troubleshooting
5.1 No Power
- Check if the power cable is securely plugged into both the board and the wall outlet.
- Ensure the wall outlet is functional by testing it with another appliance.
- Check your household's circuit breaker.
5.2 Suction/Blowing Not Working
- Ensure the board is properly powered on.
- Check for any obstructions in the air vents on the ironing surface.
- Verify that the cover is correctly fitted and not blocking the airflow.
5.3 Board Instability
- Ensure the legs are fully extended and locked into place.
- Verify that the height adjustment mechanism is securely locked.
- Place the board on a flat, even surface.
If problems persist, please contact customer support.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | Foxydry |
| Model Number | VIVO |
| Color | Vivo (ironing board) |
| Product Dimensions (L x W x H) | 50 x 14 x 117 cm (folded) |
| Material | Alloy Steel, Aluminum |
| Item Weight | 15 Kilograms |
| Power Supply | 220-240 V, 50/60 Hz |
| Maximum Power | 1,950 W |
| Power Cable Length | 2.5 m |
| Steam Generator Capacity (if included) | 0.8 L |
| Country of Origin | Italy |
| Frame Material | Aluminum |
| Mounting Type | Freestanding |
| Is Foldable | Yes |
| UPC | 793541777165 |

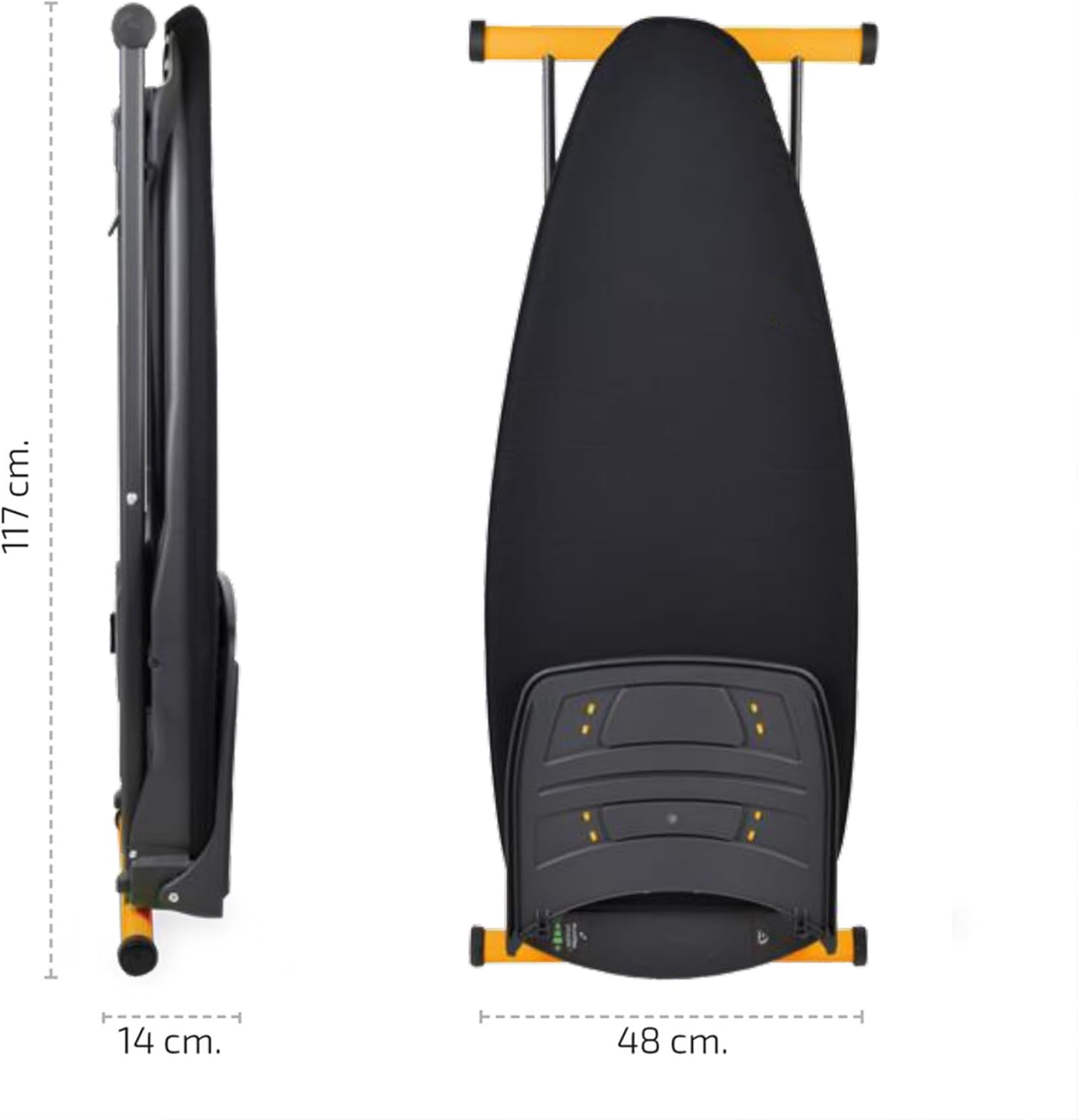

Image 6.1: Folded dimensions of the Foxydry Vivo Ironing Board.
7. Warranty and Support
The Foxydry Vivo ironing board is manufactured with high-quality materials and undergoes rigorous quality control. For any issues or questions regarding your product, please refer to the seller's return policy or contact Foxydry customer support directly.
For more information, you may visit the official Foxydry store: Foxydry Store on Amazon.
