Foxydry Vivo Full Steam

1. Introduction

Thank you for choosing the Foxydry Vivo Full Steam ironing board. This active ironing board is designed to revolutionize your ironing experience with its advanced features, including a heated surface, powerful suction, and effective blowing functions. This manual provides essential information for the safe and efficient use of your new ironing system.

The heated surface ensures your garments remain dry and warm, softening fibers for easier ironing and reducing ironing time by up to 50%. The suction function facilitates steam penetration, prevents condensation, and holds light garments in place for perfect creases. The blowing function creates an air cushion, ideal for delicate fabrics, preventing pressure marks and secondary creases.

Your Foxydry Vivo Full Steam is crafted from durable steel and aluminum, ensuring resistance to rust and a long lifespan. It is lightweight, foldable, and equipped with wheels for easy storage and portability.

2. Safety Information

• Read all instructions before using the appliance.
• Do not immerse the appliance in water or other liquids.
• Keep the appliance out of reach of children and pets.
• Always unplug the appliance when not in use and before cleaning.
• Ensure the power cord is not damaged and avoid placing it near hot surfaces.
• Use the appliance only for its intended purpose as described in this manual.
• Do not operate the appliance if it has been dropped or damaged. Contact customer support for assistance.
• Ensure proper ventilation when using the steam functions.

3. Product Overview

The Foxydry Vivo Full Steam ironing system includes the active ironing board, an integrated steam boiler, and a professional steam iron.

Figure 3.1: Foxydry Vivo Full Steam Ironing Board with integrated iron and boiler.

3.1 Key Components

• Heated Ironing Surface: Provides a dry, warm surface to soften fabric fibers.
• Suction Function: Draws steam through fabric, preventing condensation and holding garments.
• Blowing Function: Creates an air cushion for delicate ironing without pressure.
• Integrated Steam Boiler: Generates powerful steam for efficient ironing.
• Professional Steam Iron: Designed for optimal steam distribution and smooth gliding.
• Adjustable Height Mechanism: Allows customization for user comfort.
• Foldable Design with Wheels: For easy storage and mobility.
• Machine Washable Cover: Ensures hygiene and easy maintenance.

Figure 3.2: Integrated steam boiler and professional iron.

Figure 3.3: High-quality Aluzin ironing surface for durability and even heat distribution.

Figure 3.4: The ironing board features a soft cotton cover for optimal ironing results.

4. Setup

4.1 Unfolding the Ironing Board

1. Place the folded ironing board on a flat, stable surface.
2. Gently pull the legs outwards until they lock into position.
3. Adjust the height of the ironing board to your preferred working level using the adjustment mechanism located on the legs. Ensure both sides are locked securely at the same height.

Figure 4.1: The ironing board is foldable and compact for easy storage, with dimensions of 117 cm height and 14 cm depth when folded, and 48 cm width when unfolded.

4.2 Power Connection

• Ensure the ironing board is placed on a stable, heat-resistant surface.
• Plug the main power cord of the ironing board into a grounded electrical outlet.
• If using the integrated steam boiler and iron, ensure they are properly connected to the board's power supply as per the markings.

5. Operating Instructions

5.1 Filling the Boiler (if applicable)

Refer to the specific instructions for your integrated steam boiler for filling with water. Always use distilled or demineralized water to prevent limescale buildup.

5.2 Activating Functions

Your Foxydry Vivo Full Steam board features separate controls for the heated surface, suction, and blowing functions. Locate these controls, typically on the side panel of the board.

• Heated Surface: Turn on the heated surface. Allow a few minutes for the board to warm up. This feature helps to dry the fabric and prevent condensation.

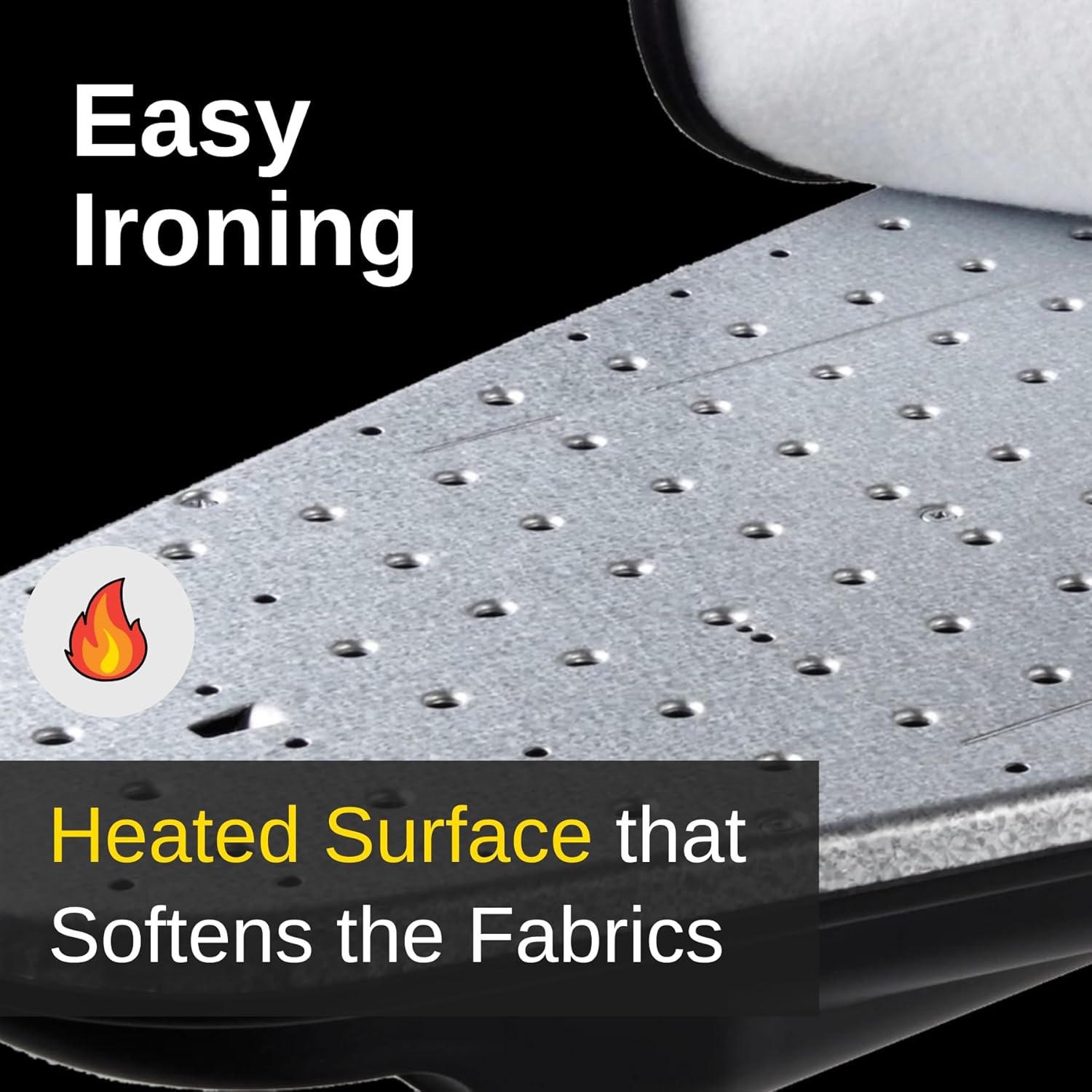

Figure 5.1: The heated surface softens fabrics and keeps the board dry.

• Suction Function: Activate the suction function. This pulls steam through the fabric, ensuring garments are dry and preventing moisture buildup. It also helps to hold lightweight items in place for precise ironing.

Figure 5.2: The suction function absorbs moisture, ensuring dry garments.

• Blowing Function: Turn on the blowing function for delicate items. This creates an air cushion between the garment and the board, allowing you to iron without direct pressure, ideal for preventing shine marks or flattening delicate textures.

Figure 5.3: The blowing function smooths out wrinkles by creating an air cushion.

5.3 Ironing Tips

• For most fabrics, use the heated surface and suction function simultaneously for best results.
• When ironing delicate fabrics, use the blowing function to avoid direct contact and pressure.
• Always check garment care labels for appropriate ironing temperatures.
• The board is compatible with any type of iron.

6. Maintenance

6.1 Cleaning the Ironing Board

• Always unplug the ironing board from the power outlet before cleaning.
• Wipe the exterior surfaces of the board with a damp cloth. Do not use abrasive cleaners or solvents.
• The board cover is machine washable. Remove it from the board and wash according to its care label. Ensure it is completely dry before reattaching.

6.2 Boiler Descaling (if applicable)

Regular descaling of the steam boiler is crucial to maintain performance and extend the life of your appliance. Follow the descaling instructions provided with your specific boiler unit. Typically, this involves using a descaling solution or a mixture of water and white vinegar.

7. Troubleshooting

If you encounter any issues not listed here or if the suggested solutions do not resolve the problem, please contact Foxydry customer support.

8. Specifications

9. Warranty & Support

Your Foxydry Vivo Full Steam ironing board comes with a 2-year guarantee from the date of purchase. This warranty covers manufacturing defects under normal use conditions.

For technical support, warranty claims, or any inquiries regarding your product, please contact Foxydry customer service. You can find contact information on the official Foxydry website or through your point of purchase.
