1. Safety Information
Please read and understand all instructions before assembly and use. Keep this manual for future reference.
- Weight Capacity: Do not exceed the maximum weight capacity of 660 lbs (300 kg). Exceeding this limit may cause structural failure and injury.
- Sharp Edges: Be cautious of sharp edges and metal parts during assembly and handling. Wear protective gloves if necessary.
- Assembly: Always follow the assembly instructions carefully to prevent instability or collapse. Ensure all connections are secure before use.
- Children: Keep small parts away from children during assembly. This product is not intended for use by children without adult supervision.
- Movement: When moving the bed frame, lift it rather than dragging it to prevent damage to the frame or floor, and to avoid dislodging support legs.
2. Setup and Assembly
The Giantex Queen Size Metal Canopy Bed Frame is designed for easy assembly. It is recommended that two adults assemble this product.
2.1. Unpacking and Parts Identification
Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Verify that all parts listed in the instruction manual are present. Each part is clearly labeled to simplify the process.
Image 2.1: Overview of all components included in the package.
2.2. Tools Required
- Hex Key (included)
- Small Wrench (included, for specific nuts)
- Phillips Head Screwdriver (not included, may be useful for some connections)
2.3. Assembly Steps
- Assemble the Headboard and Footboard: Connect the horizontal bars to the vertical posts of the headboard and footboard sections using the provided hardware. Do not fully tighten screws until all parts are aligned.
- Attach Side Rails: Connect the side rails to the assembled headboard and footboard. Ensure the connections are firm.
- Install Center Support Legs: Securely attach the central support beam and its legs to the main frame. These legs are crucial for stability and weight distribution.
- Place Metal Slats: Insert the metal slats into the designated slots on the side rails. Ensure all slats are properly seated and secured.
- Assemble Canopy Posts: Attach the four vertical canopy posts to the corners of the bed frame.
- Install Canopy Crossbars: Connect the horizontal crossbars to the top of the canopy posts to complete the canopy structure. Tighten all screws gently to avoid stripping, especially for plastic inserts.
- Final Tightening: Once all parts are correctly aligned and in place, go back and fully tighten all screws and bolts. Do not overtighten.
Image 2.2: Detail of the 11 sturdy metal slats providing mattress support.
Image 2.3: The completed bed frame structure, ready for mattress placement.
3. Usage and Operation
3.1. Mattress Placement
This platform bed frame is designed to support a mattress directly, eliminating the need for a box spring. You can use a mattress only, or a mattress with a box spring if preferred. The 11 sturdy metal slats provide even weight distribution and prolong mattress life.

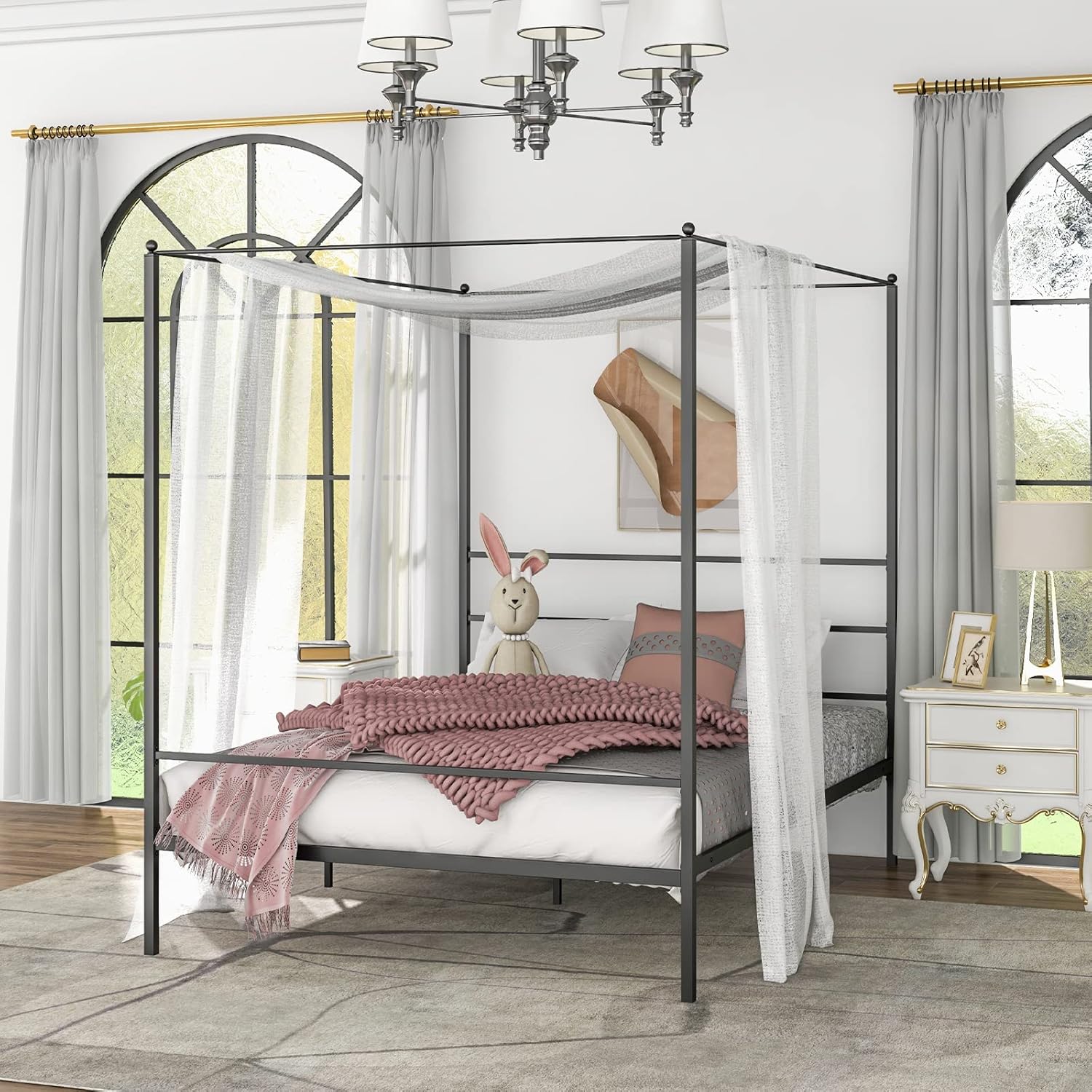

Image 3.1: The bed frame with a mattress and decorative canopy curtains.
3.2. Canopy Functionality
The four sturdy canopy posts and crossbars allow for hanging bed curtains or other decorative fabrics. This feature can create a personalized and elegant atmosphere in your bedroom.
Image 3.2: Detail of the canopy structure, suitable for hanging curtains.
3.3. Under-Bed Storage
The bed frame provides 12.5 inches of clearance from the floor. This space can be utilized for storage, helping to keep your room tidy and organized. It also allows for easy floor cleaning underneath the bed.

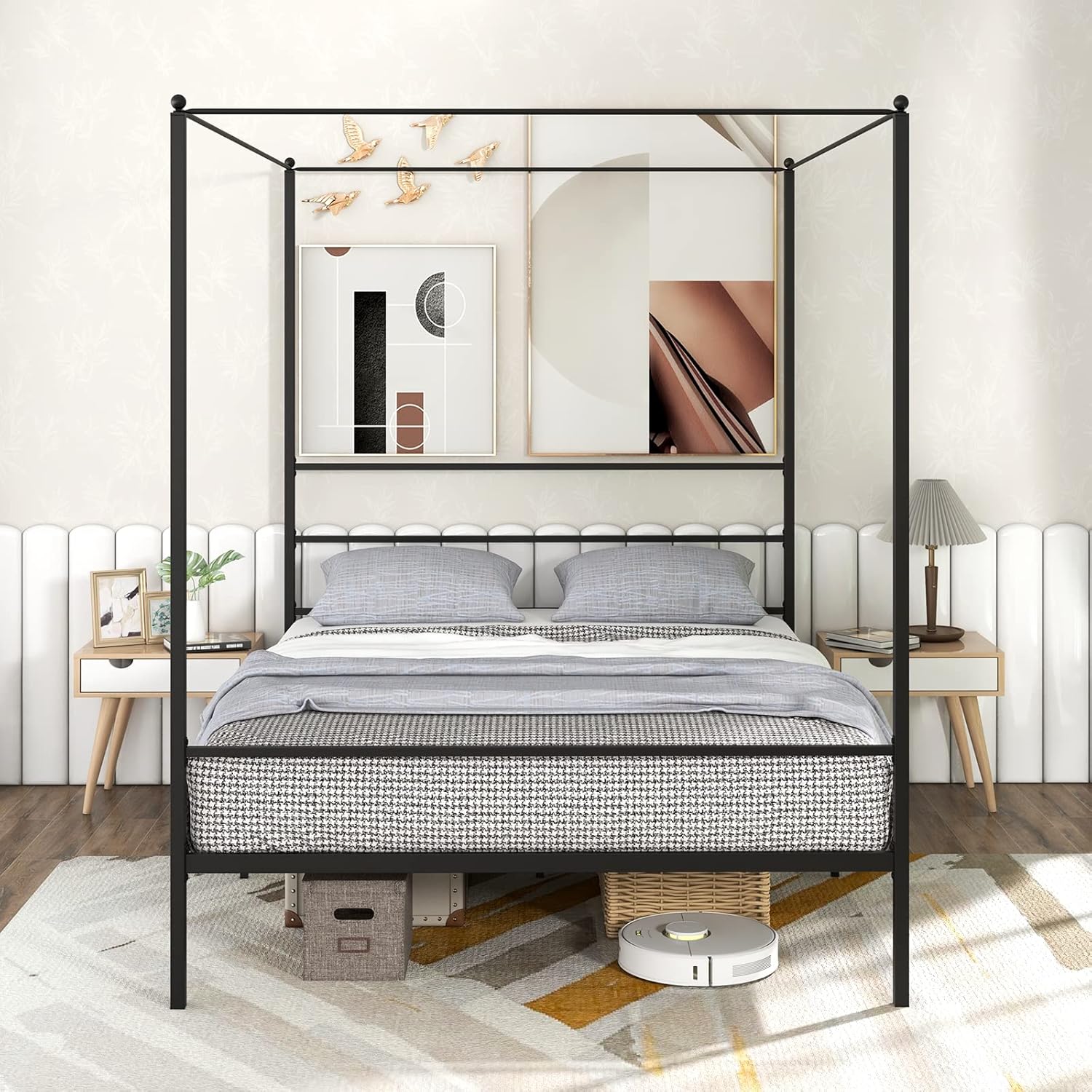

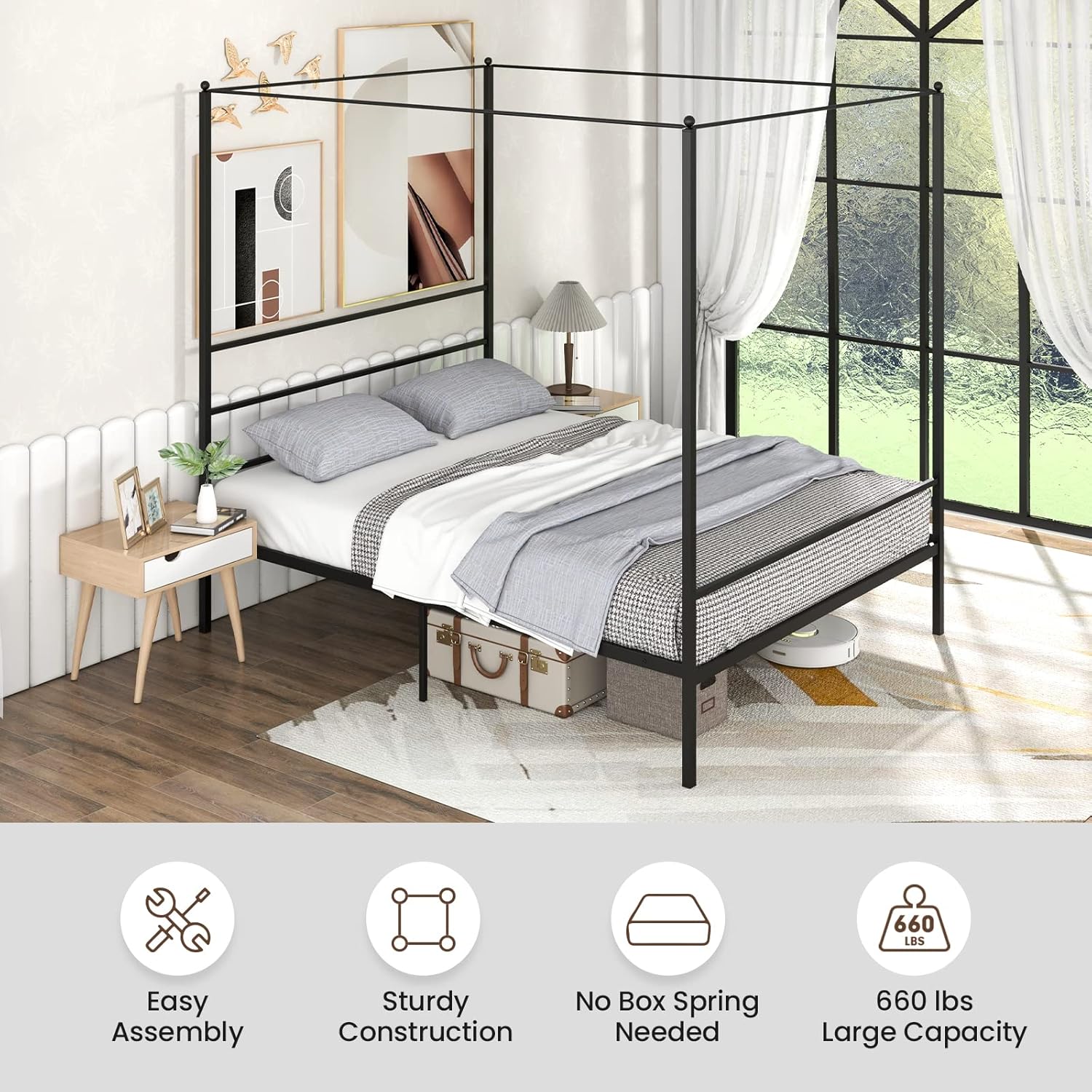

Image 3.3: Illustration of the under-bed storage space and ease of cleaning.
4. Maintenance
Regular maintenance helps ensure the longevity and safety of your bed frame.
- Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
- Hardware Check: Periodically inspect all screws, bolts, and connections to ensure they remain tight. Retighten any loose hardware to maintain stability.
- Foot Pads: The metal legs are fitted with non-slip foot pads to protect your floor. Ensure these pads are intact and in place. Replace if damaged.
- Rust Prevention: The frame features a rustproof coating. To maintain this, avoid prolonged exposure to moisture.
5. Troubleshooting
If you encounter any issues with your Giantex bed frame, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or unstable. | Loose hardware; uneven assembly; damaged support leg. | Ensure all screws and bolts are fully tightened. Re-check assembly steps for correct alignment. Inspect support legs for damage; if one is shorter, consider adding a shim. |
| Squeaking noises. | Loose connections; metal-on-metal friction. | Tighten all hardware. Apply a small amount of lubricant (e.g., silicone spray) to connection points if necessary. |
| Middle support legs dislodge when moving the bed. | Bed frame was dragged instead of lifted. | Always lift the bed frame when moving it to prevent dislodging the central support legs and damaging the floor. Re-position the legs if they have moved. |
| Screws strip during assembly. | Overtightening; misaligned parts. | Tighten screws gently, especially those connecting to plastic inserts. Ensure parts are correctly aligned before tightening. If a screw is stripped, contact customer support for replacement. |
| Bed frame does not support stated weight capacity. | Exceeded weight limit; improper assembly; damaged components. | Ensure the total weight on the bed (mattress + occupants) does not exceed 660 lbs. Verify all support legs and slats are correctly installed and undamaged. |
If the problem persists or is not listed here, please contact Giantex Customer Support.
6. Specifications
Detailed specifications for the Giantex Queen Size Metal Canopy Bed Frame.
Image 6.1: Dimensional overview of the Queen Size Metal Canopy Bed Frame.
| Feature | Detail |
|---|---|
| Model Number | GT10408DK-Q-HU |
| Size | Queen |
| Product Dimensions (L x W x H) | 82" x 61" x 75.5" (208.3 cm x 155 cm x 191.8 cm) |
| Material | Metal |
| Color | Black |
| Finish Type | Black Finish |
| Weight Capacity | 660 lbs (300 kg) |
| Item Weight | 61.5 lbs (27.9 kg) |
| Ground to Item Distance (Under-bed Clearance) | 12.5" (31.8 cm) |
| Assembly Required | Yes |
| Included Components | Canopy Bed Frame, Instruction Manual |
| Compatible Mattress Size | Queen |
| Form Factor | Four-Poster Canopy |
| Style | Modern |
7. Warranty and Support
7.1. Return Policy
This product is eligible for a 90-day easy return policy from the date of purchase. Please refer to your retailer's specific return guidelines for detailed information.
7.2. Customer Support
For any questions, missing parts, or assistance with assembly or troubleshooting, please contact Giantex Customer Support. You can typically find contact information on the retailer's website or within your purchase documentation.
