1. Introduction
Product Overview
The DEEPOWER 3-Blade Archery Broadheads are designed for hunting and shooting applications. Manufactured from durable 420 stainless steel, these broadheads are built to withstand multiple uses and can be resharpened. Each broadhead features a 3-blade design with a 1 1/8-inch cutting circle, optimized for effective performance.
Figure 1.1: DEEPOWER 3-Blade Broadhead
2. Setup
Installation
To install the broadhead, carefully screw it onto the threaded insert of your arrow shaft. Ensure the broadhead is securely tightened but do not overtighten. After installation, perform a spin test to verify that the broadhead spins true and without wobble. This ensures optimal flight accuracy.
Figure 2.1: Broadhead attached to an arrow
3. Operating
Flight Characteristics
These broadheads are designed to fly similarly to field points, promoting consistent accuracy. However, it is recommended to sight in your bow specifically with these broadheads to confirm point of impact, as slight variations can occur compared to field points.
Penetration and Effectiveness
The robust design and sharp blades of the DEEPOWER broadheads provide excellent penetration. They are capable of penetrating tough materials, including 0.08-inch thick steel plates, without damage to the blade edges. This strong penetration capability contributes to their effectiveness in hunting applications.
Figure 3.1: Broadhead penetrating a steel plate
Figure 3.2: Broadhead after use
4. Maintenance
Sharpening
The 420 stainless steel material allows for quick and effective resharpening. Use a fine grit sharpening stone or diamond hone to maintain a keen edge. Ensure the blade edges are evenly beveled during the sharpening process for optimal performance.
Durability
These broadheads are designed for high durability, capable of withstanding repeated impacts. Regular inspection for any damage after use is recommended. If damage occurs, the broadhead can often be restored through sharpening or minor repair.

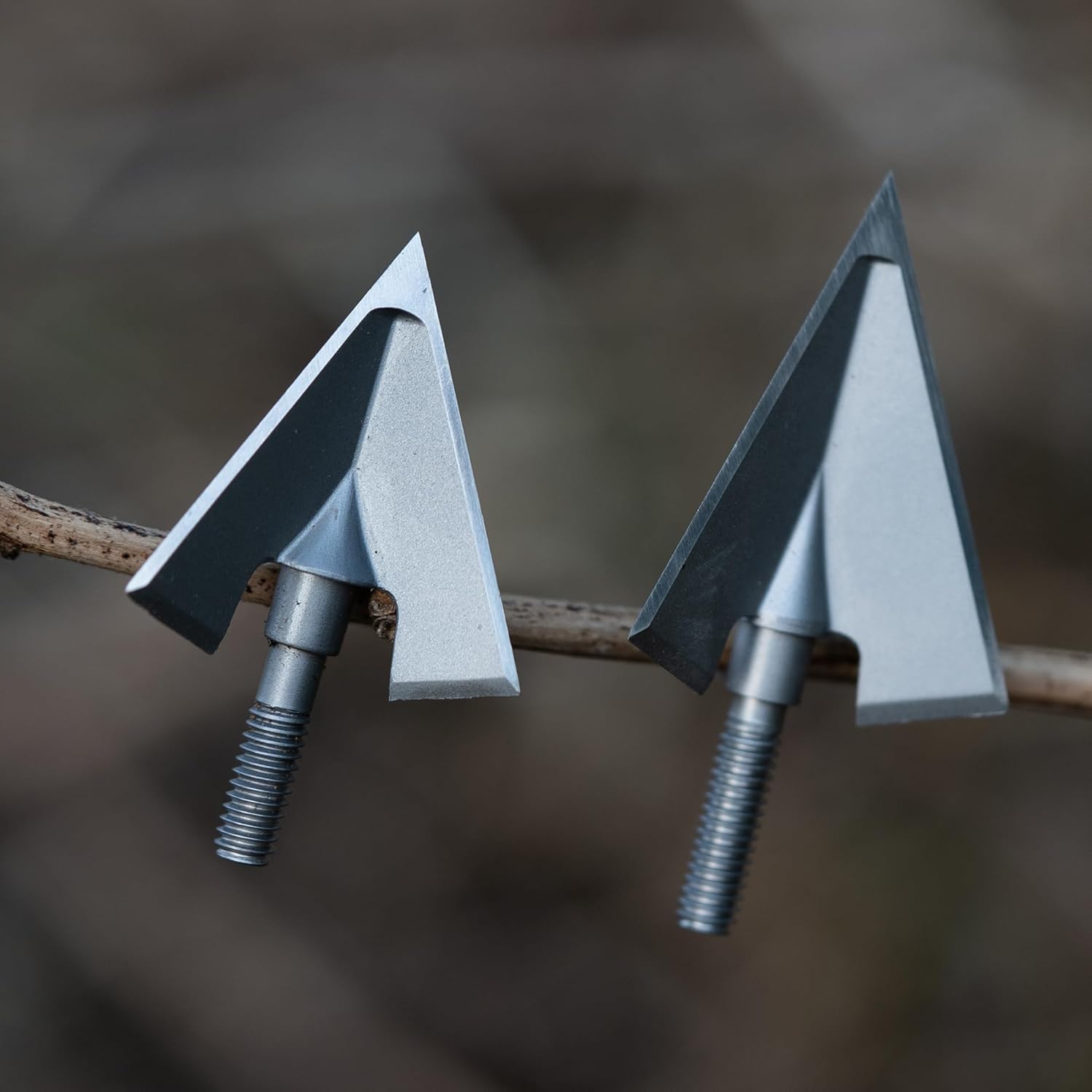

Figure 4.1: DEEPOWER Broadheads
5. Troubleshooting
Common Issues
- Broadhead not sharp out of the box: While manufactured sharp, individual preferences for sharpness may vary. The broadheads are designed for easy resharpening; use a suitable sharpening tool to achieve your desired edge.
- Inconsistent flight or shooting high: Broadheads can sometimes fly differently than field points. Always perform a spin test after installation to ensure the broadhead is perfectly aligned. If flight issues persist, sight in your bow specifically with the broadheads at your intended shooting distances.
6. Specifications
| Feature | Detail |
|---|---|
| Material | 420 Stainless Steel |
| Blade Count | 3 Blades |
| Grain Weight | 100 grain |
| Cutting Diameter | 1 1/8 inches |
| Package Quantity | 4 Broadheads per pack |
| Item Package Dimensions (L x W x H) | 4.09 x 3.98 x 1.14 inches |
| Package Weight | 0.16 Kilograms |
| ASIN | B08JPTLNW1 |
7. Warranty and Support
DEEPOWER provides a 45-day return policy for this product. Additionally, lifetime technical support is available. For any issues or assistance, please contact DEEPOWER customer service.
