Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Nexgrill Deluxe 5-Burner Propane Barbecue Gas Grill. Please read this manual thoroughly before assembly or operation to ensure proper use and to prevent injury or damage.
The Nexgrill Deluxe Series 5-Burner Gas BBQ Grill features a stainless steel lid and control panel, a 15,000 BTU side burner, and a total cooking area of 771 square inches. Designed for performance, it includes five stainless steel main burners, porcelain-enameled cast iron cooking grates, and a porcelain-coated warming rack. The Even-Heat System ensures consistent heat distribution, while the electronic ignition provides reliable starts. Heavy-duty casters allow for easy portability.
Key Features
- Spacious Cooking Surface: Offers 771 sq. in. of total cooking space, suitable for preparing a variety of foods simultaneously.
- Porcelain Cast Iron Cooking Grids: Provides a non-stick, rust-resistant, and crack-resistant surface for optimal heat distribution and easy cleaning.
- Powerful 60,000 BTU Output: Equipped with 5 main burners, each delivering 10,000 BTUs, for efficient and flavorful grilling.
- Enhanced Cooking with Side Burner: Features a 15,000 BTU ceramic searing side burner, ideal for preparing side dishes, boiling water, or making sauces.
- One-Button Electric Ignition: Ensures quick and reliable burner starts with a single push, eliminating the need for matches or lighters.
- Integrated Thermometer: Built into the lid for precise temperature monitoring.
- Even-Heat System: Designed to distribute heat uniformly across the entire cooking surface, preventing hot spots.
- Portable Design: Includes heavy-duty casters for easy movement and secure locking when stationary.
- Enclosed Storage: Convenient cabinet space beneath the grill for propane tank and accessories.
Image: Nexgrill Deluxe 5-Burner Gas Grill highlighting key features such as the searing side burner, side shelves, electronic ignition, enclosed storage, total BTU output, and dual fuel capability.
Setup and Assembly
Your Nexgrill Deluxe Gas Grill requires assembly. Please follow the detailed instructions provided in the separate assembly guide included with your product. Ensure all components are present and undamaged before beginning assembly.
Pre-Assembly Checklist:
- Verify all parts against the packing list.
- Ensure you have the necessary tools (e.g., screwdriver, wrench).
- Choose a level, stable outdoor location for the grill, away from combustible materials.
- Ensure adequate ventilation around the grill.
Connecting the Propane Tank:
- Ensure all burner control knobs are in the "OFF" position.
- Connect the regulator hose to the propane tank valve.
- Tighten the connection by hand. Do not overtighten.
- Perform a leak test as described in the assembly guide before first use.
Image: A fully assembled Nexgrill Deluxe 5-Burner Propane Barbecue Gas Grill, ready for use.
Operating Instructions
Lighting the Main Burners:
- Open the grill lid.
- Ensure the propane tank valve is fully open.
- Push and turn one main burner control knob to the "HIGH" position.
- Immediately press and hold the electronic ignition button until the burner ignites.
- If ignition does not occur within 5 seconds, turn the burner knob to "OFF", wait 5 minutes, and repeat the process.
- Once lit, adjust the flame to your desired cooking temperature.
Using the Ceramic Searing Side Burner:
The 15,000 BTU ceramic searing side burner is designed for high-heat searing or cooking in pots and pans.
- Open the side burner lid.
- Push and turn the side burner control knob to the "HIGH" position.
- Immediately press and hold the electronic ignition button until the side burner ignites.
- Adjust flame as needed.
Image: A detailed view of the 15,000 BTU Ceramic Searing Side Burner, ready for high-heat cooking.
Cooking Tips:
- Preheat the grill for 10-15 minutes with the lid closed to reach desired cooking temperature.
- Utilize the porcelain-enameled cast iron cooking grates for excellent heat retention and even cooking.
- Use the porcelain-coated warming rack to keep cooked food warm or to toast buns.
- Monitor internal grill temperature using the built-in thermometer.
Image: The spacious 771 sq. in. cooking surface of the grill, shown with various foods being cooked, including kebabs, chicken, and steak.
Image: A close-up view of the durable cast iron cooking grids and the upper warming rack, detailing their dimensions.
Maintenance and Care
Cleaning the Cooking Grates:
- After each use, while the grill is still warm, brush the cooking grates with a grill brush to remove food residue.
- For deeper cleaning, remove the grates and wash with warm, soapy water. Rinse thoroughly and dry completely before re-installing.
Cleaning Burners and Flame Tamers:
- Regularly inspect the stainless steel burners and angled flame tamers for blockages or corrosion.
- Clean burner ports with a wire brush if necessary. Ensure flame tamers are free of grease buildup to prevent flare-ups.

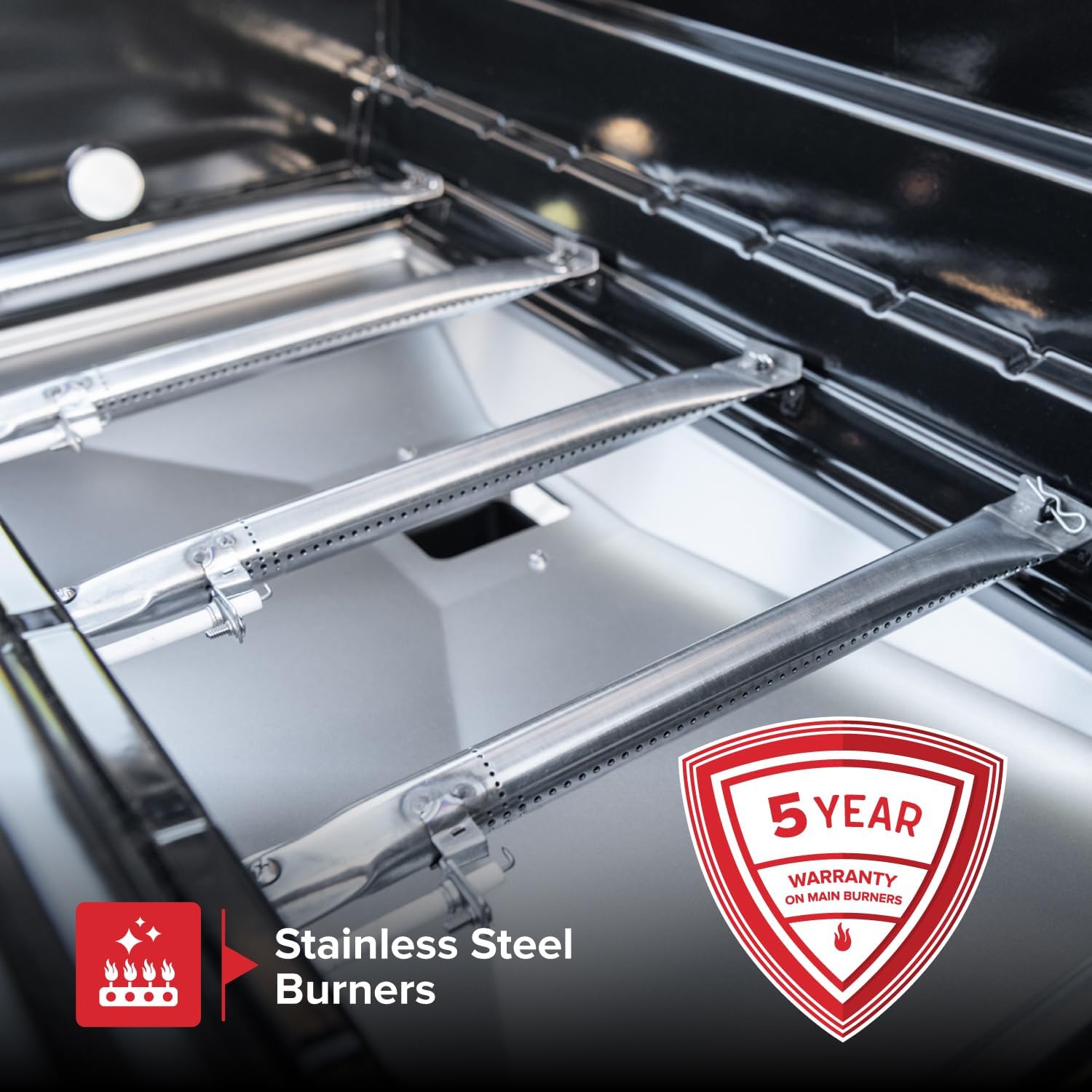

Image: A close-up view of the durable stainless steel burners, highlighting their construction and the 5-year warranty.
Exterior Care:
- Wipe down stainless steel surfaces with a soft cloth and a stainless steel cleaner.
- Keep the grill covered when not in use to protect it from the elements and prolong its lifespan.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner fails to ignite | No gas flow; clogged burner port; faulty igniter. | Check propane tank connection and level; clean burner ports; check igniter electrode and wire. |
| Uneven heating | Clogged burner ports; uneven flame tamers; low gas pressure. | Clean burner ports; ensure flame tamers are correctly positioned; check propane tank level and regulator. |
| Excessive flare-ups | Grease buildup on flame tamers or cooking grates; high heat setting. | Clean flame tamers and grates thoroughly; reduce heat setting; trim excess fat from meat. |
For more detailed troubleshooting steps, please refer to the complete user manual or contact Nexgrill customer support.
Product Specifications
- Brand: Nexgrill
- Model Name: 720-1046A
- Product Dimensions (D x W x H): 24.37"D x 56.02"W x 47.44"H
- Item Weight: 105.3 Pounds
- Fuel Type: Propane Gas
- Main Burner Count: 5
- Side Burner Count: 1 (Ceramic Searing Side Burner)
- Total Cooking Surface Area: 771 Square Inches
- Total Heating Power: 75,000 BTUs (5 x 10,000 BTU main burners + 15,000 BTU side burner)
- Material: Stainless Steel (Lid, Control Panel, Burners, Frame, Handle)
- Cooking Grates: Porcelain-Enameled Cast Iron
- Warming Rack Size: 32 x 7 inches
- Primary Cooking Size: 31.75 x 17.25 inches
- Ignition Type: Electronic Ignition
- Special Features: Ceramic Searing Side Burner, Even-Heat System with Angled Flame Tamers, Built-in Thermometer, Heavy-Duty Casters, Enclosed Storage.

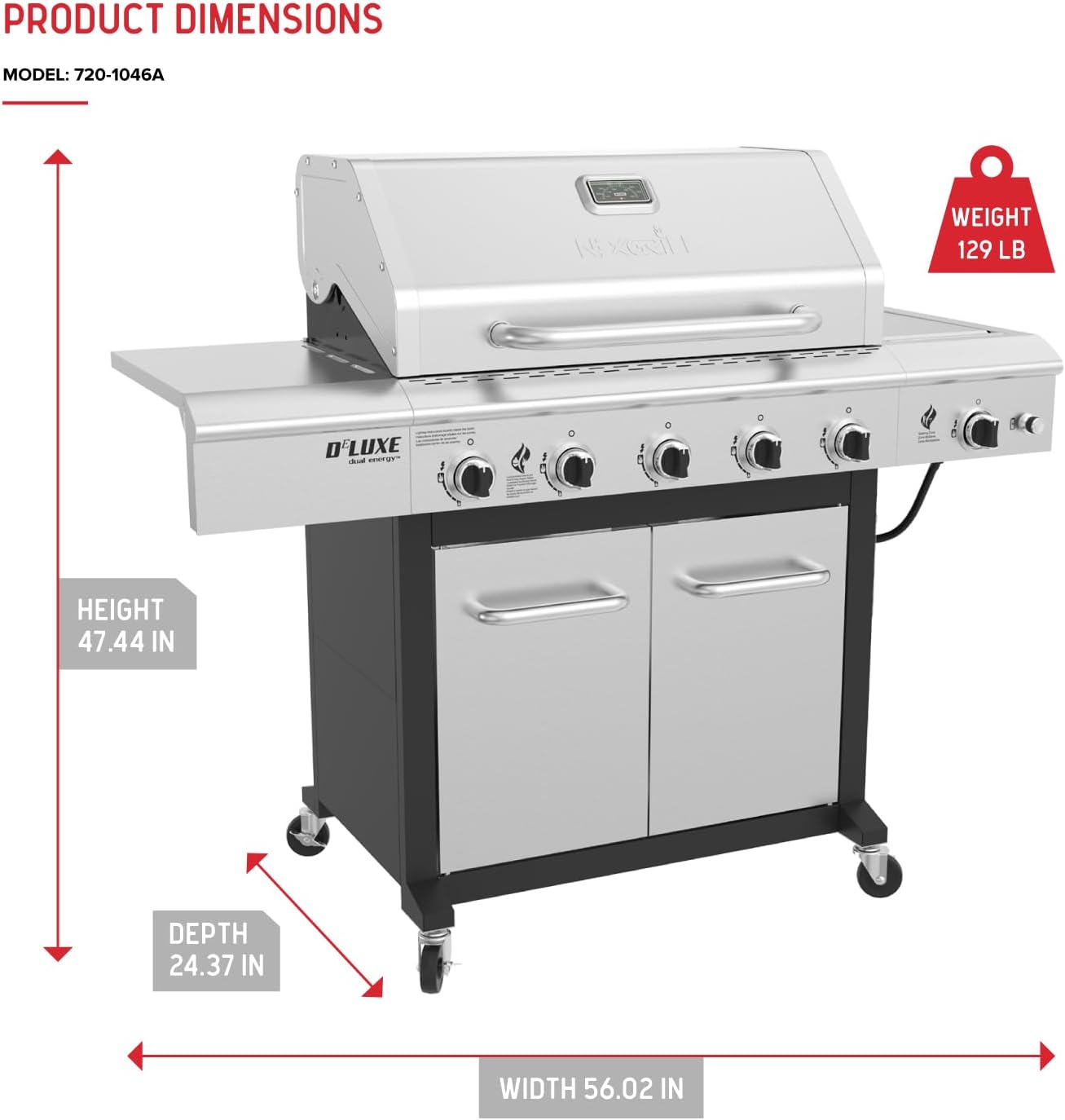

Image: Diagram illustrating the product dimensions (height, depth, width) and overall weight of the grill.
Warranty and Support
Nexgrill stands behind the quality of its products. This grill comes with a 5-year warranty on the main burners, ensuring long-lasting performance and peace of mind.
For warranty claims, technical assistance, or to purchase replacement parts, please contact Nexgrill Customer Support. Refer to the contact information provided in your product packaging or visit the official Nexgrill website.
Always use genuine Nexgrill replacement parts to maintain product integrity and warranty validity.
