XP Metal Detectors Deus II RC User Manual

Introduction

The XP Metal Detectors Deus II RC is the world's first fully wireless Fast Multi-Frequency (FMF) metal detector, designed for exceptional performance across all terrains, including land and underwater environments. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Deus II RC to ensure optimal treasure and relic hunting experiences.

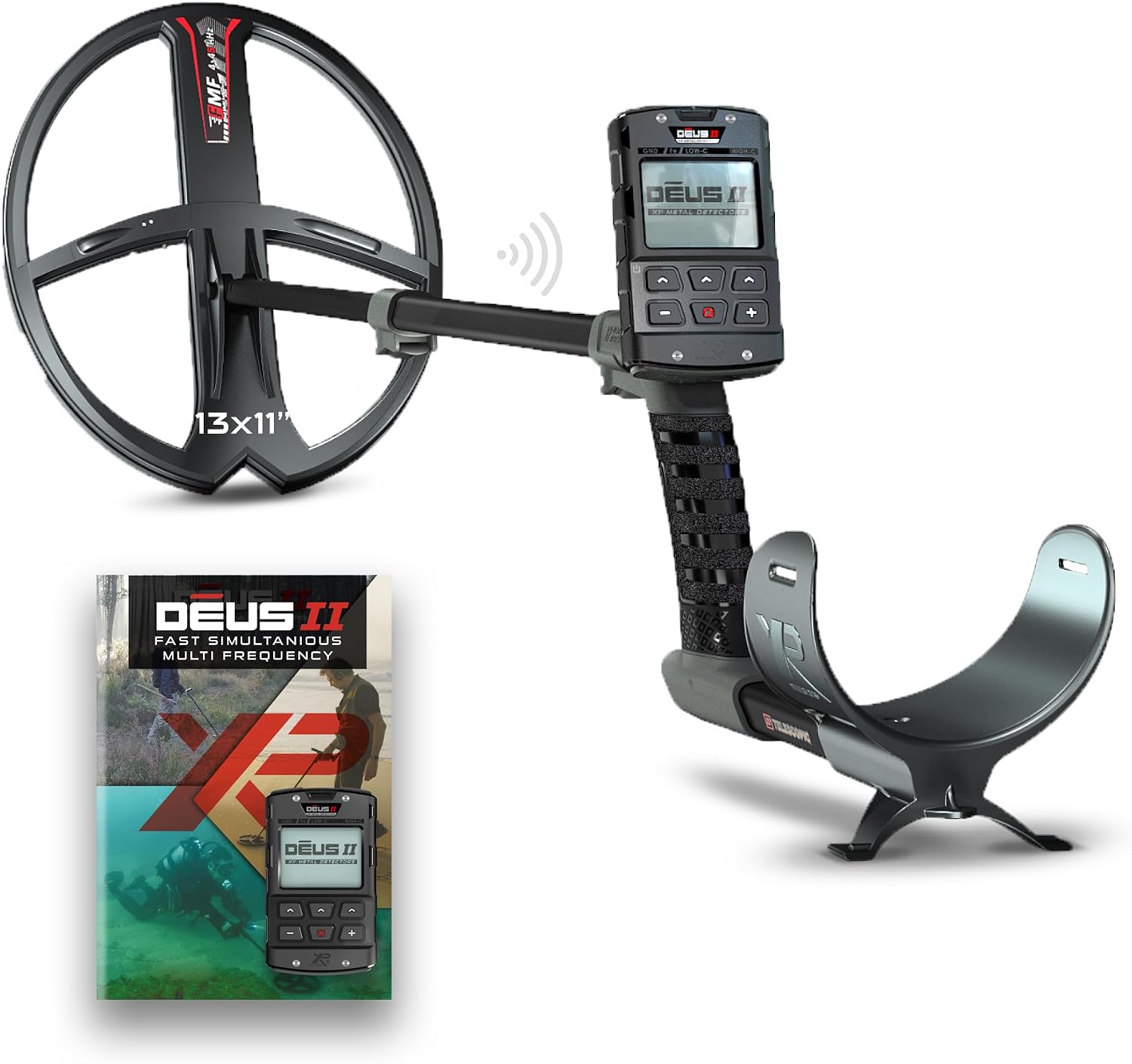

Image: The XP Metal Detectors Deus II RC, featuring the 13x11 inch FMF coil, wireless remote control, and S-Telescopic stem.

Setup

1. Assembly

Your Deus II RC comes with an S-Telescopic stem, a 13x11'' FMF coil, and a wireless remote control.

• Attach the 13x11'' FMF coil to the lower section of the S-Telescopic stem. Ensure it is securely fastened.
• Connect the middle and upper sections of the S-Telescopic stem. Adjust the length to a comfortable operating position.
• Mount the wireless remote control onto the designated holder on the stem. The remote control and coil are linked by XP's patented radio protocol system, ensuring a fast wireless connection.

2. Charging

The Deus II RC components (remote control, coil, and optional headphones) are powered by internal Lithium Polymer batteries.

• Use the provided charging cable to charge the remote control and coil.
• The remote control offers up to 30 hours of battery life, while the coil provides up to 20 hours, depending on programs and frequencies used.
• Ensure all components are fully charged before initial use for optimal performance.

3. Initial Power On

Press and hold the power button on the remote control to turn on the device. The remote control will automatically connect to the coil.

Operating Instructions

1. Fast Multi-Frequency (FMF) Technology

The Deus II RC utilizes Fast Multi-Frequency (FMF) technology, allowing it to operate across a wide spectrum of frequencies simultaneously. This provides high sensitivity and improved iron discrimination, making it effective for various target types and ground conditions.

Image: An overview of the Deus II, highlighting its FMF technology, ultra-light design, ergonomic adjustable stem, wireless coil, wireless remote control, and IP68 waterproofing.

2. Program Selection

The detector offers 12 pre-set Fast and simultaneous Multi-Frequency factory programs. Additionally, you can select from 49 single frequencies ranging from 4 to 45 kHz for mono-frequency detection.

• Navigate through the programs using the remote control's interface.
• Each program is optimized for specific detecting conditions or target types (e.g., coin, relic, gold, beach).
• Experiment with different programs to find the best setting for your environment.

Image: Close-up of the Deus II remote control, emphasizing its IP68 certification for submersion up to 66ft and up to 30 hours of lithium battery life.

Image: The Deus II wireless coil, illustrating its Fast Multi-Frequency capabilities (4-45 kHz) and advanced iron discrimination for various target sizes.

3. Audio Options

The Deus II RC offers rich audio options, including multiple dynamic audio choices like PWM and SQUARE, and a 4-band equalizer. This allows for precise adjustment of sounds to enhance target identification and efficiency.

4. All-Terrain Capability

The Deus II RC is designed for high performance on land, beaches (including wet sand), and underwater. It is certified IP68 waterproof up to 20 meters (66 feet).

Image: A person using the Deus II metal detector while diving underwater, demonstrating its waterproof capabilities for submerged treasure hunting.

Image: A person using the Deus II metal detector in a forest environment, illustrating its effectiveness for land-based relic and treasure hunting.

Image: A person using the Deus II metal detector on a beach, showcasing its ability to perform well even on wet sand for finding coins and jewelry.

Maintenance

1. Cleaning

• After each use, especially in sandy or muddy conditions, wipe down the coil and stem with a damp cloth.
• For saltwater use, rinse the coil and lower stem thoroughly with fresh water to prevent corrosion.
• The remote control can be wiped clean with a soft, dry cloth. Avoid using abrasive cleaners.

2. Battery Care

• Store the device with a partial charge (around 50%) if not used for extended periods.
• Avoid fully discharging the batteries frequently, as this can reduce their lifespan.
• Charge the batteries in a cool, dry environment.

3. Storage

Store your Deus II RC in a dry, temperate place, away from direct sunlight and extreme temperatures. Disassemble the stem if needed for compact storage.

Troubleshooting

For more detailed troubleshooting, refer to the comprehensive user manual available on the XP Metal Detectors website or contact customer support.

Specifications

Warranty and Support

Warranty Information

The XP Metal Detectors Deus II RC comes with a 5-year warranty, reflecting the manufacturer's commitment to quality and durability. Please retain your proof of purchase for warranty claims.

Customer Support

For technical assistance, service, or further inquiries, please visit the official XP Metal Detectors website or contact their authorized service centers. Detailed contact information can typically be found on the manufacturer's website or in the packaging materials.
