Keenetic Runner 4G N300 Mesh Router User Manual

1. Introduction

This manual provides detailed instructions for the installation, configuration, and operation of your Keenetic Runner 4G N300 Mesh Router. This device combines 4G/LTE mobile internet access with N300 Wi-Fi and Mesh capabilities, featuring a 4-port smart switch for versatile network connectivity. Please read this manual thoroughly before using the device to ensure proper setup and optimal performance.

2. Safety Information

• Ensure the router is placed in a well-ventilated area, away from direct sunlight, heat sources, and moisture.
• Use only the power adapter supplied with the device. Using an unauthorized adapter may damage the router and void the warranty.
• Do not open the router casing. Servicing should only be performed by qualified personnel.
• Keep the device away from children and pets.
• Avoid placing the router near strong electromagnetic fields.

3. Package Contents

Verify that your package contains the following items:

• Keenetic Runner 4G N300 Mesh Router (Model: KN-2211-01-EU)
• Type-C Power Adapter
• Multilingual Installation Manual

4. Product Overview

The Keenetic Runner 4G N300 is designed for reliable internet access via 4G/LTE and Wi-Fi. It features multiple ports and indicators for easy monitoring and connectivity.

4.1 Front View

Image: Front view of the Keenetic Runner 4G N300 Mesh Router, showing the Keenetic logo and indicator lights.

4.2 Side View and Dimensions

Image: Side view of the Keenetic Runner 4G N300 Mesh Router, illustrating its dimensions: 185 mm width, 32 mm height, and 184 mm antenna height.

4.3 Ports and Indicators

• SIM Slot: For inserting a Nano SIM card for 4G/LTE connectivity.
• Ethernet Ports: Four LAN ports for wired connections to devices.
• Power Port: Connects to the Type-C power adapter.
• External Antenna Connectors: Two connectors for optional external 4G/LTE antennas to enhance signal reception.
• LED Indicators: Provide status information for power, internet, Wi-Fi, and 4G/LTE signal.

5. Setup

5.1 Hardware Connection

1. Insert SIM Card: Locate the Nano SIM slot on the router. Gently insert your Nano SIM card until it clicks into place. Ensure the card is oriented correctly as indicated on the device.

Image: Close-up view of the Nano SIM slot on the Keenetic Runner 4G N300 Mesh Router, showing a SIM card being inserted.

2. Connect External Antennas (Optional): If you wish to use external 4G/LTE antennas for improved signal, connect them to the two external antenna connectors on the router.

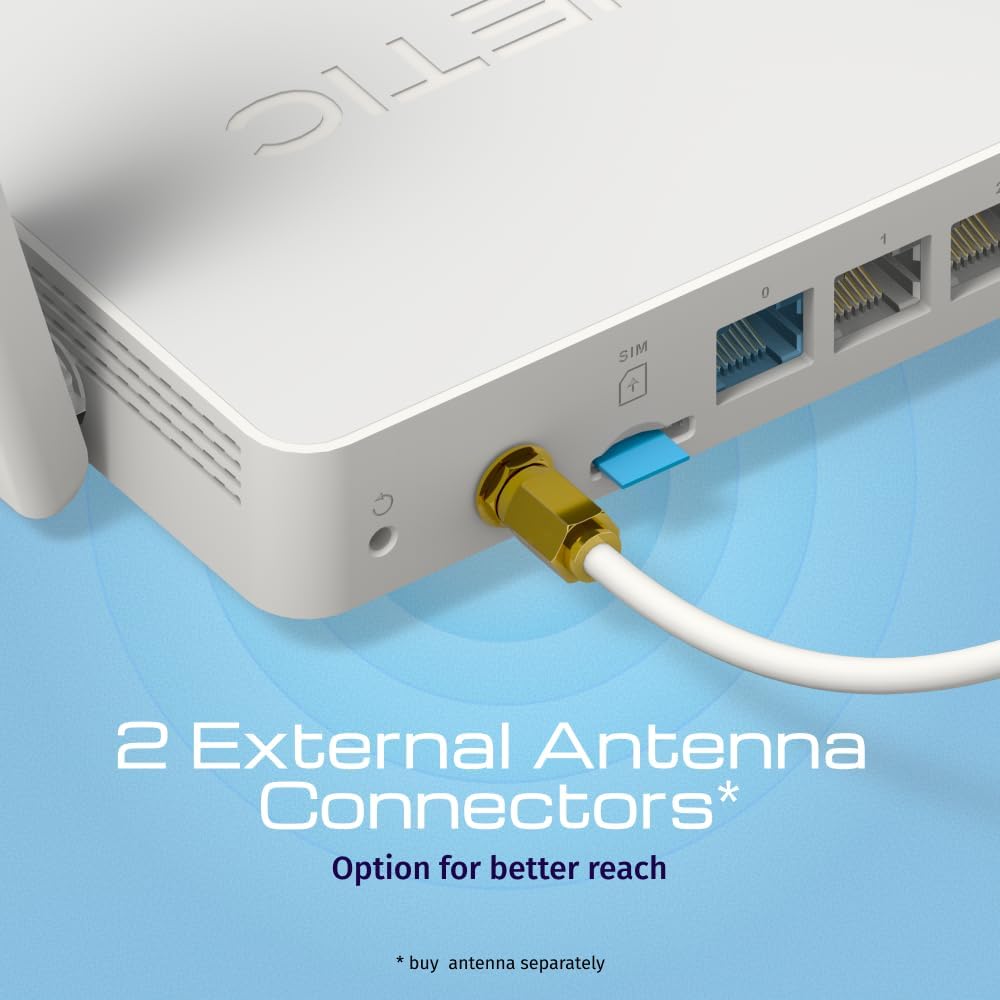

Image: View of the two external antenna connectors on the Keenetic Runner 4G N300 Mesh Router, with an antenna cable connected to one.

3. Connect Power: Plug the Type-C power adapter into the router's power port and then into a power outlet. The router will power on automatically.
4. Initial Connection: Connect your computer to one of the router's Ethernet LAN ports using an Ethernet cable, or connect wirelessly to the default Wi-Fi network (SSID and password usually found on a label on the router).

5.2 Initial Configuration

1. Access Web Interface: Open a web browser on your connected computer and enter the default IP address (e.g., 192.168.1.1 or my.keenetic.net).
2. Login: Enter the default username and password (usually admin for both, or as specified on the router label).
3. Follow Setup Wizard: The KeeneticOS web interface will guide you through the initial setup process, including setting up your internet connection (4G/LTE or Ethernet WAN), Wi-Fi network name (SSID), and password.
4. Update Firmware: It is recommended to check for and install the latest firmware updates for optimal performance and security.

6. Operating

6.1 4G/LTE Connectivity

The Keenetic Runner 4G N300 provides mobile internet access with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, depending on your mobile network provider and signal strength.

Image: Graphic illustrating the mobile internet capabilities of the Keenetic Runner 4G N300, showing download speeds up to 150 Mbps and upload speeds up to 50 Mbps.

6.2 Wi-Fi Network Configuration

You can configure your Wi-Fi network settings, including SSID, security type (WPA2/WPA3 recommended), and password, through the KeeneticOS web interface or the Keenetic mobile app.

6.3 Mesh Wi-Fi Network Setup

The Keenetic Runner supports Mesh Wi-Fi technology, allowing you to expand your network coverage by adding other Keenetic Mesh-compatible devices. Refer to the KeeneticOS documentation for detailed instructions on setting up a Mesh system.

6.4 Advanced Features (KeeneticOS)

KeeneticOS, the router's operating system, offers a range of advanced features for network management and security.

6.4.1 VPN and DNS Filters

The router supports various VPN protocols and DNS filtering services for enhanced privacy and security.

Image: Graphic showcasing KeeneticOS support for over 50 VPN features (WireGuard, OpenVPN, IPSec) and DNS filters (AdGuard, Cloudflare, OpenDNS).

6.4.2 Network Management via Keenetic App

Manage your network from anywhere using the Keenetic mobile application, providing real-time control and monitoring.

Image: Screenshot of the Keenetic App interface, demonstrating features like network overview, device list, and Quality of Service (QoS) management.

6.4.3 Smart Home & IoT Readiness

The router supports network segmentation and cybersecurity features to secure and manage your smart home and IoT devices.

Image: Diagram illustrating how the Keenetic Runner supports Smart Home and IoT devices through network segmentation and cybersecurity, showing devices connected within a home environment.

6.4.4 Advanced Parental Controls

Implement parental controls to ensure safer browsing for children, including scheduling internet access, application filtering, and DNS-based content filtering.

Image: Screenshot of the KeeneticOS parental control interface, displaying options for schedules by age group, application filters, and DNS-based filters.

6.4.5 KeeneticOS Overview

KeeneticOS is a modular operating system that powers every Keenetic router, offering continuous updates, robust security, a unified platform across devices, and extensive customization options.

Image: Graphic highlighting the core aspects of KeeneticOS: always updated and safe, a unified platform across devices, customizable and modular, and providing long-term value.

7. Maintenance

7.1 Firmware Updates

Regularly check for and install firmware updates through the KeeneticOS web interface or the Keenetic App. Firmware updates provide new features, performance improvements, and security patches.

7.2 Resetting the Device

If you encounter persistent issues, you may perform a factory reset. Locate the reset button (often a small pinhole) on the router. With the router powered on, press and hold the reset button for approximately 10 seconds until the indicators change. This will restore the router to its factory default settings.

8. Troubleshooting

• No Internet Connection:
  • Check if the SIM card is properly inserted and activated.
  • Verify 4G/LTE signal strength via the router's indicators or web interface.
  • Ensure your internet service provider (ISP) account is active.
  • Restart the router and your connected devices.
• Slow Speeds:
  • Check 4G/LTE signal strength; consider using external antennas if signal is weak.
  • Ensure no other devices are consuming excessive bandwidth.
  • Perform a speed test to confirm the issue.
• Wi-Fi Connection Issues:
  • Verify Wi-Fi password.
  • Move closer to the router to improve signal.
  • Check for interference from other electronic devices.
• Router Unresponsive:
  • Unplug the power adapter, wait 10 seconds, then plug it back in.
  • If the issue persists, perform a factory reset (refer to Section 7.2).

9. Specifications

10. Warranty and Support

For warranty information and technical support, please refer to the official Keenetic website or contact your local Keenetic distributor. Keep your purchase receipt for warranty claims.
