Introduction
The IKEA STENKOL battery charger is designed to efficiently and safely recharge your AA and AAA NiMH batteries. With its user-friendly design and intelligent charging features, it ensures your batteries are always ready when you need them, contributing to a more sustainable lifestyle by reducing the need for disposable batteries.
Image: The IKEA STENKOL battery charger, a compact grey unit with four battery slots.
Safety Information
Please read all safety instructions carefully before using the STENKOL battery charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Use only with rechargeable NiMH batteries (AA and AAA types). Do not attempt to charge alkaline, carbon-zinc, or any other type of non-rechargeable batteries.
- Do not expose the charger to rain or moisture.
- Do not operate the charger if it has been damaged in any way.
- Keep the charger away from direct sunlight and heat sources.
- Ensure proper ventilation during charging. Do not cover the charger.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
Package Contents
Verify that all items are present in the package:
- 1 x IKEA STENKOL Battery Charger
- 1 x User Manual (this document)
Setup
1. Unpacking
Carefully remove the STENKOL battery charger from its packaging. Retain the packaging for future storage or transport.
2. Initial Inspection
Inspect the charger for any visible damage. If the charger appears damaged, do not use it and contact IKEA customer support.
3. Connecting to Power
The STENKOL charger features an integrated plug. Simply plug the charger directly into a standard wall socket. Ensure the socket is easily accessible.
Image: The STENKOL charger plugged into a white wall outlet, ready for use.
Operating Instructions
1. Inserting Batteries
Insert 1 to 4 rechargeable AA or AAA NiMH batteries into the charging slots. Ensure the positive (+) and negative (-) terminals of the batteries align correctly with the markings inside the charger slots. Incorrect insertion can damage the batteries and the charger.
Image: The STENKOL charger with four IKEA LADDA AA batteries correctly inserted into the charging slots.

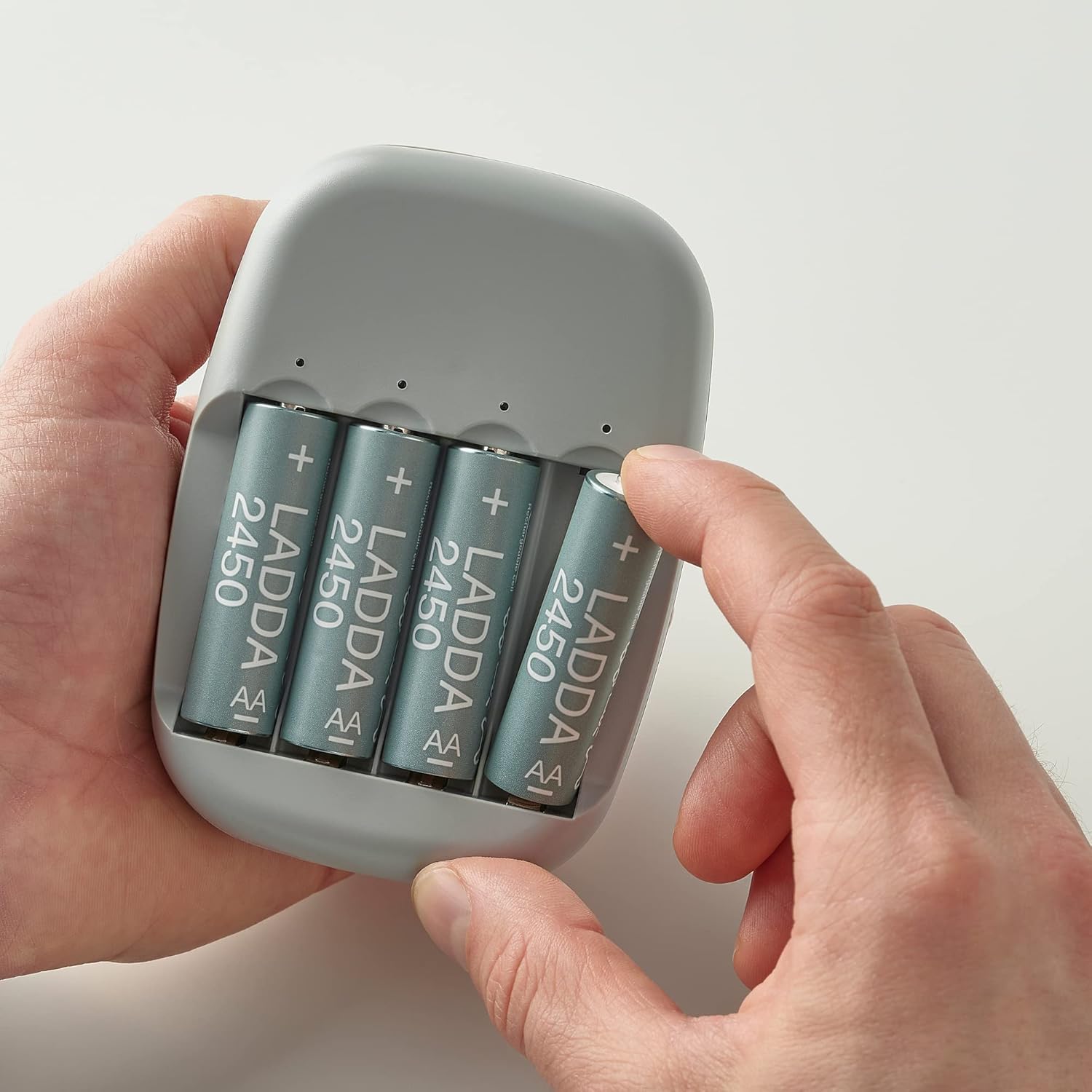

Image: A hand carefully inserting a rechargeable battery into one of the charger's slots.
2. Charging Process
Once batteries are correctly inserted and the charger is plugged into a power outlet, the indicator lights above each slot will illuminate to show the charging status. The charger will automatically turn off when the batteries are fully charged, defective, or too hot, ensuring safety and preventing overcharging.
3. Removing Batteries
Once charging is complete (indicated by the lights changing or turning off, depending on the model's specific behavior), unplug the charger from the wall socket. Carefully remove the charged batteries from the slots. The batteries may feel slightly warm, which is normal.
Image: A hand gently removing a charged battery from the STENKOL charger.
Maintenance
- Cleaning: Disconnect the charger from the power outlet before cleaning. Wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Storage: When not in use, store the charger in a cool, dry place, away from direct sunlight and extreme temperatures.
- Battery Care: For optimal battery life, avoid completely draining rechargeable batteries before recharging.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger indicator lights do not illuminate. | No power to the charger; batteries inserted incorrectly; batteries are fully charged or defective. | Check if the charger is securely plugged into a working outlet. Ensure batteries are inserted with correct polarity. Try charging different batteries to confirm charger functionality. |
| Batteries are not charging. | Batteries are non-rechargeable; batteries are severely discharged or defective; charger malfunction. | Ensure you are using only NiMH rechargeable batteries. Try charging the batteries in a different charger if available. If issues persist, the batteries may need replacement. |
| Charger or batteries become excessively hot. | Poor ventilation; defective batteries; charger malfunction. | Unplug the charger immediately. Ensure the charger is in a well-ventilated area. Do not cover it. If the issue recurs, discontinue use and contact customer support. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 00506448 |
| Product Dimensions | 0.79 x 3.94 x 4.72 inches |
| Item Weight | 8.8 ounces (250 Grams) |
| Compatible Battery Types | AA and AAA NiMH rechargeable batteries |
| Charging Channels | 4 individual channels |
| Output Voltage | 1.5 Volts |
| Safety Features | Automatic shut-off (when full, defective, or too hot) |
| Material | 50% recycled plastic |
| Certification | CE |
| Date First Available | February 15, 2023 |
Warranty Information
IKEA products are designed with quality and durability in mind. For specific warranty details regarding your STENKOL battery charger, please refer to the warranty card included with your purchase or visit the official IKEA website. Keep your proof of purchase for any warranty claims.
Customer Support
If you have any questions, concerns, or require assistance with your IKEA STENKOL battery charger, please contact IKEA customer support. You can find contact information on the official IKEA website or by visiting your local IKEA store.
