SparkPod 3-Inch Extreme High Pressure Shower Head User Manual

Introduction

This manual provides instructions for the installation, operation, and maintenance of your SparkPod 3-Inch Extreme High Pressure Shower Head. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.

Image: The SparkPod 3-Inch Extreme High Pressure Shower Head in Polished Chrome finish, demonstrating water flow.

Product Overview

Key Features:

• High Flow Design: Features 52 outlets and three spray settings (Rain, Massage, Rain + Massage).
• Pressure Boosting: Designed to enhance water pressure, especially in low-pressure environments.
• Anti-Clog Nozzles: Technology to prevent limescale buildup.
• Durable Construction: Crafted from premium ABS material for rust and corrosion resistance.
• Water-Efficient: Provides a powerful shower experience while conserving water.
• Adjustable Angle: Equipped with a brass swivel ball for directional adjustment.

Package Contents:

Image: Diagram showing all included components: A - Rain Shower Head, B - 2.5 GPM Flow Restrictor (Bonus), C - 1.8 GPM Flow Restrictor (Pre-installed), D - Screened Washer (x2), E - Plumber's Tape, F - Product Guide.

• Rain Shower Head (1)
• 1.8 GPM Flow Restrictor (pre-installed) (1)
• 2.5 GPM Flow Restrictor (optional) (1)
• Screened Washers (2)
• Plumber's Tape (1 roll)
• Product Guide (1)

Safety Information

Please observe the following safety guidelines during installation and use:

• Ensure water supply is turned off before beginning installation to prevent leaks or water damage.
• Do not overtighten connections, as this may damage threads or components.
• Use only hand-tightening for most connections; a wrench may be used gently if necessary, but avoid excessive force.
• Keep small parts away from children.

Installation Instructions

The SparkPod shower head is designed for tool-free installation. Follow these steps for a quick setup:

1. Prepare the Shower Arm: Ensure your existing shower arm is clean and free of debris. If replacing an old shower head, unscrew it from the shower arm.
2. Apply Plumber's Tape: Wrap the included plumber's tape clockwise around the threads of your shower arm 3-5 times. This helps create a watertight seal.
3. Attach the Shower Head: Screw the SparkPod shower head onto the taped shower arm threads. Hand-tighten until snug. Avoid using tools if possible, as overtightening can cause damage.
4. Check for Leaks: Turn on the water supply and check for any leaks around the connection point. If leaks occur, tighten slightly more or reapply plumber's tape.

Image: Visual guide for the 1-minute, tool-free installation process of the shower head onto a shower arm (sold separately).

Flow Restrictor Information:

Your shower head comes with a 1.8 GPM (Gallons Per Minute) flow restrictor pre-installed for water efficiency. A 2.5 GPM flow restrictor is also included for those desiring higher flow rates. To change or remove the flow restrictor:

• Unscrew the shower head from the shower arm.
• Locate the flow restrictor inside the shower head's connection point. It is typically a small colored disc.
• Carefully remove the existing restrictor using small pliers or tweezers.
• Insert the desired flow restrictor (or leave it out for maximum flow, if local regulations permit) and reattach the shower head following the installation steps above.

Operating Instructions

The SparkPod shower head offers three distinct spray settings:

Image: A visual representation of the three available spray settings: Rain, Pulsating Massage, and a combination of Rain and Massage.

• Rain Mode: Provides a wide, gentle coverage, simulating natural rainfall.
• Pulsating Massage Mode: Delivers a focused, invigorating spray for muscle relief.
• Rain + Massage Mode: Combines both spray patterns for a comprehensive and relaxing experience.

To switch between spray settings, gently rotate the outer ring of the shower head. The settings will click into place as you turn it.

Adjusting the Angle:

The shower head features a brass swivel ball joint, allowing you to adjust the spray angle to your preference. Simply tilt the shower head to direct the water flow.

Image: The shower head mounted on a shower arm, demonstrating its adjustable angle capability via a brass swivel ball.

Maintenance

Regular maintenance will help ensure optimal performance and extend the life of your SparkPod shower head.

• Cleaning Nozzles: The anti-clog nozzles are designed to resist mineral buildup. If you notice reduced water flow or uneven spray, gently rub the rubber nozzles with your finger or a soft brush to dislodge any mineral deposits.
• General Cleaning: Clean the exterior of the shower head with a soft cloth and mild soap or a non-abrasive bathroom cleaner. Avoid harsh chemicals or abrasive scrubbers, as these can damage the finish.
• Deep Cleaning (if necessary): For stubborn mineral buildup, you can unscrew the shower head and soak it in a solution of equal parts white vinegar and water for a few hours, then scrub and rinse thoroughly.

Troubleshooting

Specifications

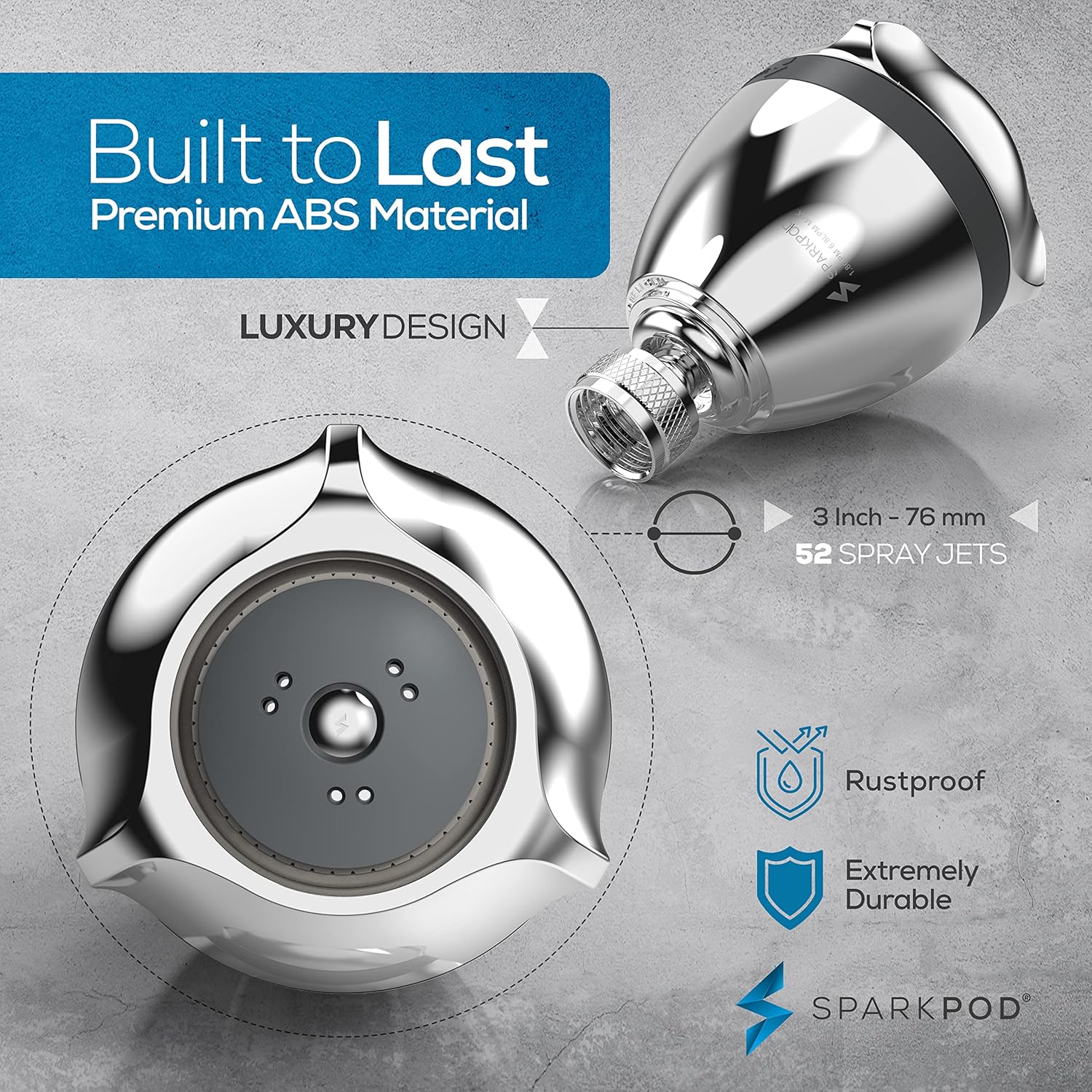

Image: Detailed view of the shower head highlighting its 3-inch (76mm) size, 52 spray jets, premium ABS material, rustproof, and durable construction.

Warranty and Support

For warranty information or technical support, please contact SparkPod customer service. Details can typically be found on the SparkPod official website or through the retailer where the product was purchased.

Manufacturer: Spark Pod LLC

Contact: Refer to the official SparkPod website for the most current contact information.
