leikefitness Adjustable Weight Bench GM5809 User Manual

1. Introduction

Thank you for choosing the leikefitness Adjustable Weight Bench GM5809. This manual provides essential information for the safe assembly, operation, and maintenance of your new exercise equipment. Please read this manual thoroughly before use and retain it for future reference.

The leikefitness GM5809 is a versatile, foldable weight bench designed for full-body workouts, offering multiple adjustable positions for incline, decline, upright, and flat exercises. Its robust construction ensures stability and durability for various strength training routines.

2. Safety Information

WARNING: Before starting any exercise program, consult your physician. This is especially important for individuals over the age of 35 or those with pre-existing health conditions.

• Always inspect the bench for loose parts, damage, or wear before each use. Do not use if damaged.
• Ensure all bolts and adjustment pins are securely locked in place before beginning an exercise.
• Place the bench on a flat, stable surface. Do not use on uneven ground.
• Keep children and pets away from the equipment during use.
• Do not exceed the maximum weight capacity of 300 kg (660 lbs). This includes user weight plus any weights being lifted.
• Use proper lifting techniques and maintain control of weights at all times.
• Wear appropriate exercise attire and footwear.
• Stop exercising immediately if you feel pain, dizziness, or nausea.

3. Package Contents

Carefully unpack all components and verify that all parts are present. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Main bench frame (pre-assembled sections)
• Seat cushion
• Backrest cushion
• Leg support rollers
• Fastening bolts and tools (typically 5 bolts for final assembly)
• User Manual

4. Assembly and Setup

The leikefitness GM5809 bench is designed for quick and easy assembly, typically requiring only a few bolts to secure the main components.

1. Unpack Components: Remove all parts from the packaging and lay them out on a clean, flat surface.
2. Unfold the Frame: Carefully unfold the main frame of the bench. Ensure the primary support legs are fully extended and stable.
3. Attach Cushions: Secure the seat and backrest cushions to the frame using the provided bolts. Ensure they are tightly fastened.
4. Install Leg Support Rollers: Attach the leg support rollers to their designated positions on the bench.
5. Final Inspection: Double-check all bolts and adjustment pins to ensure they are securely tightened and locked before first use.

Figure 1: Illustration of pulling out the bolt to initiate folding or unfolding the bench for storage or use.

5. Operating Instructions

5.1 Adjusting the Bench Positions

The leikefitness GM5809 offers 6 backrest positions and 3 seat positions for a wide range of exercises. Adjustments are made using the quick-release pins and automatic lock mechanism.

1. Backrest Adjustment: Locate the adjustment pin at the base of the backrest. Pull the pin out, adjust the backrest to your desired angle (incline, decline, upright, or flat), and release the pin. Ensure the pin fully engages in one of the 6 available slots for secure locking.
2. Seat Adjustment: Locate the adjustment pin under the seat. Pull the pin out, adjust the seat to one of the 3 available angles, and release the pin. Ensure the pin fully engages for secure locking.

Figure 2: Demonstrates the quick adjustment mechanism for the seat, highlighting the automatic lock feature for secure positioning.

5.2 Folding for Storage

The bench can be easily folded for compact storage, making it ideal for smaller spaces.

1. Adjust to Flat Position: Ensure both the backrest and seat are in their flat, lowest positions.
2. Release Locking Pin: Locate the main locking bolt/pin that secures the bench in its extended position (refer to Figure 1). Pull this bolt out.
3. Fold the Bench: Carefully fold the bench inwards until it reaches its compact, stored configuration. Ensure all parts are nested correctly.
4. Secure for Storage: If applicable, re-engage the locking pin or use any provided straps to keep the bench securely folded.

5.3 Exercise Examples

The leikefitness GM5809 supports a variety of exercises targeting different muscle groups. Always ensure the bench is stable and correctly adjusted for your chosen exercise.

Figure 3: Examples of exercises that can be performed using the leikefitness Adjustable Weight Bench, demonstrating its versatility for full-body workouts.

6. Maintenance

Regular maintenance will prolong the life of your leikefitness Adjustable Weight Bench.

• Cleaning: Wipe down the bench with a damp cloth after each use to remove sweat and dirt. Use a mild soap solution for deeper cleaning if necessary, then wipe dry. Do not use abrasive cleaners.
• Inspection: Periodically check all bolts, nuts, and adjustment pins for tightness. Tighten any loose fasteners. Inspect the frame for any signs of cracks or damage. Check the upholstery for tears or excessive wear.
• Storage: Store the bench in a dry, cool place away from direct sunlight and extreme temperatures. When folded, ensure it is stable and not prone to tipping.

7. Troubleshooting

If you encounter issues with your leikefitness Adjustable Weight Bench, refer to the following common solutions:

• Bench feels unstable: Ensure the bench is on a flat, level surface. Check that all assembly bolts are securely tightened. Verify that adjustment pins are fully engaged in their respective slots.
• Difficulty adjusting positions: Ensure the adjustment pins are fully pulled out before attempting to change positions. Check for any obstructions or debris in the adjustment holes. Apply a small amount of silicone lubricant to the moving parts if resistance persists.
• Squeaking noises: Inspect all connection points and bolts. Tighten any loose fasteners. A small amount of lubricant on pivot points may help.

If problems persist, please contact customer support.

8. Specifications

Figure 4: Details on the heavy-duty construction, including thickened steel pipe and soft foam padding, contributing to the bench's high weight capacity.

Figure 5: Close-up view of key design elements such as the curved support, extended seat, non-slip feet, and quick automatic lock for enhanced safety and comfort.

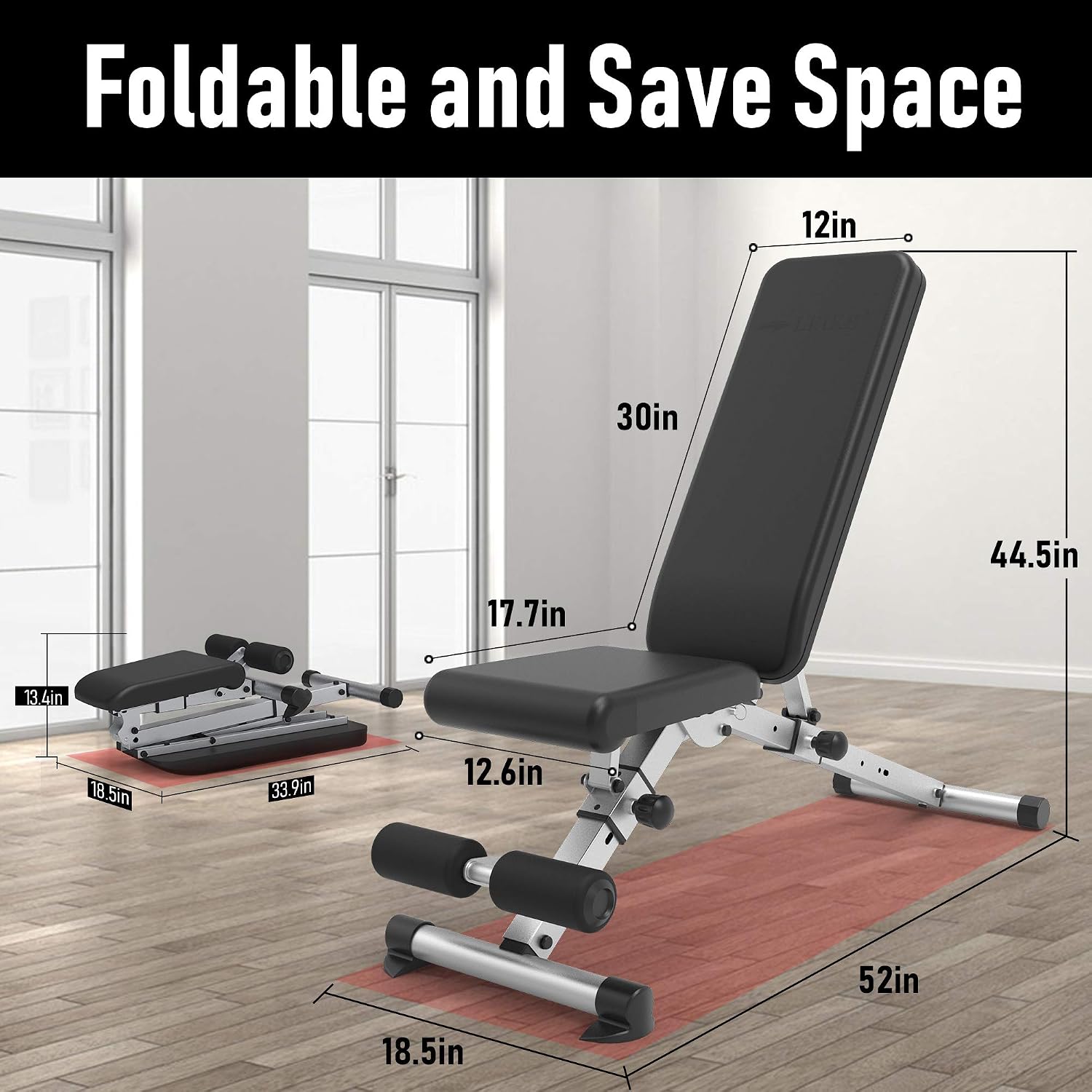

Figure 6: Overview of the bench's dimensions in both unfolded and folded states, illustrating its space-saving design.

9. Warranty and Support

leikefitness is committed to providing quality products and efficient after-sale service.

Warranty: The product comes with a standard warranty as per regional consumer protection laws. Please refer to your purchase documentation for specific warranty terms.

Customer Support: If you have any questions about your product, require assistance with assembly, operation, or encounter any issues, please contact us through your Amazon account:

1. Log in to your Amazon account.
2. Go to "Your Orders".
3. Find the order ID for your leikefitness Adjustable Weight Bench.
4. Click on "Contact Seller".

Our support team will assist you promptly.
