Original KAABO Charger User Manual

Introduction

This manual provides essential information for the safe and efficient use of your Original KAABO Charger. Please read this manual thoroughly before using the charger and retain it for future reference. This charger is specifically designed for Kaabo Mantis 10 60V Electric Scooters.

Important Safety Instructions

• Use this charger only with compatible Kaabo Mantis 10 60V Electric Scooters. Using it with incompatible devices may cause damage or injury.
• Do not expose the charger to water, moisture, or extreme temperatures.
• Do not disassemble or modify the charger. There are no user-serviceable parts inside. Refer to qualified service personnel for any repairs.
• Always unplug the charger from the power outlet before cleaning or when not in use.
• Ensure proper ventilation around the charger during operation to prevent overheating.
• Keep out of reach of children.
• If the LED lamp flickers or lights are not on when the output start voltage is lower than the output start voltage, or if the LED lamp flashes or the lamp is not on when the output cathode is short-circuited, discontinue use and consult support.

Setup

1. Unpack the Charger: Carefully remove the charger and its cables from the packaging.


   Image: The KAABO charger unit, showing the main power brick, the AC input cable (with US plug), and the DC output cable with its circular connector.

2. Connect the AC Power Cable: Insert the AC power cable into the charger's input port. Ensure it is firmly seated.

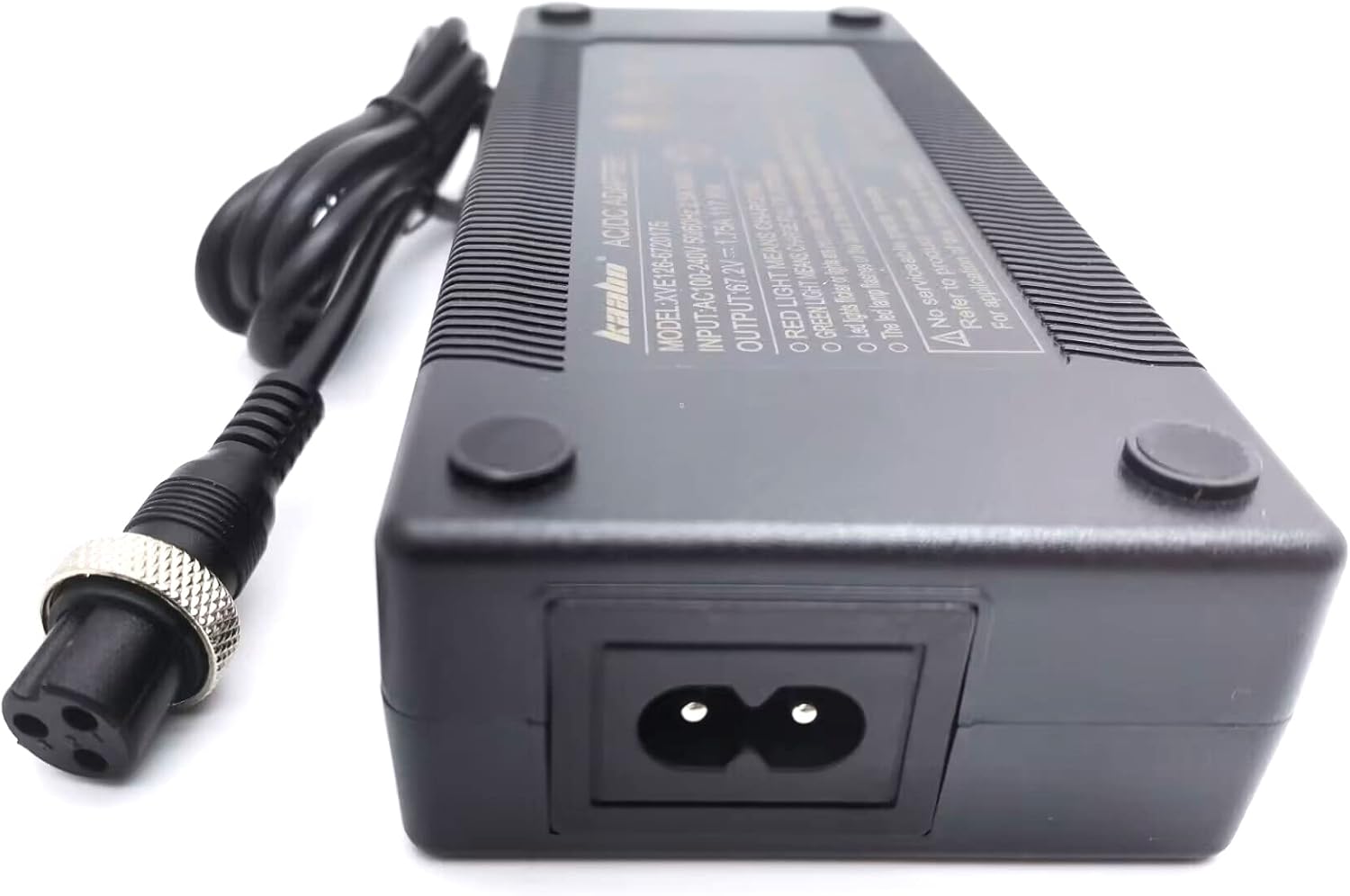

   Image: A view of the charger's rear, highlighting the standard AC power input port and the attached DC output cable with its threaded connector.

3. Identify Charger Specifications: Locate the product label on the bottom of the charger for detailed specifications.


   Image: The underside of the charger, displaying the product label with model number (XVE126-6720175), input/output specifications (AC100-240V, 2.5A MAX; OUTPUT: 67.2V, 1.75A, 117.6W), LED indicator meanings, and safety warnings.

Operating Instructions

1. Connect to Scooter: Plug the DC output connector of the charger into the charging port of your Kaabo Mantis 10 60V Electric Scooter. Ensure a secure connection.


   Image: The main charger unit with its integrated DC output cable, ready to be connected to the scooter's charging port.

2. Connect to Power Outlet: Plug the AC power cable into a standard wall outlet (AC 100-240V, 50/60Hz).
3. Charging Indicator:
   • RED LIGHT: Indicates the battery is currently charging.
   • GREEN LIGHT: Indicates the battery is fully charged or the charger is disconnected from the scooter.
4. Charging Time: Charging time will vary depending on the battery's current charge level. Refer to your scooter's manual for estimated charging times.
5. Disconnecting: Once charging is complete (green light), first unplug the charger from the wall outlet, then disconnect the charger from the scooter.

Maintenance

• Cleaning: Wipe the charger with a dry, soft cloth. Do not use liquid cleaners or solvents.
• Storage: Store the charger in a cool, dry place away from direct sunlight and moisture when not in use.
• Cable Care: Avoid bending or crimping the cables excessively. Do not place heavy objects on the cables.

Troubleshooting

For issues not listed here, or if solutions do not resolve the problem, please contact SPEDWHEL customer support.

Specifications

Warranty and Support

For warranty information or technical support, please contact the manufacturer, SPEDWHEL, or your point of purchase. Keep your purchase receipt as proof of purchase.

For general inquiries or assistance, you may refer to the seller's information on the product listing page or contact them directly.
