1. Introduction
This manual provides essential information for the safe and effective use of your YITAMOTOR 45-inch Pallet Forks Frame Attachment. This attachment is designed for heavy-duty tasks, offering a 3000 lbs capacity for various agricultural and construction applications. Please read this manual thoroughly before installation and operation to ensure proper handling and longevity of the product.
2. Safety Information
Always prioritize safety when operating heavy machinery and attachments. Failure to follow safety guidelines can result in serious injury or property damage.
- Read All Instructions: Familiarize yourself with this manual and your equipment's operator manual before use.
- Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses, gloves, and sturdy footwear.
- Weight Capacity: Do not exceed the maximum rated capacity of 3000 lbs for the pallet fork frame. Overloading can cause structural failure and instability.
- Secure Attachment: Ensure the frame is securely attached to your skid steer or tractor loader before operation. Regularly check all pins and connections.
- Stable Ground: Operate on level and stable ground whenever possible. Avoid uneven terrain or slopes that could cause tipping.
- Clear Area: Keep bystanders, especially children and pets, away from the work area.
- Load Stability: Ensure loads are balanced and securely placed on the forks. Avoid sudden movements that could dislodge the load.
- Visibility: Maintain clear visibility of the work area and the attachment.
- Maintenance: Perform regular inspections and maintenance as described in this manual. Do not operate damaged equipment.
3. Product Overview
The YITAMOTOR Pallet Forks Frame Attachment is constructed from high-strength alloy steel and stainless steel, featuring a powder-coated finish for enhanced durability and corrosion resistance. It is designed to integrate with various tractor implements, offering versatility for material handling, towing, and hay management.
Key Features:
- High Capacity: Rated for a maximum load of 3000 lbs.
- Durable Construction: Made from high-strength steel with a 6mm thickness and black sandblasted, anti-rust, anti-corrosion surface.
- Multi-functional Design: Includes slots for pallet forks, a 2-inch receiver hitch for towing, and three-point hay spear interfaces.
- Adjustable Fork Width: Provides an adjustable fork width from 17 to 37 inches (forks sold separately).
Components:
The frame attachment features several key interfaces for various applications:

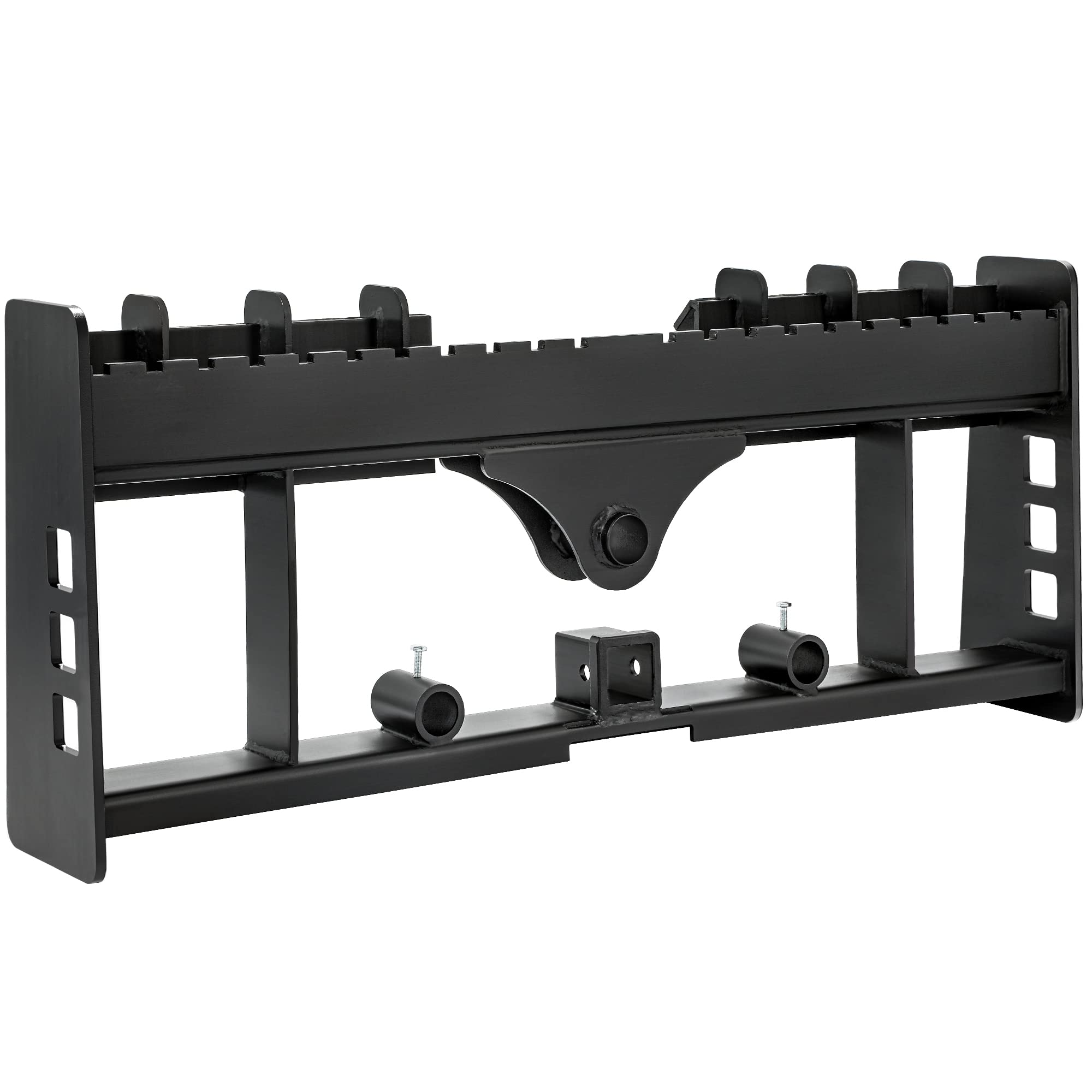

Image Description: This image displays a detailed view of the YITAMOTOR Pallet Forks Frame Attachment. It highlights the three main functional areas: the 'Three-point Hay Spear Interface' for attaching hay spears, the '2" Receiver' for towing hitches, and the 'Pallet Forks Slot' where pallet forks are inserted and secured.
- Pallet Forks Slots: Integrated slots for securing standard pallet forks.
- 2-inch Receiver Hitch: A standard receiver for attaching towing accessories.
- Three-point Hay Spear Interfaces: Designed for attaching hay spears for handling bales.
4. Setup and Installation
The YITAMOTOR Pallet Forks Frame Attachment is designed for straightforward installation on compatible equipment.
Compatibility:
This frame is suitable for skid steers, tractors, and loaders from brands such as Bobcat and Kubota. Note: It does not fit John Deere equipment unless specific John Deere loader mounting brackets are used.
Installation Steps:
- Prepare Equipment: Ensure your skid steer or tractor is turned off, parked on level ground, and the parking brake is engaged.
- Align Attachment: Position the pallet forks frame attachment in front of your loader's quick-attach system.
- Connect: Carefully align the attachment points of the frame with your loader's quick-attach mechanism. Engage the locking pins or levers to secure the frame.
- Install Forks/Accessories: Once the frame is securely attached, insert your pallet forks into the designated slots and secure them with the provided pins or locking mechanisms. If using a 2-inch receiver or hay spears, attach them as needed.
- Verify Security: Before operation, visually inspect all connection points to ensure the frame and any attached accessories are firmly in place.
Image Description: This image shows the YITAMOTOR Pallet Forks Frame Attachment mounted on the front of a tractor, demonstrating its ease of installation and readiness for agricultural tasks.
5. Operating Instructions
The YITAMOTOR Pallet Forks Frame Attachment offers versatile functionality for various tasks. Always operate within the specified weight limits and ensure proper load distribution.
General Operation:
- Load Capacity: Do not exceed the 3000 lbs capacity. Always consider the weight of the attachment itself when calculating total load.
- Visibility: Ensure a clear view of the load and surrounding area during operation.
- Smooth Movements: Avoid sudden acceleration, braking, or turns, especially with a raised or heavy load, to prevent instability.
- Lower Loads for Travel: Transport loads as low to the ground as safely possible to maintain stability.
Using Pallet Forks:
- Adjust the fork width to match the pallet or load.
- Approach the load slowly and carefully, ensuring the forks are level.
- Insert the forks fully under the load.
- Lift the load slowly and smoothly, ensuring it is stable before moving.
Image Description: This image illustrates a skid steer loader equipped with the YITAMOTOR Pallet Forks Frame Attachment, actively lifting a pallet of bricks. The image highlights the attachment's capability to handle heavy loads, with a visible text overlay indicating 'MAX 2500 LBS CAPACITY'.
Using the 2-inch Receiver Hitch:
The integrated 2-inch receiver allows for towing trailers or other implements. Ensure the hitch pin is securely inserted and any safety chains are properly connected.
Using Hay Spears:
Attach compatible hay spears to the three-point interfaces. Exercise caution when handling large hay bales, ensuring they are securely impaled and balanced before lifting and transporting.
Image Description: This image shows a telehandler utilizing the YITAMOTOR Pallet Forks Frame Attachment, fitted with hay spears, to efficiently lift and load a large round hay bale onto a flatbed trailer in an agricultural setting.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your YITAMOTOR Pallet Forks Frame Attachment.
- Cleaning: After each use, clean the attachment to remove dirt, debris, and corrosive materials.
- Inspection: Periodically inspect the frame for any signs of wear, cracks, bends, or damage, especially at weld points and connection areas.
- Fasteners: Check all bolts, pins, and locking mechanisms for tightness and security. Replace any worn or damaged fasteners immediately.
- Corrosion Protection: The black sandblasted surface provides anti-rust and anti-corrosion properties. If the coating is damaged, clean the area and apply a suitable rust-inhibiting paint to prevent corrosion.
- Storage: Store the attachment in a dry, protected area when not in use to prevent exposure to elements.
7. Troubleshooting
This section addresses common issues that may arise during the use of the pallet forks frame attachment.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hitch receiver too small for standard hitch. | Internal weld seam or manufacturing tolerance issue. | Carefully inspect the inside of the receiver. If a weld seam is present, it may need to be ground down slightly to allow the hitch to fit. If the issue persists, contact customer support. |
| Hitch pin hole not wide enough. | Manufacturing tolerance issue. | A step bit may be used to carefully enlarge the hole to the correct diameter for the hitch pin. Exercise caution to avoid over-drilling. If uncomfortable, seek professional assistance. |
| Attachment does not fit John Deere loaders. | Incompatibility with John Deere's standard quick-attach system. | This attachment is not designed for direct compatibility with John Deere loaders unless specific John Deere loader mounting brackets are used. Verify your loader's requirements. |
| Reduced lifting capacity or instability. | Overloading, improper attachment, or damaged components. | Ensure load does not exceed 3000 lbs. Verify the frame is securely attached to the loader. Inspect the frame and forks for any damage. |
8. Specifications
Detailed specifications for the YITAMOTOR Pallet Forks Frame Attachment.
Image Description: This diagram provides key dimensions of the YITAMOTOR Pallet Forks Frame Attachment. It shows an overall length of 45 inches, an overall height of 19 inches, and an overall width of 7 inches, along with other internal measurements.
| Attribute | Value |
|---|---|
| Manufacturer | YITAMOTOR |
| Model Number | Pallet Forks Frame Attachment |
| Item Weight | 106.9 pounds |
| Product Dimensions (Overall) | 47.52 x 20.28 x 7.87 inches |
| Overall Length | 45 inches |
| Overall Height | 19 inches |
| Overall Width | 7 inches |
| Adjustable Fork Width | 17 to 37 inches |
| Material | Alloy Steel, Stainless Steel |
| Finish | Powder Coated |
| Towing Capacity | 3000 lbs |
| Included Components | 45 inch pallet forks fork frame attachment |
9. Warranty Information
YITAMOTOR products typically come with a manufacturer's warranty. For specific details regarding the warranty period and coverage for your Pallet Forks Frame Attachment, please refer to the warranty documentation included with your purchase or contact YITAMOTOR customer support directly. Proof of purchase may be required for warranty claims.
10. Support
If you have any questions, require technical assistance, or need to report an issue with your YITAMOTOR Pallet Forks Frame Attachment, please contact YITAMOTOR customer support through their official website or the retailer from whom you purchased the product.
